Cloyes High Performance / 9-3145A-10
Part #: 9-3145A-10
UPC: 750385702616
Loading...
Notify me when this item is in stock.
Description: High Performance Timing Set
Description:
Description
HEX-A-JUST Allows for Infinite Valve Timing Adjustability of +/-6 Degrees to Tune for Maximum Engine Performance Output. One Piece Camshaft Sprocket Design Featuring a Billet Eccentric Camshaft Dowel Bushing. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter Chain for Reduced Friction. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 1991-1993 | Buick Commercial Chassis |
| 1991-1993 | Buick Roadmaster |
| 1990-1992 | Cadillac Brougham |
| 1992-1993 | Cadillac Commercial Chassis |
| 1993 | Cadillac Fleetwood |
| 1992-1998 | Chevrolet Astro |
| 1996-1998 | Chevrolet Blazer |
| 1992-1998 | Chevrolet C1500 |
| 1992-1995 | Chevrolet C2500 |
| 1985-1992 | Chevrolet Camaro |
| 1987-1993 | Chevrolet Caprice |
| 1991-1992 | Chevrolet Commercial Chassis |
| 1987-1991 | Chevrolet Corvette |
| 1996-1998 | Chevrolet Express 1500 |
| 1996-1998 | Chevrolet Express 2500 |
| 1992-1995 | Chevrolet G10 |
| 1992-1995 | Chevrolet G20 |
| 1992-1996 | Chevrolet G30 |
| 1992-1998 | Chevrolet K1500 |
| 1992-1995 | Chevrolet K2500 |
| 1992-1998 | Chevrolet P30 |
| 1992-1998 | Chevrolet S10 |
| 1992-1994 | Chevrolet S10 Blazer |
| 1988-1995 | GMC C1500 |
| 1988-1995 | GMC C2500 |
| 1987 | GMC Caballero |
| 1987-1995 | GMC G1500 |
| 1987-1995 | GMC G2500 |
| 1987-1995 | GMC G3500 |
| 1992-1995 | GMC Jimmy |
| 1988-1995 | GMC K1500 |
| 1988-1995 | GMC K2500 |
| 1990-1995 | GMC P3500 |
| 1987 | GMC R1500 |
| 1987 | GMC R2500 |
| 1988-1990 | GMC S15 |
| 1988-1991 | GMC S15 Jimmy |
| 1987-1994 | GMC Safari |
| 1991-1995 | GMC Sonoma |
| 1991 | GMC Syclone |
| 1992-1993 | GMC Typhoon |
| 1987 | GMC V1500 |
| 1991-1992 | Oldsmobile Custom Cruiser |
| 1987-1992 | Pontiac Firebird |
| 1987 | Pontiac Grand Prix |
Specifications
- GTIN
- 00750385702616
- Weight
- 3.57 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Steel
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy 305-350
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 6
- Maximum Retard At Camshaft
- 6
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Double Roller
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1993 Buick Commercial Chassis; 1991-1993 Buick Roadmaster; 1990-1992 Cadillac Brougham; 1992-1993 Cadillac Commercial Chassis; 1993 Cadillac Fleetwood; 1992-1998 Chevrolet Astro; 1996-1998 Chevrolet Blazer; 1992-1998 Chevrolet C1500; 1992-1995 Chevrolet C2500; 1985-1992 Chevrolet Camaro; 1987-1993 Chevrolet Caprice; 1991-1992 Chevrolet Commercial Chassis; 1987-1991 Chevrolet Corvette; 1996-1998 Chevrolet Express 1500; 1996-1998 Chevrolet Express 2500; 1992-1995 Chevrolet G10; 1992-1995 Chevrolet G20; 1992-1996 Chevrolet G30; 1992-1998 Chevrolet K1500; 1992-1995 Chevrolet K2500; 1992-1998 Chevrolet P30; 1992-1998 Chevrolet S10; 1992-1994 Chevrolet S10 Blazer; 1988-1995 GMC C1500; 1988-1995 GMC C2500; 1987 GMC Caballero; 1987-1995 GMC G1500; 1987-1995 GMC G2500; 1987-1995 GMC G3500; 1992-1995 GMC Jimmy; 1988-1995 GMC K1500; 1988-1995 GMC K2500; 1990-1995 GMC P3500; 1987 GMC R1500; 1987 GMC R2500; 1988-1990 GMC S15; 1988-1991 GMC S15 Jimmy; 1987-1994 GMC Safari; 1991-1995 GMC Sonoma; 1991 GMC Syclone; 1992-1993 GMC Typhoon; 1987 GMC V1500; 1991-1992 Oldsmobile Custom Cruiser; 1987-1992 Pontiac Firebird; 1987 Pontiac Grand Prix

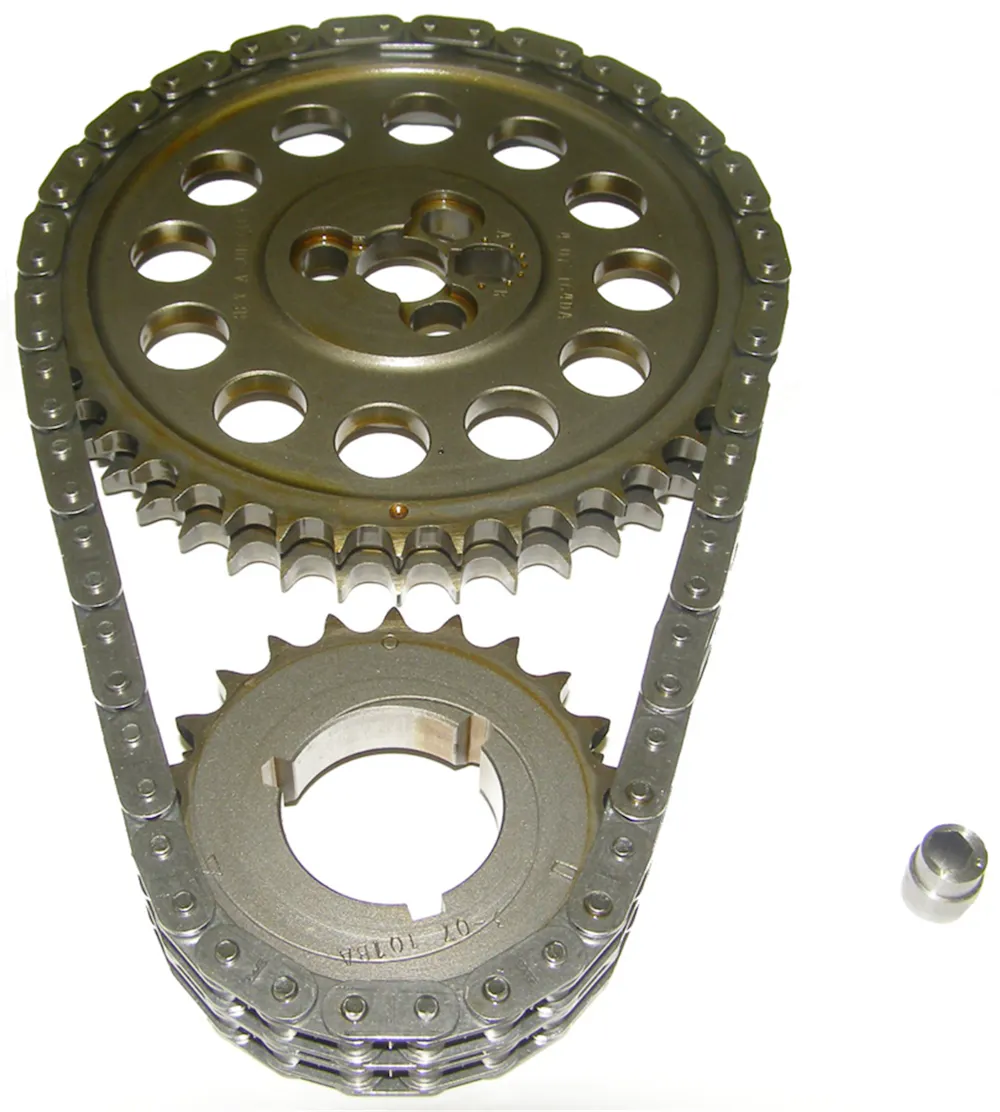

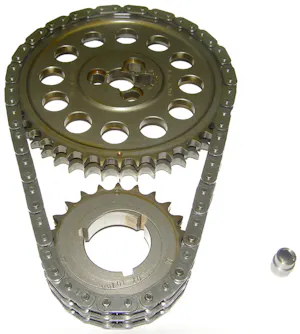

Cloyes High Performance 9-3145A-10
