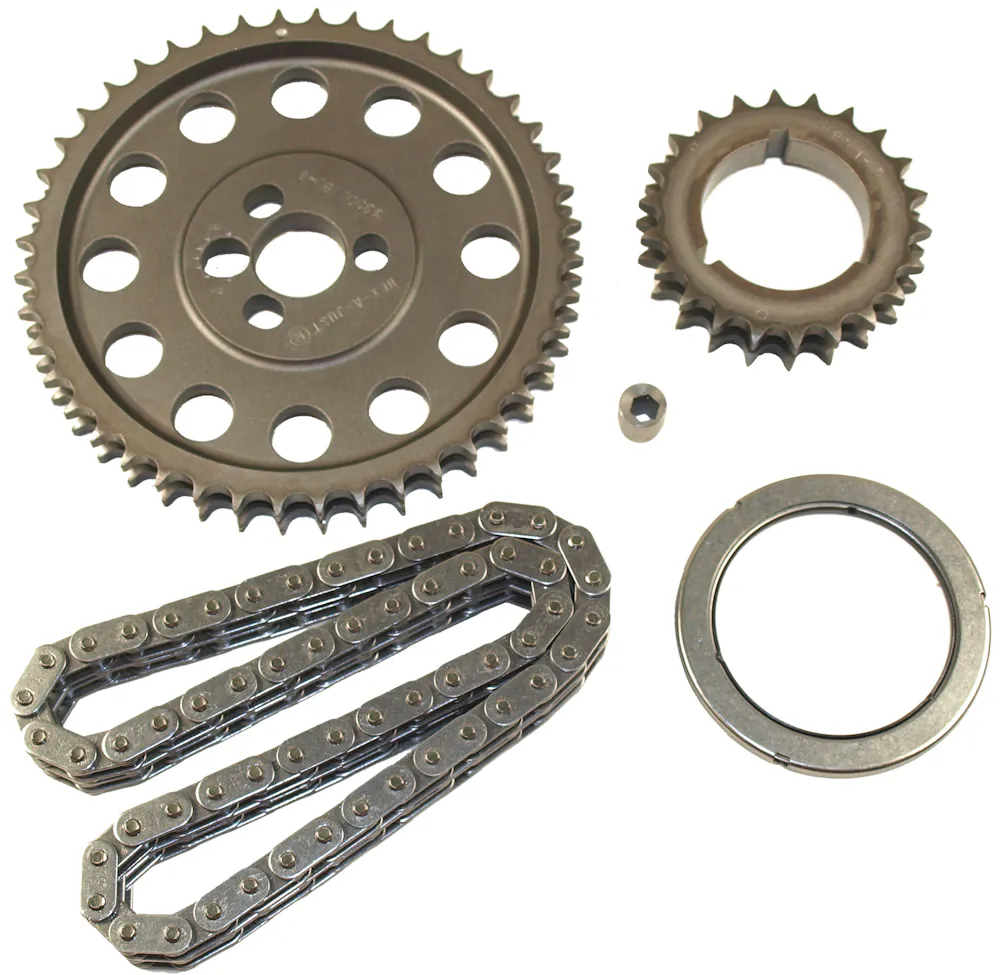

Cloyes High Performance / 9-3100BZ
Part #: 9-3100BZ
UPC: 750385817822
Loading...
Notify me when this item is in stock.
Description: High Performance Timing Set
Description:
Description
HEX-A-JUST Allows for Infinite Valve Timing Adjustability of +/-6 Degrees to Tune for Maximum Engine Performance Output. One Piece Camshaft Sprocket Design Featuring a Billet Eccentric Camshaft Dowel Bushing. Both Billet Steel Sprockets are Heat Treated for Durability. TRUE Roller 0.250" Roller Diameter "Z" Chain for Reduced Friction. "Z" Chain Approximately 33% Overall Increased Strength Over the Standard High Performance Chain. "Z" Chain Featuring a Press Fit Center Link design that Increases Load Distribution with Heat Treated and Processed Links to Maximize Ultimate Breaking Strength while Remaining Ductile for Toughness and Pre-Stressed to Increase Fatigue Life. Includes Captured Needle Camshaft Sprocket Thrust Bearing to Minimize Block Thrust Surface Friction. 3-Piece Sets Hand-Matched to Qualify the Correct Center Distance and Minimize Runout.
Features & benefits
- The complete kits, which meet or exceed OEM performance requirements, ensure a quiet and maintenance-free experience
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes Timing Kits may include camshaft sprockets, crankshaft sprockets, timing chains, tensioners, and guides
- Refer to our online catalog for detailed application-specific information
- Keep your engine's valve train in perfect time with Cloyes, the world leader in timing drive systems.
Application summary
| Year | Make / model |
|---|---|
| 1986 | Chevrolet Astro |
| 1955-1975 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1973 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1976-1986 | Chevrolet C10 |
| 1961-1973 | Chevrolet C10 Pickup |
| 1968-1973 | Chevrolet C10 Suburban |
| 1977-1986 | Chevrolet C10 Suburban |
| 1976-1986 | Chevrolet C20 |
| 1961-1973 | Chevrolet C20 Pickup |
| 1968-1973 | Chevrolet C20 Suburban |
| 1976-1986 | Chevrolet C20 Suburban |
| 1976-1980 | Chevrolet C30 |
| 1983 | Chevrolet C30 |
| 1961-1973 | Chevrolet C30 Pickup |
| 1967-1984 | Chevrolet Camaro |
| 1966-1984 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1955-1971 | Chevrolet Corvette |
| 1976-1980 | Chevrolet Corvette |
| 1958 | Chevrolet Del Ray |
| 1964-1984 | Chevrolet El Camino |
| 1976-1986 | Chevrolet G10 |
| 1968-1973 | Chevrolet G10 Van |
| 1975-1986 | Chevrolet G20 |
| 1968-1969 | Chevrolet G20 Van |
| 1975-1980 | Chevrolet G30 |
| 1982-1986 | Chevrolet G30 |
| 1959-1984 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1961-1969 | Chevrolet K10 Pickup |
| 1968-1973 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1961-1969 | Chevrolet K20 Pickup |
| 1968-1973 | Chevrolet K20 Suburban |
| 1975-1981 | Chevrolet K20 Suburban |
| 1983-1986 | Chevrolet K20 Suburban |
| 1977-1980 | Chevrolet K30 |
| 1982 | Chevrolet K30 |
| 1985 | Chevrolet K30 |
| 1968-1973 | Chevrolet K30 Pickup |
| 1975-1986 | Chevrolet K5 Blazer |
| 1969-1972 | Chevrolet Kingswood |
| 1975 | Chevrolet Malibu |
| 1978-1983 | Chevrolet Malibu |
| 1970-1984 | Chevrolet Monte Carlo |
| 1975-1976 | Chevrolet Monza |
| 1979 | Chevrolet Monza |
| 1970-1979 | Chevrolet Nova |
| 1957 | Chevrolet One-Fifty Series |
| 1977-1978 | Chevrolet P10 |
| 1962 | Chevrolet P10 Series |
| 1976-1979 | Chevrolet P20 |
| 1961-1962 | Chevrolet P20 Series |
| 1968-1969 | Chevrolet P20 Van |
| 1976-1980 | Chevrolet P30 |
| 1961-1962 | Chevrolet P30 Series |
| 1968-1969 | Chevrolet P30 Van |
| 1972 | Chevrolet P30 Van |
| 1961-1966 | Chevrolet Suburban |
| 1969-1972 | Chevrolet Townsman |
| 1956-1958 | Chevrolet Truck |
| 1960 | Chevrolet Truck |
| 1957 | Chevrolet Two-Ten Series |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1967-1974 | GMC C15/C1500 Pickup |
Specifications
- GTIN
- 00750385817822
- Weight
- 3.41 lb
- Height
- 2 in
- Length
- 7.5 in
- Width
- 7.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Camshaft Sprocket Material
- Steel
- Crankshaft Sprocket Material
- Steel
- Engine Make/Size
- Chevy Small Block
- Grade Type
- Performance
- Keyway Adjustable
- Yes
- Maximum Advance At Camshaft
- 6
- Maximum Retard At Camshaft
- 6
- Roller
- Yes
- Sprockets Included
- Yes
- Tensioner Included
- No
- Timing Chain Type
- Double Roller
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986 Chevrolet Astro; 1955-1975 Chevrolet Bel Air; 1958-1972 Chevrolet Biscayne; 1969-1973 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1976-1986 Chevrolet C10; 1961-1973 Chevrolet C10 Pickup; 1968-1973 Chevrolet C10 Suburban; 1977-1986 Chevrolet C10 Suburban; 1976-1986 Chevrolet C20; 1961-1973 Chevrolet C20 Pickup; 1968-1973 Chevrolet C20 Suburban; 1976-1986 Chevrolet C20 Suburban; 1976-1980 Chevrolet C30; 1983 Chevrolet C30; 1961-1973 Chevrolet C30 Pickup; 1967-1984 Chevrolet Camaro; 1966-1984 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1963-1968 Chevrolet Chevy II; 1955-1971 Chevrolet Corvette; 1976-1980 Chevrolet Corvette; 1958 Chevrolet Del Ray; 1964-1984 Chevrolet El Camino; 1976-1986 Chevrolet G10; 1968-1973 Chevrolet G10 Van; 1975-1986 Chevrolet G20; 1968-1969 Chevrolet G20 Van; 1975-1980 Chevrolet G30; 1982-1986 Chevrolet G30; 1959-1984 Chevrolet Impala; 1975-1986 Chevrolet K10; 1961-1969 Chevrolet K10 Pickup; 1968-1973 Chevrolet K10 Suburban; 1975-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K20; 1961-1969 Chevrolet K20 Pickup; 1968-1973 Chevrolet K20 Suburban; 1975-1981 Chevrolet K20 Suburban; 1983-1986 Chevrolet K20 Suburban; 1977-1980 Chevrolet K30; 1982 Chevrolet K30; 1985 Chevrolet K30; 1968-1973 Chevrolet K30 Pickup; 1975-1986 Chevrolet K5 Blazer; 1969-1972 Chevrolet Kingswood; 1975 Chevrolet Malibu; 1978-1983 Chevrolet Malibu; 1970-1984 Chevrolet Monte Carlo; 1975-1976 Chevrolet Monza; 1979 Chevrolet Monza; 1970-1979 Chevrolet Nova; 1957 Chevrolet One-Fifty Series; 1977-1978 Chevrolet P10; 1962 Chevrolet P10 Series; 1976-1979 Chevrolet P20; 1961-1962 Chevrolet P20 Series; 1968-1969 Chevrolet P20 Van; 1976-1980 Chevrolet P30; 1961-1962 Chevrolet P30 Series; 1968-1969 Chevrolet P30 Van; 1972 Chevrolet P30 Van; 1961-1966 Chevrolet Suburban; 1969-1972 Chevrolet Townsman; 1956-1958 Chevrolet Truck; 1960 Chevrolet Truck; 1957 Chevrolet Two-Ten Series; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; ...
