Cloyes High Performance / 9-131
Part #: 9-131
UPC: 750385700100
Loading...
Notify me when this item is in stock.
Description: High Performance Timing Chain
Description:
Description
High Performance 3/8" Pitch Double Roller Replacement TRUE Roller Chain. 0.250" Roller Diameter. Heat Treated and Processed Links to Maximize Ultimate Breaking Strength while Remaining Ductile for Toughness. Pre-Stressed to Increase Fatigue Life. 0.005" and 0.010" Reduced Length Chains Available, to Order Add -5 or -10 to the End of this Part Number
Features & benefits
- A timing chain synchronizes the rotation of the crankshaft and camshaft(s), ensuring proper timing of the engines valve events for each cylinder
- Our chains are engineered and manufactured with precision pitch control for proper chain-to-sprocket tooth fitment
- From stock replacement to high performance, Cloyes has the most complete timing chain catalog
- Cloyes parts are CAD designed and manufactured using premium materials. Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance
- Cloyes recommends the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced as these components play a vital role in system stability and accurate timing
- Refer to our online catalog for detailed application-specific information
- Keep your engines valvetrain in perfect time with Cloyes, the world leader in timing drive systems
Application summary
| Year | Make / model |
|---|---|
| 2004-2007 | Buick Rainier |
| 2006-2007 | Cadillac CTS |
| 2002-2006 | Cadillac Escalade |
| 1986 | Chevrolet Astro |
| 2007 | Chevrolet Avalanche |
| 2002-2006 | Chevrolet Avalanche 1500 |
| 1955-1975 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1969-1973 | Chevrolet Blazer |
| 1969-1972 | Chevrolet Brookwood |
| 1976-1986 | Chevrolet C10 |
| 1961-1973 | Chevrolet C10 Pickup |
| 1968-1973 | Chevrolet C10 Suburban |
| 1977-1986 | Chevrolet C10 Suburban |
| 1976-1986 | Chevrolet C20 |
| 1961-1973 | Chevrolet C20 Pickup |
| 1968-1973 | Chevrolet C20 Suburban |
| 1976-1986 | Chevrolet C20 Suburban |
| 1976-1980 | Chevrolet C30 |
| 1983 | Chevrolet C30 |
| 1961-1973 | Chevrolet C30 Pickup |
| 1967-1984 | Chevrolet Camaro |
| 1998-2002 | Chevrolet Camaro |
| 1966-1984 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1963-1968 | Chevrolet Chevy II |
| 1955-1971 | Chevrolet Corvette |
| 1976-1980 | Chevrolet Corvette |
| 1997-2007 | Chevrolet Corvette |
| 1958 | Chevrolet Del Ray |
| 1964-1984 | Chevrolet El Camino |
| 2003-2007 | Chevrolet Express 1500 |
| 2003-2007 | Chevrolet Express 2500 |
| 2003-2007 | Chevrolet Express 3500 |
| 1976-1986 | Chevrolet G10 |
| 1968-1973 | Chevrolet G10 Van |
| 1975-1986 | Chevrolet G20 |
| 1968-1969 | Chevrolet G20 Van |
| 1975-1980 | Chevrolet G30 |
| 1982-1986 | Chevrolet G30 |
| 1959-1984 | Chevrolet Impala |
| 2006-2007 | Chevrolet Impala |
| 1975-1986 | Chevrolet K10 |
| 1961-1969 | Chevrolet K10 Pickup |
| 1968-1973 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K10 Suburban |
| 1975-1986 | Chevrolet K20 |
| 1961-1969 | Chevrolet K20 Pickup |
| 1968-1973 | Chevrolet K20 Suburban |
| 1975-1981 | Chevrolet K20 Suburban |
| 1983-1986 | Chevrolet K20 Suburban |
| 1977-1980 | Chevrolet K30 |
| 1982 | Chevrolet K30 |
| 1985 | Chevrolet K30 |
| 1968-1973 | Chevrolet K30 Pickup |
| 1975-1986 | Chevrolet K5 Blazer |
| 1969-1972 | Chevrolet Kingswood |
| 1975 | Chevrolet Malibu |
| 1978-1983 | Chevrolet Malibu |
| 1970-1984 | Chevrolet Monte Carlo |
| 2006-2007 | Chevrolet Monte Carlo |
| 1975-1976 | Chevrolet Monza |
| 1979 | Chevrolet Monza |
| 1970-1979 | Chevrolet Nova |
| 1957 | Chevrolet One-Fifty Series |
| 1977-1978 | Chevrolet P10 |
| 1962 | Chevrolet P10 Series |
| 1976-1979 | Chevrolet P20 |
| 1961-1962 | Chevrolet P20 Series |
Specifications
- GTIN
- 00750385700100
- Weight
- 1.09 lb
- Height
- 1.75 in
- Length
- 4.5 in
- Width
- 4.5 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CLO
- Warehouse brand code
- JFPT
- AAIA brand code
- JFPT
Attributes
- California Proposition 65
- WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
- Chain Length
- 11.25
- Chain Material
- Steel
- Chain Pitch
- 0.375
- Chain Type
- Double Roller
- Chain Width
- 0.925
- Link Quantity
- 60
- Pitch
- 3/8 In.
- Rollers
- Double
- Row Quantity
- 2
- Timing Mark Quantity
- 0
- Timing Marks
- No
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2004-2007 Buick Rainier; 2006-2007 Cadillac CTS; 2002-2006 Cadillac Escalade; 1986 Chevrolet Astro; 2007 Chevrolet Avalanche; 2002-2006 Chevrolet Avalanche 1500; 1955-1975 Chevrolet Bel Air; 1958-1972 Chevrolet Biscayne; 1969-1973 Chevrolet Blazer; 1969-1972 Chevrolet Brookwood; 1976-1986 Chevrolet C10; 1961-1973 Chevrolet C10 Pickup; 1968-1973 Chevrolet C10 Suburban; 1977-1986 Chevrolet C10 Suburban; 1976-1986 Chevrolet C20; 1961-1973 Chevrolet C20 Pickup; 1968-1973 Chevrolet C20 Suburban; 1976-1986 Chevrolet C20 Suburban; 1976-1980 Chevrolet C30; 1983 Chevrolet C30; 1961-1973 Chevrolet C30 Pickup; 1967-1984 Chevrolet Camaro; 1998-2002 Chevrolet Camaro; 1966-1984 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1963-1968 Chevrolet Chevy II; 1955-1971 Chevrolet Corvette; 1976-1980 Chevrolet Corvette; 1997-2007 Chevrolet Corvette; 1958 Chevrolet Del Ray; 1964-1984 Chevrolet El Camino; 2003-2007 Chevrolet Express 1500; 2003-2007 Chevrolet Express 2500; 2003-2007 Chevrolet Express 3500; 1976-1986 Chevrolet G10; 1968-1973 Chevrolet G10 Van; 1975-1986 Chevrolet G20; 1968-1969 Chevrolet G20 Van; 1975-1980 Chevrolet G30; 1982-1986 Chevrolet G30; 1959-1984 Chevrolet Impala; 2006-2007 Chevrolet Impala; 1975-1986 Chevrolet K10; 1961-1969 Chevrolet K10 Pickup; 1968-1973 Chevrolet K10 Suburban; 1975-1986 Chevrolet K10 Suburban; 1975-1986 Chevrolet K20; 1961-1969 Chevrolet K20 Pickup; 1968-1973 Chevrolet K20 Suburban; 1975-1981 Chevrolet K20 Suburban; 1983-1986 Chevrolet K20 Suburban; 1977-1980 Chevrolet K30; 1982 Chevrolet K30; 1985 Chevrolet K30; 1968-1973 Chevrolet K30 Pickup; 1975-1986 Chevrolet K5 Blazer; 1969-1972 Chevrolet Kingswood; 1975 Chevrolet Malibu; 1978-1983 Chevrolet Malibu; 1970-1984 Chevrolet Monte Carlo; 2006-2007 Chevrolet Monte Carlo; 1975-1976 Chevrolet Monza; 1979 Chevrolet Monza; 1970-1979 Chevrolet Nova; 1957 Chevrolet One-Fifty Series; 1977-1978 Chevrolet P10; 1962 Chevrolet P10 Series; 1976-1979 Chevrolet P20; 1961-1962 Chevrolet P20 Series; ...

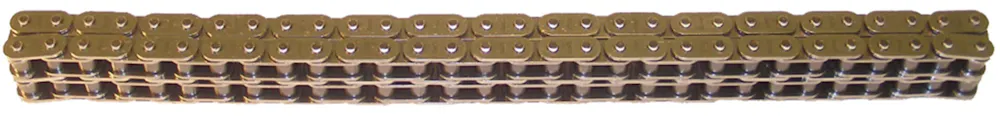

Cloyes High Performance 9-131
