Clevite · MS-970AL
Part #: MS-970AL
UPC: 027067546456
Log in for inventory
Notify me when this item is in stock.

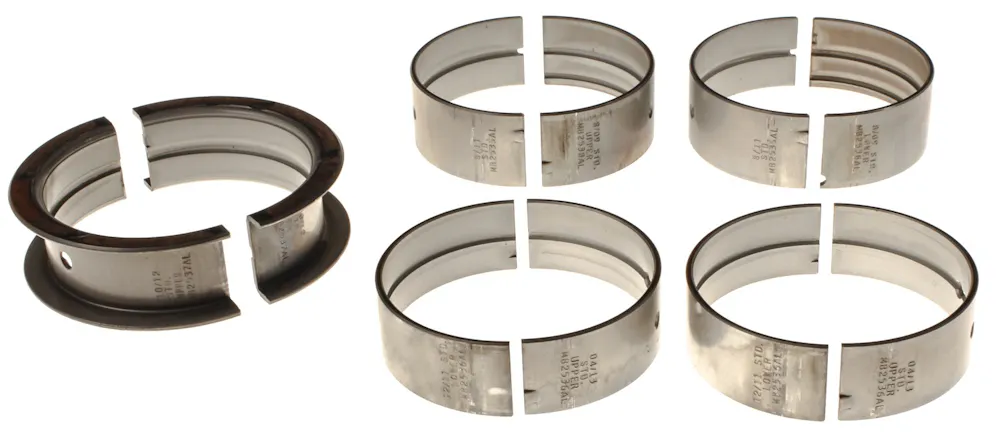

Description: Engine Crankshaft Main Bearing Set
Description:
Description
Carrying on a tradition of durability and dependability, Clevite Bi-Metal (aluminum) engine bearings feature 100% lead-free aluminum silicon. Engineered with 60% more silicon than comparable competitive replacements, they provide better conditioning of journal surfaces. This results in greater seizure and wear resistance.
Application summary
| Year | Make / model |
|---|---|
| 1968-1976 | Cadillac Calais |
| 1968-1984 | Cadillac Commercial Chassis |
| 1968-1981 | Cadillac DeVille |
| 1968-1978 | Cadillac Eldorado |
| 1980-1981 | Cadillac Eldorado |
| 1968-1984 | Cadillac Fleetwood |
| 1980-1981 | Cadillac Seville |
Specifications
- GTIN
- 00027067546456
- Weight
- 1.8 lb
- Height
- 2 in
- Length
- 7 in
- Width
- 4.13 in
- Life cycle
- Available to Order
- Alt. part number
- MS970AL
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- MS970AL
- Bearing Item Grade
- OE Replacement
- Bearing Material
- TM-77
- Bearing O.D. or Housing Bore (max.)
- MB2535A=3.4390in MB2536A=3.4390in MB-2537A(F)=3.4390in MB2538A=3.4390in
- Bearing O.D. or Housing Bore (min.)
- MB2535A=3.4383in MB2536A=3.4383in MB-2537A(F)=3.4383in MB2538A=3.4383in
- Bearing Series
- A
- California Proposition 65
- No
- Max. Wall
- MB2535A=0.0940in MB2536A=0.0940in MB-2537A(F)=0.0940in MB2538A=0.0940in
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Size
- Standard
- Standard Shaft Diameter (max.)
- MB2535A=3.2500in MB2536A=3.2500in MB-2537A(F)=3.2500in MB2538A=3.2500in
- Standard Shaft Diameter (min.)
- MB2535A=3.2490in MB2536A=3.2490in MB-2537A(F)=3.2490in MB2538A=3.2490in
- Vertical Oil Clearance (max.)
- MB2535A=0.0033in MB2536A=0.0033in MB-2537A(F)=0.0033in MB2538A=0.0033in
- Vertical Oil Clearance (min.)
- MB2535A=0.0006in MB2536A=0.0006in MB-2537A(F)=0.0006in MB2538A=0.0006in
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1976 Cadillac Calais; 1968-1984 Cadillac Commercial Chassis; 1968-1981 Cadillac DeVille; 1968-1978 Cadillac Eldorado; 1980-1981 Cadillac Eldorado; 1968-1984 Cadillac Fleetwood; 1980-1981 Cadillac Seville
