Clevite · CB-1920H
Part #: CB-1920H
UPC: 027067889485
Log in for inventory
Notify me when this item is in stock.
Description: Engine Connecting Rod Bearing Pair
Description:
Description
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Application summary
| Year | Make / model |
|---|---|
| 2003-2006 | Pontiac Vibe |
| 2000-2005 | Toyota Celica |
| 2005-2006 | Toyota Corolla |
| 2003-2006 | Toyota Matrix |
Specifications
- GTIN
- 00027067889485
- Weight
- 0.08 lb
- Height
- 1.25 in
- Length
- 1.88 in
- Width
- 2.63 in
- Life cycle
- Available to Order
- Alt. part number
- CB1920H
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- CB1920H
- Bearing Item Grade
- High Performance
- Bearing Material
- AL-3
- Bearing O.D. or Housing Bore (max.)
- 1.8898
- Bearing O.D. or Housing Bore (min.)
- 1.8898
- Bearing Series
- H
- California Proposition 65
- No
- Max. Wall
- 0.0588
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Size
- Standard
- Standard Shaft Diameter (max.)
- 1.7717
- Standard Shaft Diameter (min.)
- 1.7713
- Vertical Oil Clearance (max.)
- 0.0024
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2003-2006 Pontiac Vibe; 2000-2005 Toyota Celica; 2005-2006 Toyota Corolla; 2003-2006 Toyota Matrix
Resources

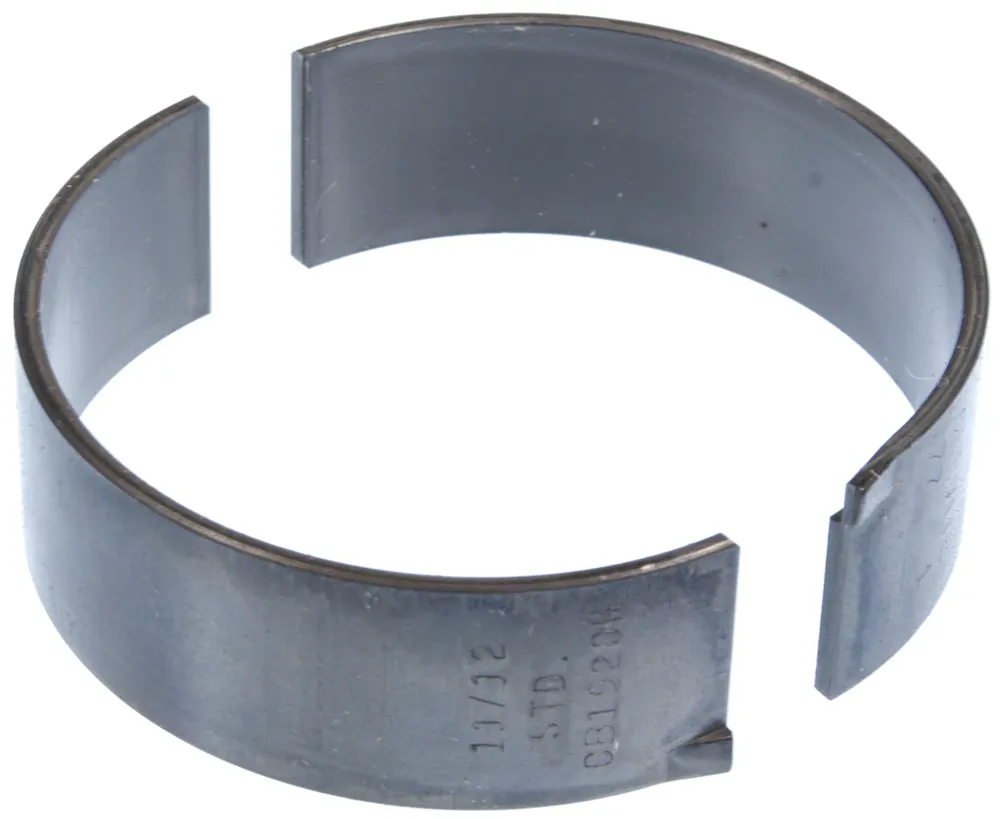

Clevite CB-1920H
