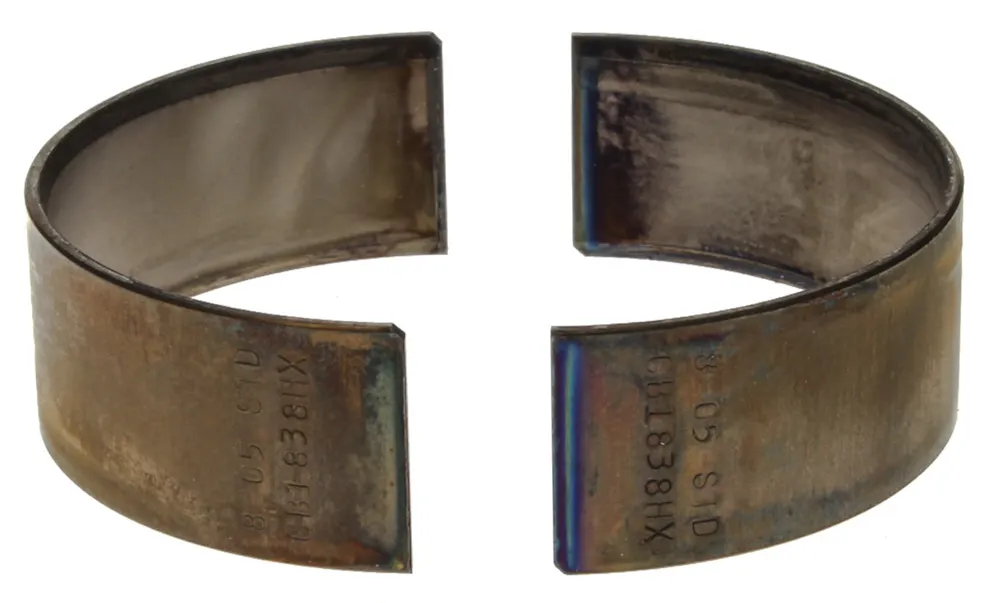

Clevite · CB-1838HX
Part #: CB-1838HX
UPC: 027067462008
Log in for inventory
Notify me when this item is in stock.
Description: Engine Connecting Rod Bearing Pair
Description:
Description
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Application summary
| Year | Make / model |
|---|---|
| 2005-2008 | Ford Escape |
| 2003-2007 | Ford Focus |
| 2006-2009 | Ford Fusion |
| 2001-2011 | Ford Ranger |
| 2004-2008 | Mazda 3 |
| 2006-2008 | Mazda 5 |
| 2003-2008 | Mazda 6 |
| 2001-2009 | Mazda B2300 |
| 2005-2006 | Mazda Tribute |
| 2008 | Mazda Tribute |
| 2005-2008 | Mercury Mariner |
| 2006-2009 | Mercury Milan |
Specifications
- GTIN
- 00027067462008
- Weight
- 0.09 lb
- Height
- 1.25 in
- Length
- 1.88 in
- Width
- 2.63 in
- Life cycle
- Available to Order
- Alt. part number
- CB1838HX
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- CB1838HX
- Bearing Item Grade
- High Performance
- Bearing Material
- TM-77
- Bearing O.D. or Housing Bore (max.)
- 2.0883
- Bearing O.D. or Housing Bore (min.)
- 2.0875
- Bearing Series
- H
- California Proposition 65
- No
- Max. Length
- 0.6653
- Max. Wall
- 0.0593
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Size
- Standard
- Standard Shaft Diameter (max.)
- 1.9685
- Standard Shaft Diameter (min.)
- 1.9677
- Unit of Measure
- Inches
- Vertical Oil Clearance (max.)
- 0.0030
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2005-2008 Ford Escape; 2003-2007 Ford Focus; 2006-2009 Ford Fusion; 2001-2011 Ford Ranger; 2004-2008 Mazda 3; 2006-2008 Mazda 5; 2003-2008 Mazda 6; 2001-2009 Mazda B2300; 2005-2006 Mazda Tribute; 2008 Mazda Tribute; 2005-2008 Mercury Mariner; 2006-2009 Mercury Milan
