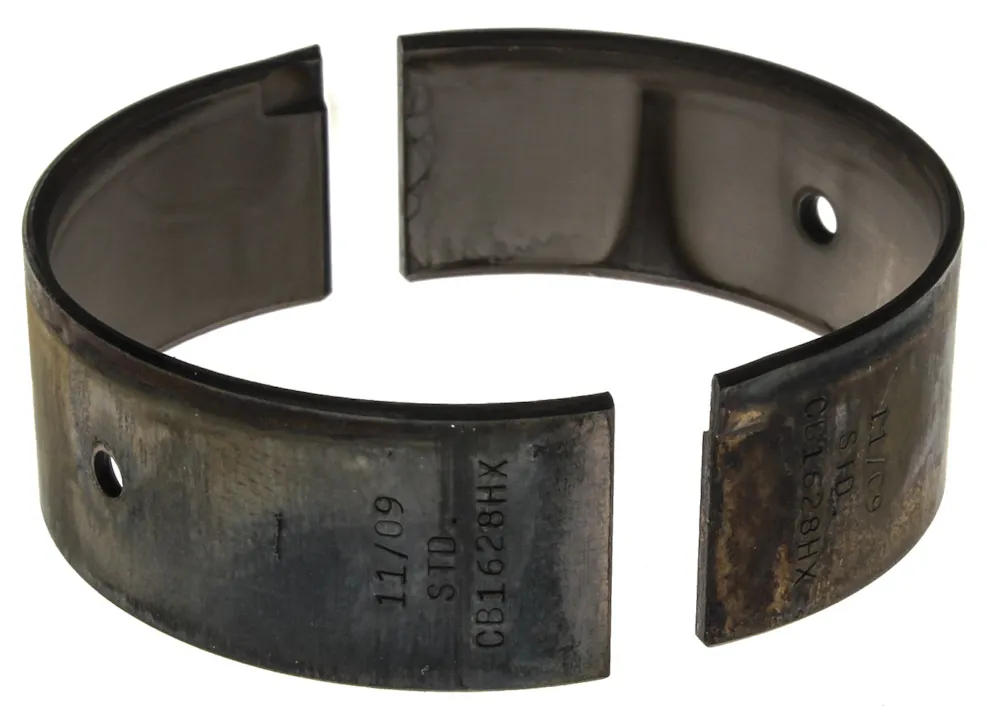

Clevite · CB-1628HX
Part #: CB-1628HX
UPC: 027067397157
Log in for inventory
Notify me when this item is in stock.
Description: Engine Connecting Rod Bearing Pair
Description:
Description
Clevite H-Series performance bearings have a medium level of eccentricity, high crush, and a hardened steel back and thin overlay. These bearings are made without flash plating for better seating. Use H-Series bearings with crankshafts that have oversize fillets and where engines run in the medium to high RPM range.
Application summary
| Year | Make / model |
|---|---|
| 1993-2005 | Lexus GS300 |
| 2001-2005 | Lexus IS300 |
| 1992-2000 | Lexus SC300 |
| 1993-1998 | Toyota Supra |
Specifications
- GTIN
- 00027067397157
- Weight
- 0.1 lb
- Height
- 1.25 in
- Length
- 1.88 in
- Width
- 2.63 in
- Life cycle
- Available to Order
- Alt. part number
- CB1628HX
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- CB1628HX
- Bearing Item Grade
- High Performance
- Bearing Material
- TM-77
- Bearing O.D. or Housing Bore (max.)
- 2.1670
- Bearing O.D. or Housing Bore (min.)
- 2.1663
- Bearing Series
- H
- California Proposition 65
- No
- Max. Length
- 0.7600
- Max. Wall
- 0.0590
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Size
- Standard
- Standard Shaft Diameter (max.)
- 2.0472
- Standard Shaft Diameter (min.)
- 2.0465
- Unit of Measure
- Inches
- Vertical Oil Clearance (max.)
- 0.0031
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1993-2005 Lexus GS300; 2001-2005 Lexus IS300; 1992-2000 Lexus SC300; 1993-1998 Toyota Supra
