Clevite · 223-3665
Part #: 223-3665
UPC: 027067654335
Loading...
Notify me when this item is in stock.

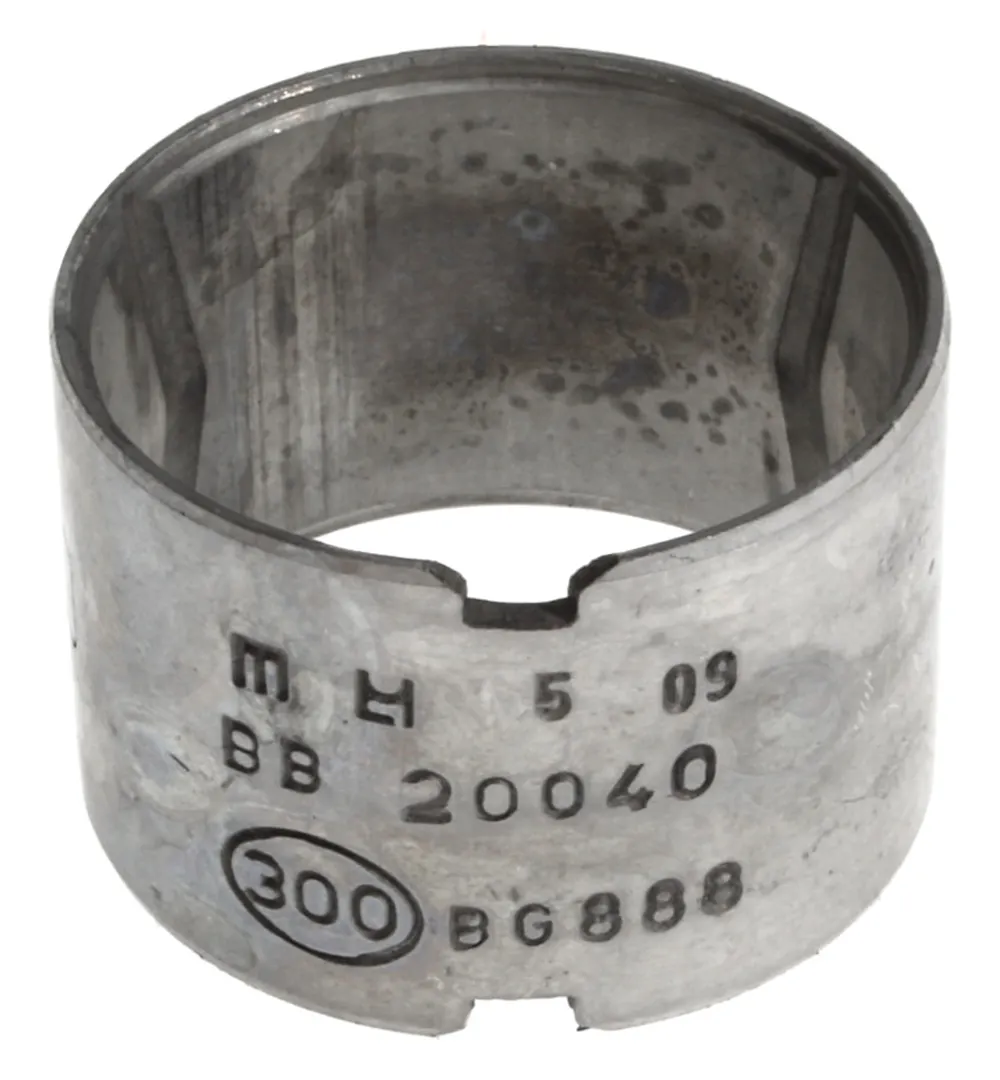

Description: Engine Piston Pin Bushing
Description:
Description
Clevite replacement pin bushings are designed for small-end con rod applications using bronze bushings from the factory. They may be solid bronze or steel backed bronze depending on the application
Application summary
| Year | Make / model |
|---|---|
| 2003-2006 | Dodge Sprinter 2500 |
| 2003-2006 | Dodge Sprinter 3500 |
| 2002 | Freightliner Sprinter 2500 |
| 2002 | Freightliner Sprinter 3500 |
| 2004-2006 | Mercedes-Benz Sprinter |
Specifications
- GTIN
- 00027067654335
- Weight
- 0.06 lb
- Height
- 0.75 in
- Length
- 1.25 in
- Width
- 1.25 in
- Life cycle
- Available to Order
- Alt. part number
- 2233665
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- 2233665
- Bearing Install Type
- Requires Light Reaming
- Bearing Material
- C-1
- Bearing O.D. or Housing Bore (max.)
- 32.5250
- Bearing O.D. or Housing Bore (min.)
- 32.5000
- California Proposition 65
- No
- Max. Length
- 21.9000
- Max. Wall
- 1.6400
- Standard Shaft Diameter (max.)
- 30.0000
- Standard Shaft Diameter (min.)
- 29.9950
- Unit of Measure
- Millimeters
- Vertical Oil Clearance (max.)
- 2.9000
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2003-2006 Dodge Sprinter 2500; 2003-2006 Dodge Sprinter 3500; 2002 Freightliner Sprinter 2500; 2002 Freightliner Sprinter 3500; 2004-2006 Mercedes-Benz Sprinter
