Clevite · 223-3653
Part #: 223-3653
UPC: 027067024329
Log in for inventory
Notify me when this item is in stock.

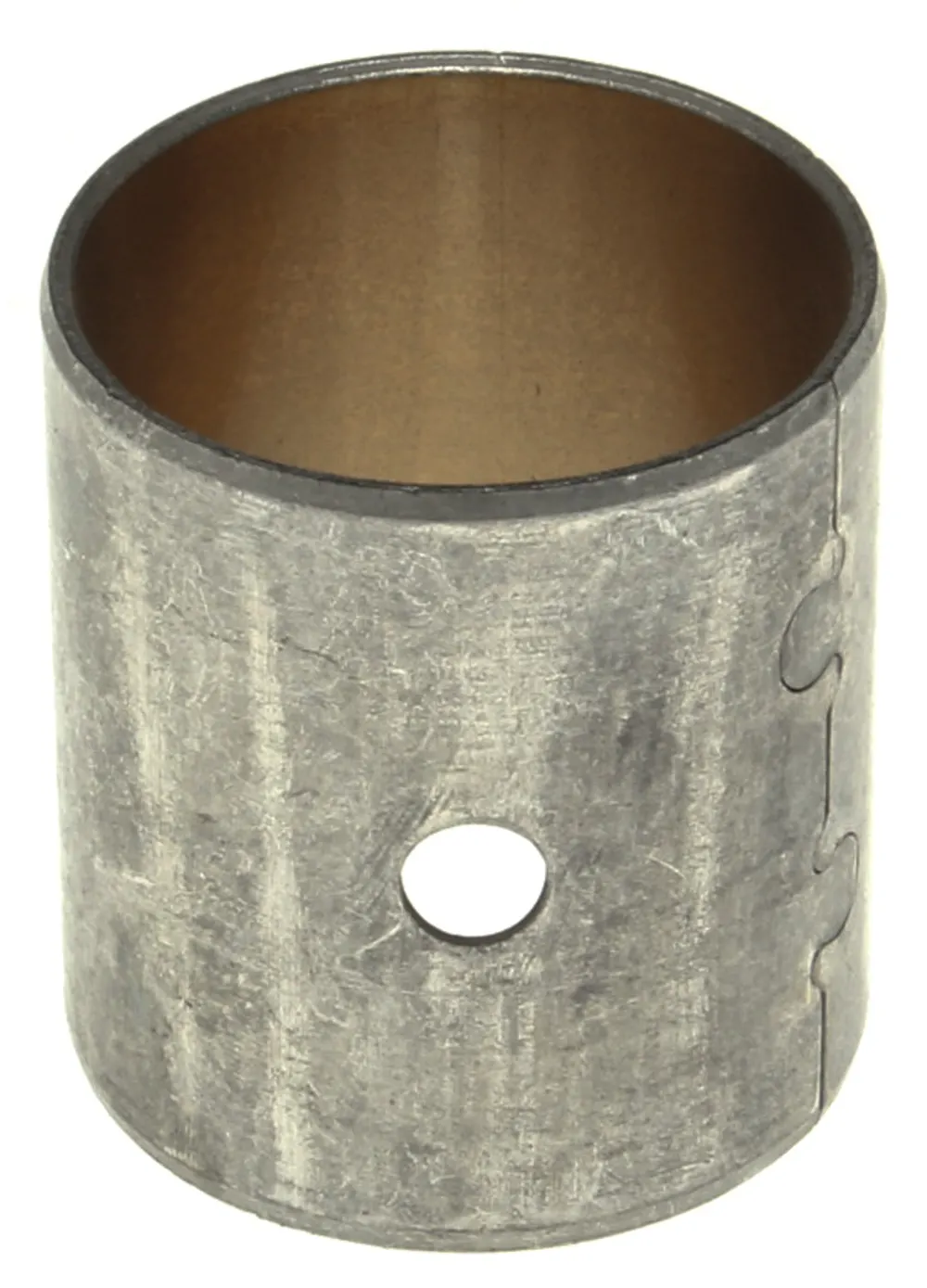

Description: Engine Piston Pin Bushing
Description:
Description
Clevite replacement pin bushings are designed for small-end con rod applications using bronze bushings from the factory. They may be solid bronze or steel backed bronze depending on the application
Application summary
| Year | Make / model |
|---|---|
| 1987-2001 | Toyota Camry |
| 1987-1999 | Toyota Celica |
| 1991-1995 | Toyota MR2 |
| 1999-2001 | Toyota Solara |
Specifications
- GTIN
- 00027067024329
- Weight
- 0.03 lb
- Height
- 0.75 in
- Length
- 1 in
- Width
- 0.75 in
- Life cycle
- Obsolete
- Alt. part number
- 2233653
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- 2233653
- Bearing Material
- B
- Bearing O.D. or Housing Bore (min.)
- 0.9448
- California Proposition 65
- No
- Max. Length
- 1.0433
- Max. Wall
- 0.0407
- Standard Shaft Diameter (min.)
- 1.8661
- Unit of Measure
- Inches
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1987-2001 Toyota Camry; 1987-1999 Toyota Celica; 1991-1995 Toyota MR2; 1999-2001 Toyota Solara
Resources
Equivalent Parts
Clevite 223-3653
