Clevite / 223-3512
Part #: 223-3512
UPC: 725975180259
Loading...
Notify me when this item is in stock.

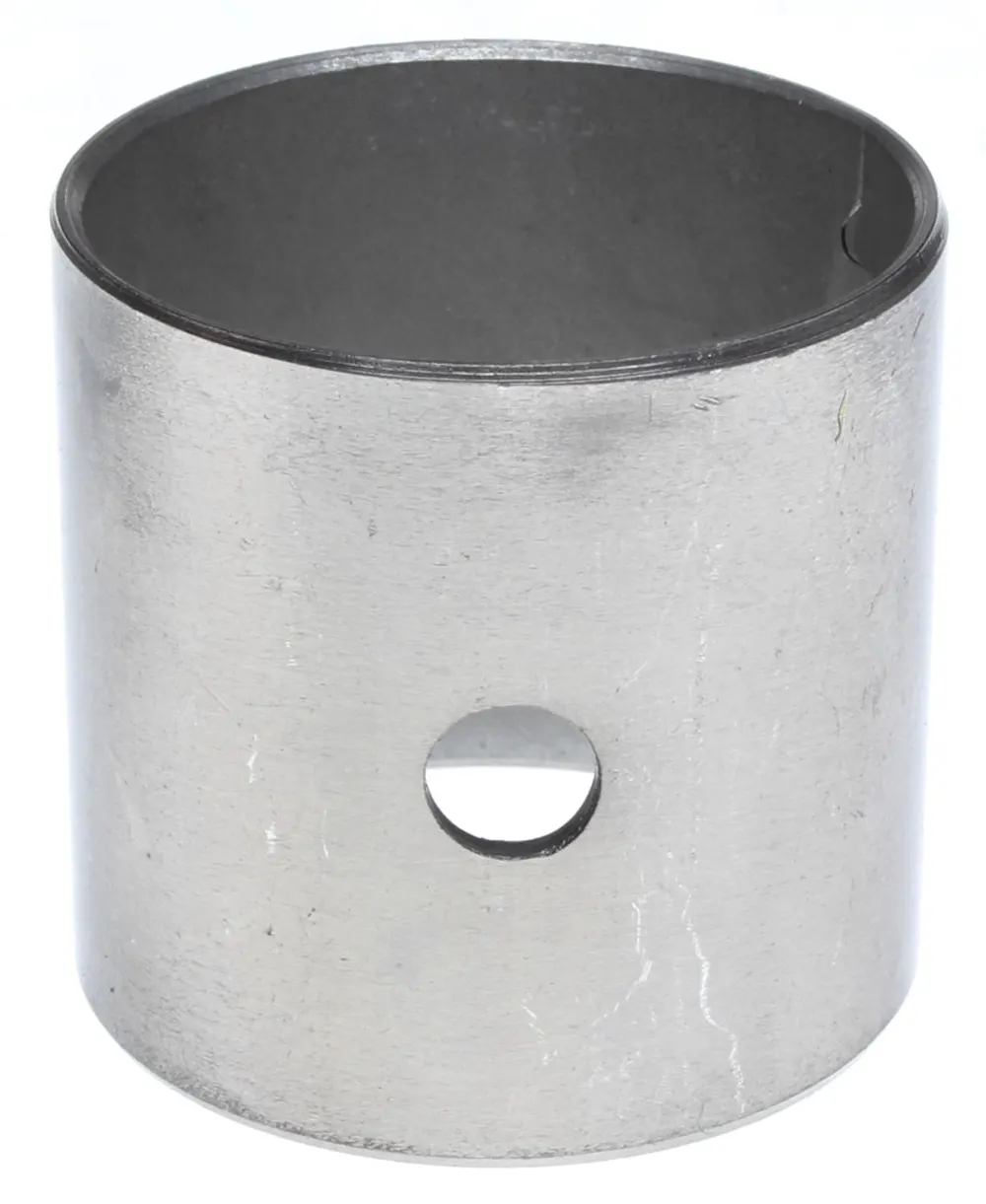

Description: Engine Piston Pin Bushing
Description:
Description
Clevite replacement pin bushings are designed for small-end con rod applications using bronze bushings from the factory. They may be solid bronze or steel backed bronze depending on the application
Application summary
| Year | Make / model |
|---|---|
| 1966 | GMC 1000 |
| 1960-1965 | GMC 1000 Series |
| 1960-1965 | GMC 1500 Series |
| 1960-1965 | GMC 2500 Series |
| 1960-1966 | GMC 3000 |
| 1960-1966 | GMC 3500 |
| 1964-1965 | GMC B3500 |
| 1967-1969 | GMC C15/C1500 Pickup |
| 1967-1969 | GMC C15/C1500 Suburban |
| 1967-1969 | GMC C25/C2500 Pickup |
| 1967-1969 | GMC C25/C2500 Suburban |
| 1967-1969 | GMC C35/C3500 Pickup |
| 1966 | GMC K1000 |
| 1966 | GMC K1000 Pickup |
| 1966-1969 | GMC K15/K1500 Pickup |
| 1967-1969 | GMC K15/K1500 Suburban |
| 1967-1969 | GMC K25/K2500 Pickup |
| 1967-1969 | GMC K25/K2500 Suburban |
| 1968-1969 | GMC K35/K3500 Pickup |
| 1965-1967 | GMC L3500 |
| 1965 | GMC PB1500 Series |
| 1965 | GMC PB2500 Series |
| 1960-1966 | GMC Suburban |
| 1960 | GMC Truck |
| 1960-1962 | GMC V3000 Forward Control |
Specifications
- GTIN
- 00725975180259
- Weight
- 0.07 lb
- Height
- 1.31 in
- Length
- 1.29 in
- Width
- 1.31 in
- Life cycle
- Obsolete
- Alt. part number
- 2233512
- AAM brand code
- CLE
- Warehouse brand code
- BCWD
- AAIA brand code
- BCWD
Attributes
- Alternate Part Number
- 2233512
- Bearing Install Type
- Requires Boring
- Bearing Material
- C-1
- Bearing O.D. or Housing Bore (max.)
- 1.3135
- Bearing O.D. or Housing Bore (min.)
- 1.3125
- California Proposition 65
- No
- Max. Length
- 1.2920
- Max. Wall
- 0.0450
- Meets or Exceeds Original Equipment Manufacture Specifications
- Yes
- Unit of Measure
- Inches
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 GMC 1000; 1960-1965 GMC 1000 Series; 1960-1965 GMC 1500 Series; 1960-1965 GMC 2500 Series; 1960-1966 GMC 3000; 1960-1966 GMC 3500; 1964-1965 GMC B3500; 1967-1969 GMC C15/C1500 Pickup; 1967-1969 GMC C15/C1500 Suburban; 1967-1969 GMC C25/C2500 Pickup; 1967-1969 GMC C25/C2500 Suburban; 1967-1969 GMC C35/C3500 Pickup; 1966 GMC K1000; 1966 GMC K1000 Pickup; 1966-1969 GMC K15/K1500 Pickup; 1967-1969 GMC K15/K1500 Suburban; 1967-1969 GMC K25/K2500 Pickup; 1967-1969 GMC K25/K2500 Suburban; 1968-1969 GMC K35/K3500 Pickup; 1965-1967 GMC L3500; 1965 GMC PB1500 Series; 1965 GMC PB2500 Series; 1960-1966 GMC Suburban; 1960 GMC Truck; 1960-1962 GMC V3000 Forward Control
Resources
Equivalent Parts
Clevite 223-3512
