Centerforce · LM735552
Part #: LM735552
UPC: 788442023671
Log in for inventory
Notify me when this item is in stock.

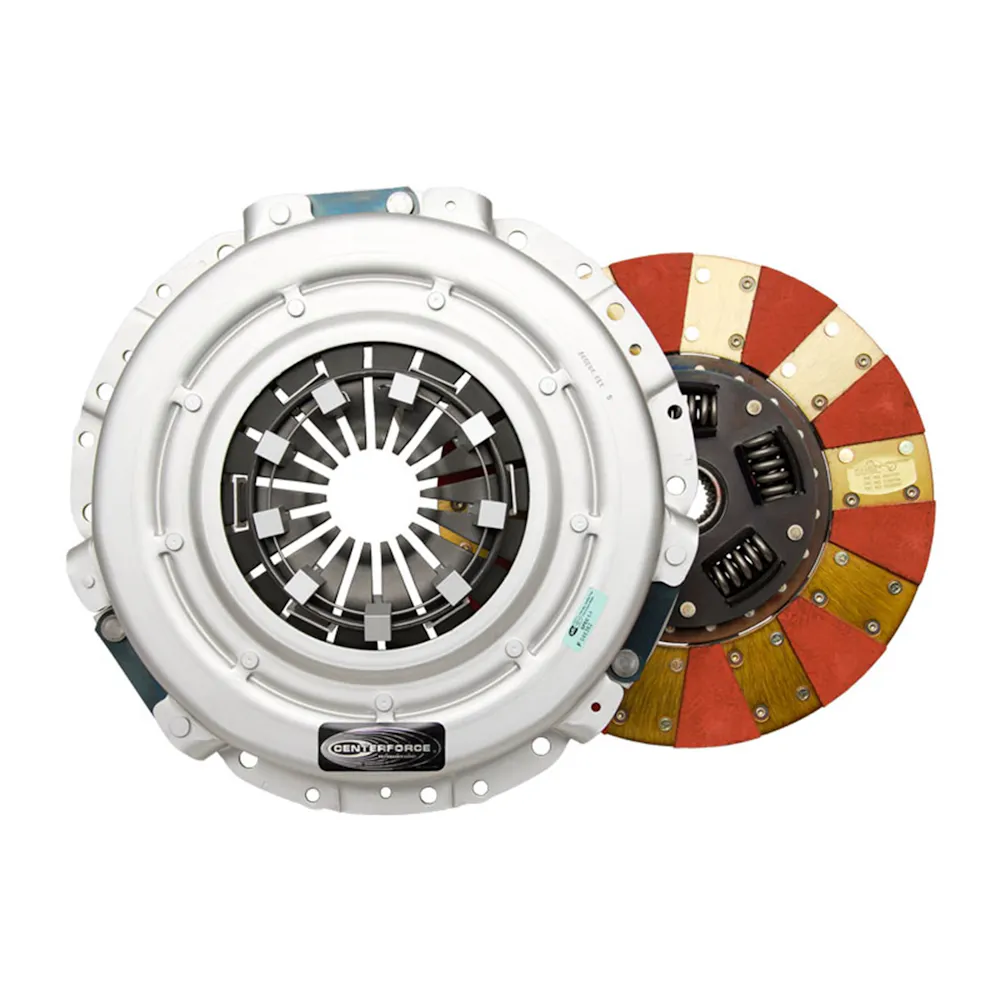

Description: Light Metal, Clutch Pressure Plate and Disc Set; The Centerforce(R) LMC Clutch Series is machined from billet aluminum and designed for low inertia, dramatically reducing engine rotating mass.
Description:
Description
The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Application summary
| Year | Make / model |
|---|---|
| 1966 | Buick Electra |
| 1966-1968 | Buick Skylark |
| 1970 | Buick Skylark |
| 1966-1972 | Chevrolet Bel Air |
| 1965-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1975-1984 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1980 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C20 |
| 1968-1982 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C30 |
| 1962-1967 | Chevrolet C30 Pickup |
| 1967-1970 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1967-1969 | Chevrolet Chevelle |
| 1972 | Chevrolet Chevelle |
| 1966-1971 | Chevrolet Corvette |
| 1966-1970 | Chevrolet El Camino |
| 1972 | Chevrolet El Camino |
| 1965-1972 | Chevrolet Impala |
| 1975-1982 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1979 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K20 |
| 1968-1982 | Chevrolet K20 Suburban |
| 1977-1984 | Chevrolet K30 |
| 1975-1982 | Chevrolet K5 Blazer |
| 1970 | Chevrolet Monte Carlo |
| 1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1984 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1984 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1984 | GMC C3500 |
| 1970-1984 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979-1984 | GMC K1500 |
| 1979-1980 | GMC K1500 Suburban |
| 1982 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1984 | GMC K2500 |
| 1979-1982 | GMC K2500 Suburban |
| 1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979-1984 | GMC K3500 |
| 1971-1972 | GMC Sprint |
| 1968-1971 | Jeep J-100 |
| 1969-1971 | Jeep J-2500 |
| 1969-1971 | Jeep J-2600 |
| 1969-1970 | Jeep J-2700 |
| 1969-1970 | Jeep J-3600 |
| 1969-1970 | Jeep J-3700 |
| 1969-1971 | Jeep J-3800 |
| 1970 | Jeep J-4500 |
Specifications
- GTIN
- 00788442023671
- Weight
- 23.65 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- Flat
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Aluminum Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 11
- Replaceable Friction Surface
- Y
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Light Metal, Light Weight Clutch Pressure Plate and Disc Set, 750 ft/lbs Capacity, 11in Dia., 10-Spline, Fits - Cars and Trucks 6/8 Cyl
- Torque Capacity
- 750
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 Buick Electra; 1966-1968 Buick Skylark; 1970 Buick Skylark; 1966-1972 Chevrolet Bel Air; 1965-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1975-1984 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1968-1974 Chevrolet C10 Suburban; 1977-1980 Chevrolet C10 Suburban; 1975-1984 Chevrolet C20; 1968-1982 Chevrolet C20 Suburban; 1975-1984 Chevrolet C30; 1962-1967 Chevrolet C30 Pickup; 1967-1970 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1967-1969 Chevrolet Chevelle; 1972 Chevrolet Chevelle; 1966-1971 Chevrolet Corvette; 1966-1970 Chevrolet El Camino; 1972 Chevrolet El Camino; 1965-1972 Chevrolet Impala; 1975-1982 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1979 Chevrolet K10 Suburban; 1975-1984 Chevrolet K20; 1968-1982 Chevrolet K20 Suburban; 1977-1984 Chevrolet K30; 1975-1982 Chevrolet K5 Blazer; 1970 Chevrolet Monte Carlo; 1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1984 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1984 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979-1984 GMC C3500; 1970-1984 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1968-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979-1984 GMC K1500; 1979-1980 GMC K1500 Suburban; 1982 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1968-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1984 GMC K2500; 1979-1982 GMC K2500 Suburban; 1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979-1984 GMC K3500; 1971-1972 GMC Sprint; 1968-1971 Jeep J-100; 1969-1971 Jeep J-2500; 1969-1971 Jeep J-2600; 1969-1970 Jeep J-2700; 1969-1970 Jeep J-3600; 1969-1970 Jeep J-3700; 1969-1971 Jeep J-3800; 1970 Jeep J-4500; ...
