Centerforce · LM360010
Part #: LM360010
UPC: 788442023367
Log in for inventory
Notify me when this item is in stock.

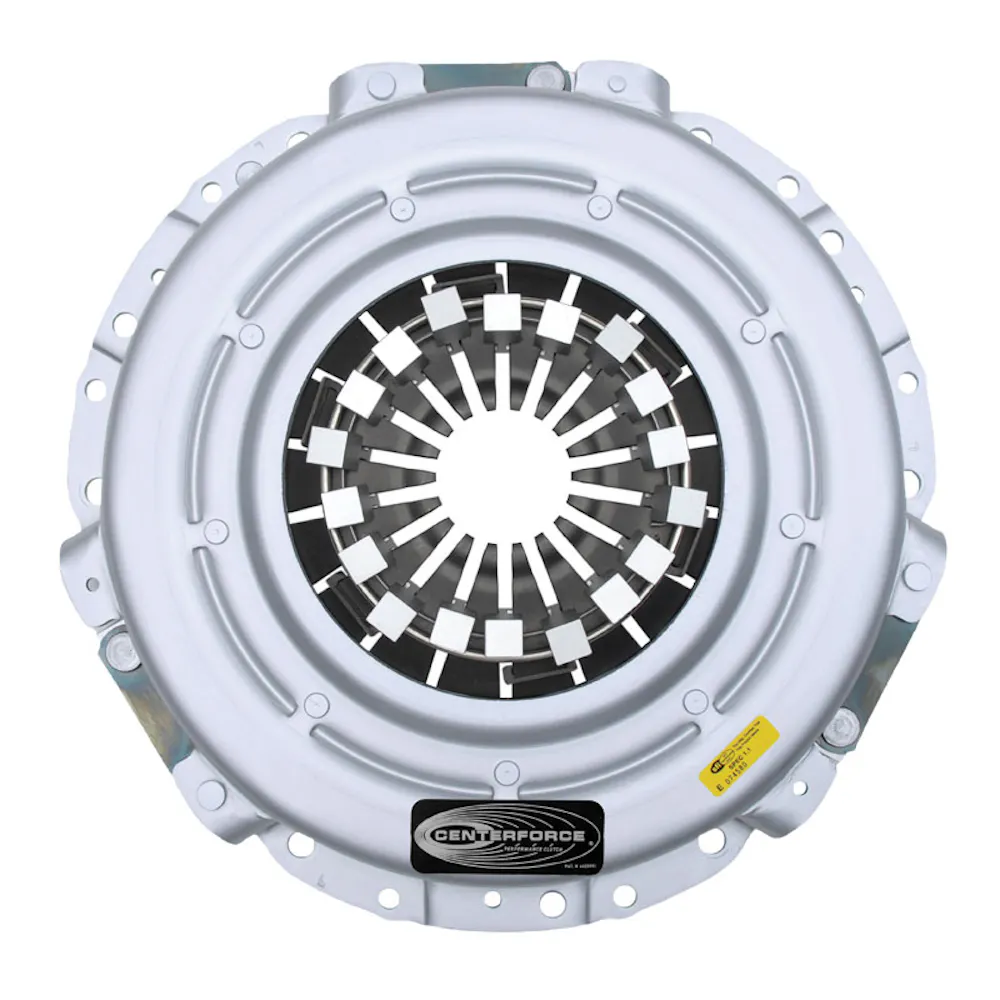

Description: Light Metal, Clutch Pressure Plate; The Centerforce(R) LMC Clutch Series is machined from billet aluminum and designed for low inertia, dramatically reducing engine rotating mass.
Description:
Description
The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Application summary
| Year | Make / model |
|---|---|
| 1998-2002 | Chevrolet Camaro |
| 2010-2015 | Chevrolet Camaro |
| 1997-2013 | Chevrolet Corvette |
| 1998-2002 | Pontiac Firebird |
| 2004-2006 | Pontiac GTO |
Specifications
- GTIN
- 00788442023367
- Weight
- 18.8 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 14
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Flywheel Deck Height
- 2.09
- Includes
- Pressure Plate
- Made In The USA
- Assembled
- Material
- Aluminum Pressure Plate
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 18
- Outside Diameter of Friction Surface (Standard)
- 11
- Replaceable Friction Surface
- Y
- SFI 1.1 Approved
- Y
- Title
- Centerforce Light Metal, Light Weight Clutch Pressure Plate, 18 lbs, 725 ft/lbs Capacity, 11in Dia., Fits Chevrolet/Pontiac Cars 8 Cyl
- Torque Capacity
- 725
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1998-2002 Chevrolet Camaro; 2010-2015 Chevrolet Camaro; 1997-2013 Chevrolet Corvette; 1998-2002 Pontiac Firebird; 2004-2006 Pontiac GTO
