Centerforce · LM271675
Part #: LM271675
UPC: 788442023664
Log in for inventory
Notify me when this item is in stock.

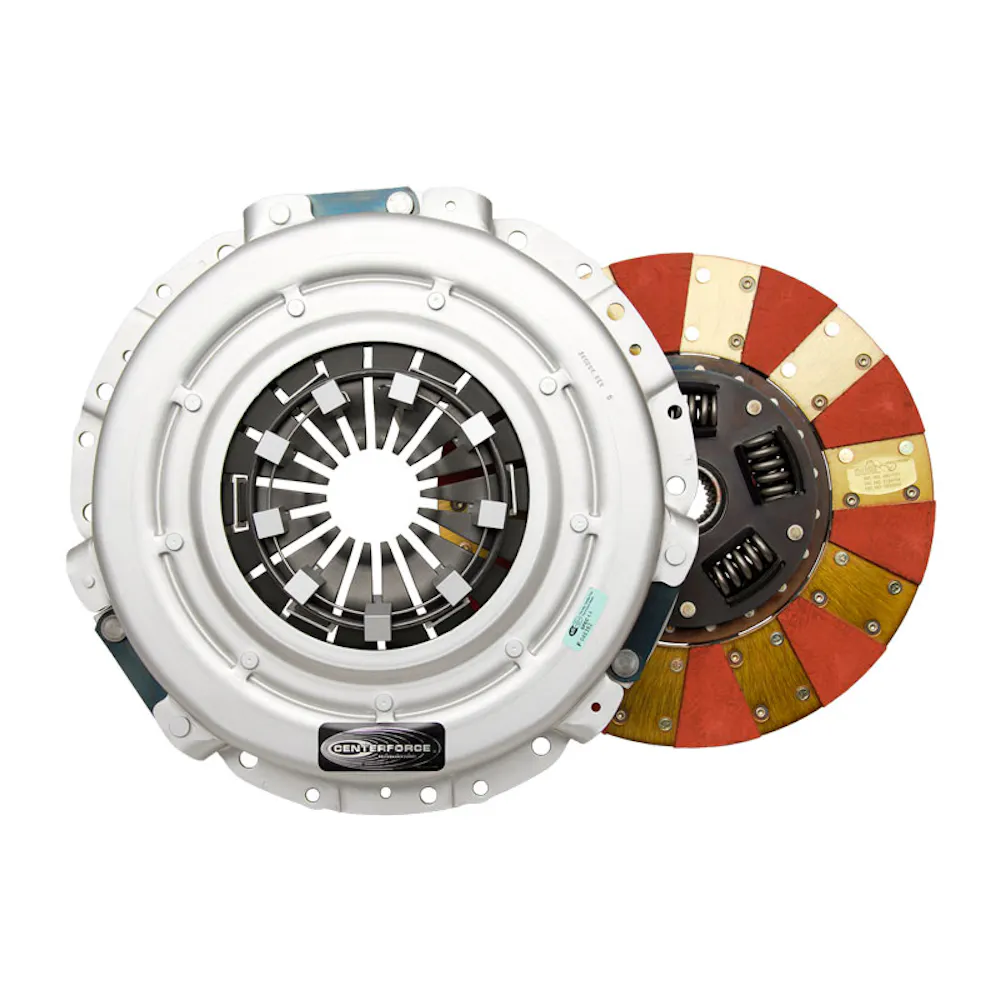

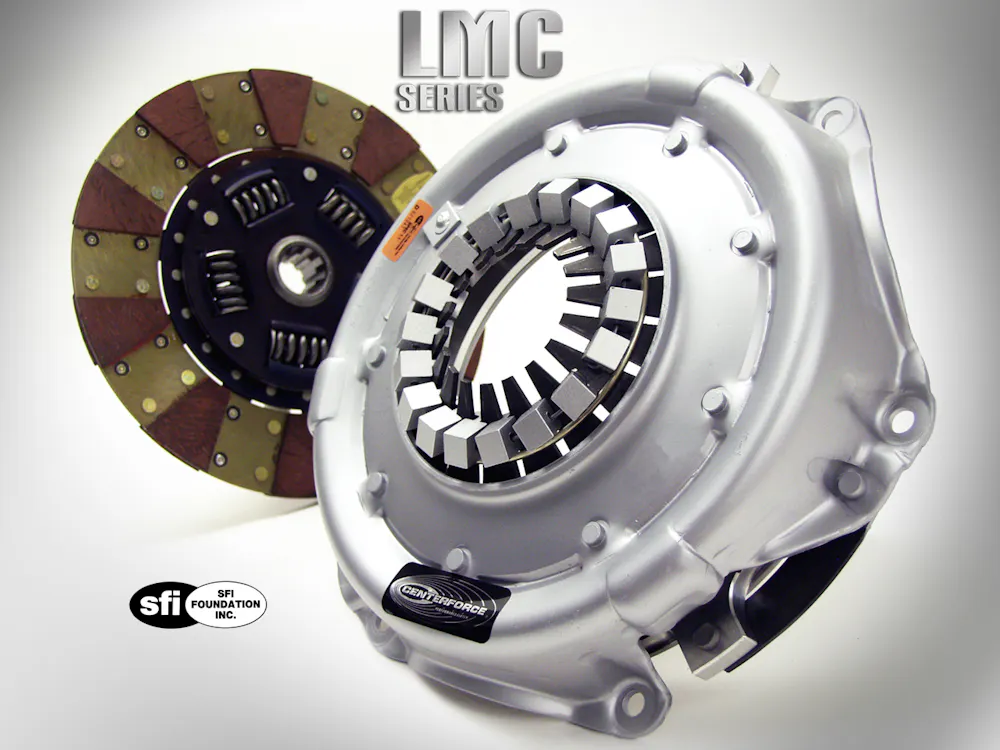

Description: Light Metal, Clutch Pressure Plate and Disc Set; The Centerforce(R) LMC Clutch Series is machined from billet aluminum and designed for low inertia, dramatically reducing engine rotating mass.
Description:
Description
The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Application summary
| Year | Make / model |
|---|---|
| 1968-1970 | American Motors AMX |
| 1968-1974 | American Motors Javelin |
| 1973 | Buick Centurion |
| 1973 | Buick Century |
| 1979 | Buick Century |
| 1967-1968 | Buick LeSabre |
| 1970-1973 | Buick LeSabre |
| 1973 | Buick Regal |
| 1979 | Buick Regal |
| 1967-1972 | Buick Skylark |
| 1967-1969 | Buick Special |
| 1955-1956 | Chevrolet Bel Air |
| 1962-1972 | Chevrolet Bel Air |
| 1958-1972 | Chevrolet Biscayne |
| 1967-1974 | Chevrolet Camaro |
| 1977-1982 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1957-1971 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1964-1975 | Chevrolet El Camino |
| 1978-1981 | Chevrolet El Camino |
| 1958-1972 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1970-1975 | Chevrolet Monte Carlo |
| 1978-1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1969-1979 | Chevrolet Nova |
| 1978-1981 | GMC Caballero |
| 1971-1977 | GMC Sprint |
| 1965-1967 | Oldsmobile Cutlass |
| 1979-1981 | Oldsmobile Cutlass |
| 1968-1972 | Oldsmobile Delta 88 |
| 1979 | Oldsmobile Omega |
| 1965-1972 | Oldsmobile Vista Cruiser |
| 1963-1966 | Pontiac Bonneville |
| 1970-1971 | Pontiac Bonneville |
| 1963-1966 | Pontiac Catalina |
| 1970-1971 | Pontiac Catalina |
| 1967-1970 | Pontiac Executive |
| 1967-1982 | Pontiac Firebird |
| 1963-1966 | Pontiac Grand Prix |
| 1965-1971 | Pontiac GTO |
| 1964-1971 | Pontiac LeMans |
| 1975-1977 | Pontiac LeMans |
| 1979 | Pontiac LeMans |
| 1979 | Pontiac Phoenix |
| 1964-1970 | Pontiac Tempest |
| 1971-1977 | Pontiac Ventura |
Specifications
- GTIN
- 00788442023664
- Weight
- 19.9 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Clutch Disc Type
- Solid
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- Flat
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Aluminum Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- Y
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Light Metal, Light Weight Clutch Pressure Plate and Disc Set, 673 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits - Cars and Trucks 6/8 Cyl
- Torque Capacity
- 673
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1970 American Motors AMX; 1968-1974 American Motors Javelin; 1973 Buick Centurion; 1973 Buick Century; 1979 Buick Century; 1967-1968 Buick LeSabre; 1970-1973 Buick LeSabre; 1973 Buick Regal; 1979 Buick Regal; 1967-1972 Buick Skylark; 1967-1969 Buick Special; 1955-1956 Chevrolet Bel Air; 1962-1972 Chevrolet Bel Air; 1958-1972 Chevrolet Biscayne; 1967-1974 Chevrolet Camaro; 1977-1982 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1957-1971 Chevrolet Corvette; 1978 Chevrolet Corvette; 1964-1975 Chevrolet El Camino; 1978-1981 Chevrolet El Camino; 1958-1972 Chevrolet Impala; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1970-1975 Chevrolet Monte Carlo; 1978-1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1969-1979 Chevrolet Nova; 1978-1981 GMC Caballero; 1971-1977 GMC Sprint; 1965-1967 Oldsmobile Cutlass; 1979-1981 Oldsmobile Cutlass; 1968-1972 Oldsmobile Delta 88; 1979 Oldsmobile Omega; 1965-1972 Oldsmobile Vista Cruiser; 1963-1966 Pontiac Bonneville; 1970-1971 Pontiac Bonneville; 1963-1966 Pontiac Catalina; 1970-1971 Pontiac Catalina; 1967-1970 Pontiac Executive; 1967-1982 Pontiac Firebird; 1963-1966 Pontiac Grand Prix; 1965-1971 Pontiac GTO; 1964-1971 Pontiac LeMans; 1975-1977 Pontiac LeMans; 1979 Pontiac LeMans; 1979 Pontiac Phoenix; 1964-1970 Pontiac Tempest; 1971-1977 Pontiac Ventura
