Centerforce · LM269675
Part #: LM269675
UPC: 788442023657
Log in for inventory
Notify me when this item is in stock.
Description: Light Metal, Clutch Pressure Plate and Disc Set; The Centerforce(R) LMC Clutch Series is machined from billet aluminum and designed for low inertia, dramatically reducing engine rotating mass.
Description:
Description
The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Application summary
| Year | Make / model |
|---|---|
| 1976-1978 | Dodge Aspen |
| 1977-1980 | Dodge B100 |
| 1981-1987 | Dodge B150 |
| 1977-1980 | Dodge B200 |
| 1977-1980 | Dodge B300 |
| 1970-1974 | Dodge Challenger |
| 1966-1974 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1974 | Dodge Coronet |
| 1977-1979 | Dodge D100 |
| 1985-1987 | Dodge D100 |
| 1977-1987 | Dodge D150 |
| 1977-1980 | Dodge D200 |
| 1981-1987 | Dodge D250 |
| 1981-1983 | Dodge D350 |
| 1961-1962 | Dodge Dart |
| 1965-1976 | Dodge Dart |
| 1977-1978 | Dodge Diplomat |
| 1977-1987 | Dodge Ramcharger |
| 1977 | Dodge W100 |
| 1986-1987 | Dodge W100 |
| 1977-1980 | Dodge W200 |
| 1981-1987 | Dodge W250 |
| 1982-1983 | Dodge W350 |
| 1965-1974 | Plymouth Barracuda |
| 1960-1970 | Plymouth Belvedere |
| 1970-1976 | Plymouth Duster |
| 1960-1967 | Plymouth Fury |
| 1975-1978 | Plymouth Fury |
| 1972-1974 | Plymouth Gran Fury |
| 1968-1969 | Plymouth GTX |
| 1971 | Plymouth GTX |
| 1968-1975 | Plymouth Road Runner |
| 1965-1974 | Plymouth Satellite |
| 1977-1981 | Plymouth Trailduster |
Specifications
- GTIN
- 00788442023657
- Weight
- 19.9 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- Flat
- Friction Surface Configuration
- FLAT
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Made In The USA
- Assembled
- Material
- Aluminum Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- Y
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1"-23
- Title
- Centerforce Light Metal, Light Weight Clutch Pressure Plate and Disc Set, 673 ft/lbs Capacity, 10.4in Dia., 23-Spline, Fits Dodge/Plymouth Cars and Trucks 8 Cyl
- Torque Capacity
- 673
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1976-1978 Dodge Aspen; 1977-1980 Dodge B100; 1981-1987 Dodge B150; 1977-1980 Dodge B200; 1977-1980 Dodge B300; 1970-1974 Dodge Challenger; 1966-1974 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1974 Dodge Coronet; 1977-1979 Dodge D100; 1985-1987 Dodge D100; 1977-1987 Dodge D150; 1977-1980 Dodge D200; 1981-1987 Dodge D250; 1981-1983 Dodge D350; 1961-1962 Dodge Dart; 1965-1976 Dodge Dart; 1977-1978 Dodge Diplomat; 1977-1987 Dodge Ramcharger; 1977 Dodge W100; 1986-1987 Dodge W100; 1977-1980 Dodge W200; 1981-1987 Dodge W250; 1982-1983 Dodge W350; 1965-1974 Plymouth Barracuda; 1960-1970 Plymouth Belvedere; 1970-1976 Plymouth Duster; 1960-1967 Plymouth Fury; 1975-1978 Plymouth Fury; 1972-1974 Plymouth Gran Fury; 1968-1969 Plymouth GTX; 1971 Plymouth GTX; 1968-1975 Plymouth Road Runner; 1965-1974 Plymouth Satellite; 1977-1981 Plymouth Trailduster

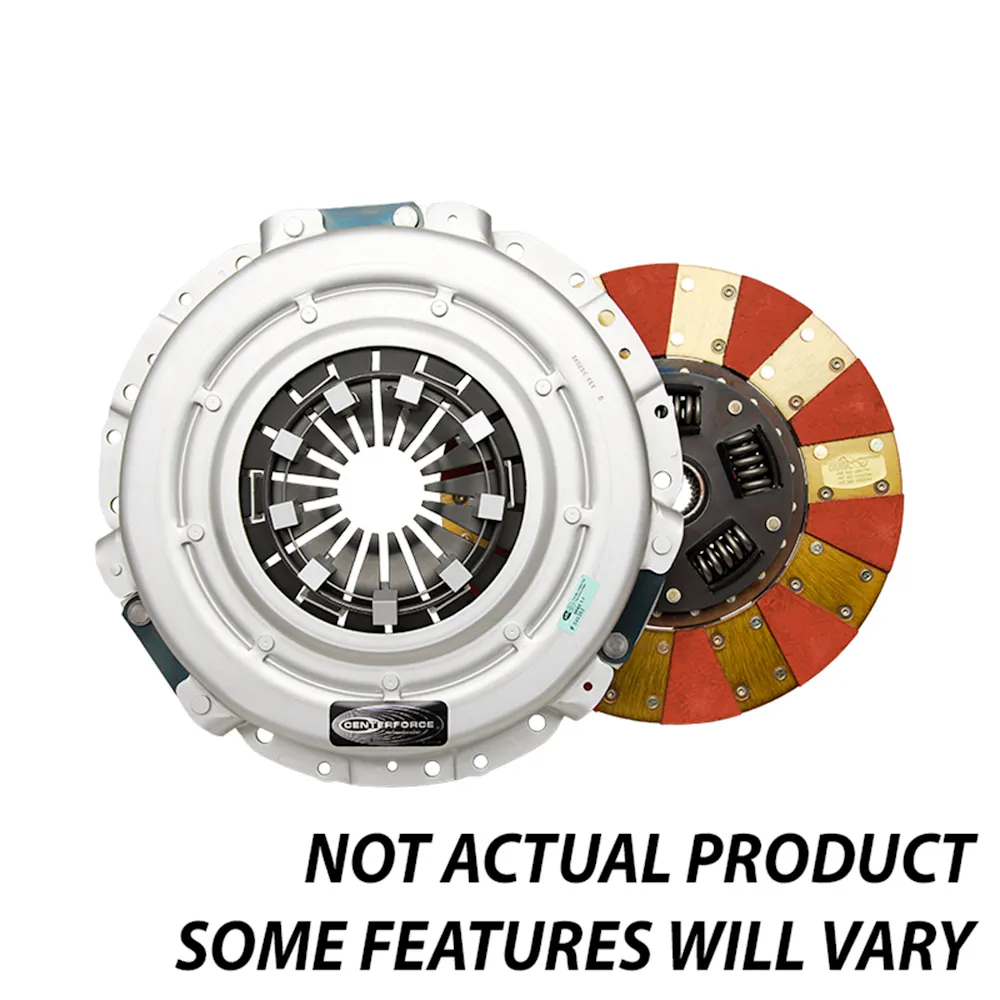

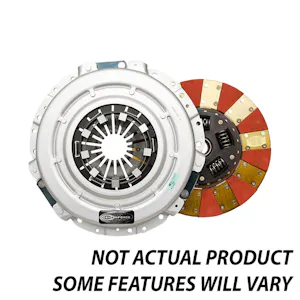

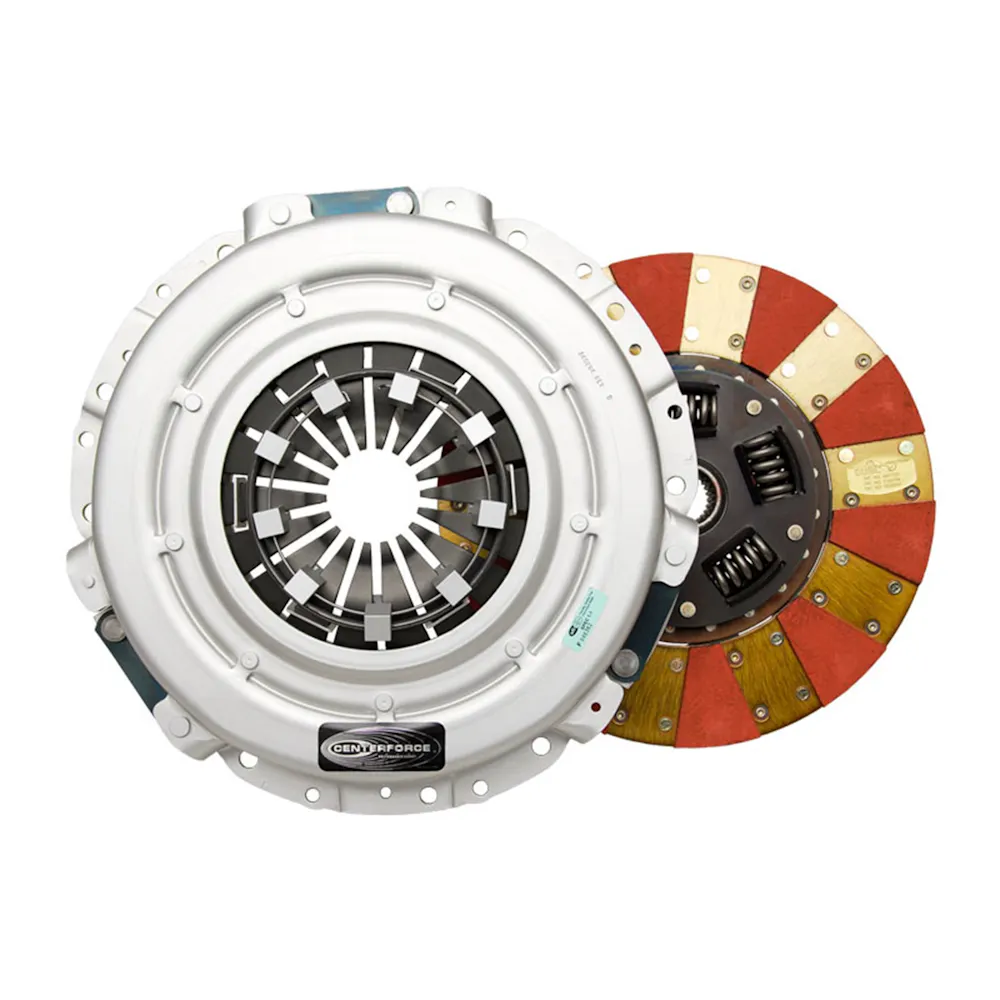

Centerforce LM269675
