Centerforce · LM226552
Part #: LM226552
UPC: 788442023640
Log in for inventory
Notify me when this item is in stock.

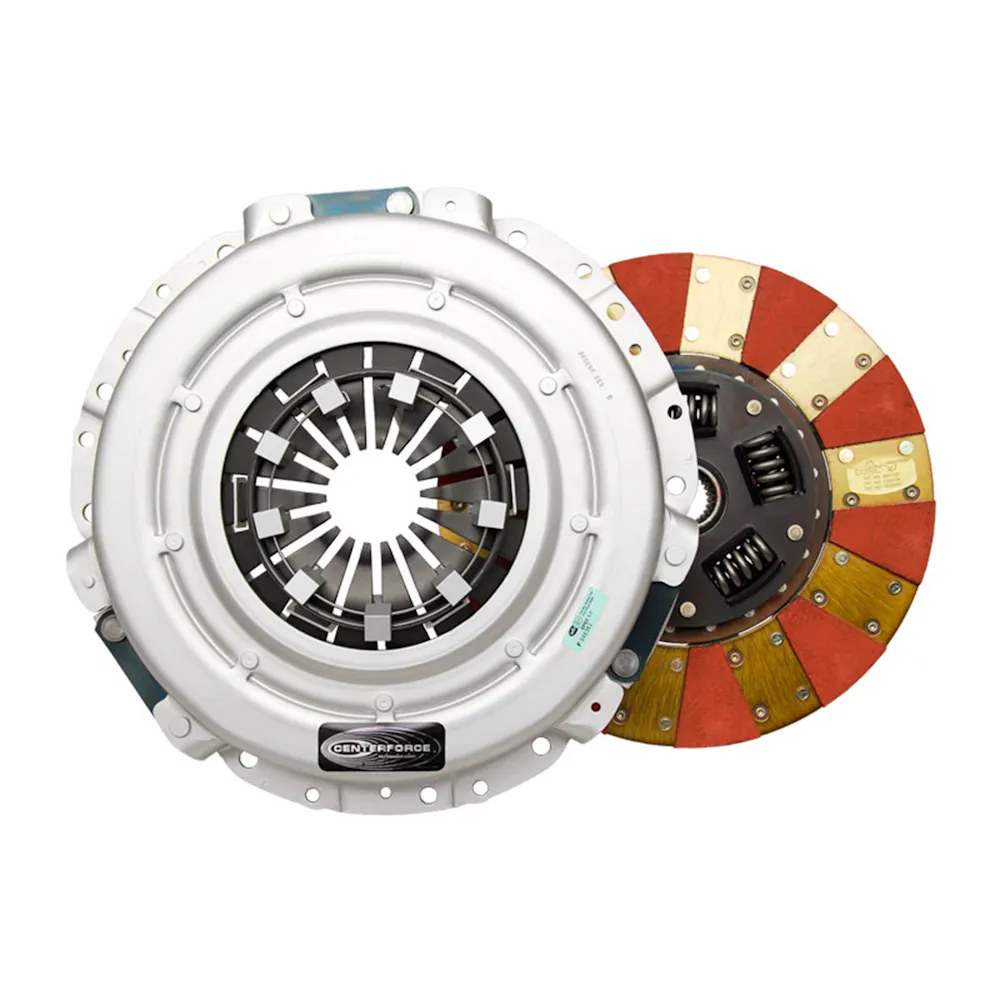

Description: Light Metal, Clutch Pressure Plate and Disc Set; The Centerforce(R) LMC Clutch Series is machined from billet aluminum and designed for low inertia, dramatically reducing engine rotating mass.
Description:
Description
The Centerforce(R) LMC Clutch Series is a specifically designed low inertia performance clutch that dramatically reduces engine rotating mass. These lightweight, SFI approved competition clutches are intended with most road racing and circle track applications in mind. Centerforce machines these special pressure plates from high-strength aircraft-grade billet aluminum and then attach a special heat-treated replaceable friction surface. The Centerforce LMC series friction disc utilizes a dual-segmented carbon composite lining for improved cooling and excellent torque capacity. Light Metal Clutch assemblies from Centerforce uses their patented 'Ball Bearing' actuated diaphragm and centrifugal weight system for maximum grip while maintaining a comfortable and controllable clutch pedal. When used in conjunction with Centerforce's aluminum flywheels, LMC Series brings the term 'Lightweight' to an unparalleled level!
Application summary
| Year | Make / model |
|---|---|
| 1978-1980 | Ford Bronco |
| 1977-1980 | Ford F-150 |
| 1977-1980 | Ford F-250 |
| 1977-1980 | Ford F-350 |
Specifications
- GTIN
- 00788442023640
- Weight
- 23.65 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- Flat
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/16
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Aluminum Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 11
- Replaceable Friction Surface
- Y
- SFI 1.1 Approved
- Y
- Spline Diameter and Tooth Count
- 1-1/16"-10
- Title
- Centerforce Light Metal, Light Weight Clutch Pressure Plate and Disc Set, 750 ft/lbs Capacity, 11in Dia., 10-Spline, Fits Ford Trucks 5.8L
- Torque Capacity
- 750
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1978-1980 Ford Bronco; 1977-1980 Ford F-150; 1977-1980 Ford F-250; 1977-1980 Ford F-350
