Centerforce · KDF939064

Part #: KDF939064
UPC: 788442030846

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

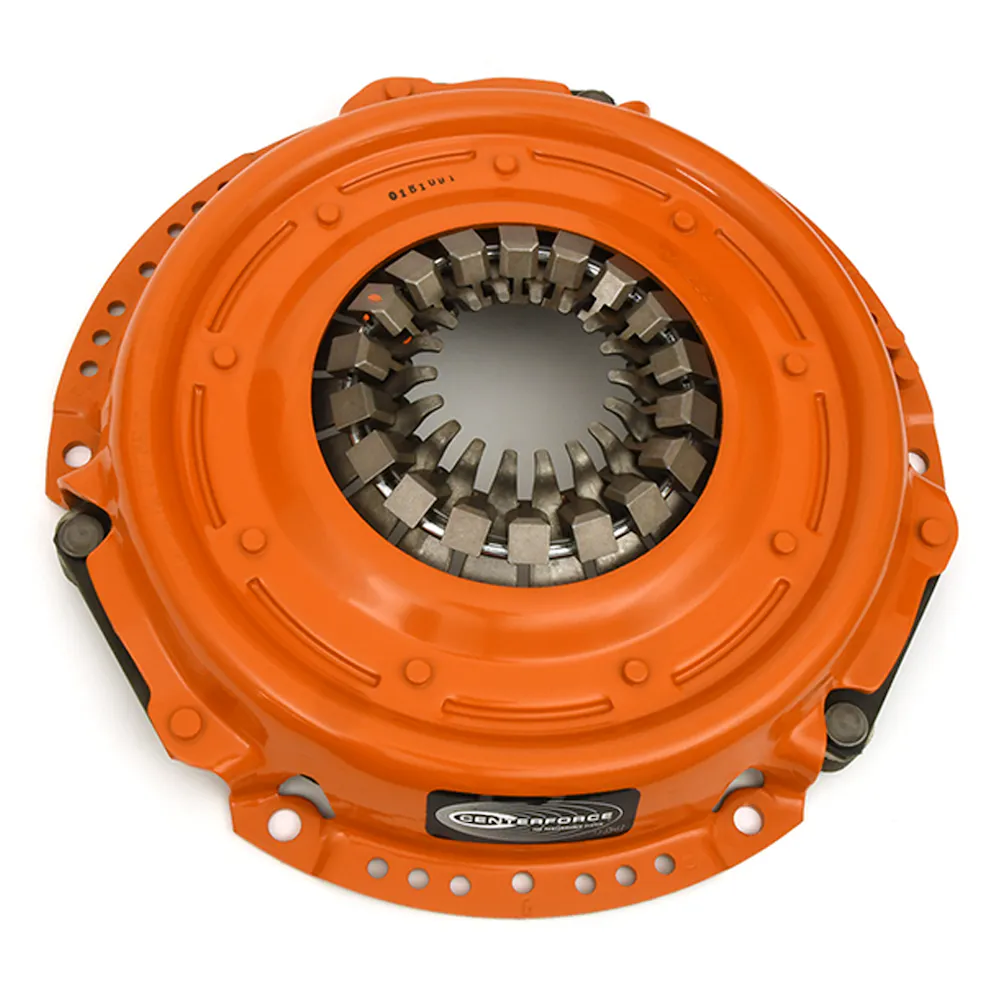

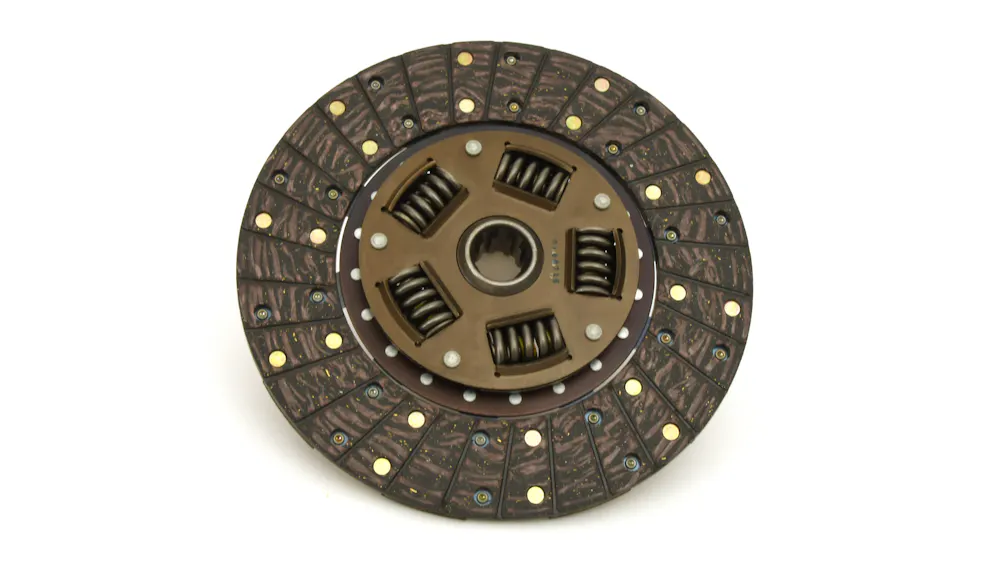

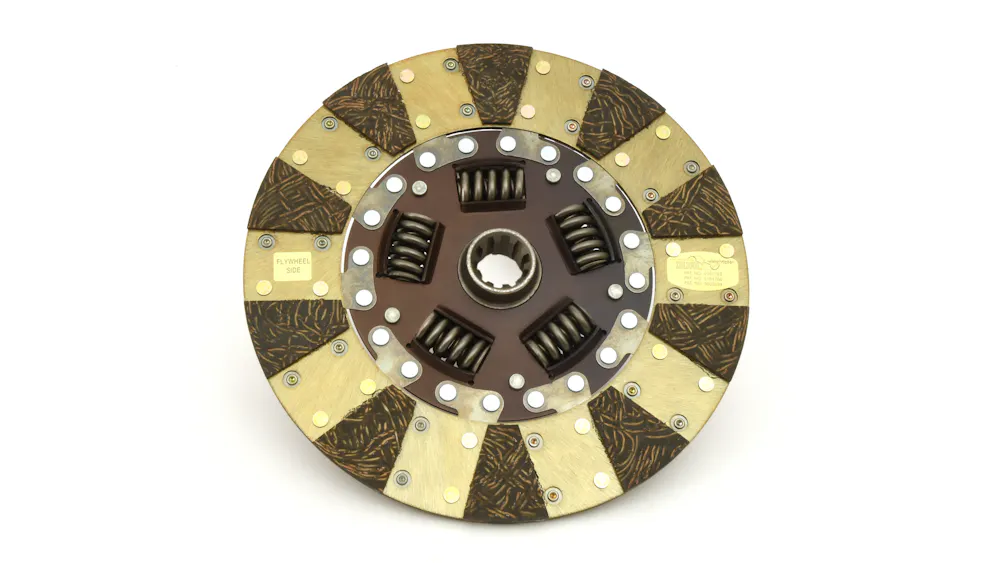

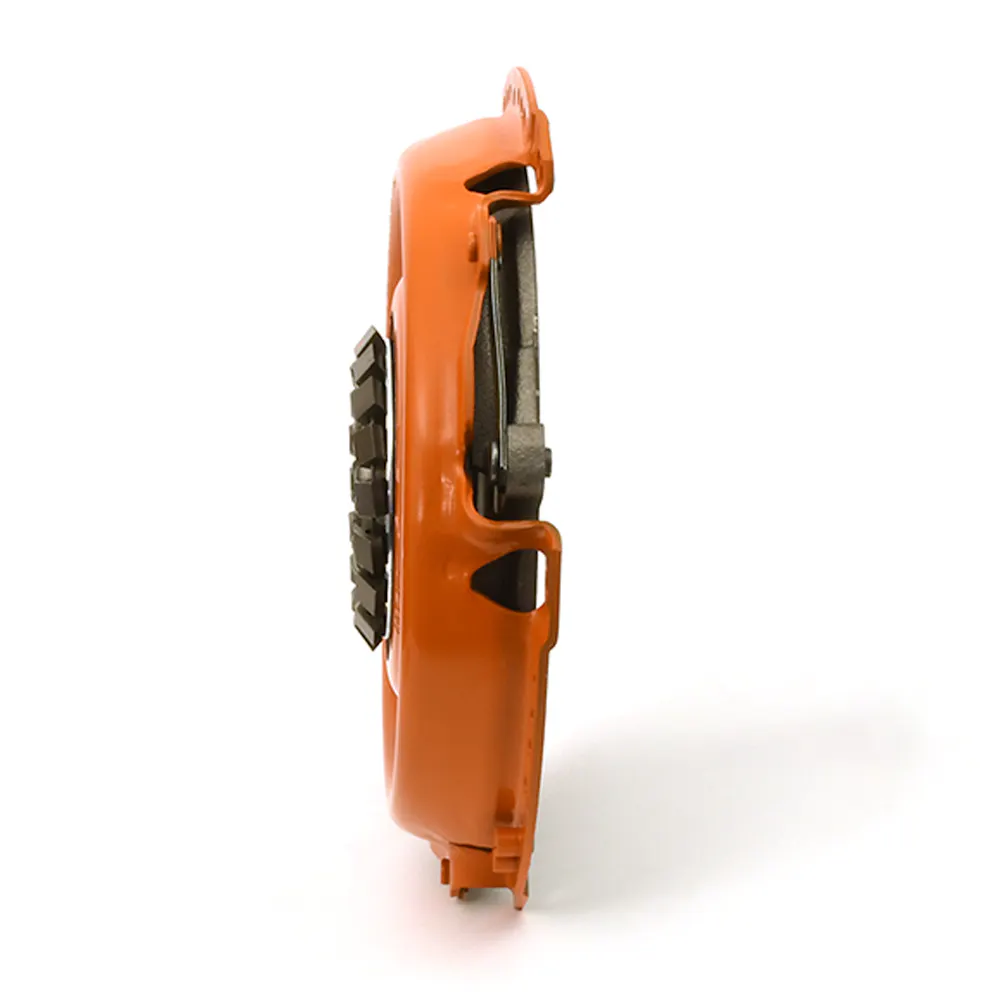

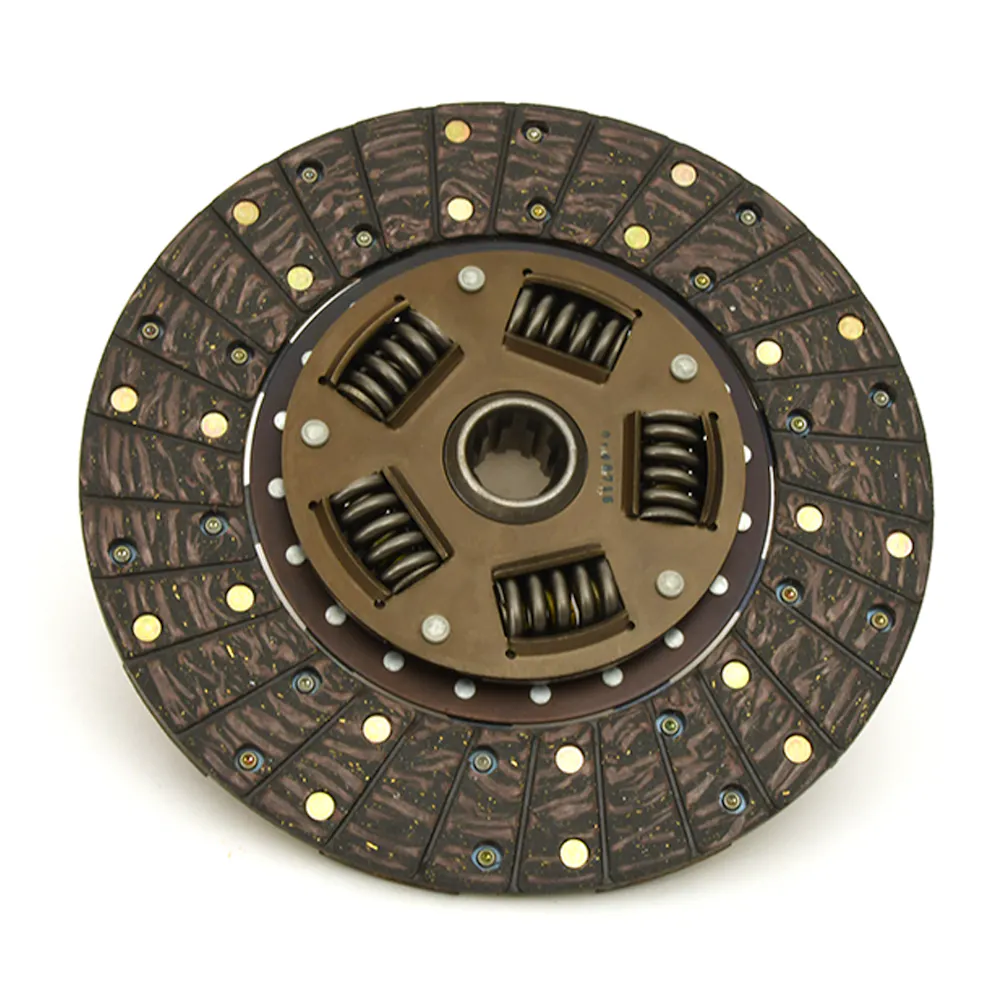

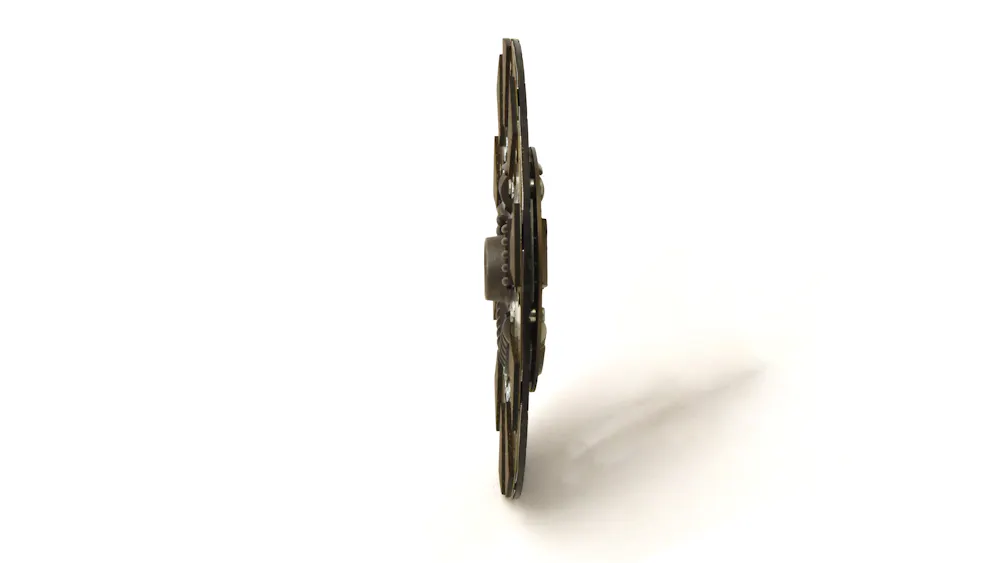

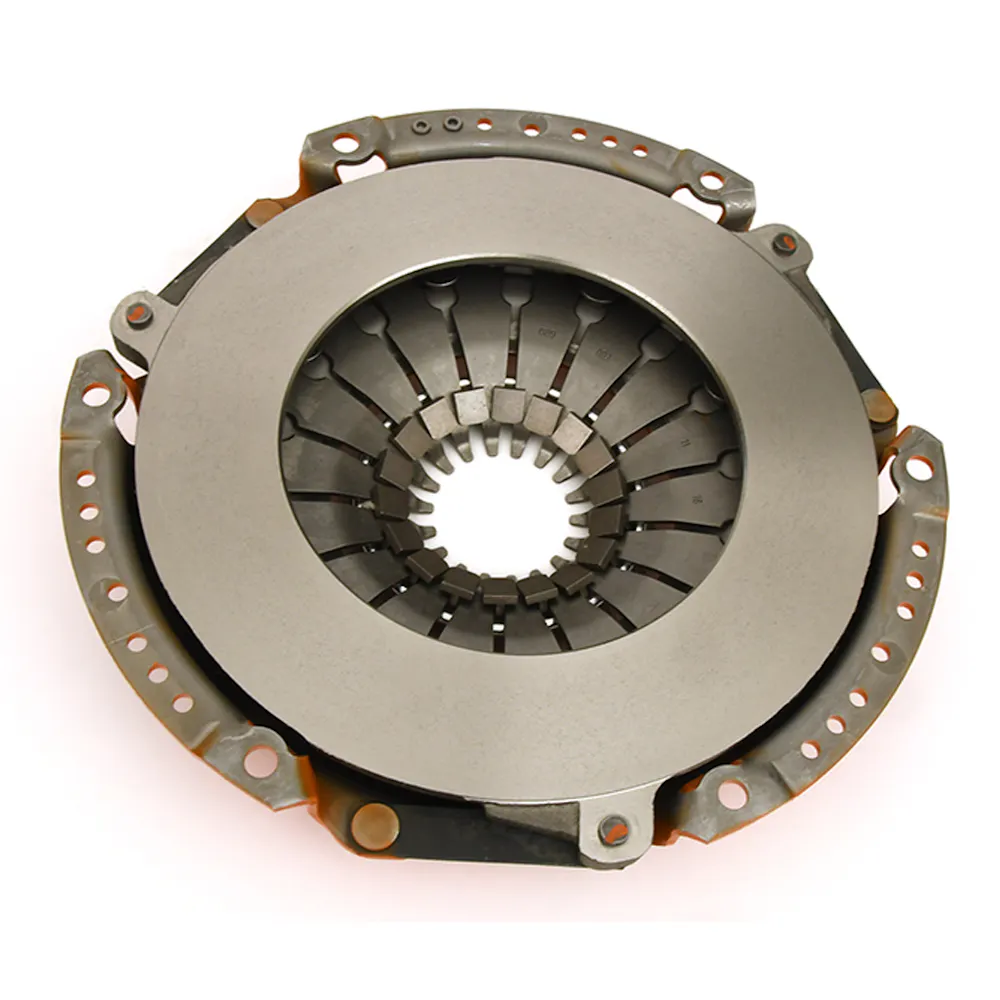

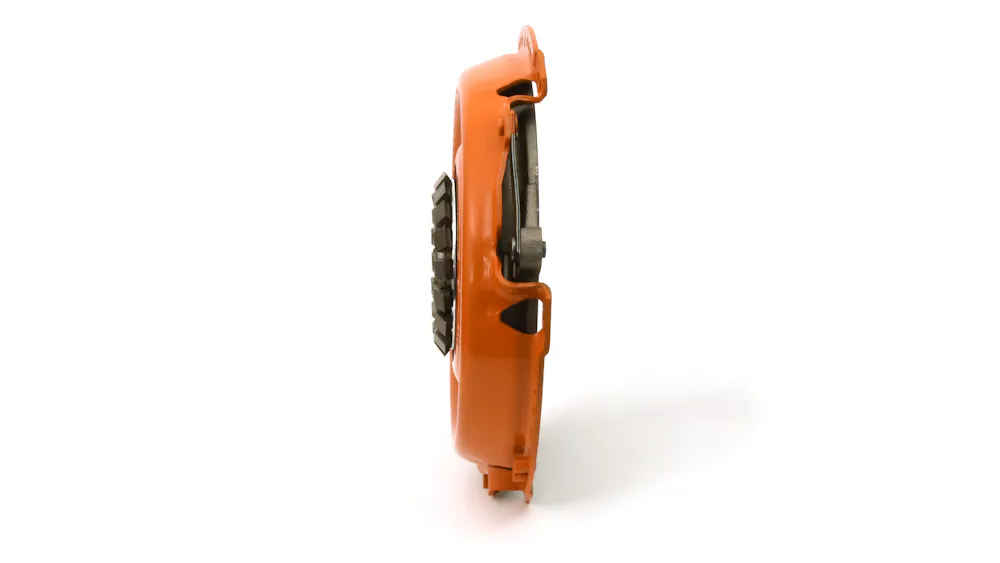

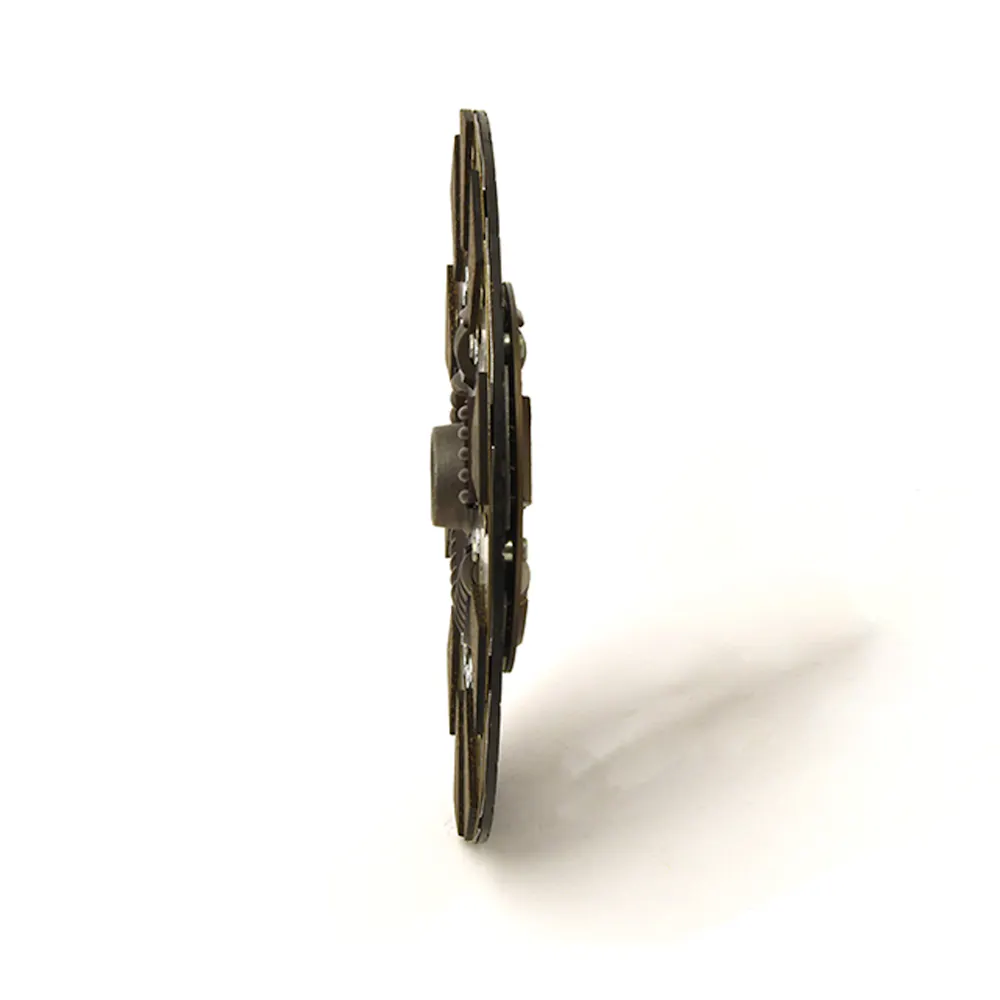

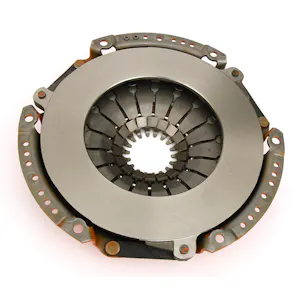

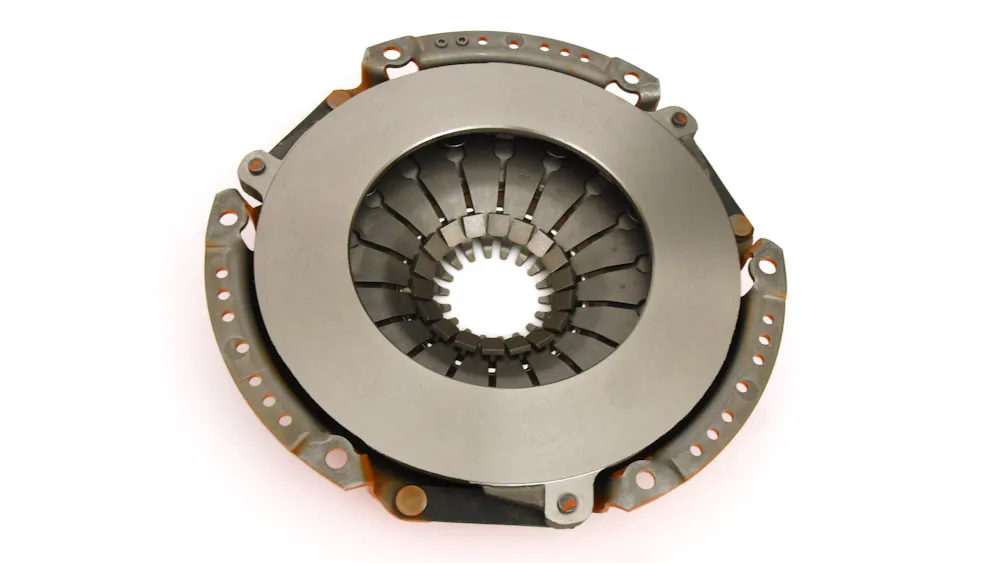

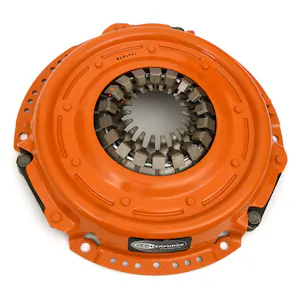

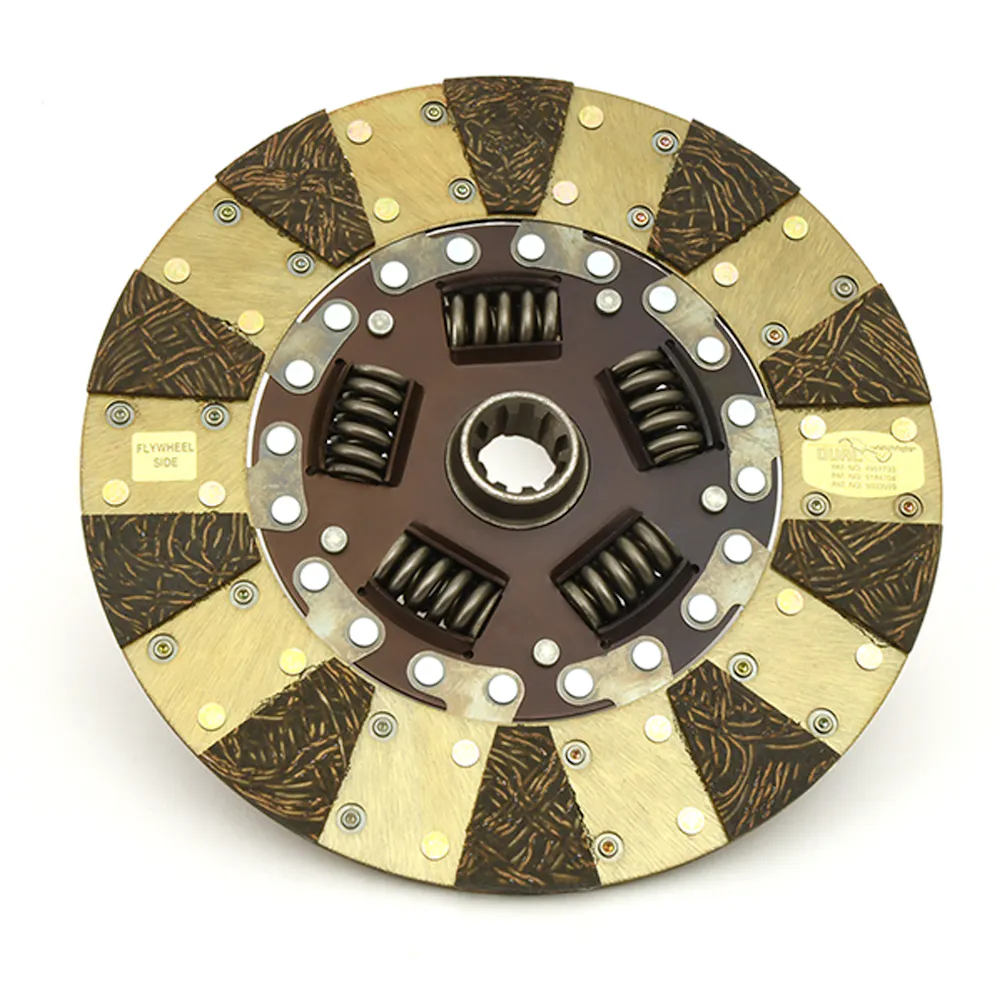

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
1994-2001	Jeep Cherokee
1994	Jeep Grand Cherokee
1994-1995	Jeep Wrangler
1997-2006	Jeep Wrangler

Specifications

GTIN: 00788442030846
Weight: 25.5 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 2
Clutch Bolt Size: 3/8 - 16 X 0.900
Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Disc Material: Organic/Carbon Composite
Disc Type: Full face/Segmented face
Disc Type Sprung Solid: Sprung

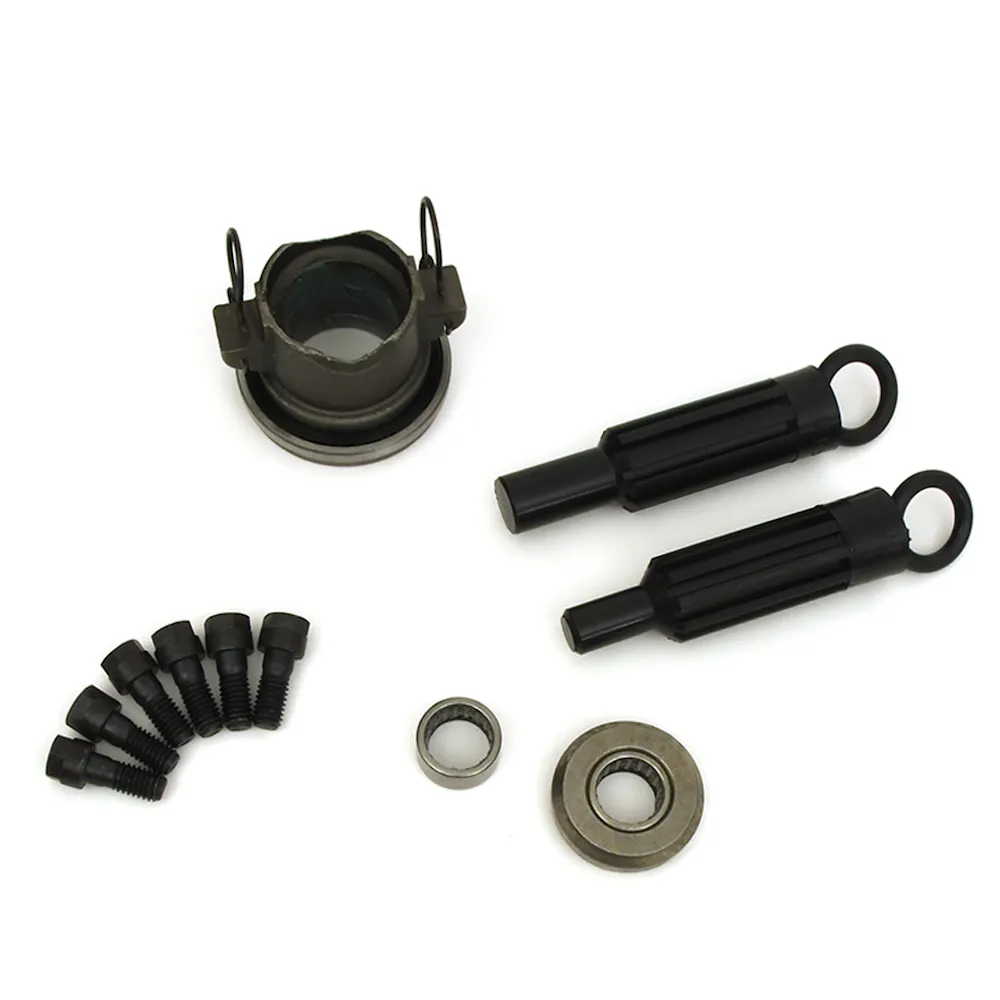

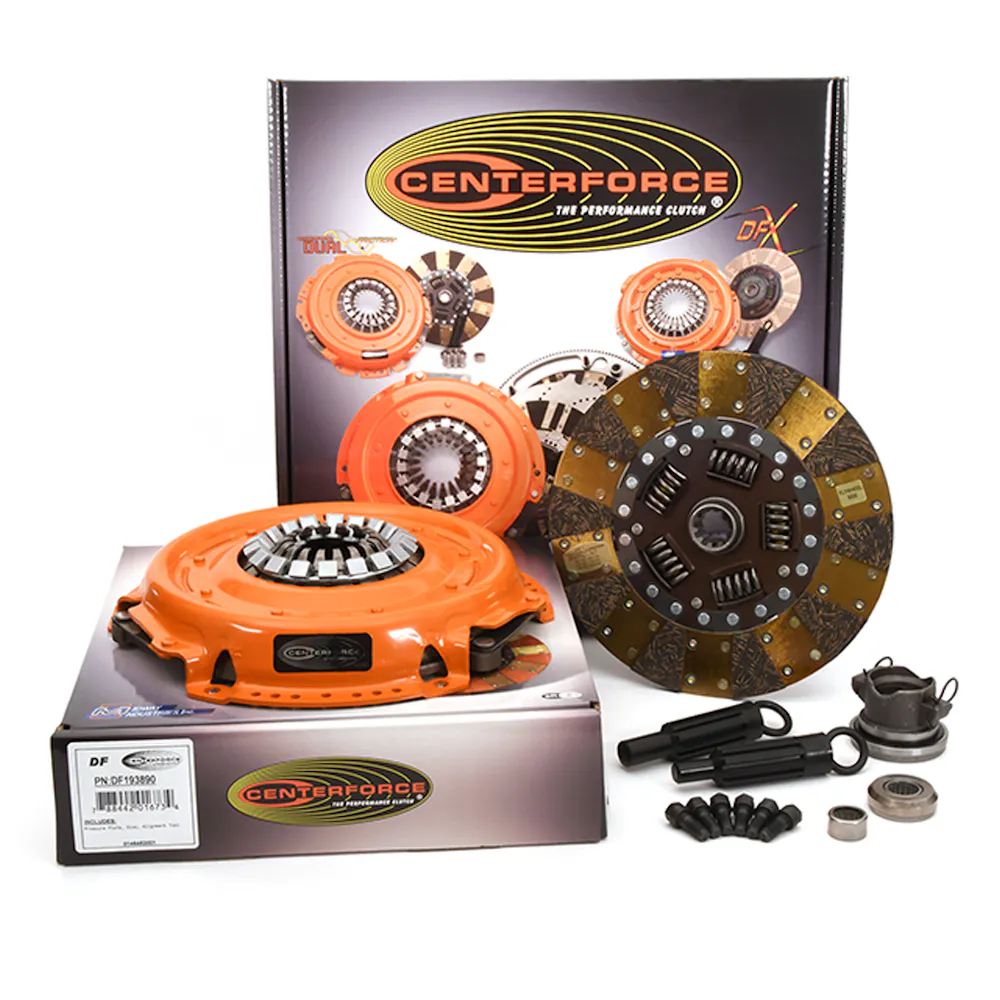

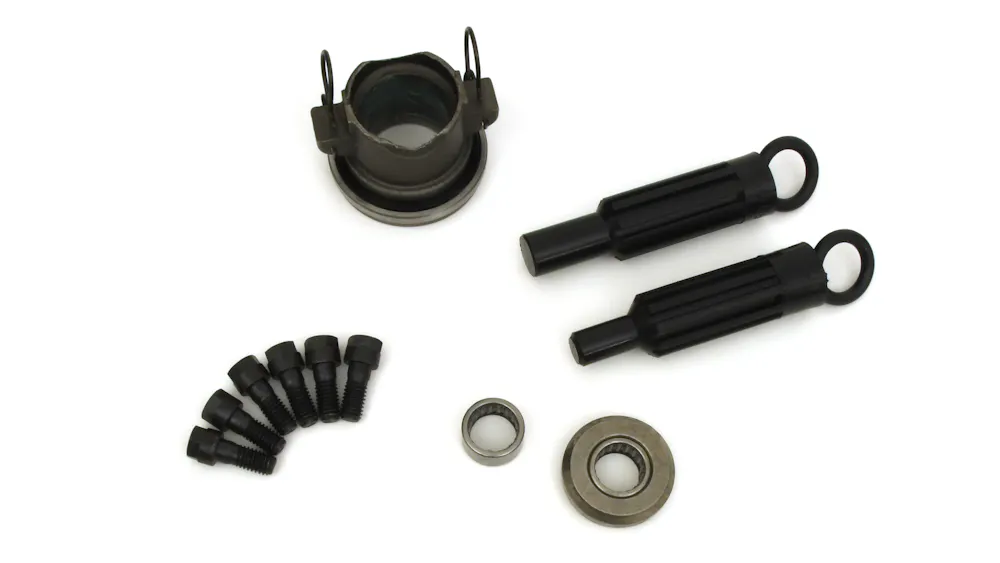

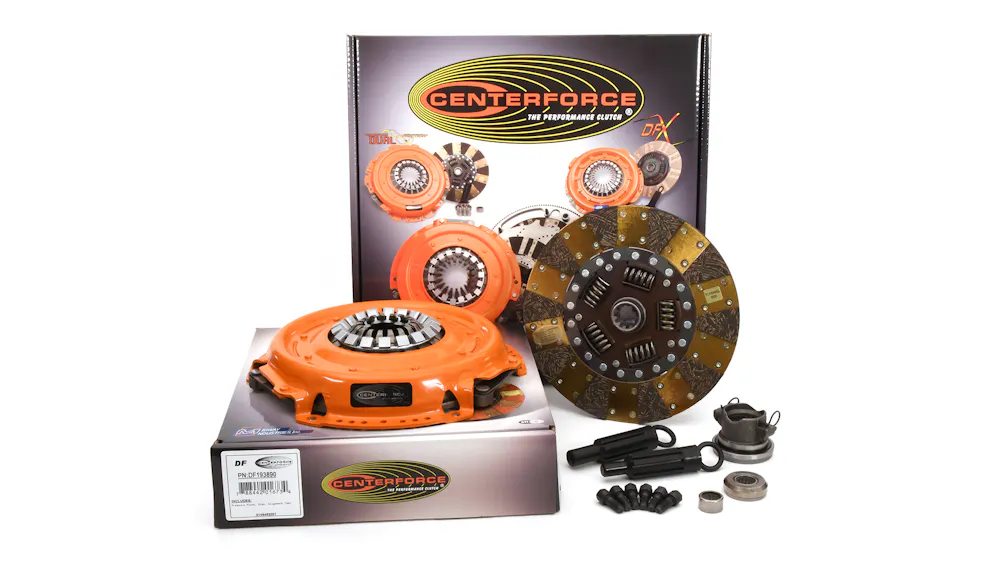

Includes: Pressure Plate, Disc, Throw Out Bearing, Alignment Tool, Pilot Bearing & Bolts
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 10
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Mounting Hardware Included: Yes
Pilot Bushing Included: Yes
Release Bearing Included: Yes
Replaceable Friction Surface: N
Title: Centerforce Dual Friction ?, High Performance Clutch Kit, 521 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Trucks 4.0L
Torque Capacity: 521
