Centerforce · KDF931042

Part #: KDF931042
UPC: 788442030853

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch and Flywheel Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

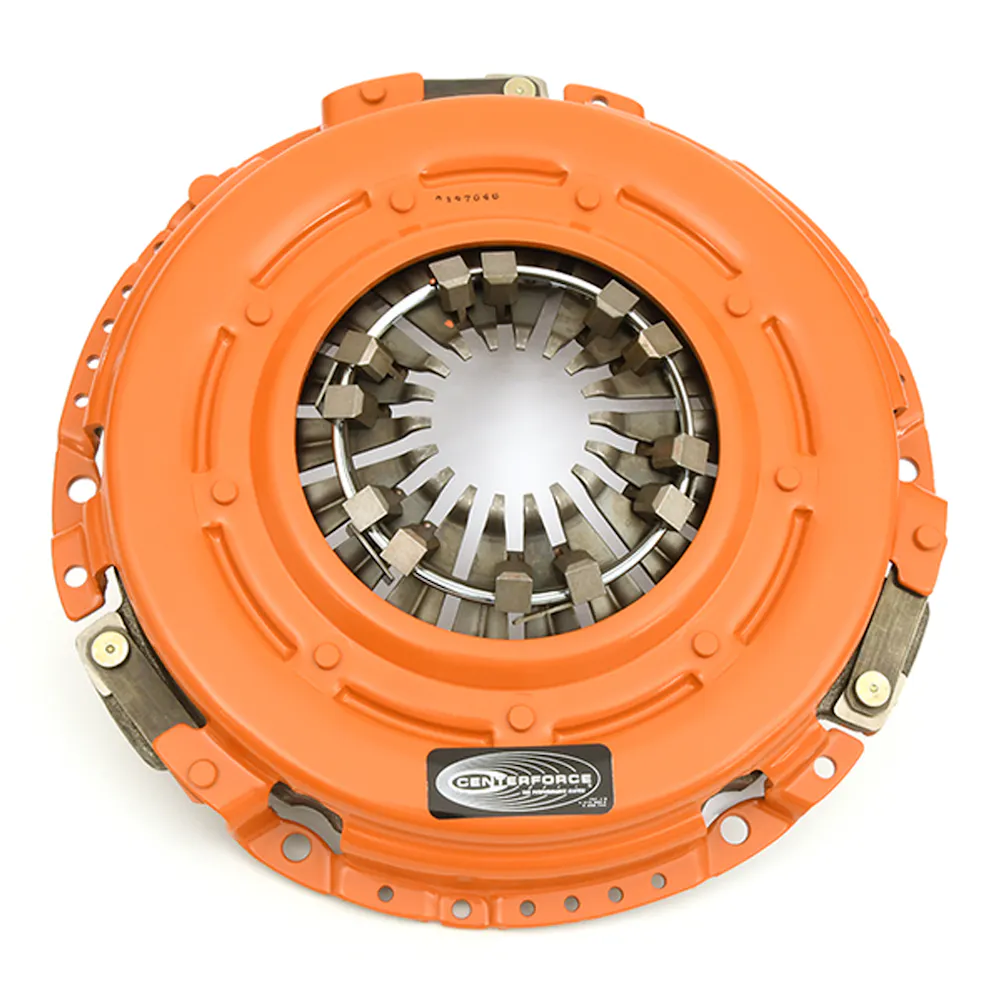

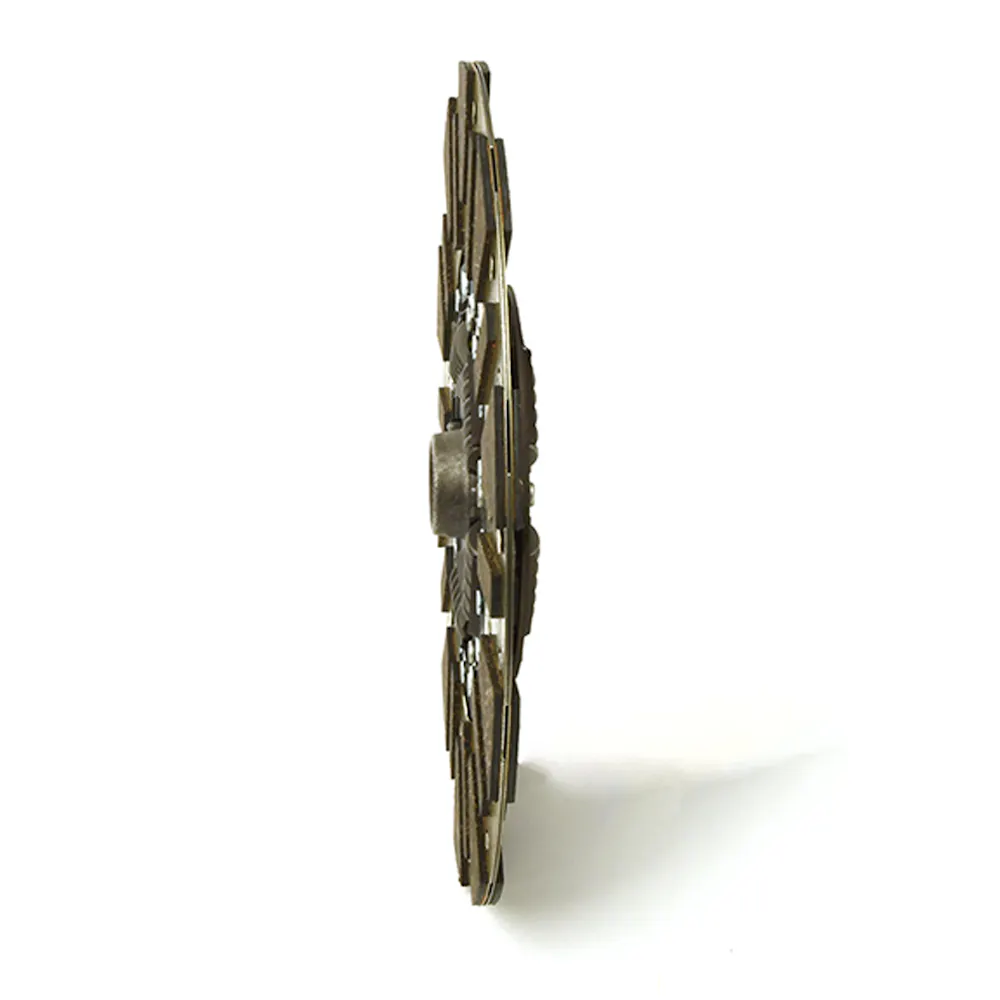

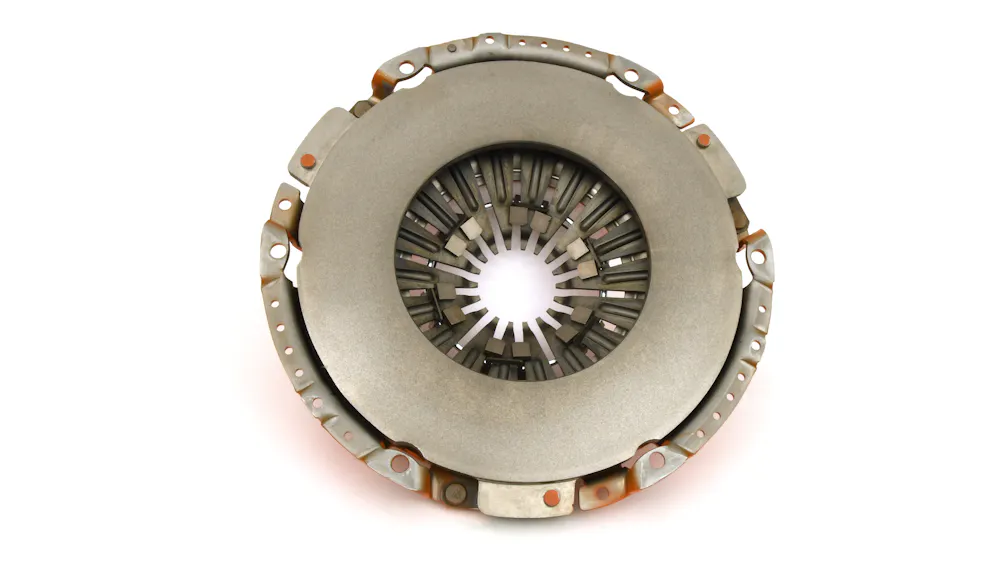

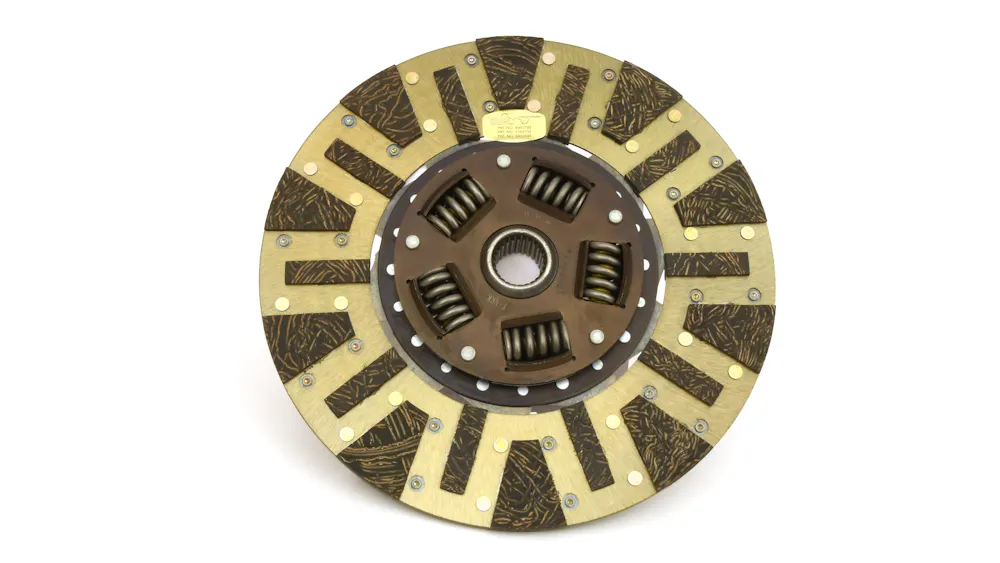

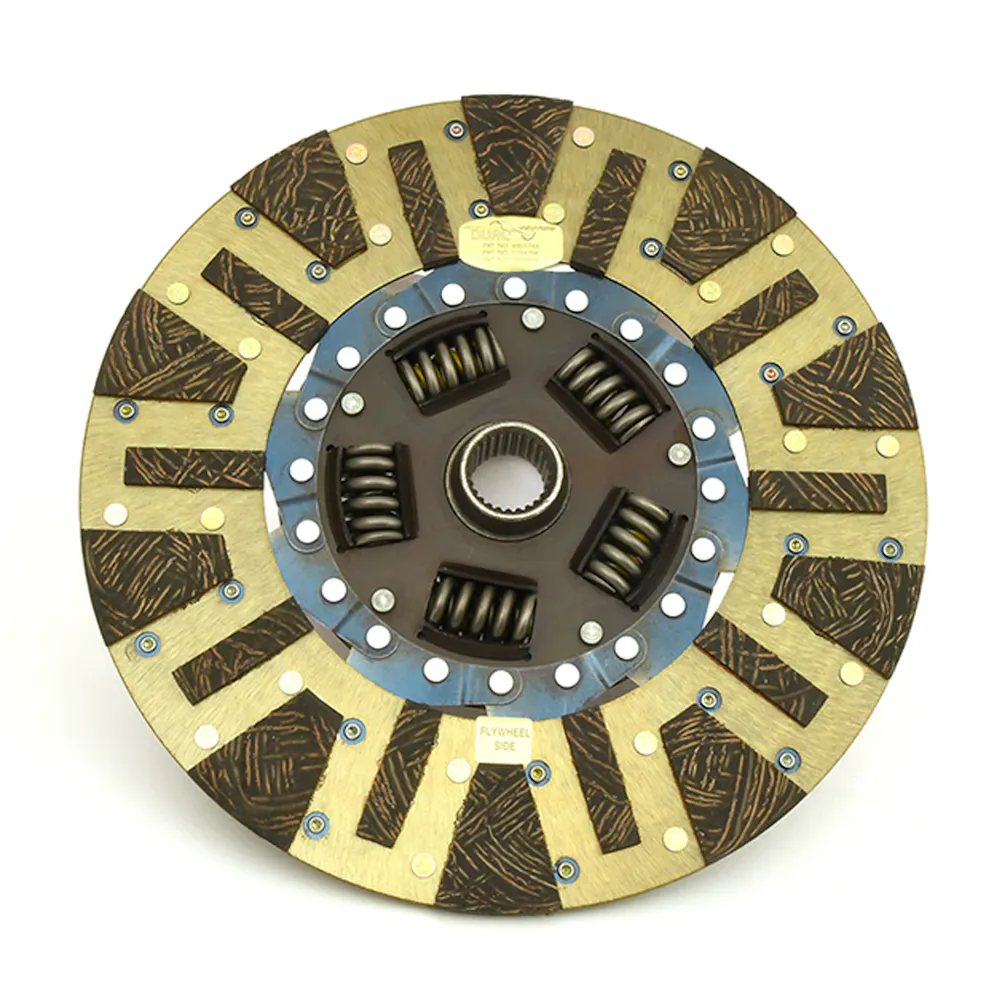

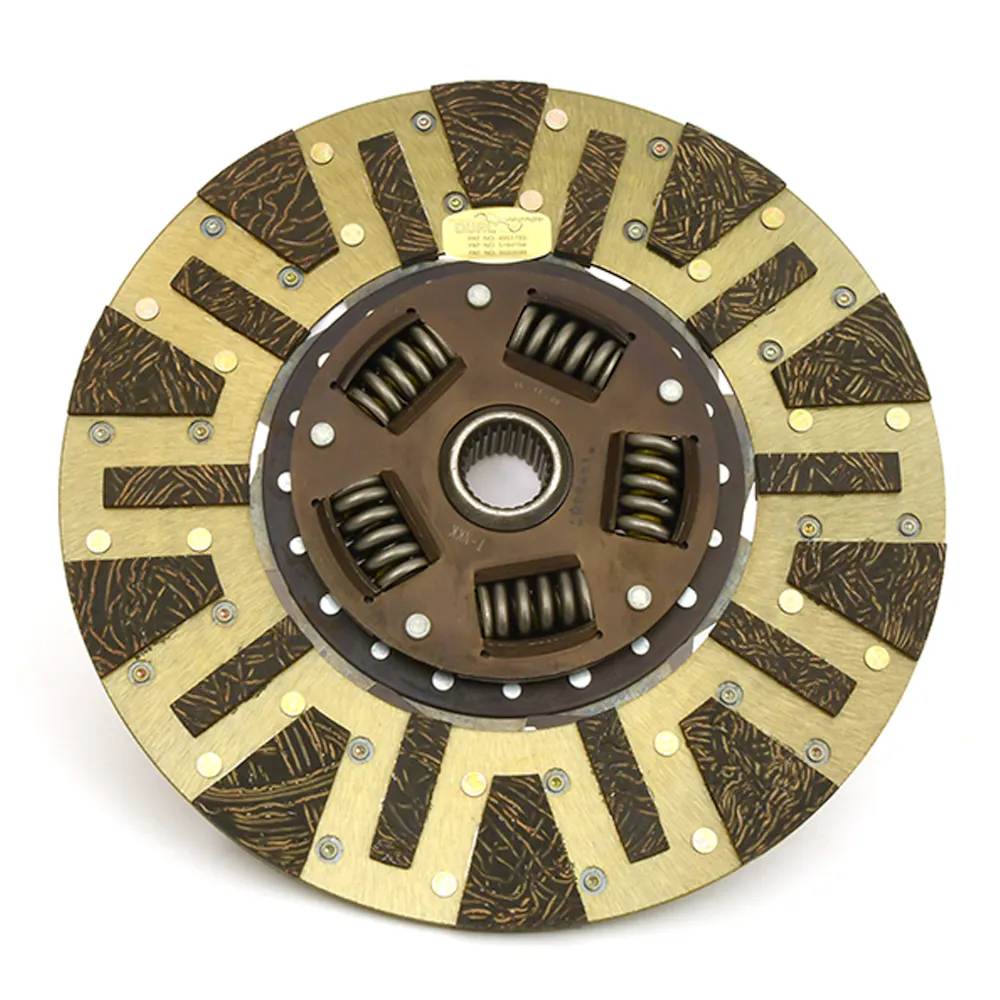

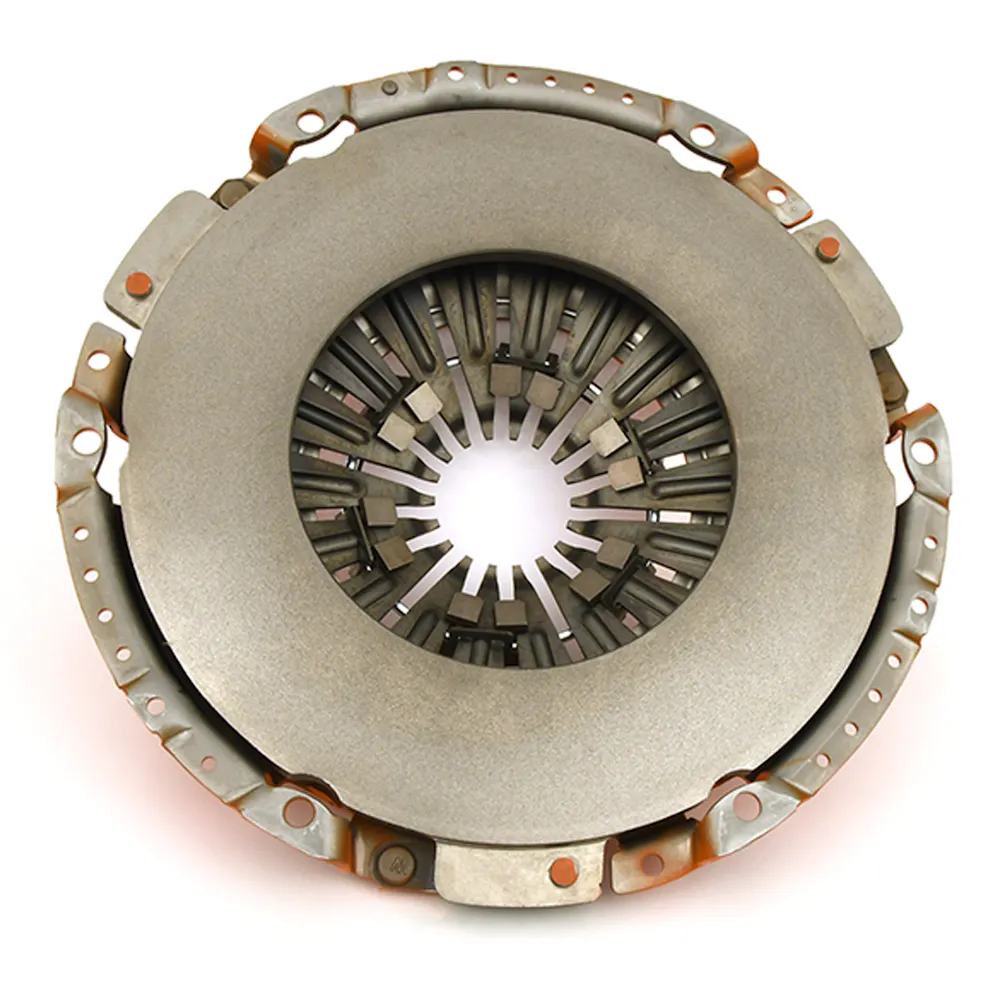

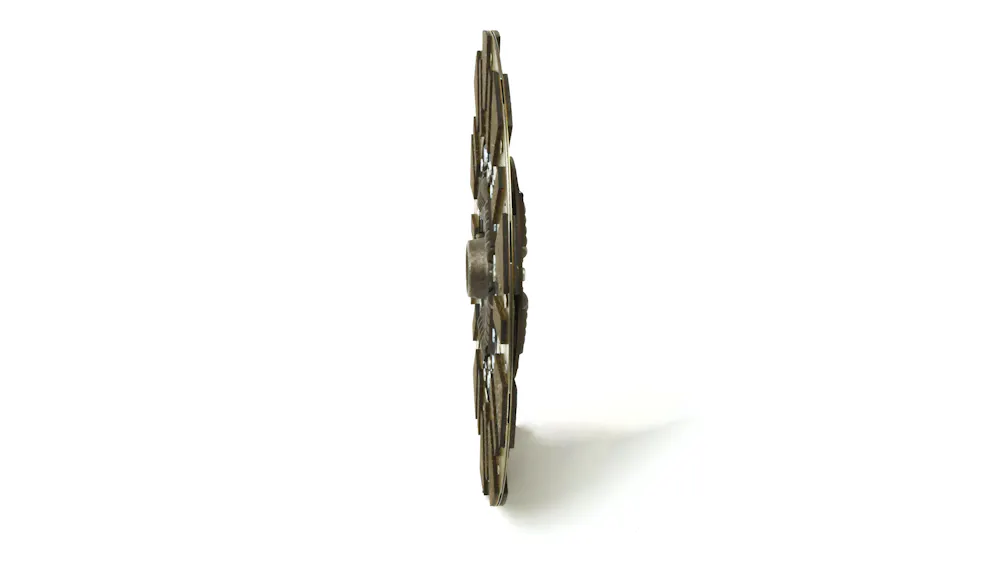

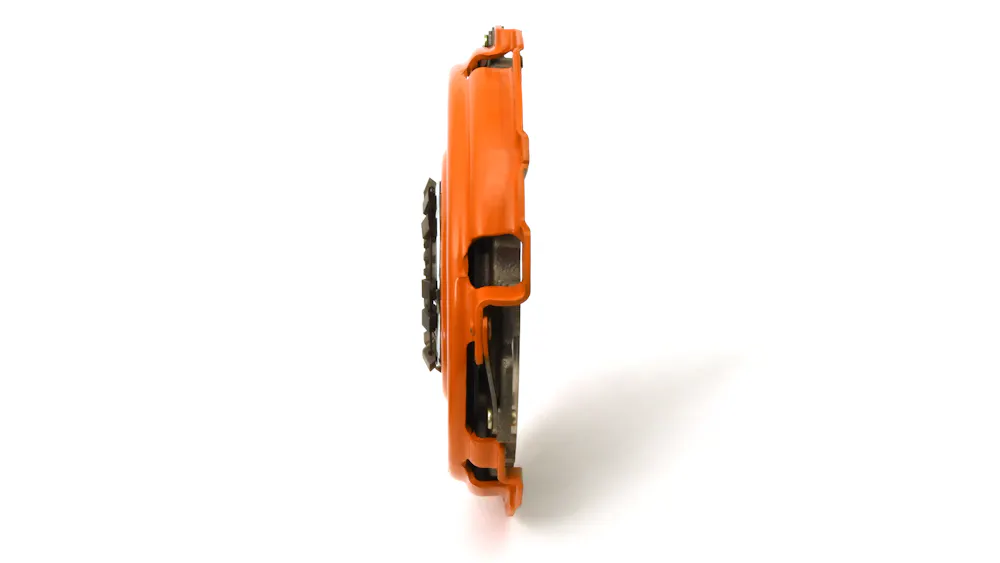

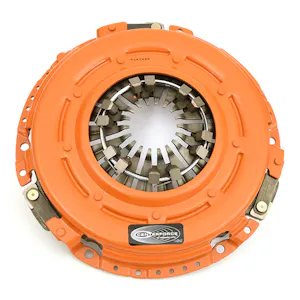

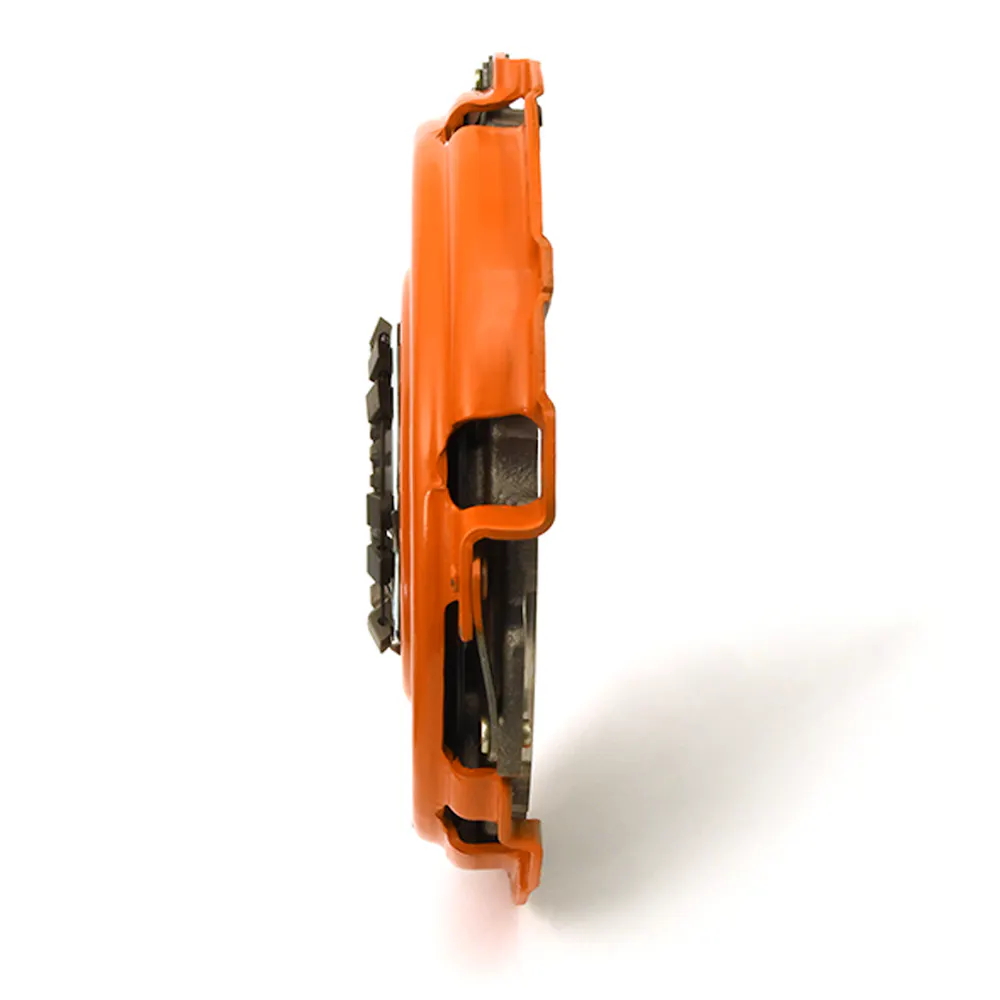

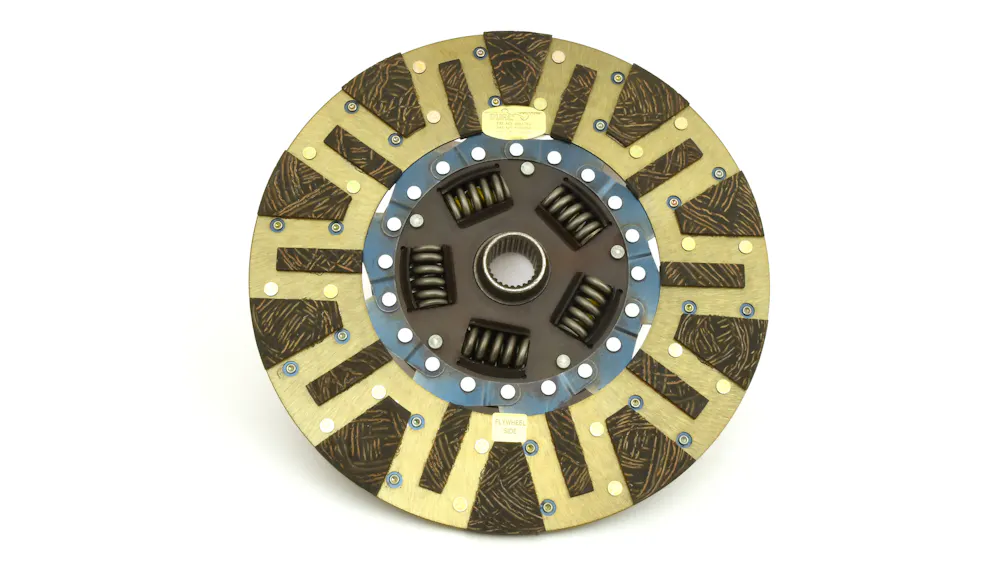

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
1998-2002	Chevrolet Camaro
2010-2015	Chevrolet Camaro
1997-2013	Chevrolet Corvette
1998-2002	Pontiac Firebird
2004-2006	Pontiac GTO

Specifications

GTIN: 00788442030853
Weight: 59 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 14
Clutch Disc Diameter: 304.8
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 6
Disc Material: Organic/Carbon Composite
Disc Type: Segmented face
Disc Type Sprung Solid: Sprung
Flywheel Counter Balance Weight: 0
Flywheel Crank Bolt Size: M11 x 1.50 x 23
Flywheel Crank Flange Register: 2.068
Flywheel Deck Height: 2.895

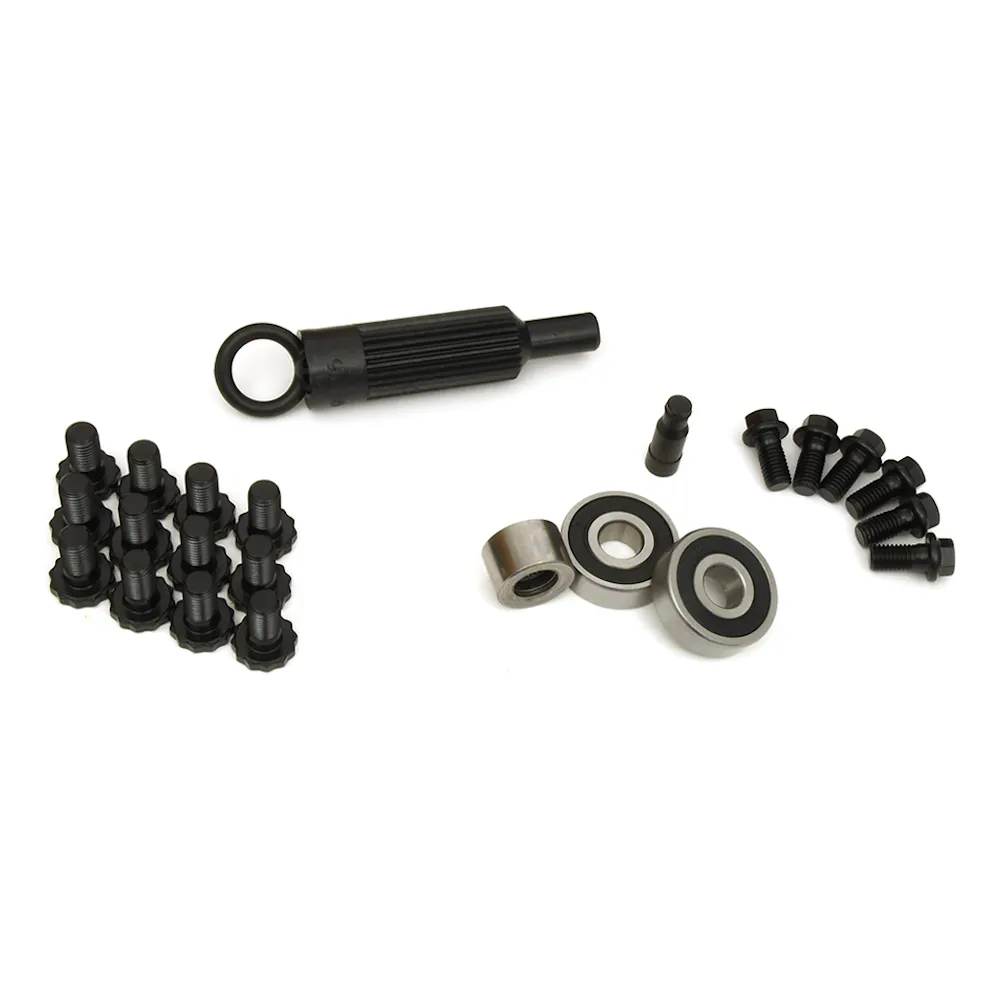

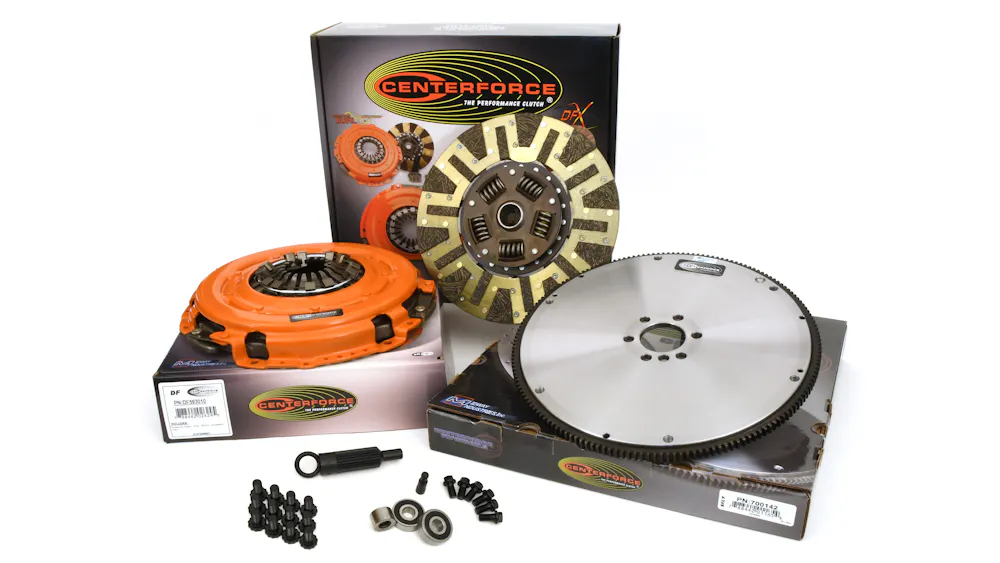

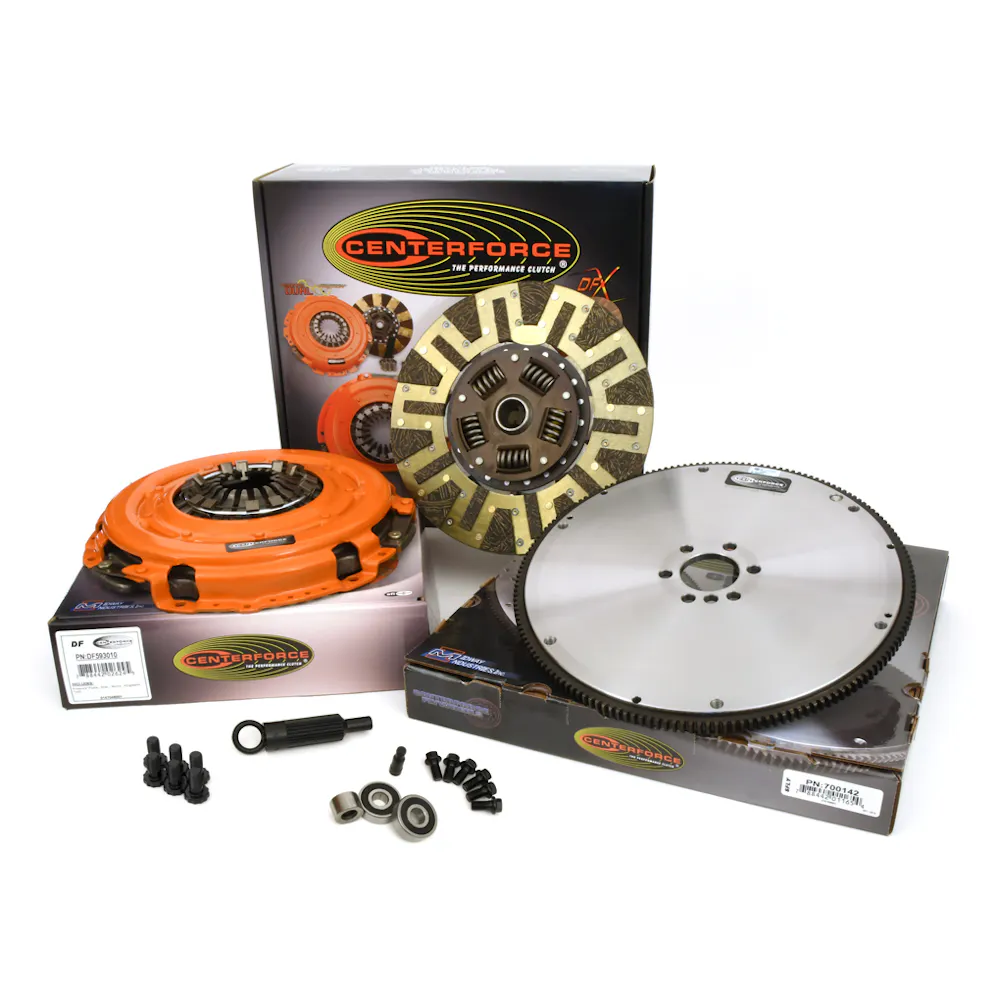

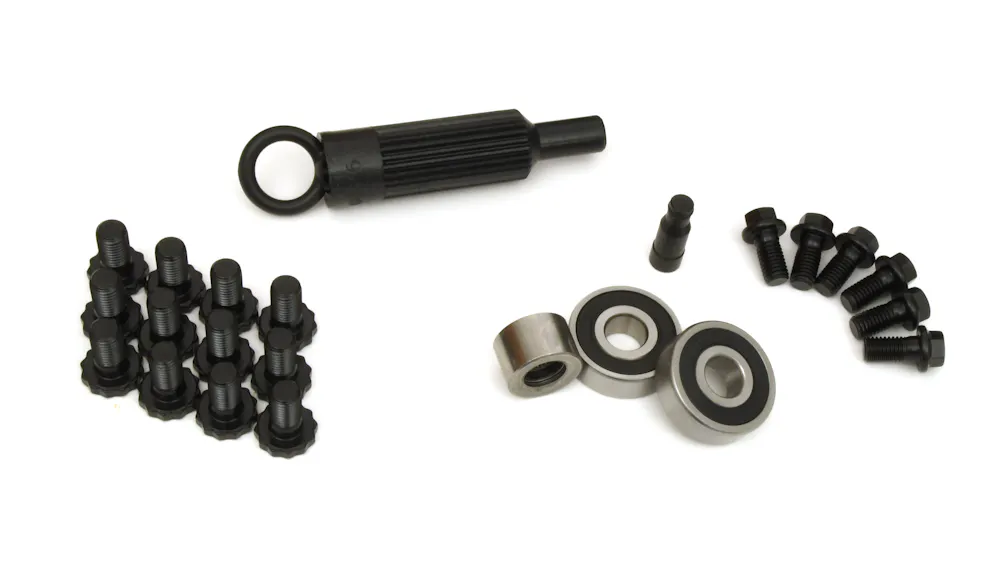

Includes: Pressure Plate, Disc, Flywheel, Alignment Tool, Pilot Bearings, & Bolts
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 26
Installed Height: 2.895
Made In The USA: Assembled

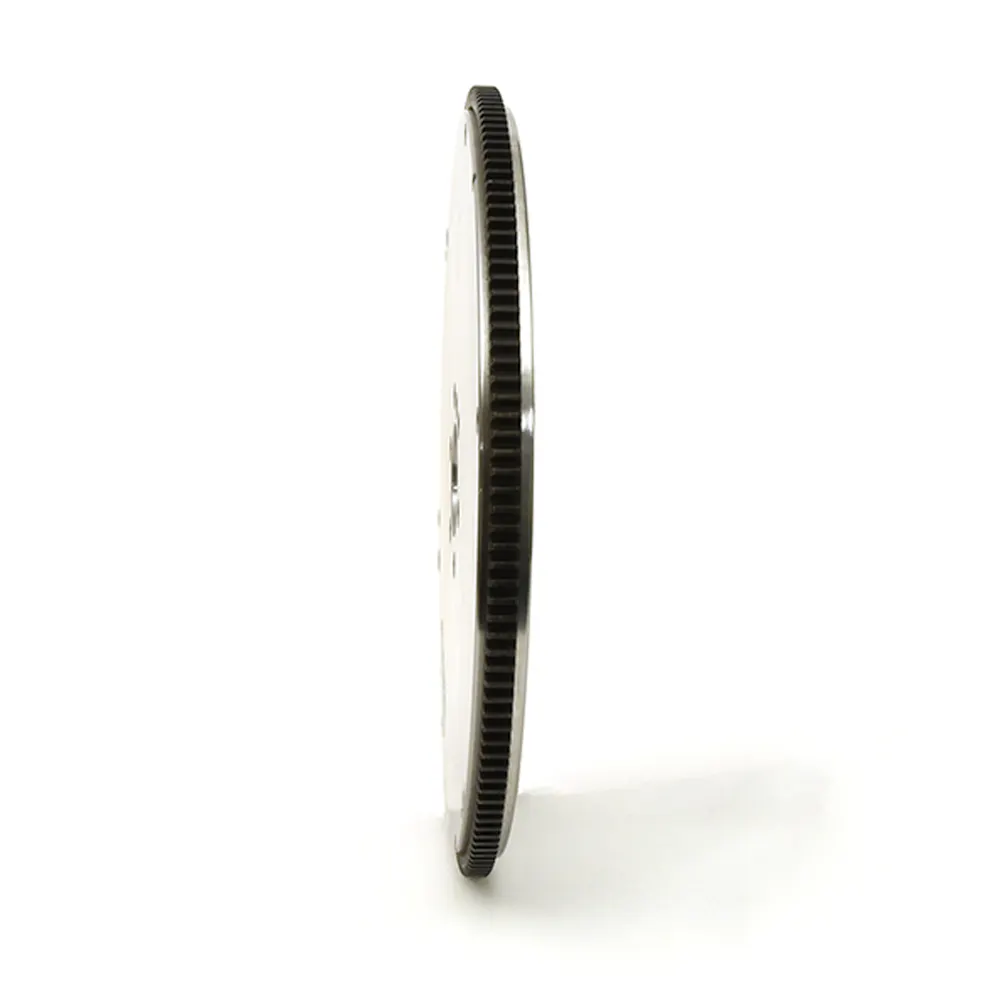

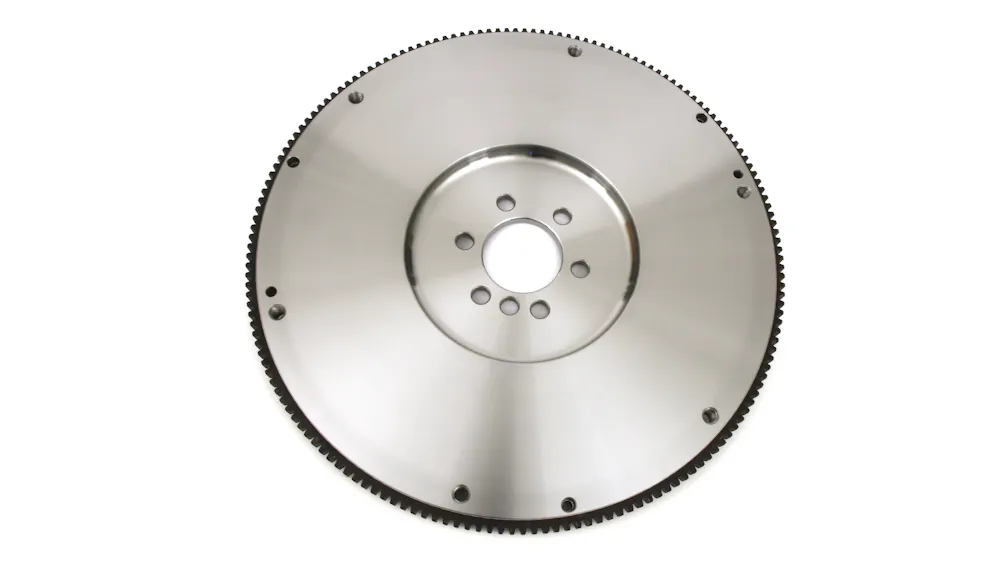

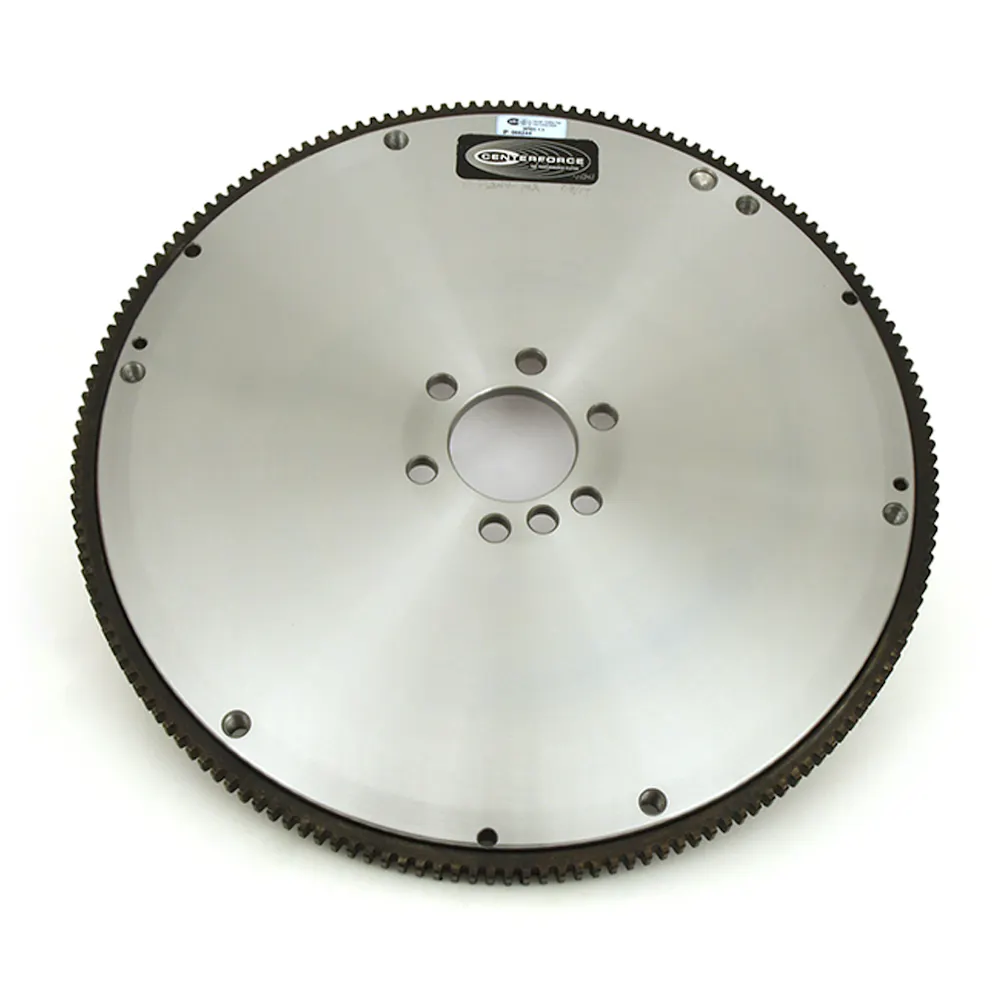

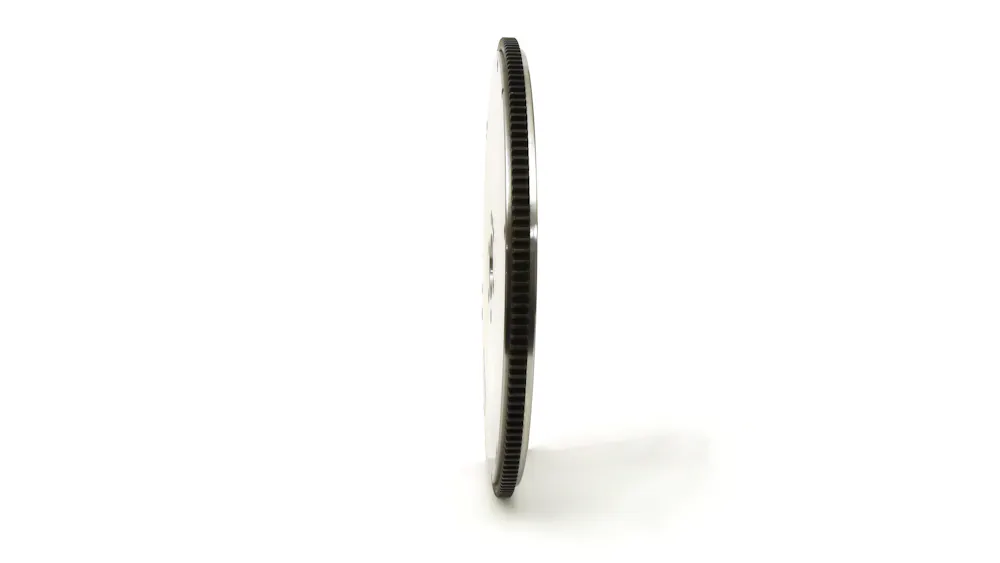

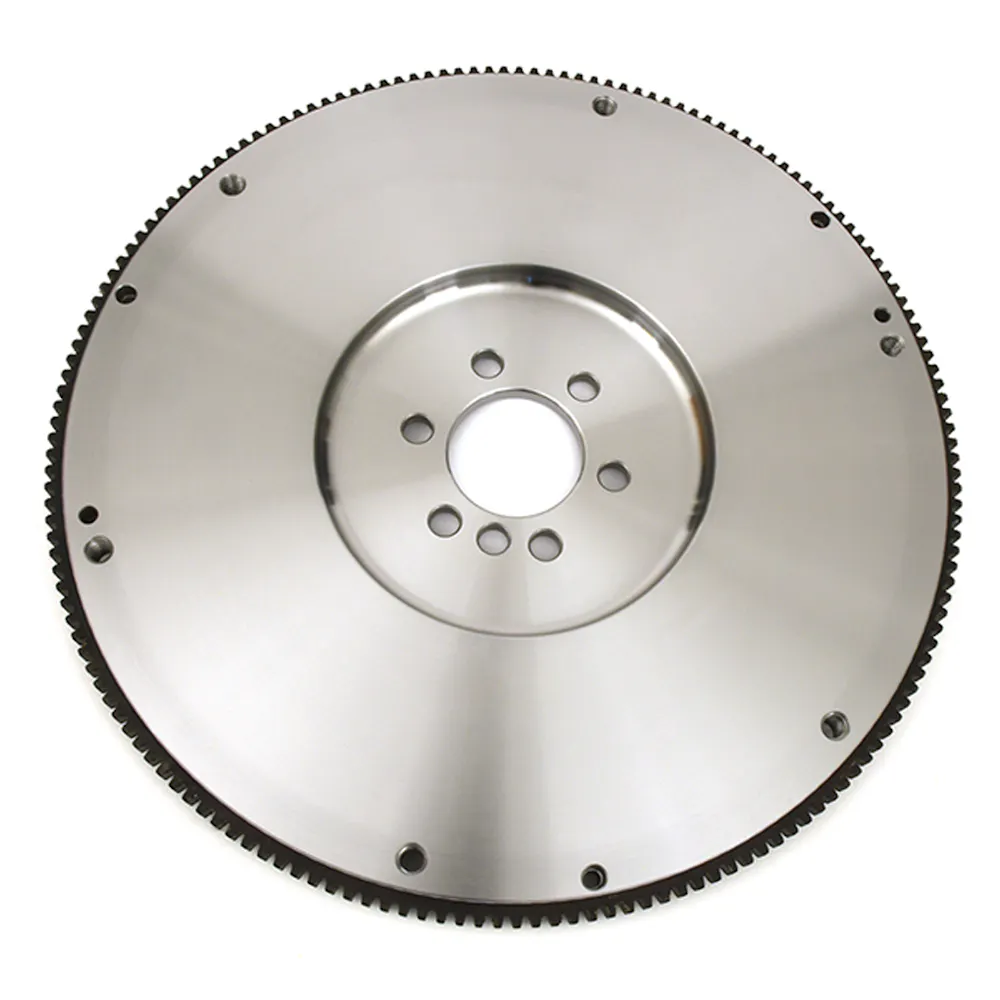

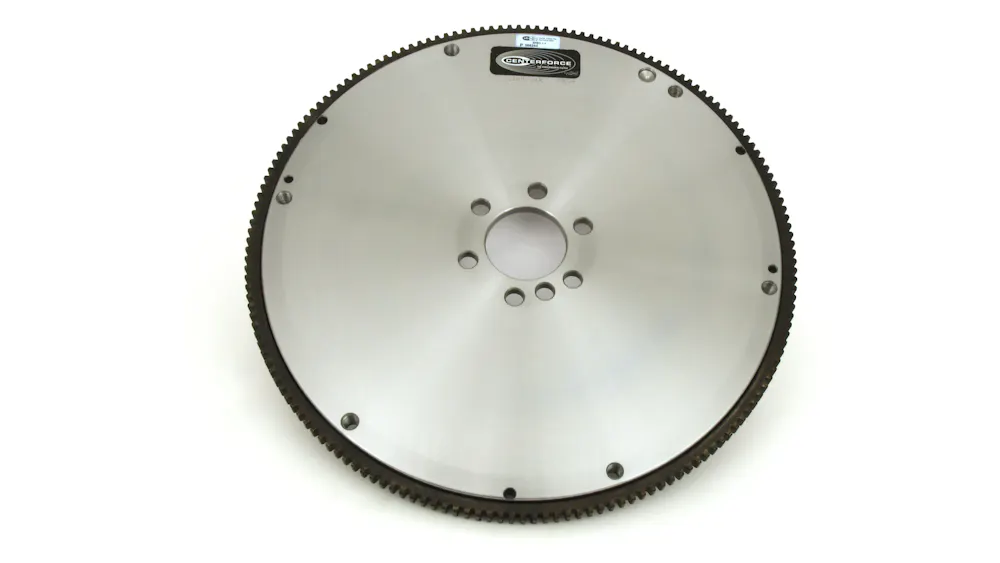

Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Outside Diameter: 14.096
Outside Diameter of Friction Surface (Standard): 12
Pilot Bushing Included: Yes
Replaceable Friction Surface: N
Ring Gear O.D: 14.096
Ring Gear O.D.: 14.105
Ring Gear OD: 14.096
Ring Gear Tooth Count: 168
Title: Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 700 ft/lbs Capacity, 12in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 8 Cyl
Tooth Quantity: 168
Torque Capacity: 700
