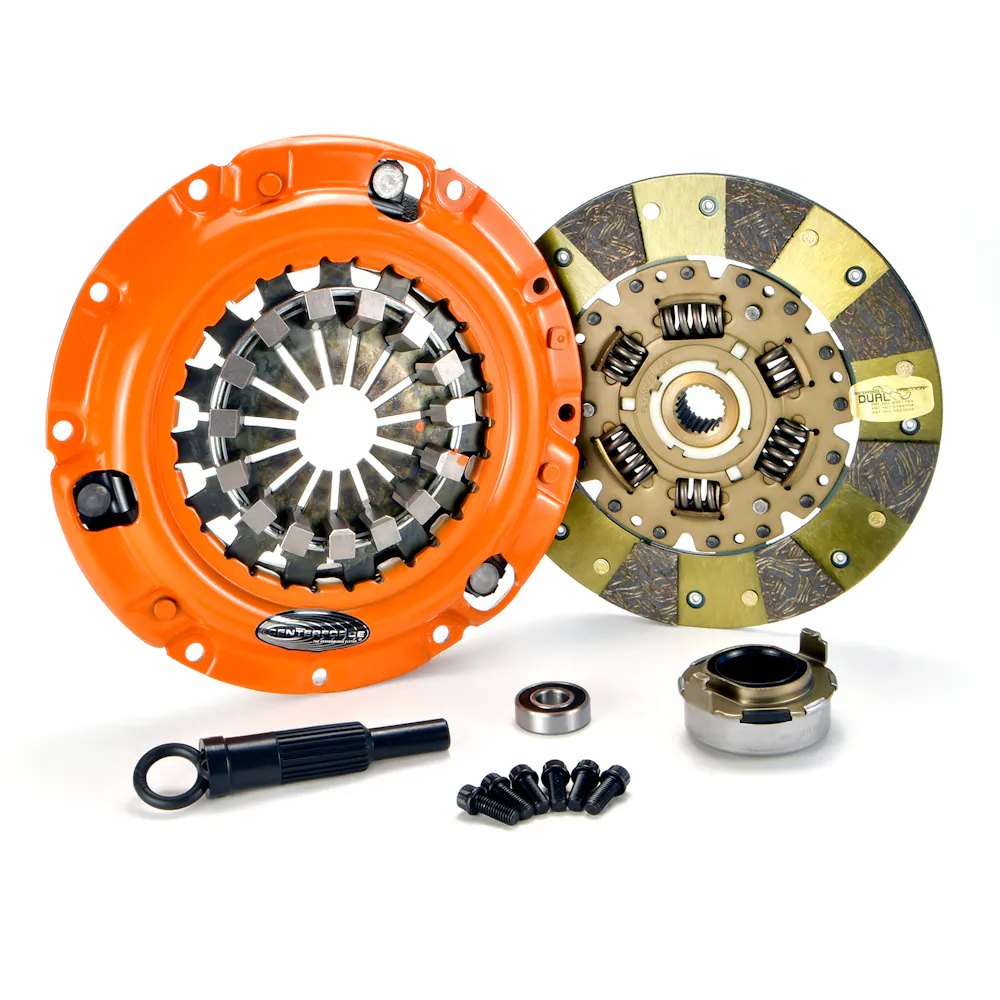

Centerforce / KDF801913
Part #: KDF801913
UPC: 788442037760
Loading...
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
This part number superseded DF580019.
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1994-1997 | Mazda Miata |
| 1999-2005 | Mazda Miata |
Specifications
- GTIN
- 00788442037760
- Weight
- 14.6 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 225
- Counterweight Assist
- Yes
- Disc Material
- Organic
- Disc Quantity
- 1
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Spring
- Engine Family
- NB
- Flywheel Step
- -0.787
- Flywheel Step Type
- Cup
- Input Shaft Diameter
- 15/16
- Input Spline Quantity
- 22
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 12.35
- Pilot Bushing Included
- Yes
- Pilot Bushing Material
- Ball Bearing
- Release Bearing Included
- Yes
- Title
- Centerforce Dual Friction ?, High Performance Clutch Kit
- Torque Capacity
- 289
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1994-1997 Mazda Miata; 1999-2005 Mazda Miata
