Centerforce / KDF713916
Part #: KDF713916
UPC: 788442035674
Loading...
Notify me when this item is in stock.

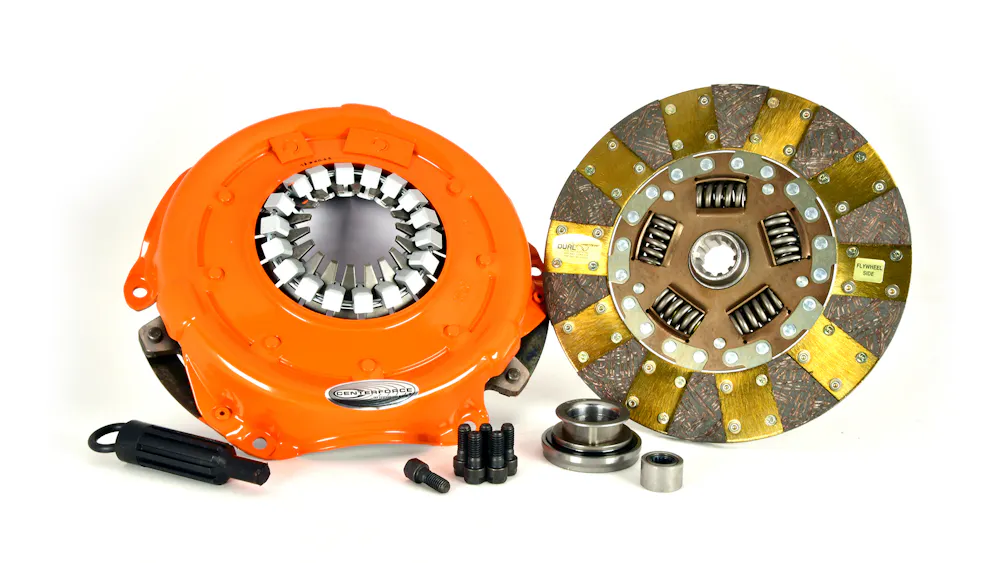

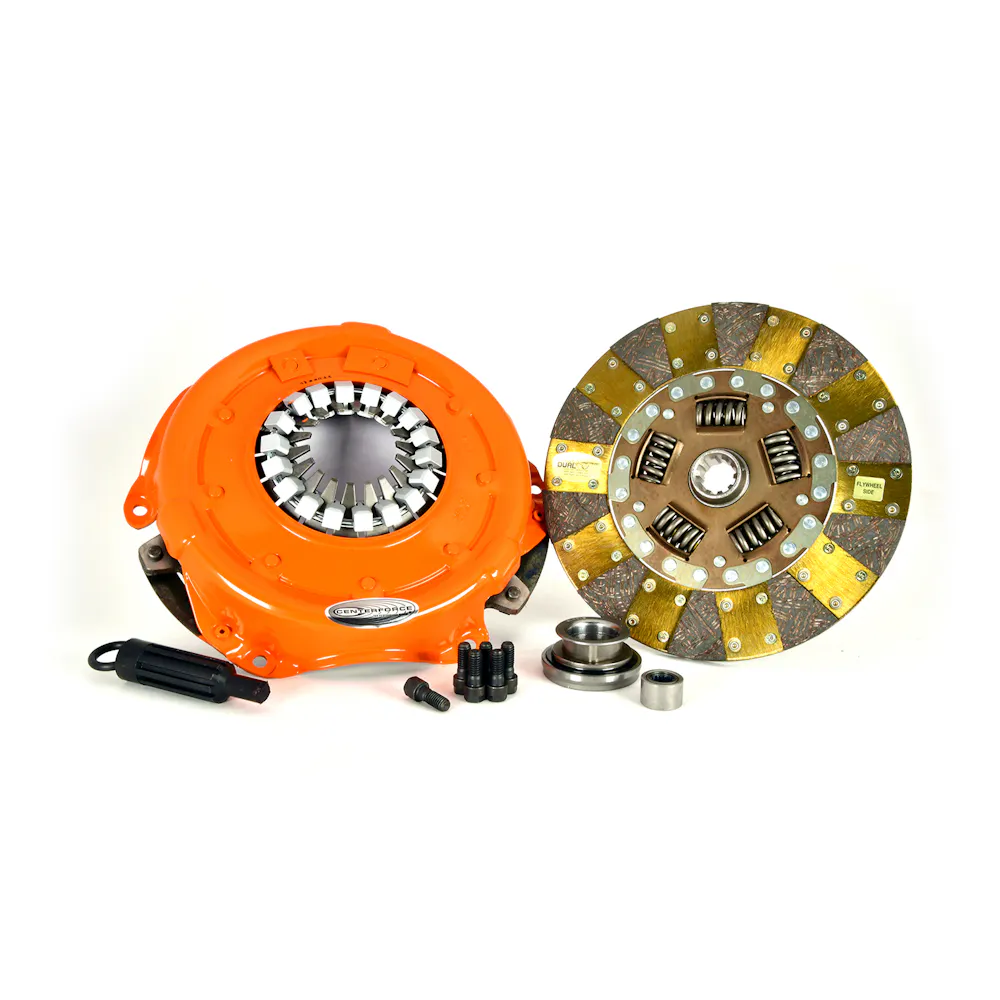

Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1973 | Buick Centurion |
| 1973 | Buick Century |
| 1979 | Buick Century |
| 1967-1968 | Buick LeSabre |
| 1970-1973 | Buick LeSabre |
| 1973 | Buick Regal |
| 1979 | Buick Regal |
| 1967-1972 | Buick Skylark |
| 1967-1969 | Buick Special |
| 1955-1956 | Chevrolet Bel Air |
| 1962-1969 | Chevrolet Bel Air |
| 1962-1969 | Chevrolet Biscayne |
| 1967-1974 | Chevrolet Camaro |
| 1977-1982 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1964-1973 | Chevrolet Chevelle |
| 1965-1967 | Chevrolet Chevy II |
| 1962-1968 | Chevrolet Corvette |
| 1978 | Chevrolet Corvette |
| 1964-1975 | Chevrolet El Camino |
| 1978-1981 | Chevrolet El Camino |
| 1962-1969 | Chevrolet Impala |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1971-1975 | Chevrolet Monte Carlo |
| 1978-1979 | Chevrolet Monte Carlo |
| 1981 | Chevrolet Monte Carlo |
| 1969-1979 | Chevrolet Nova |
| 1978-1981 | GMC Caballero |
| 1971-1977 | GMC Sprint |
Specifications
- GTIN
- 00788442035674
- Weight
- 24 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Bolt Size
- 3/8 - 16 X 0.900
- Clutch Bolt Type
- Shouldered
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- Flat
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 21.6
- Pilot Bushing Included
- Yes
- Release Bearing Included
- Yes
- Title
- Centerforce Dual Friction ?, High Performance Clutch Kit, 590 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Buick/Chevrolet/GMC Cars and Trucks 6/8 Cyl
- Torque Capacity
- 590
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973 Buick Centurion; 1973 Buick Century; 1979 Buick Century; 1967-1968 Buick LeSabre; 1970-1973 Buick LeSabre; 1973 Buick Regal; 1979 Buick Regal; 1967-1972 Buick Skylark; 1967-1969 Buick Special; 1955-1956 Chevrolet Bel Air; 1962-1969 Chevrolet Bel Air; 1962-1969 Chevrolet Biscayne; 1967-1974 Chevrolet Camaro; 1977-1982 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1964-1973 Chevrolet Chevelle; 1965-1967 Chevrolet Chevy II; 1962-1968 Chevrolet Corvette; 1978 Chevrolet Corvette; 1964-1975 Chevrolet El Camino; 1978-1981 Chevrolet El Camino; 1962-1969 Chevrolet Impala; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1971-1975 Chevrolet Monte Carlo; 1978-1979 Chevrolet Monte Carlo; 1981 Chevrolet Monte Carlo; 1969-1979 Chevrolet Nova; 1978-1981 GMC Caballero; 1971-1977 GMC Sprint
