Centerforce · KDF693963
Part #: KDF693963
UPC: 788442029734
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1970-1974 | Dodge Challenger |
| 1966-1974 | Dodge Charger |
| 1965-1967 | Dodge Coronet |
| 1970-1974 | Dodge Coronet |
| 1967-1972 | Dodge Dart |
| 1974 | Dodge Dart |
| 1967-1973 | Plymouth Barracuda |
| 1963-1970 | Plymouth Belvedere |
| 1970-1973 | Plymouth Duster |
| 1963-1967 | Plymouth Fury |
| 1968-1969 | Plymouth GTX |
| 1971 | Plymouth GTX |
| 1968-1973 | Plymouth Road Runner |
| 1965-1969 | Plymouth Satellite |
| 1971-1973 | Plymouth Satellite |
Specifications
- GTIN
- 00788442029734
- Weight
- 24.2 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Includes

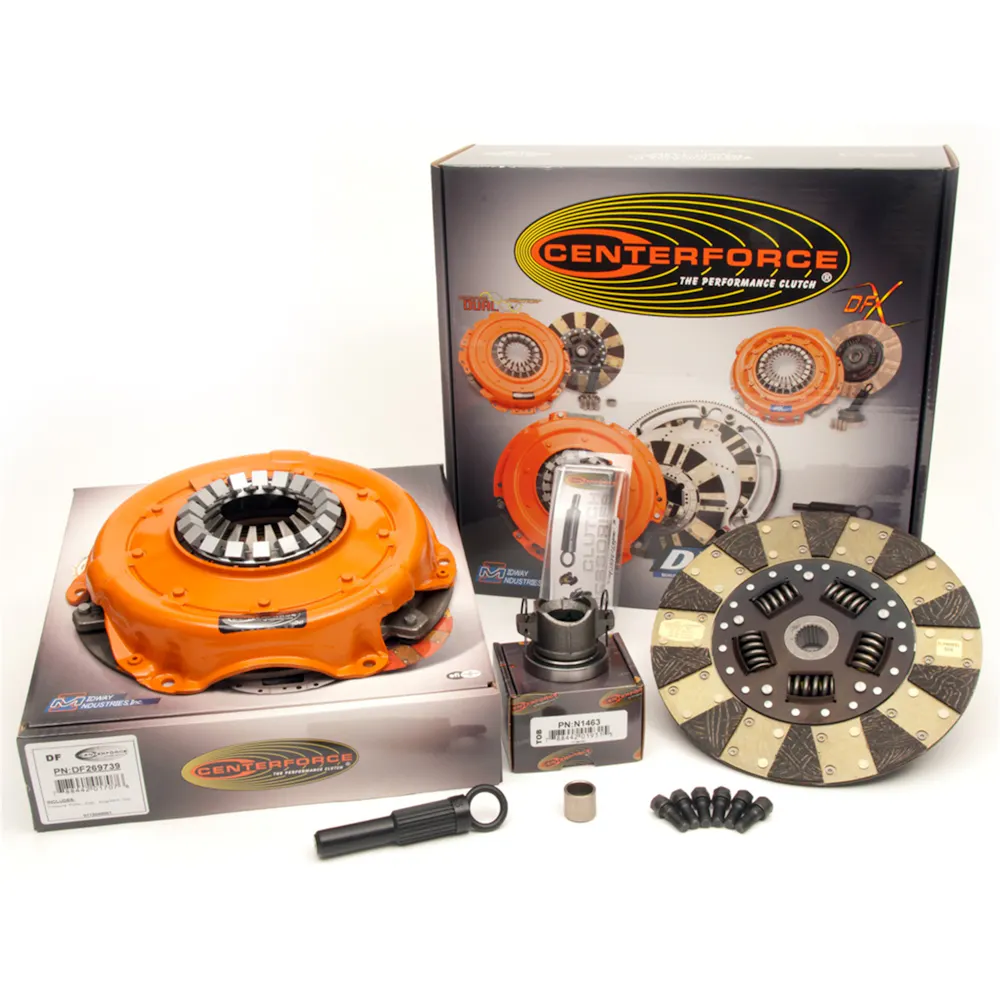

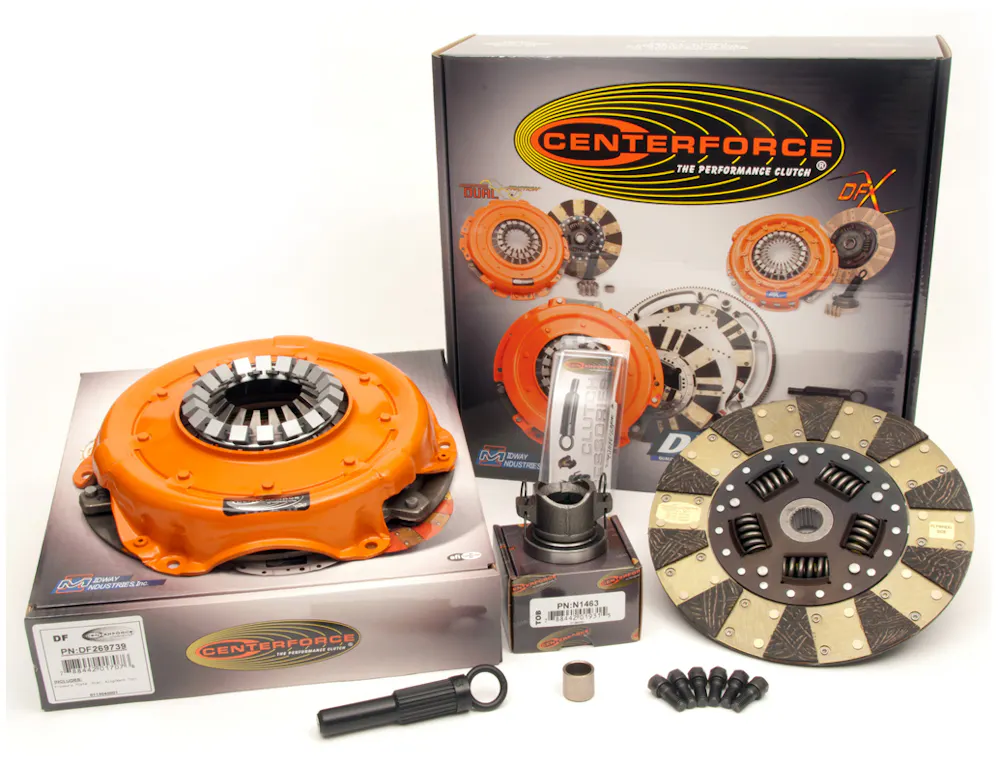

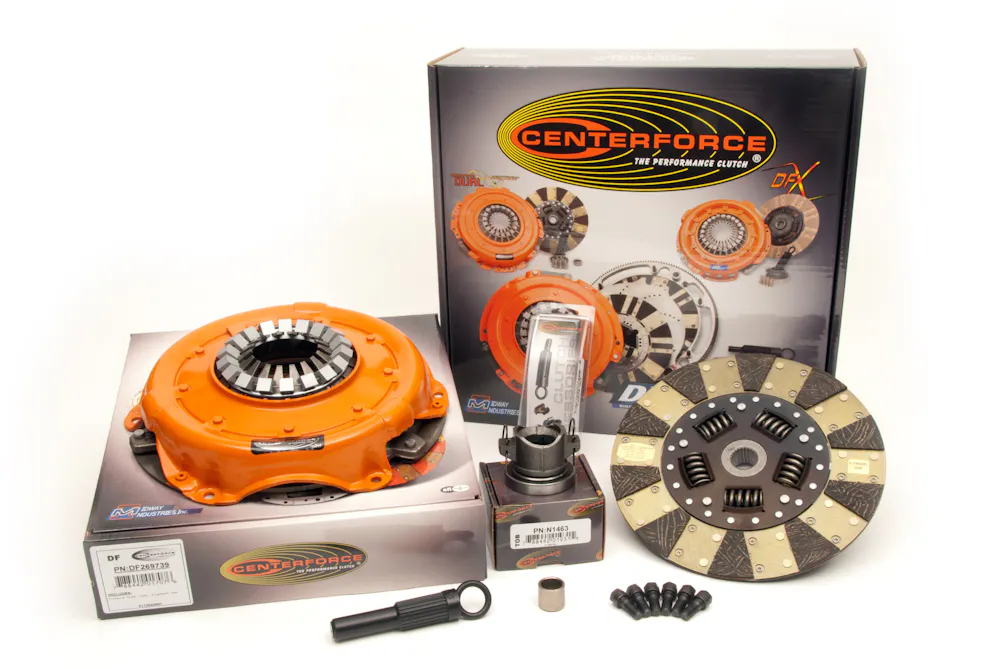

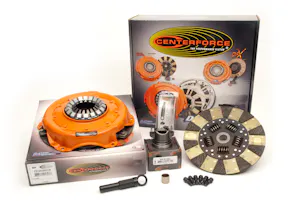

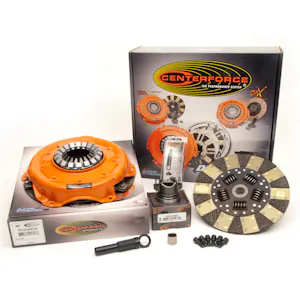

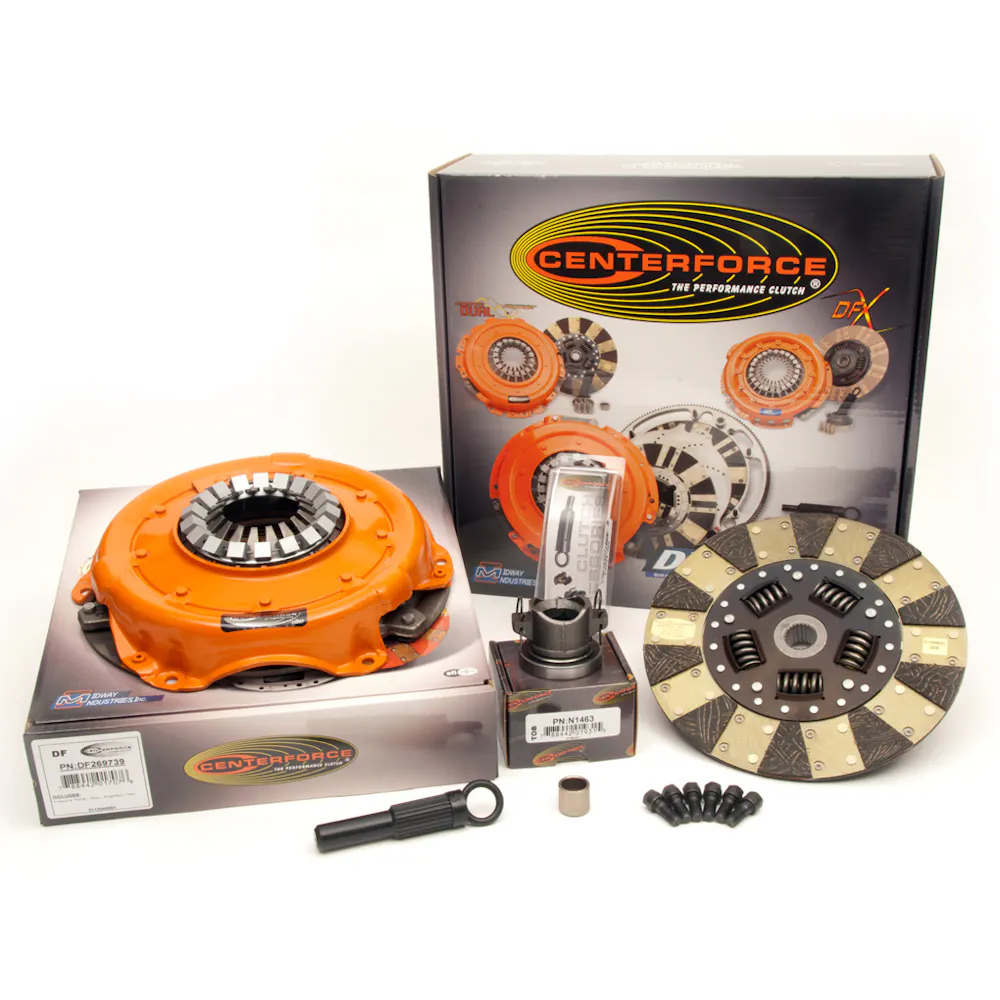

- Pressure Plate, Disc, T.O.B., Pilot Bearing, Bolts, Alignment Tool
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 21.75
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Pilot Bushing Included
- Yes
- Release Bearing Included
- Yes
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 1"-23
- Title
- Centerforce Dual Friction ?, High Performance Clutch Kit, 590 ft/lbs Capacity, 10.4in Dia., 23-Spline, Fits Dodge/Plymouth Cars 8 Cyl
- Torque Capacity
- 590
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1970-1974 Dodge Challenger; 1966-1974 Dodge Charger; 1965-1967 Dodge Coronet; 1970-1974 Dodge Coronet; 1967-1972 Dodge Dart; 1974 Dodge Dart; 1967-1973 Plymouth Barracuda; 1963-1970 Plymouth Belvedere; 1970-1973 Plymouth Duster; 1963-1967 Plymouth Fury; 1968-1969 Plymouth GTX; 1971 Plymouth GTX; 1968-1973 Plymouth Road Runner; 1965-1969 Plymouth Satellite; 1971-1973 Plymouth Satellite
