Centerforce · KDF409540

Part #: KDF409540
UPC: 788442036787

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

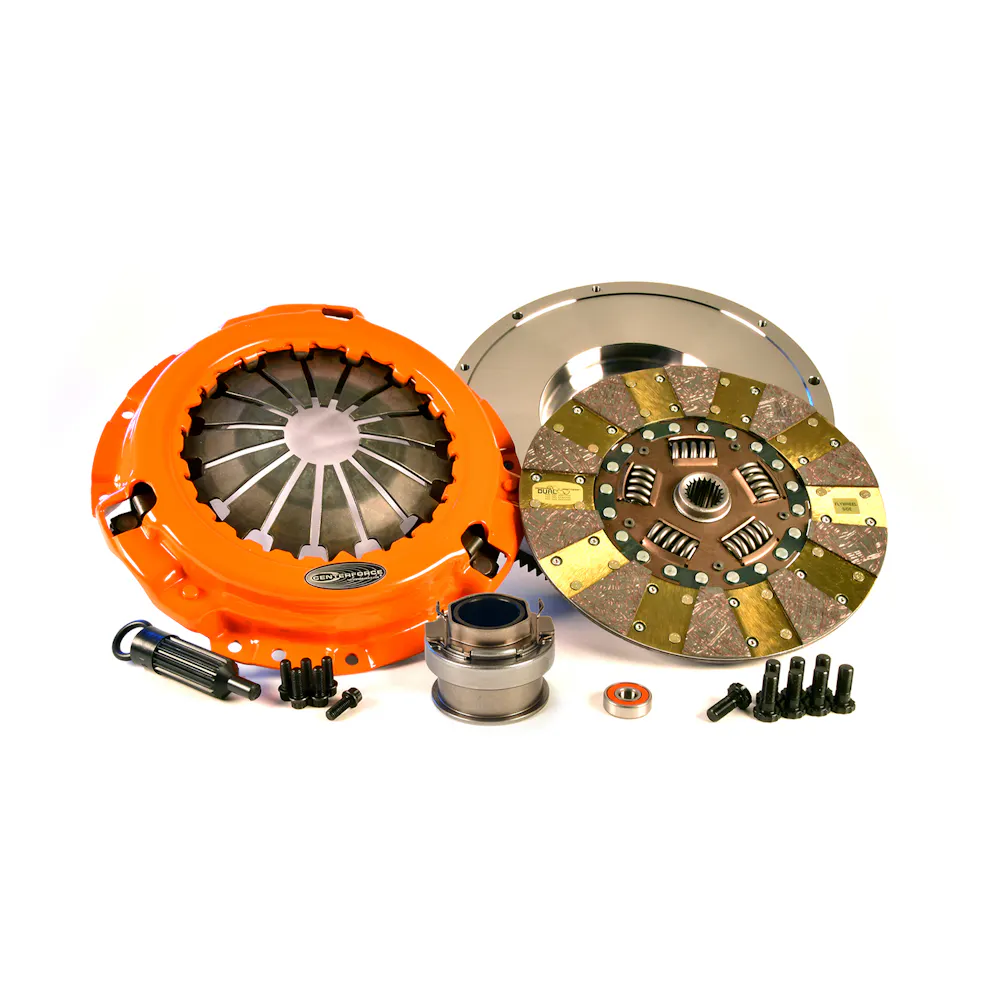

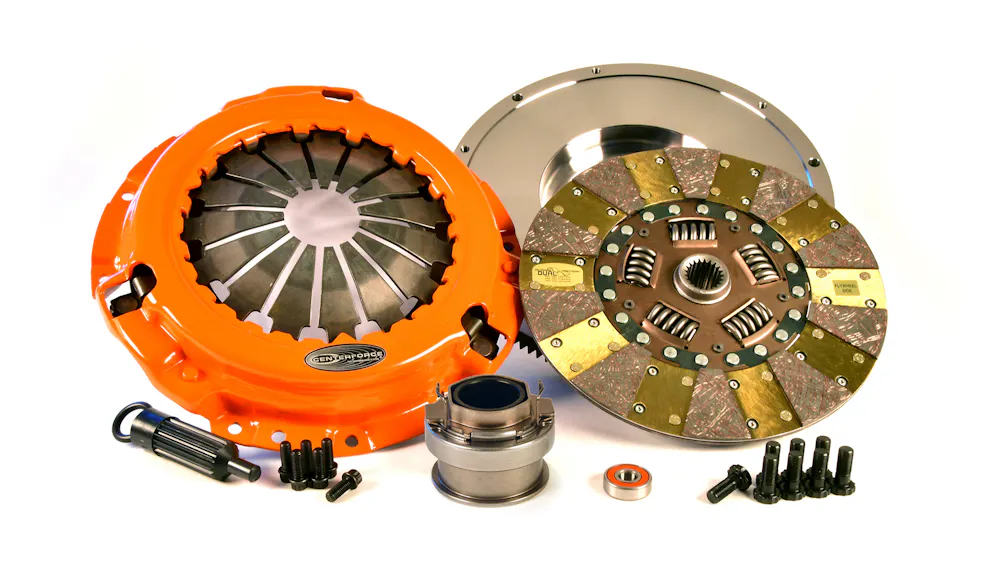

Description: Dual Friction(R), Clutch and Flywheel Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

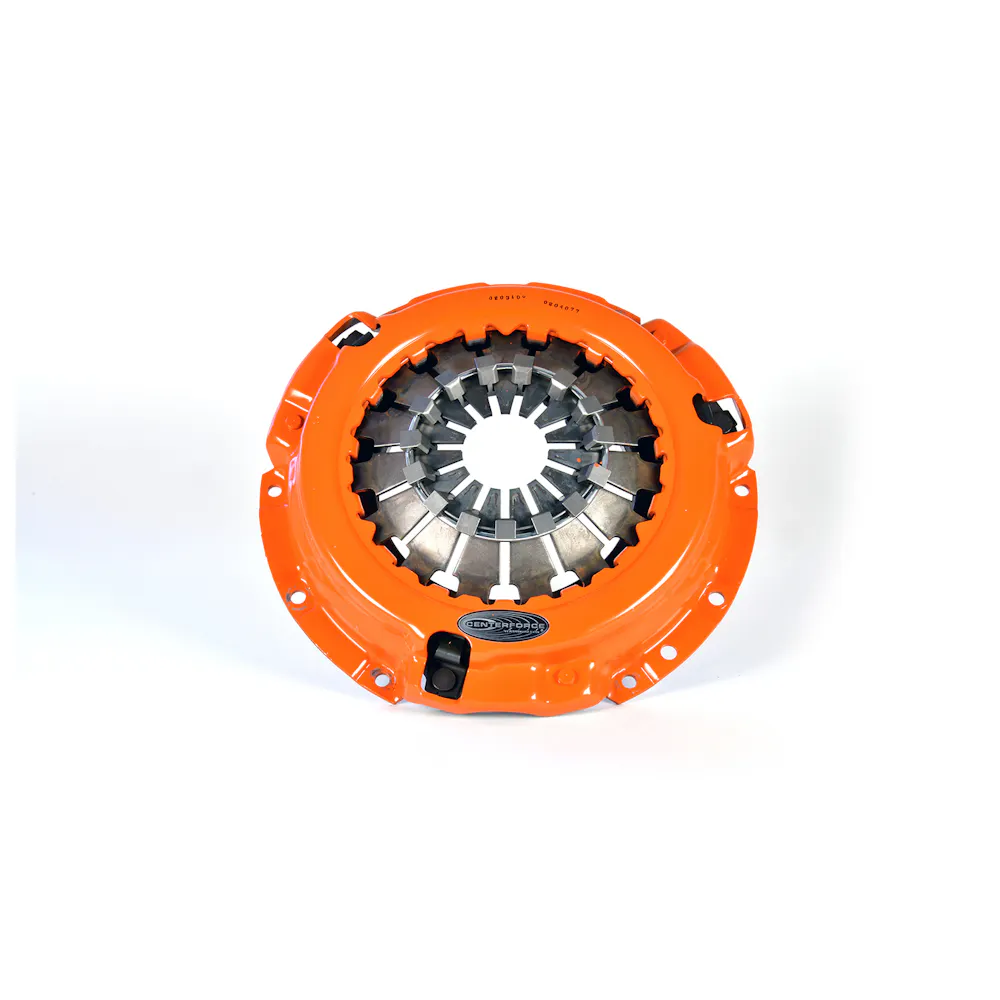

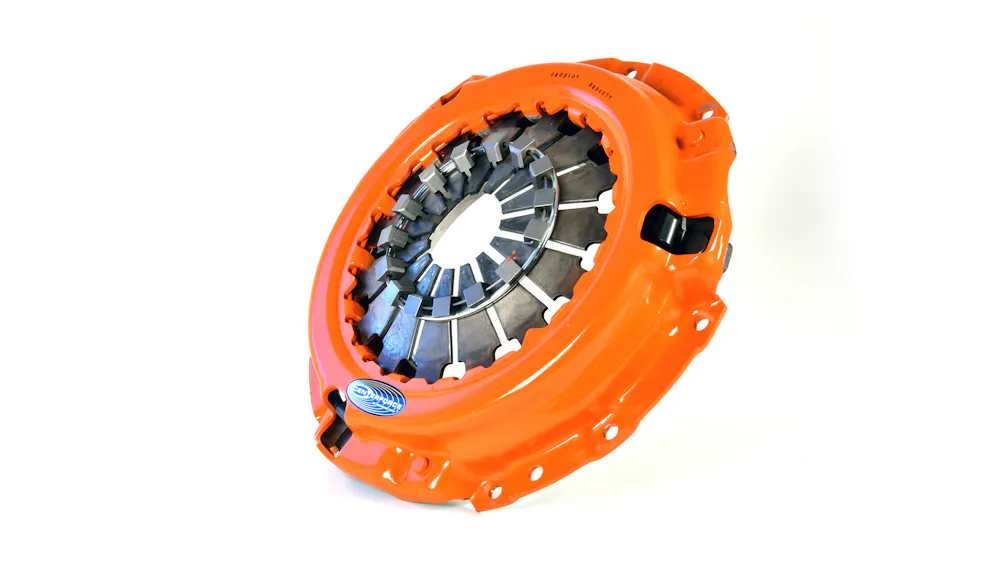

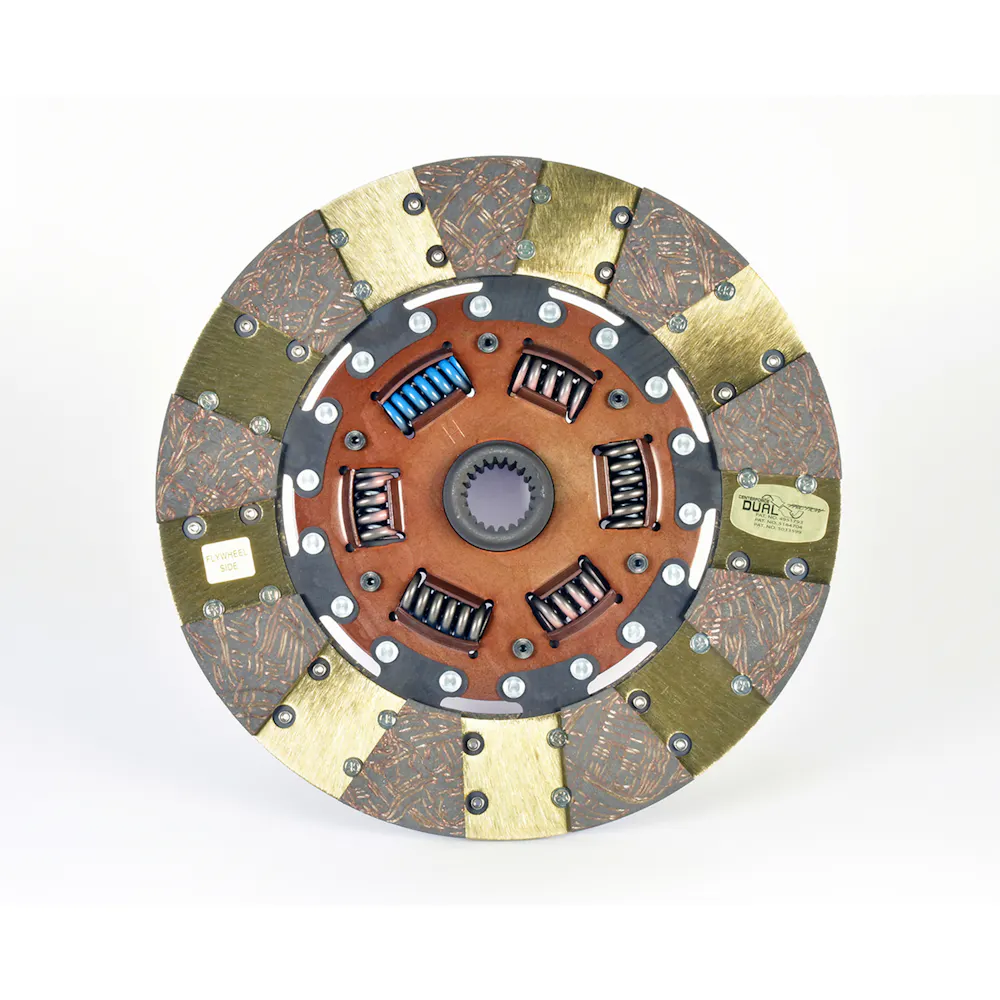

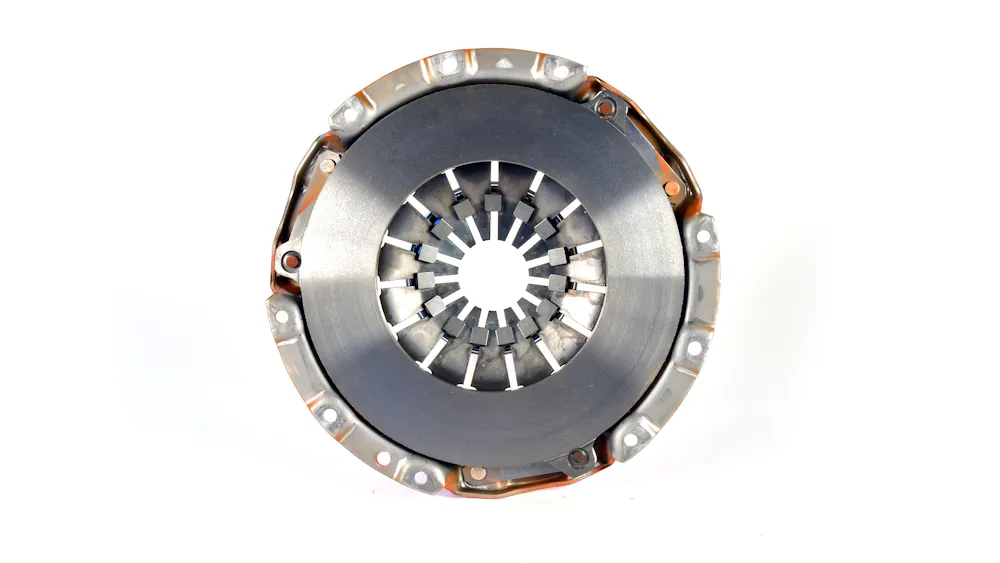

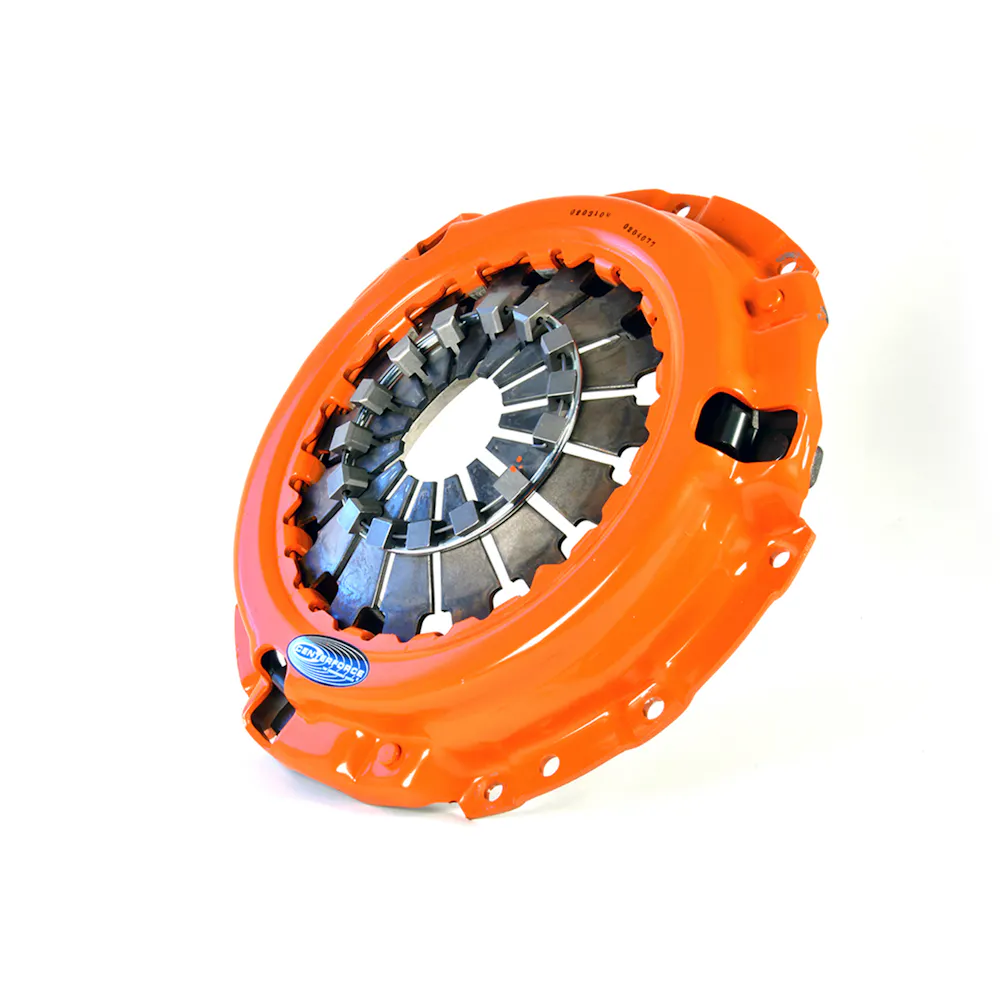

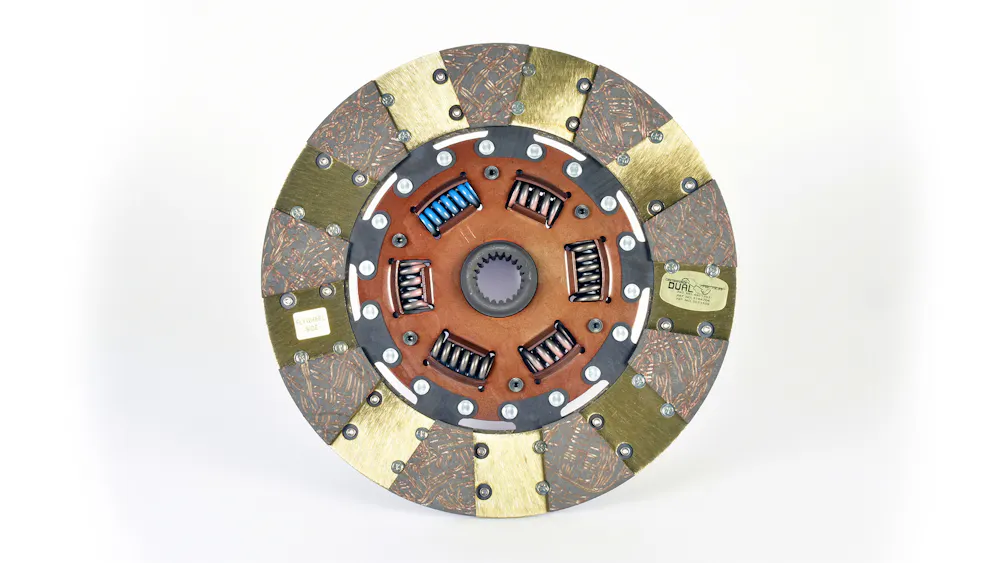

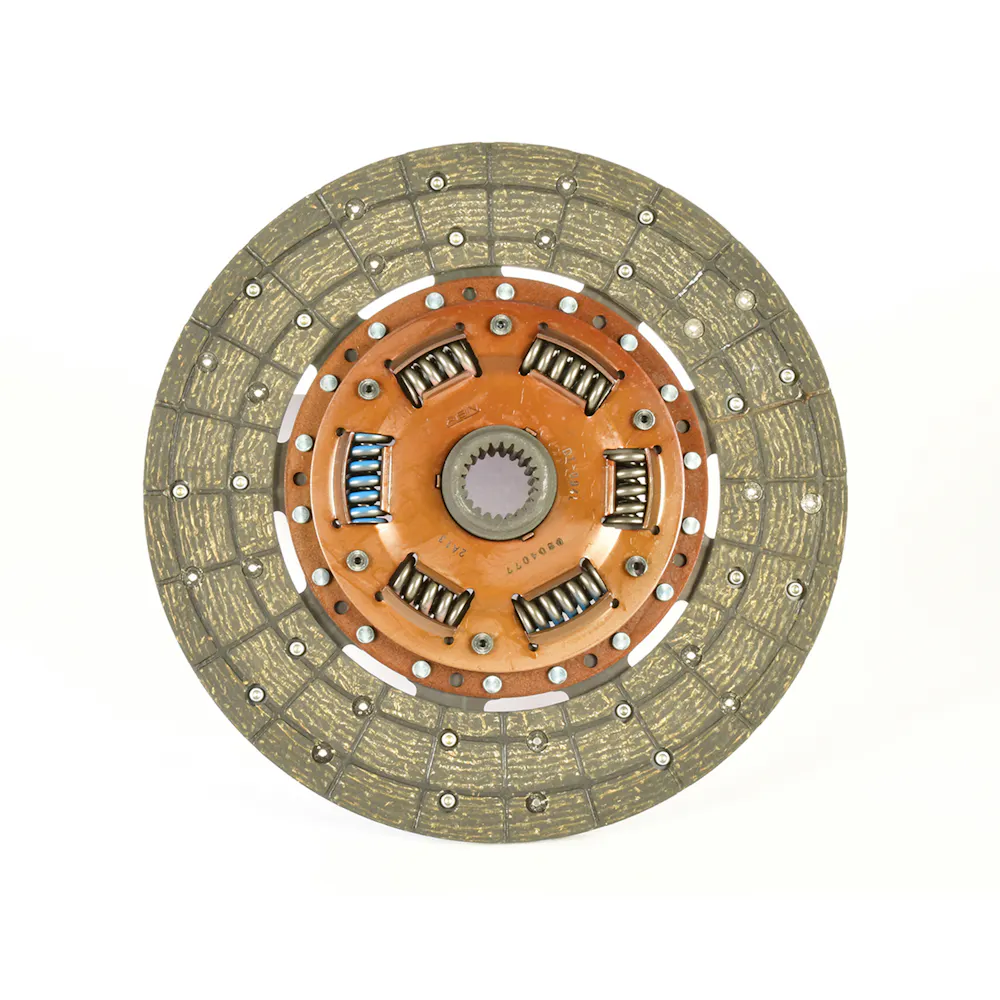

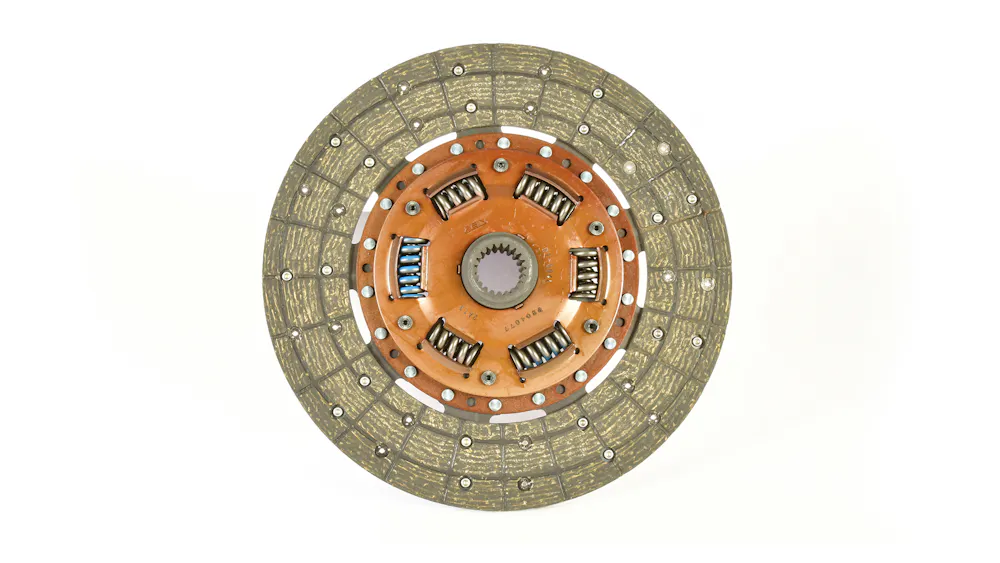

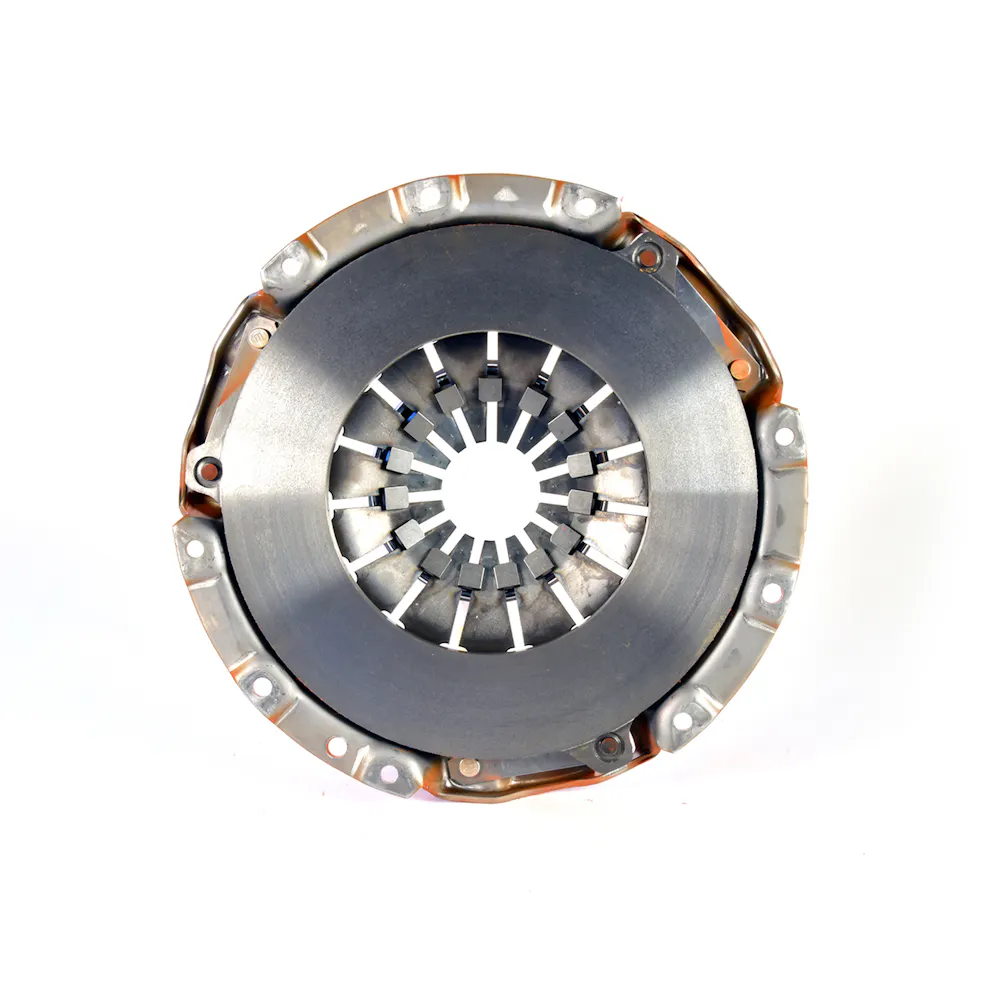

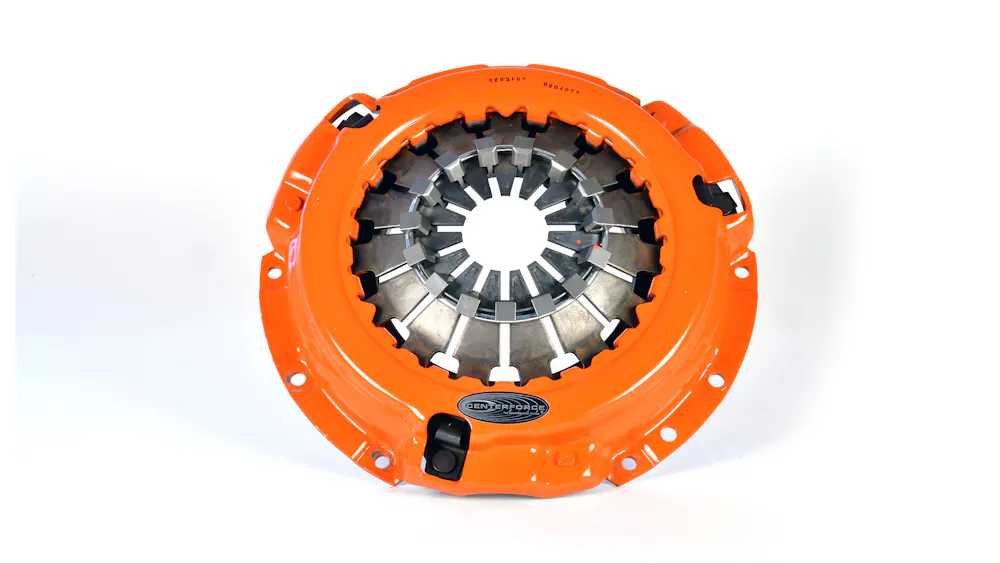

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
2007-2014	Toyota FJ Cruiser
2005-2015	Toyota Tacoma

Specifications

GTIN: 00788442036787
Weight: 76 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 279.4
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic

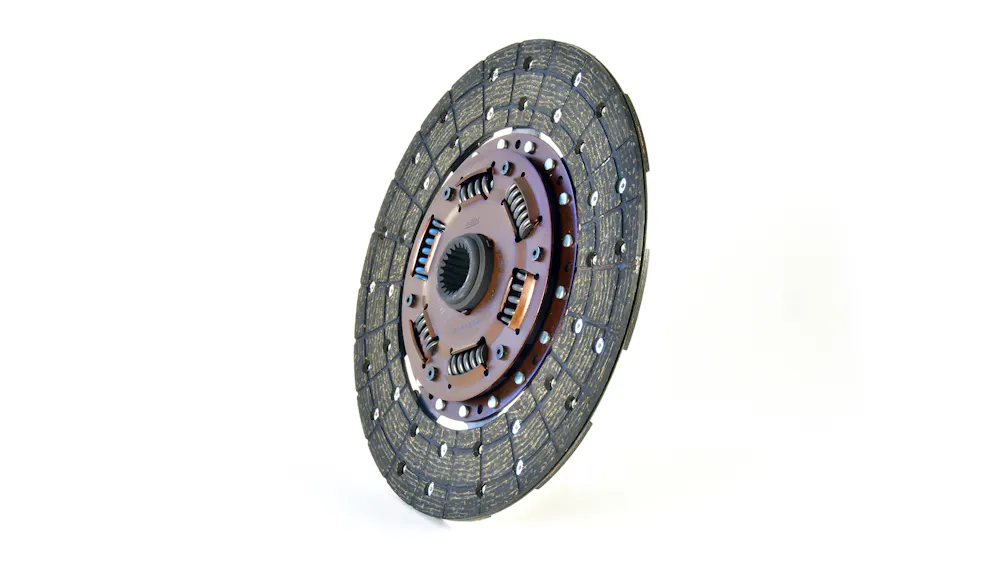

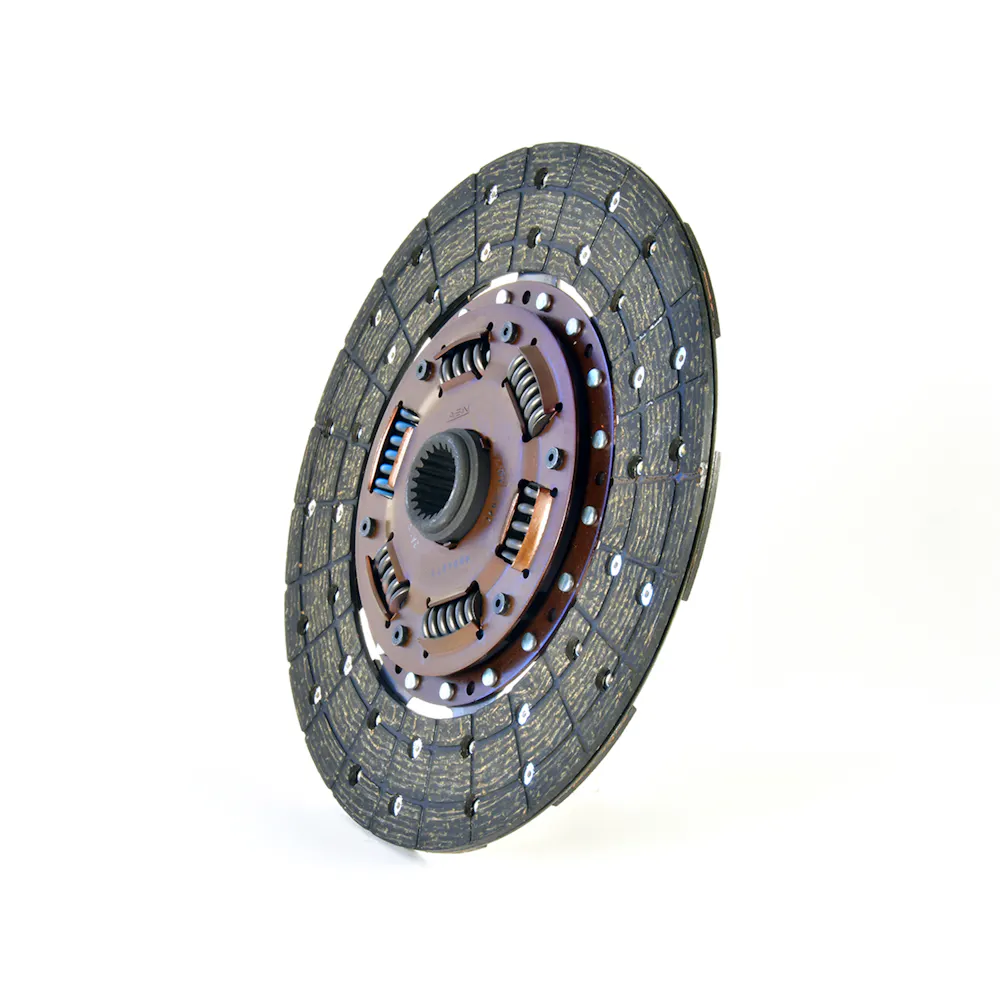

Disc Type: Full Face / Segmented
Disc Type Sprung Solid: Sprung
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 21
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction

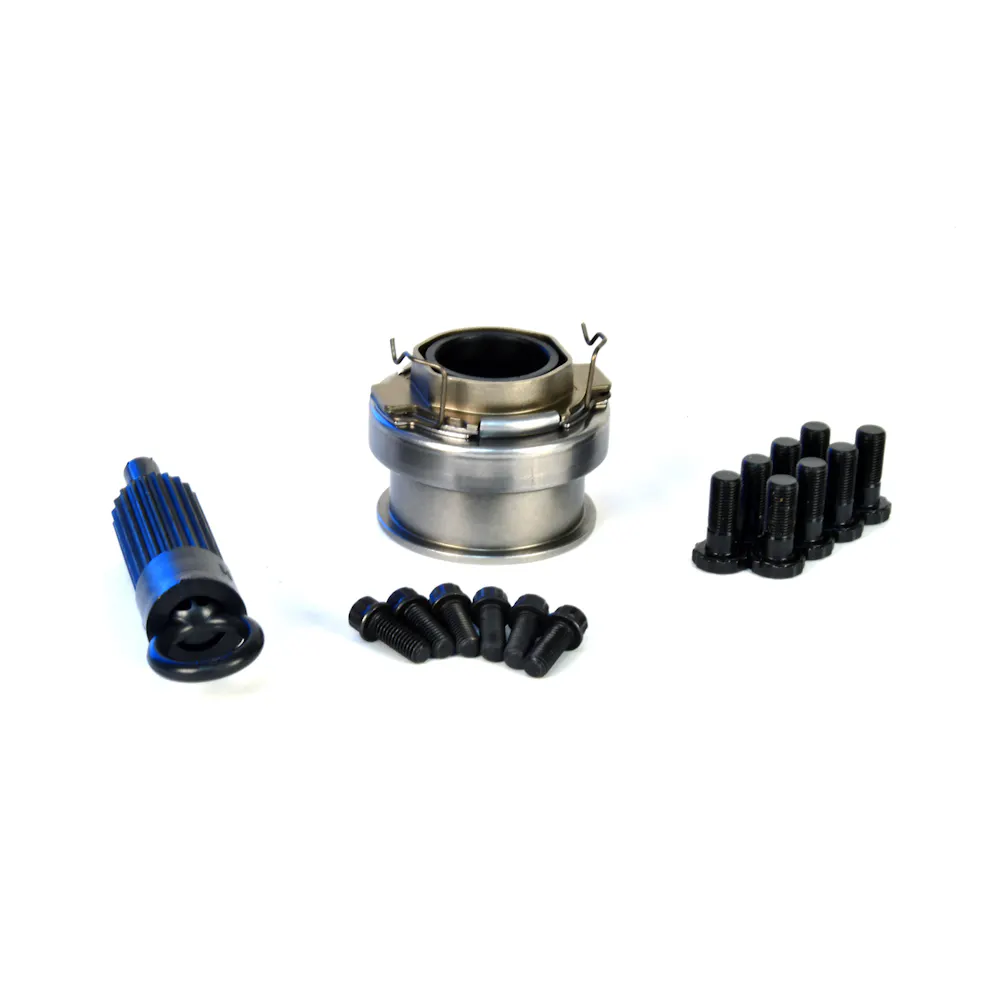

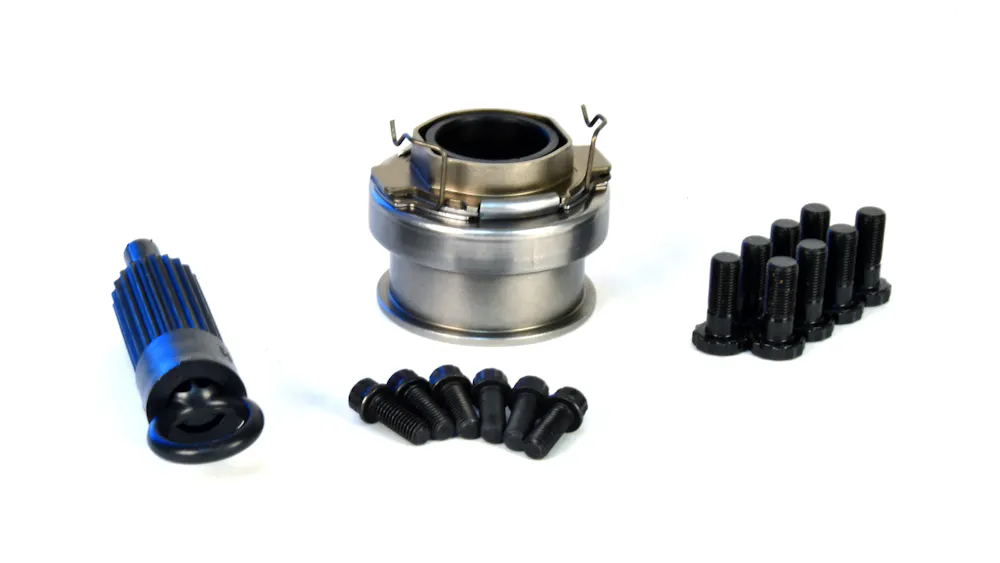

Mounting Hardware Included: Yes
Pilot Bushing Included: Yes
Release Bearing Included: Yes

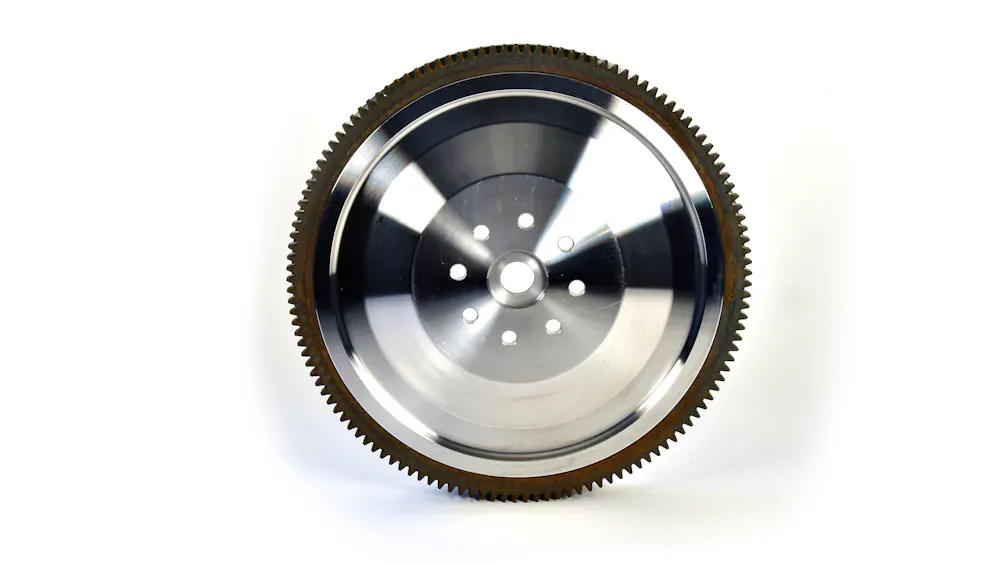

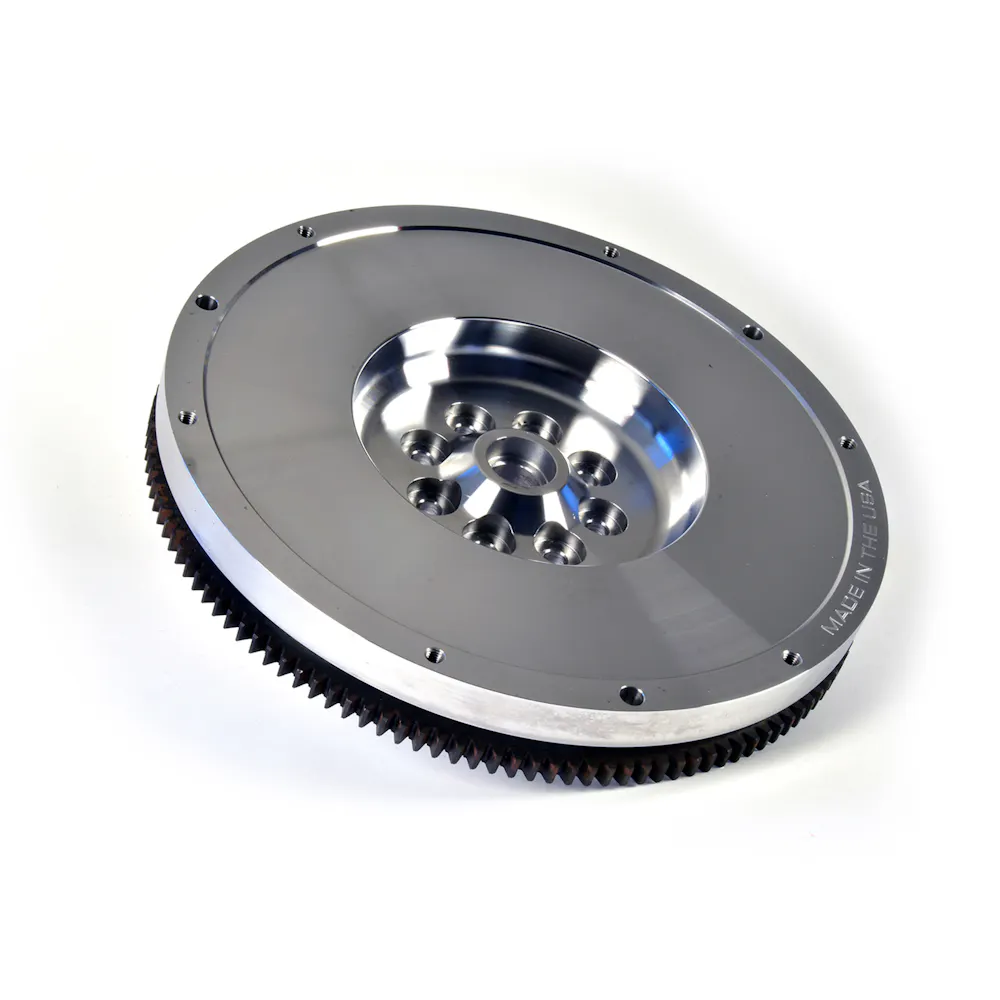

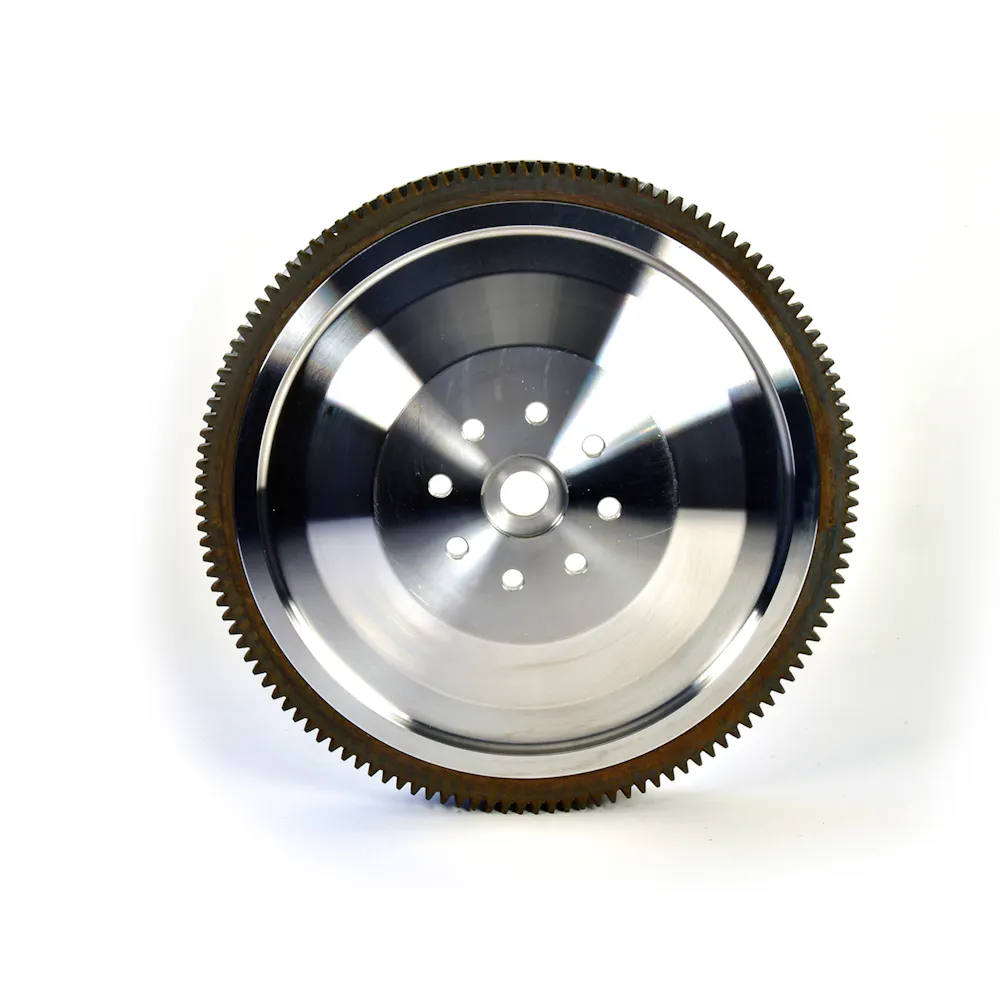

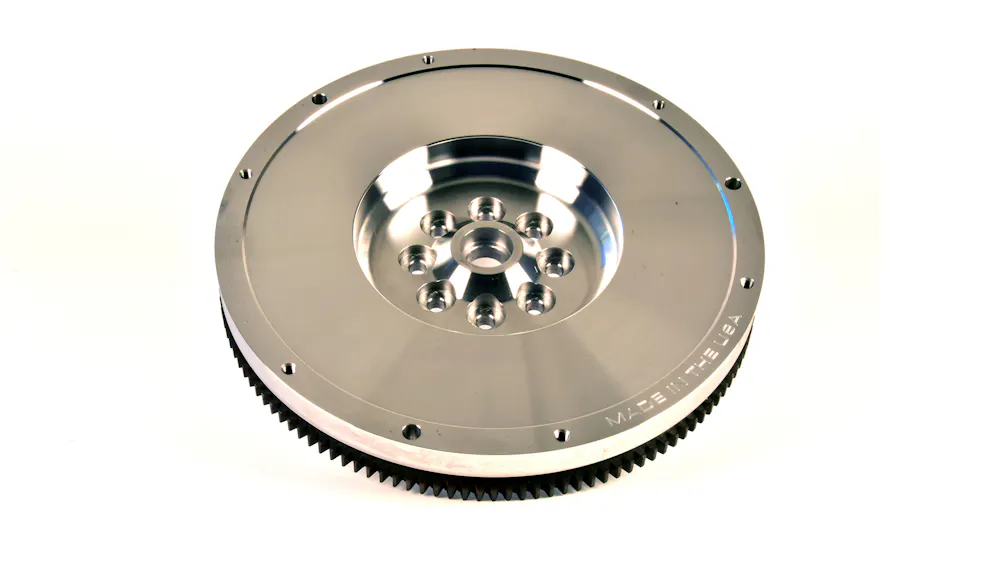

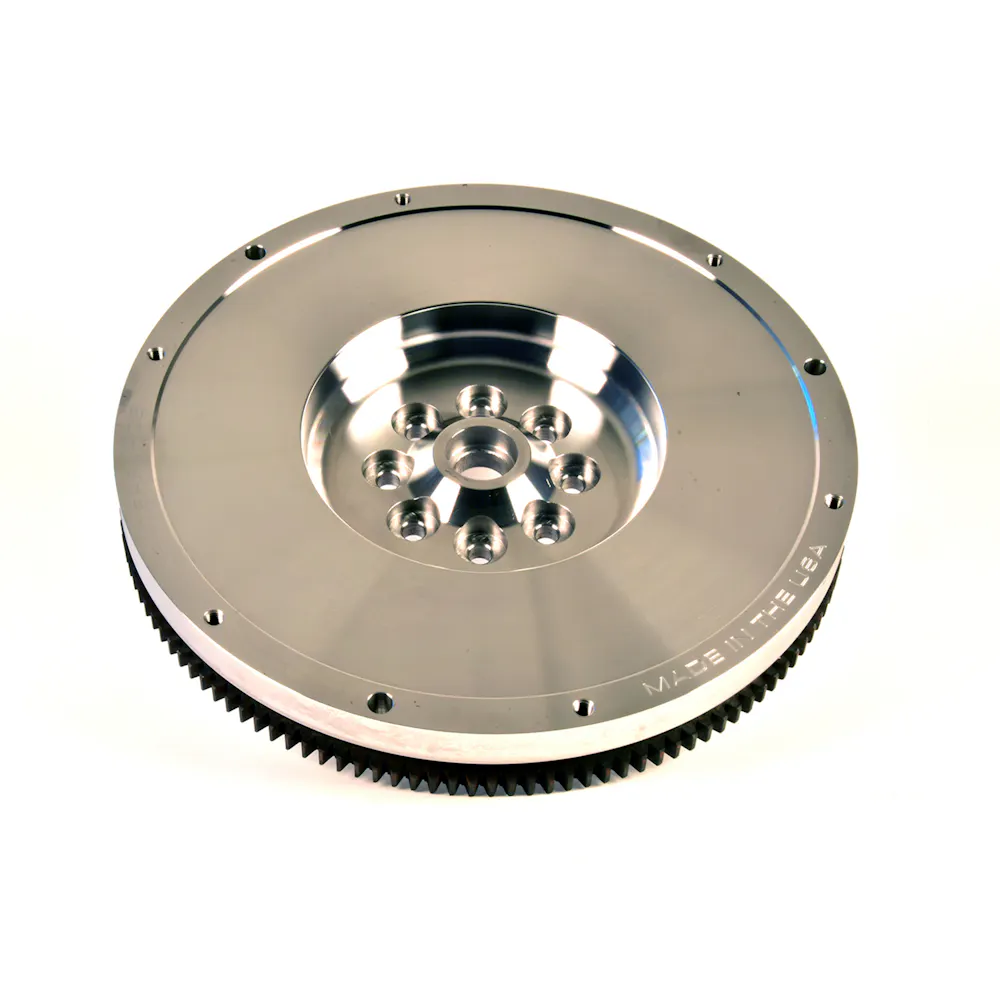

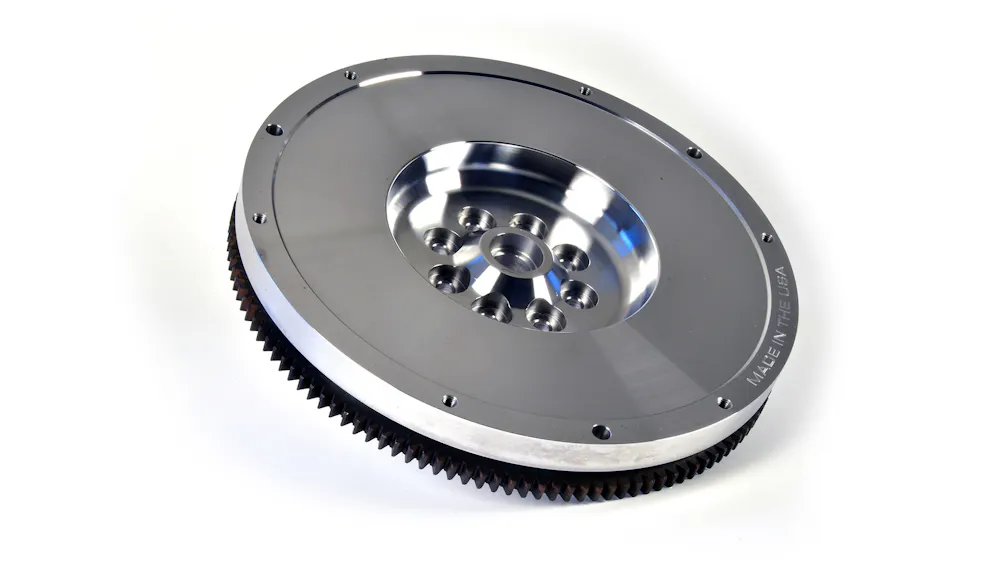

Ring Gear O.D.: 13.195
Ring Gear Tooth Count: 129
Title: Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 129 Tooth Gear, 8 Bolt Crank, 491 ft/lbs Capacity, 11in Dia., 21-Spline, Fits Toyota FJ Cruiser and Tacoma 4.0L
Tooth Quantity: 129
Torque Capacity: 491
