Centerforce · KDF355216
Part #: KDF355216
UPC: 788442029550
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1966 | Buick Electra |
| 1966-1968 | Buick Skylark |
| 1970 | Buick Skylark |
| 1966-1972 | Chevrolet Bel Air |
| 1965-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1995 | Chevrolet Blazer |
| 1975-1984 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1980 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C20 |
| 1968-1982 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C30 |
| 1962-1967 | Chevrolet C30 Pickup |
| 1967-1970 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1967-1969 | Chevrolet Chevelle |
| 1972 | Chevrolet Chevelle |
| 1966-1971 | Chevrolet Corvette |
| 1966-1970 | Chevrolet El Camino |
| 1972 | Chevrolet El Camino |
| 1965-1972 | Chevrolet Impala |
| 1975-1982 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1979 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K20 |
| 1968-1982 | Chevrolet K20 Suburban |
| 1977-1984 | Chevrolet K30 |
| 1975-1982 | Chevrolet K5 Blazer |
| 1970 | Chevrolet Monte Carlo |
| 1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1994-1995 | Chevrolet S10 |
| 1994 | Chevrolet S10 Blazer |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1984 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1984 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1984 | GMC C3500 |
| 1970-1984 | GMC Jimmy |
| 1994-1995 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979-1984 | GMC K1500 |
| 1979-1980 | GMC K1500 Suburban |
| 1982 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1984 | GMC K2500 |
| 1979-1982 | GMC K2500 Suburban |
| 1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979-1984 | GMC K3500 |
| 1994-1995 | GMC Sonoma |
| 1971-1972 | GMC Sprint |
Specifications
- GTIN
- 00788442029550
- Weight
- 32 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Bolt Size
- 3/8 - 16 X 0.900
- Clutch Bolt Type
- Shouldered
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Deck Height
- 2.09
- Flywheel Step Type
- Flat
- Includes
- Pressure Plate, Disc, T.O.B., Pilot Bearing, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter of Friction Surface (Standard)
- 11
- Pilot Bushing Included
- Yes
- Release Bearing Included
- Yes
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Dual Friction ?, High Performance Clutch Kit, 622 ft/lbs Capacity, 11in Dia., 10-Spline, Fits Buick/Chevrolet/GMC Cars and Trucks 6/8 Cyl
- Torque Capacity
- 622
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 Buick Electra; 1966-1968 Buick Skylark; 1970 Buick Skylark; 1966-1972 Chevrolet Bel Air; 1965-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1995 Chevrolet Blazer; 1975-1984 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1968-1974 Chevrolet C10 Suburban; 1977-1980 Chevrolet C10 Suburban; 1975-1984 Chevrolet C20; 1968-1982 Chevrolet C20 Suburban; 1975-1984 Chevrolet C30; 1962-1967 Chevrolet C30 Pickup; 1967-1970 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1967-1969 Chevrolet Chevelle; 1972 Chevrolet Chevelle; 1966-1971 Chevrolet Corvette; 1966-1970 Chevrolet El Camino; 1972 Chevrolet El Camino; 1965-1972 Chevrolet Impala; 1975-1982 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1979 Chevrolet K10 Suburban; 1975-1984 Chevrolet K20; 1968-1982 Chevrolet K20 Suburban; 1977-1984 Chevrolet K30; 1975-1982 Chevrolet K5 Blazer; 1970 Chevrolet Monte Carlo; 1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1994-1995 Chevrolet S10; 1994 Chevrolet S10 Blazer; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1984 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1984 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979-1984 GMC C3500; 1970-1984 GMC Jimmy; 1994-1995 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1968-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979-1984 GMC K1500; 1979-1980 GMC K1500 Suburban; 1982 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1968-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1984 GMC K2500; 1979-1982 GMC K2500 Suburban; 1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979-1984 GMC K3500; 1994-1995 GMC Sonoma; 1971-1972 GMC Sprint

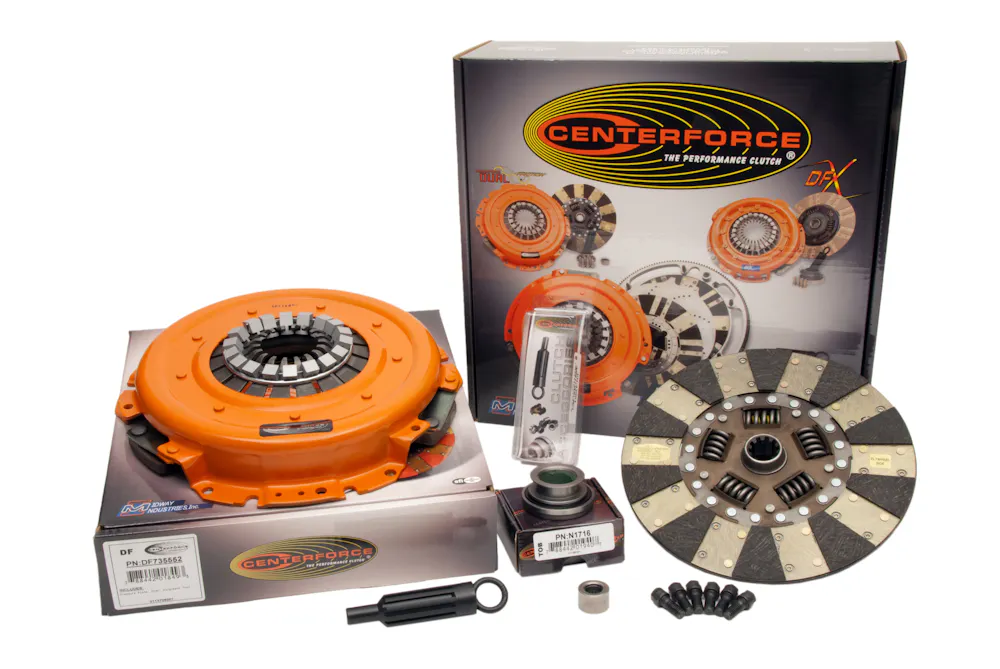

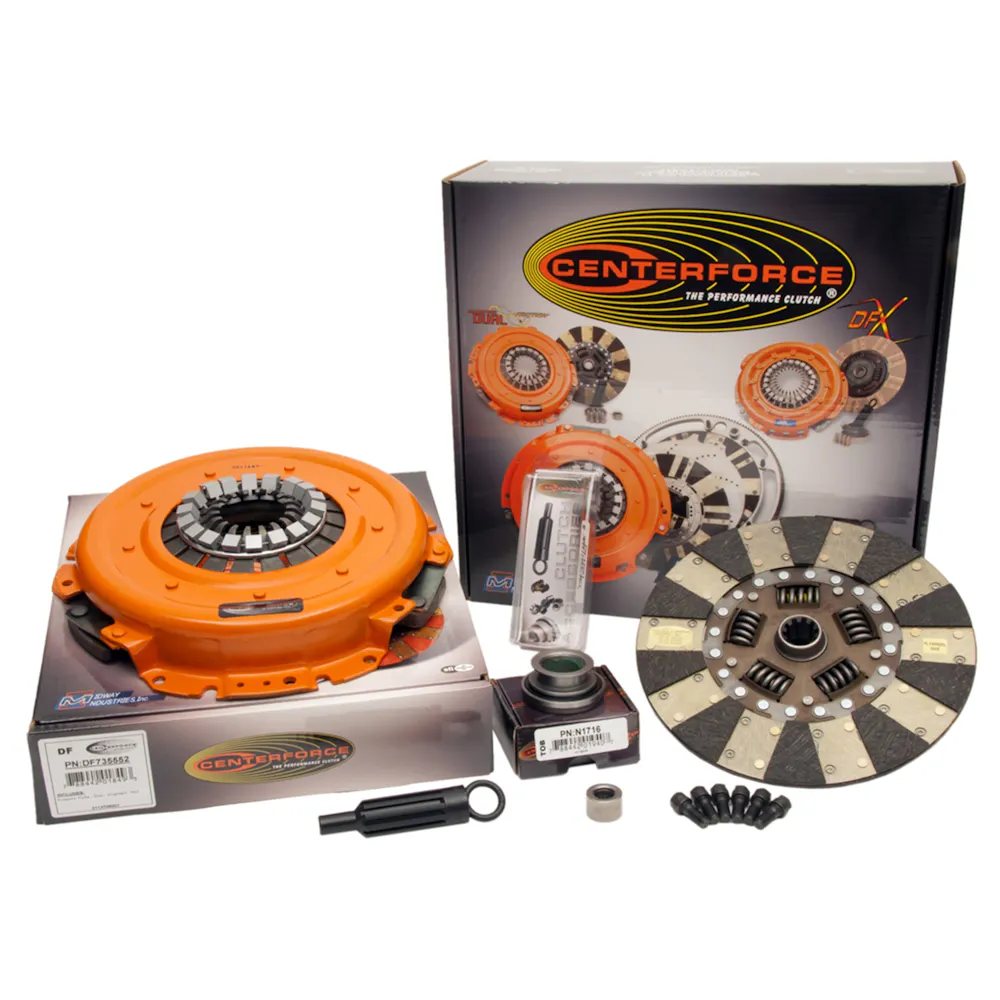

Centerforce KDF355216
