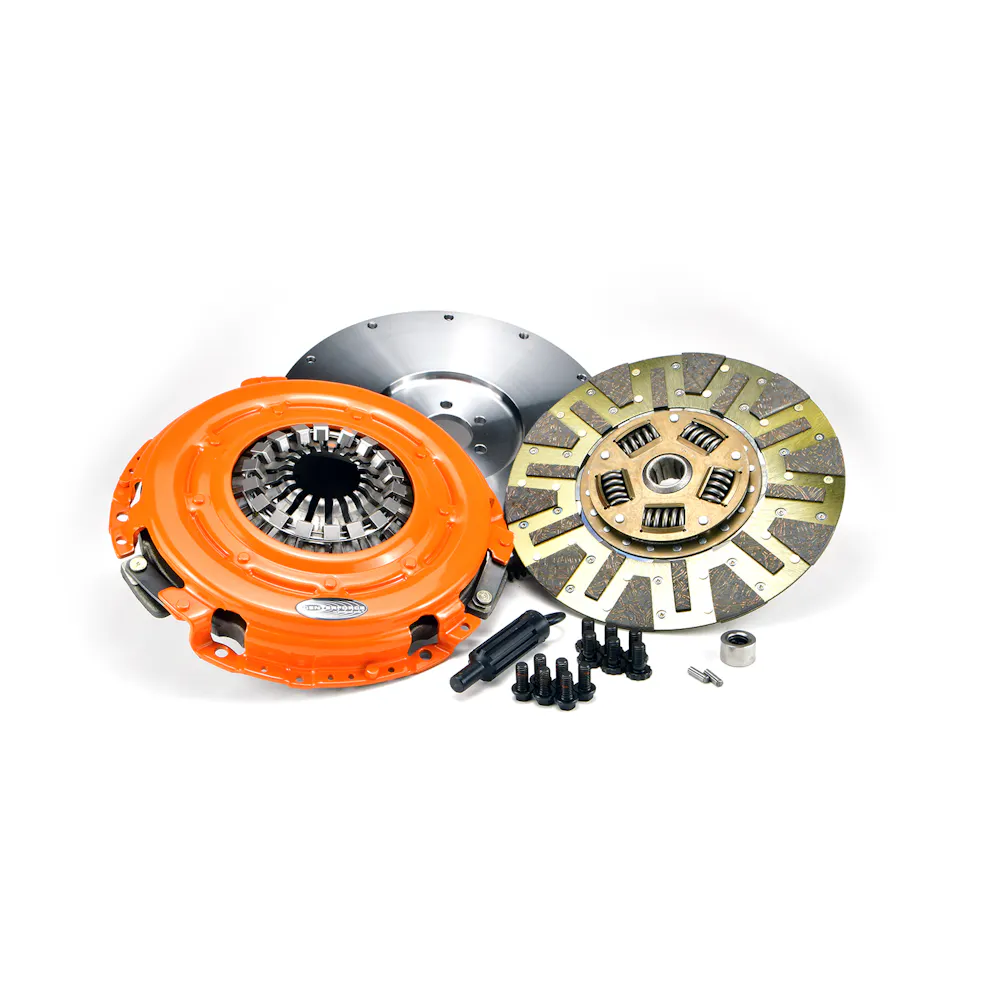

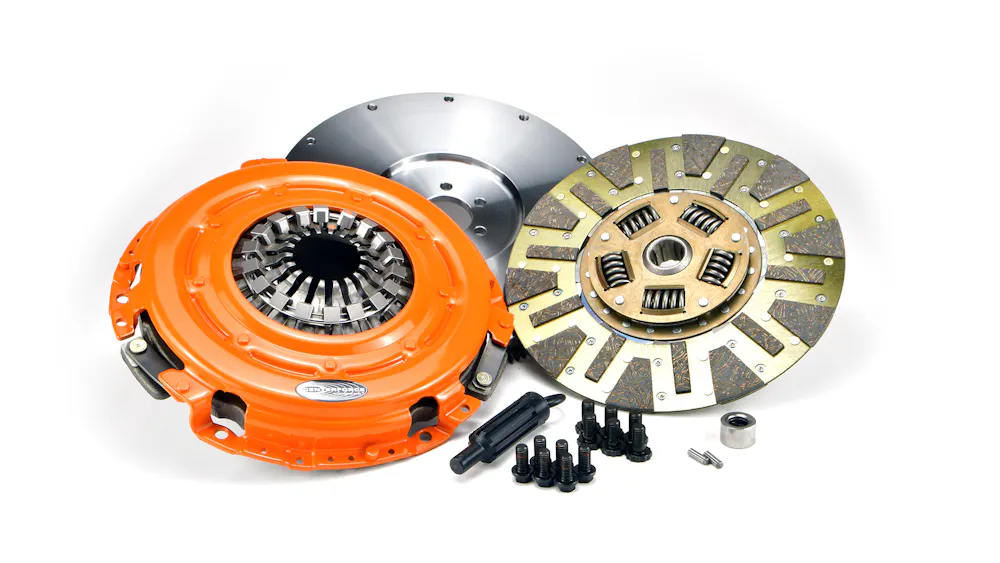

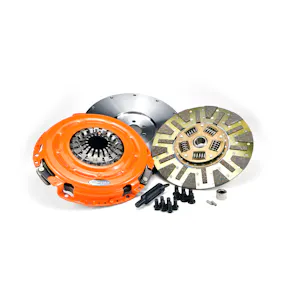

Centerforce · KDF241042
Part #: KDF241042
UPC: 788442037272
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch and Flywheel Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1999-2000 | Chevrolet Silverado 2500 |
| 1999-2000 | GMC Sierra 2500 |
Specifications
- GTIN
- 00788442037272
- Weight
- 63.5 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 14
- Clutch Disc Diameter
- 304.8
- Counterweight Assist
- YES
- Crankshaft Bolt Hole Quantity
- 6
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Flywheel Crank Flange Register
- 2.068
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 58.85
- Release Bearing Included
- Yes
- Ring Gear O.D.
- 14.105
- Title
- Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 58.85 lbs, 168 Tooth Gear, 0 in/oz Internally Balanced, 6 Bolt Crank, 700 ft/lbs Capacity, 12in Dia., 26-Spline, Fits Chevrolet/GMC Sierra 2500 and Silverado 2500 6.0L
- Tooth Quantity
- 168
- Torque Capacity
- 700
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2000 Chevrolet Silverado 2500; 1999-2000 GMC Sierra 2500
