Centerforce / KDF193890

Part #: KDF193890
UPC: 788442030839

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

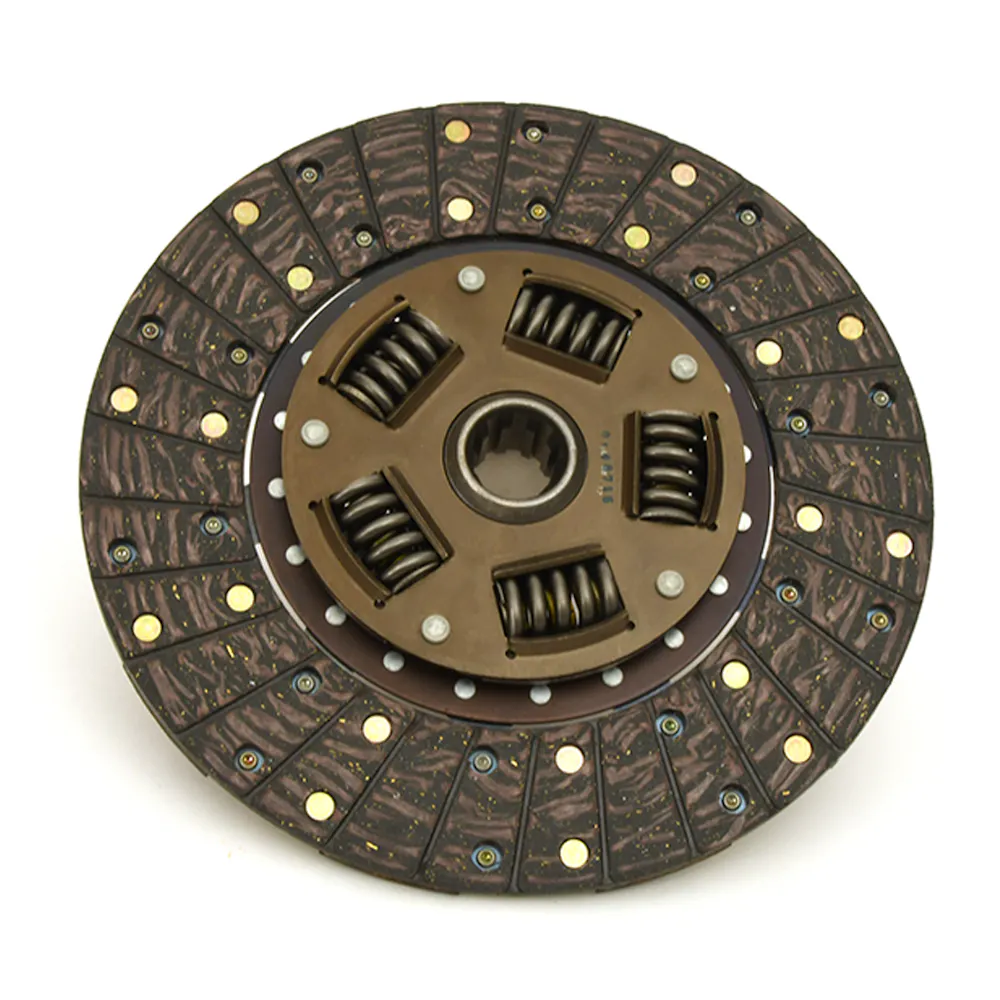

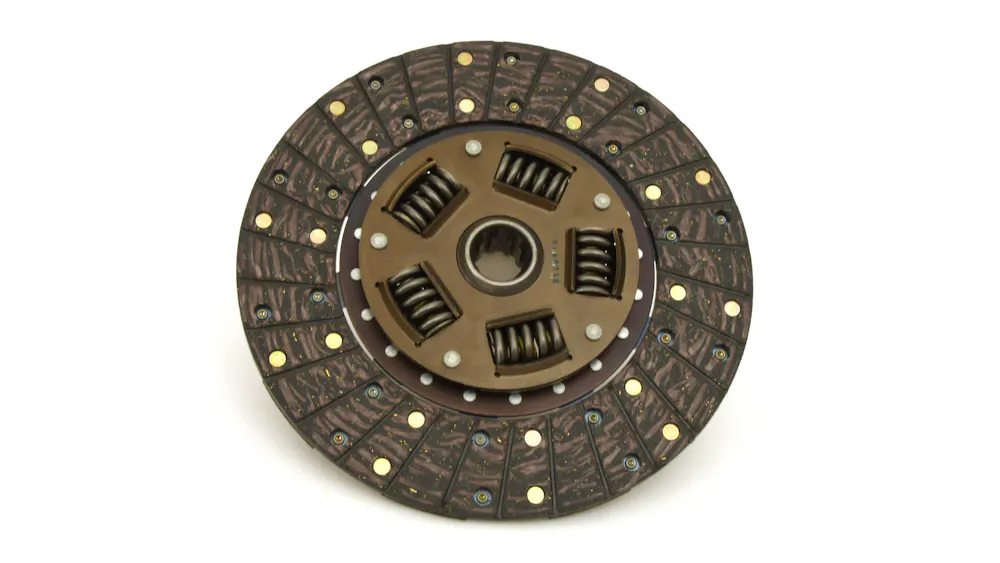

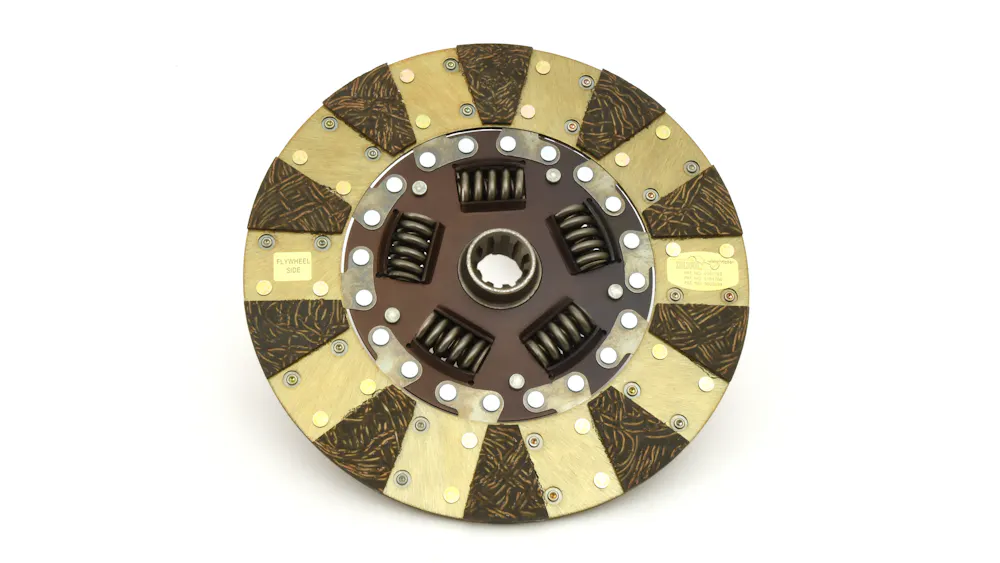

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
1987-1993	Jeep Cherokee
1987-1992	Jeep Comanche
1993	Jeep Grand Cherokee
1987-1990	Jeep Wagoneer
1987-1993	Jeep Wrangler

Specifications

GTIN: 00788442030839
Weight: 23.5 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 2
Clutch Bolt Size: 3/8 - 16 X 0.900
Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Disc Material: Organic/Carbon Composite

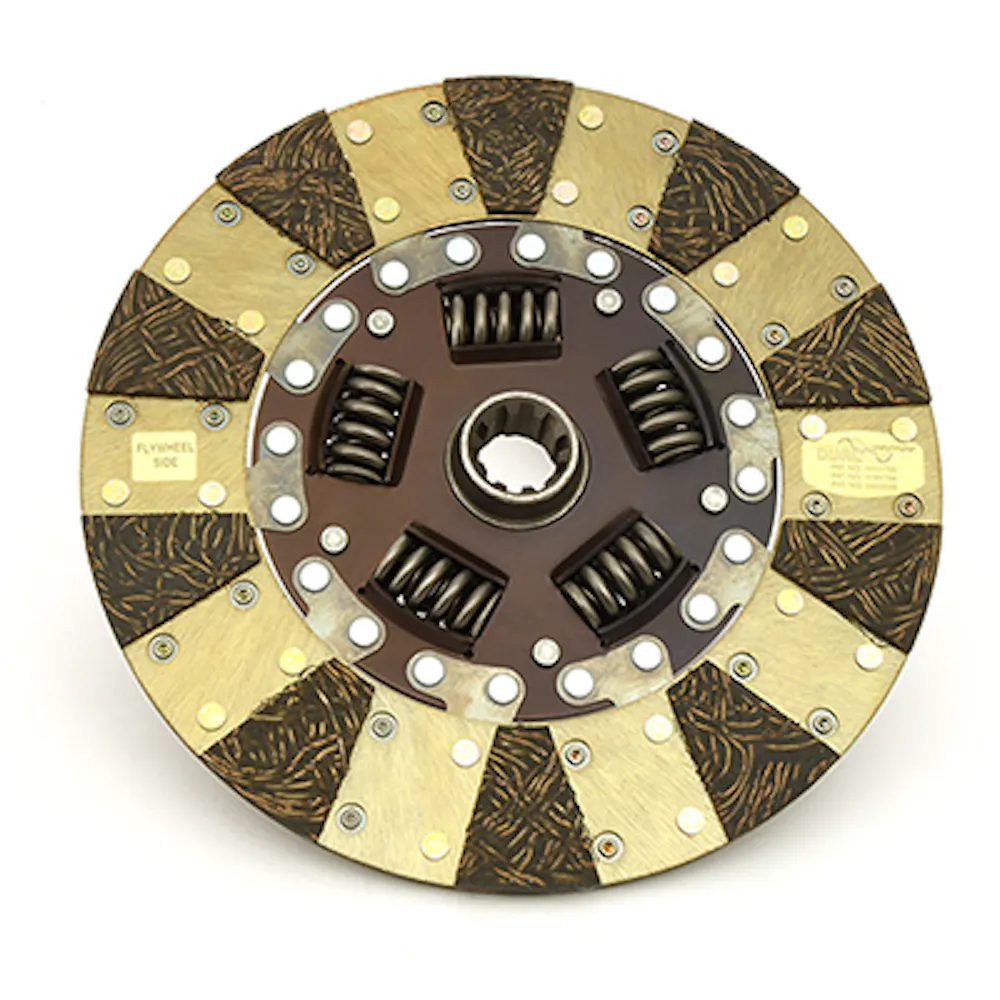

Disc Type: Full face/Segmented face
Disc Type Sprung Solid: Sprung

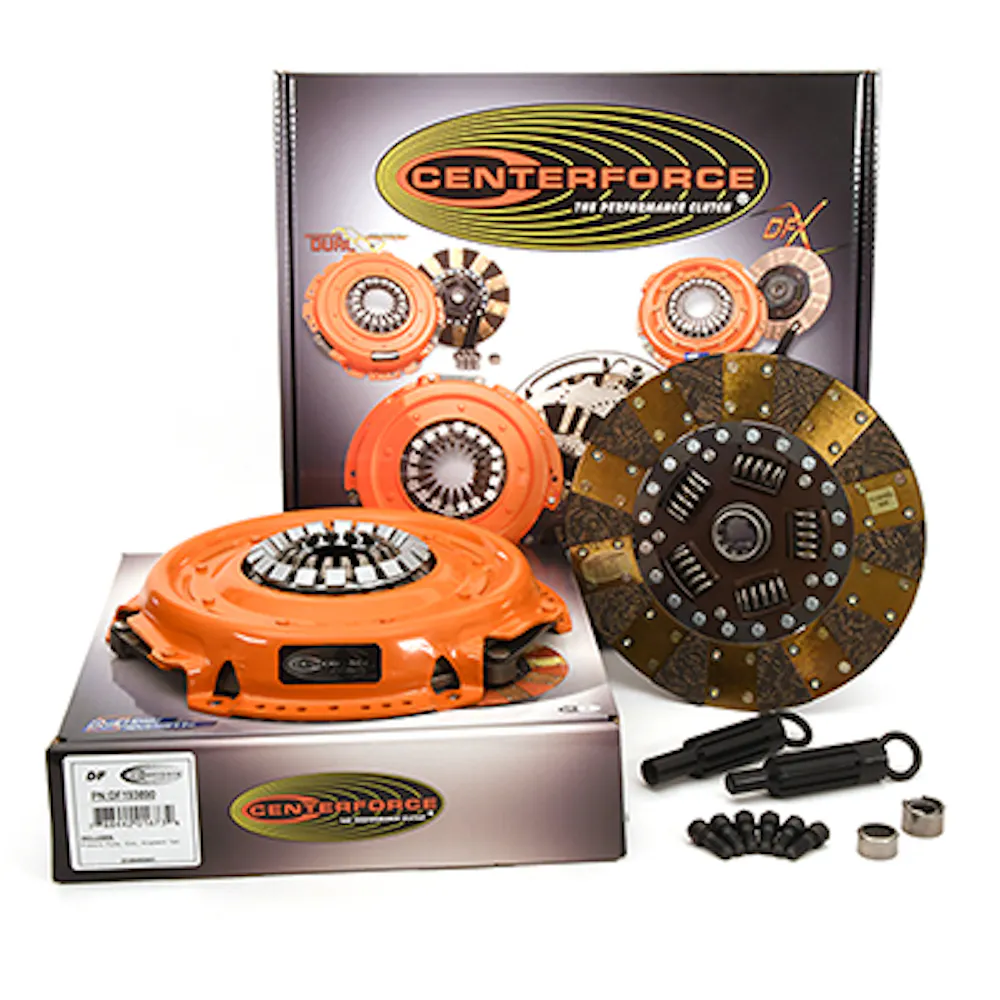

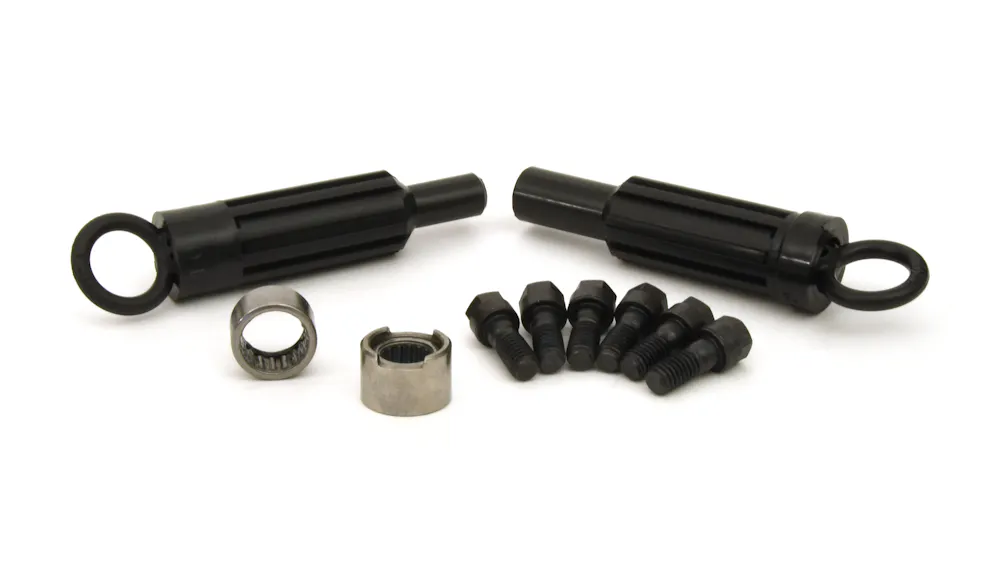

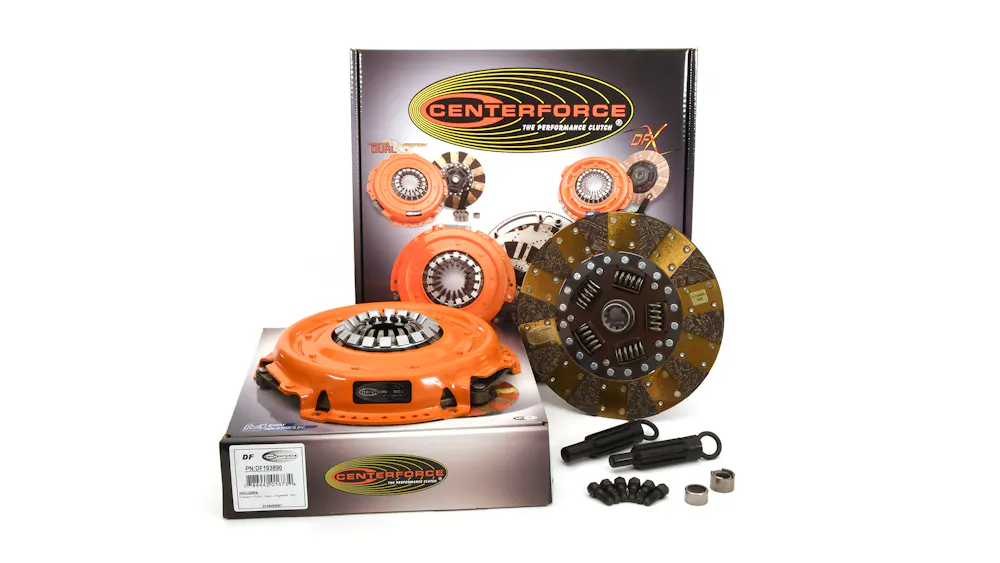

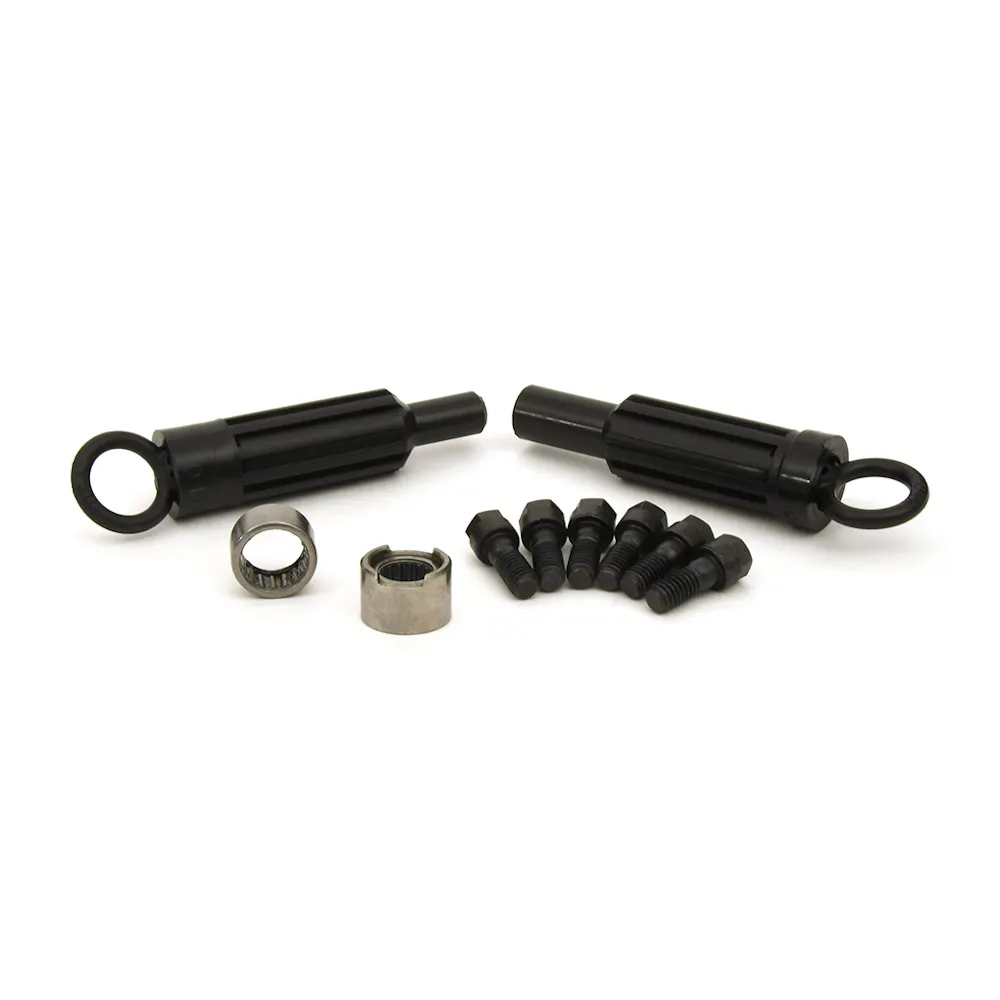

Includes: Pressure Plate, Disc, Alignment Tool, Pilot Bearings, & Bolts
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 10
Made In The USA: Assembled

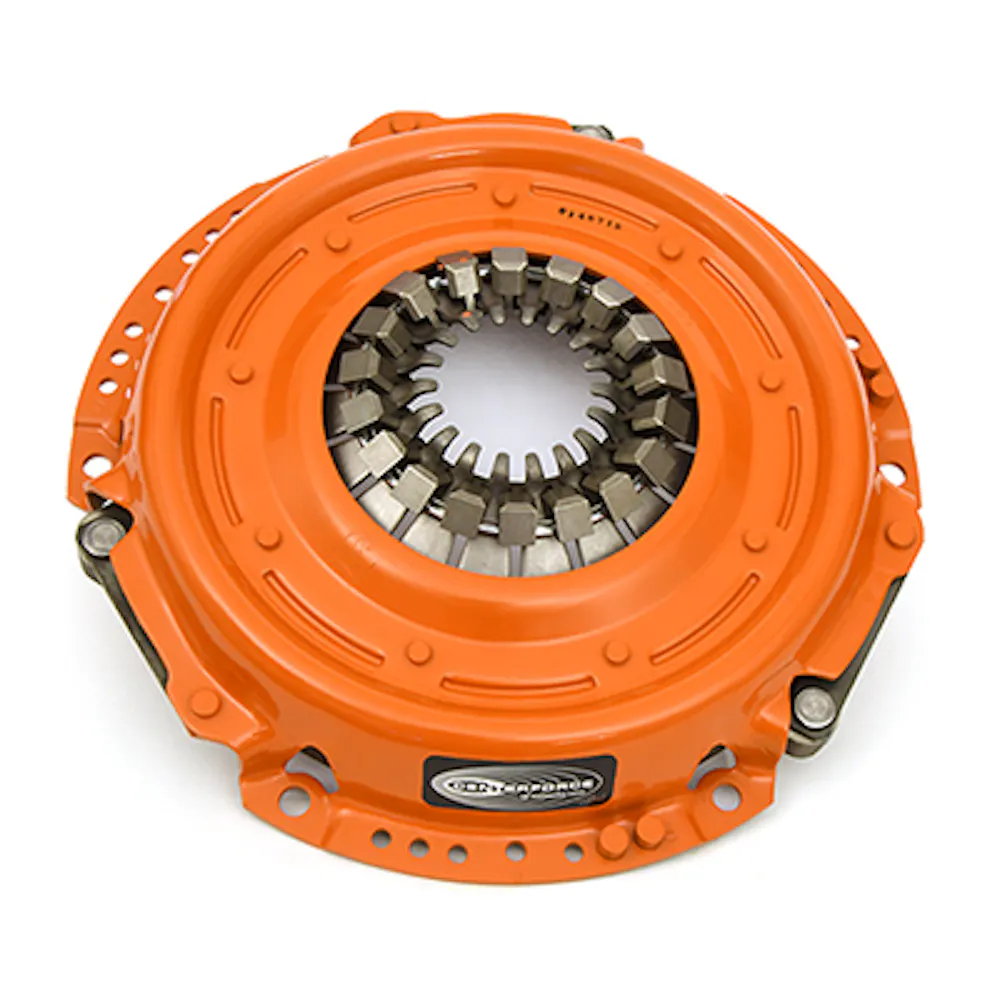

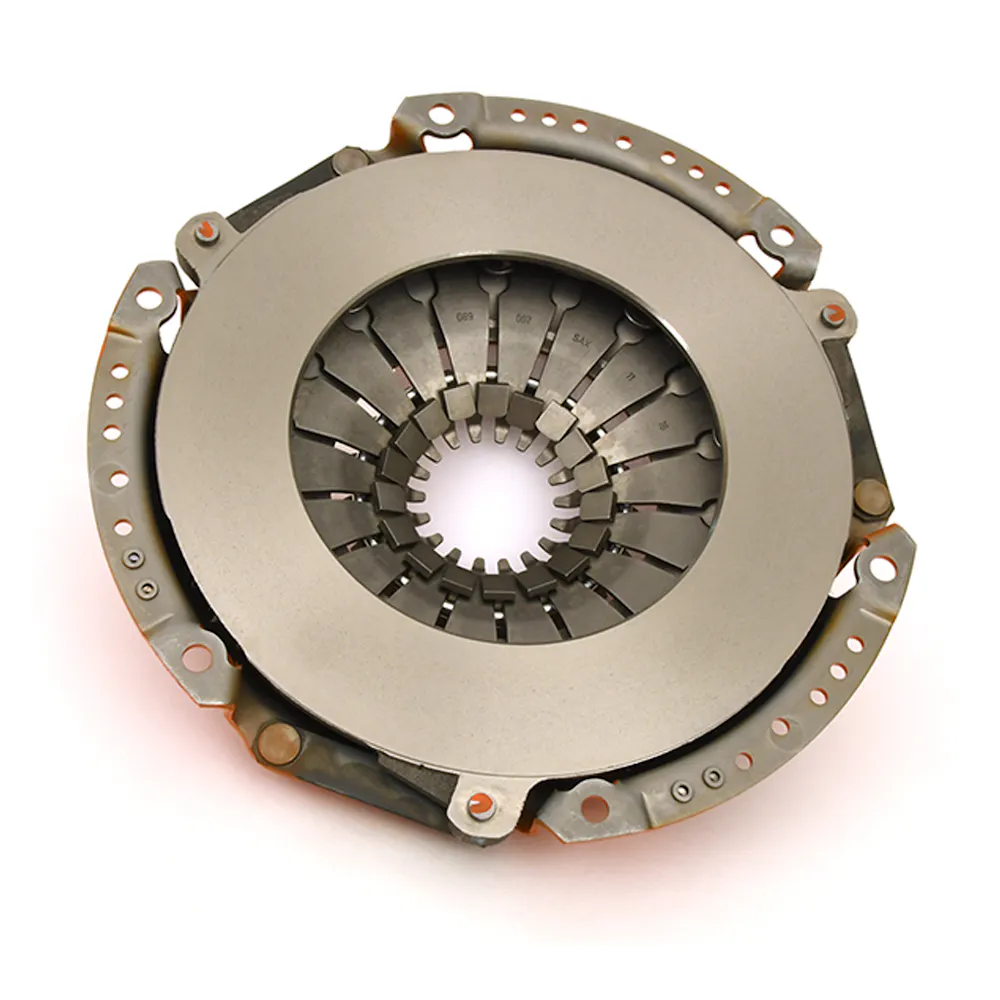

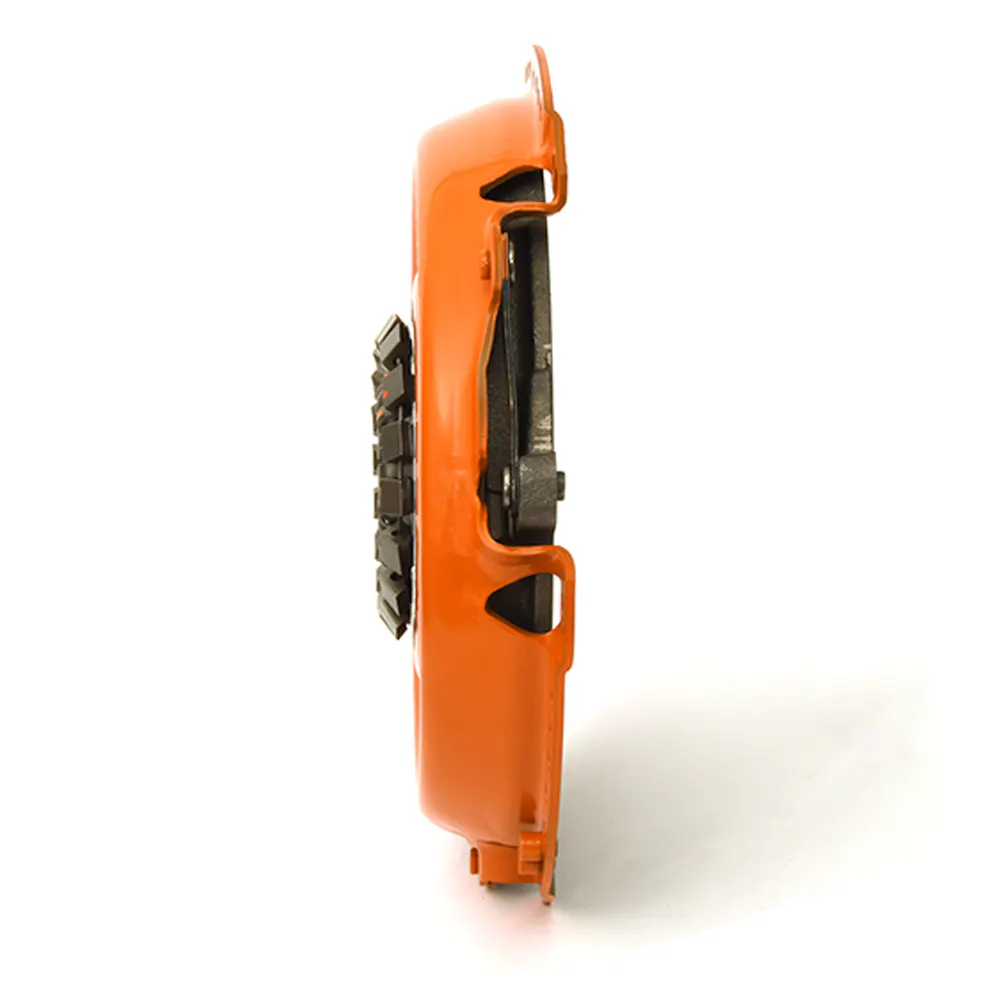

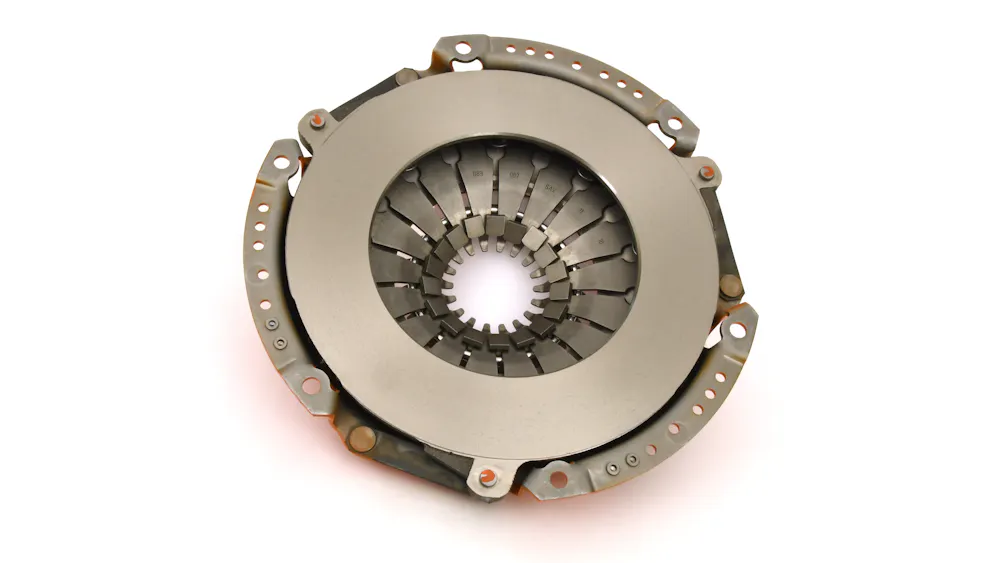

Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 17
Pilot Bushing Included: Yes
Replaceable Friction Surface: N
Title: Centerforce Dual Friction ?, High Performance Clutch Kit, 521 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Trucks 4.0L/4.2L
Torque Capacity: 521
