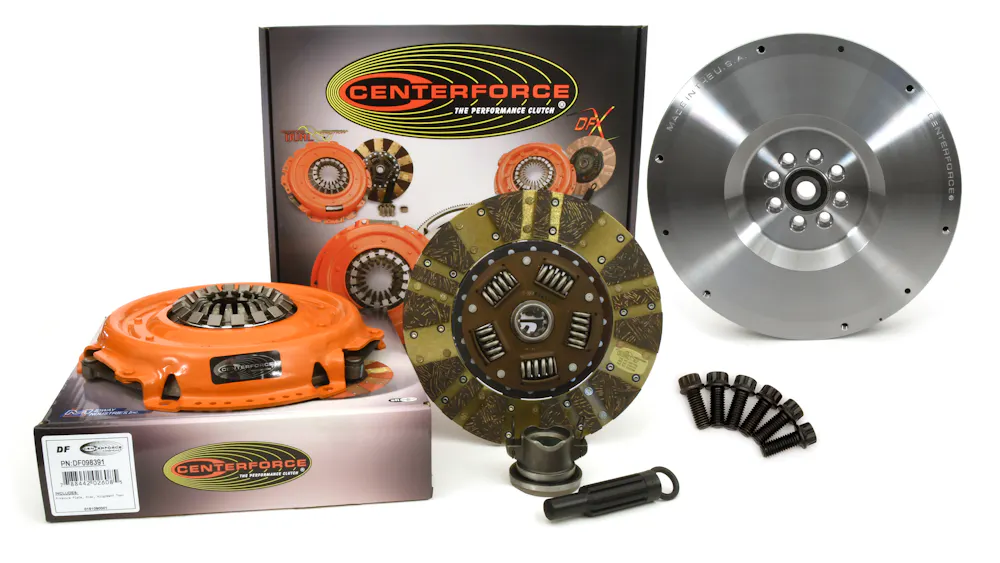

Centerforce · KDF148174

Part #: KDF148174
UPC: 788442030709

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch and Flywheel Kit; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

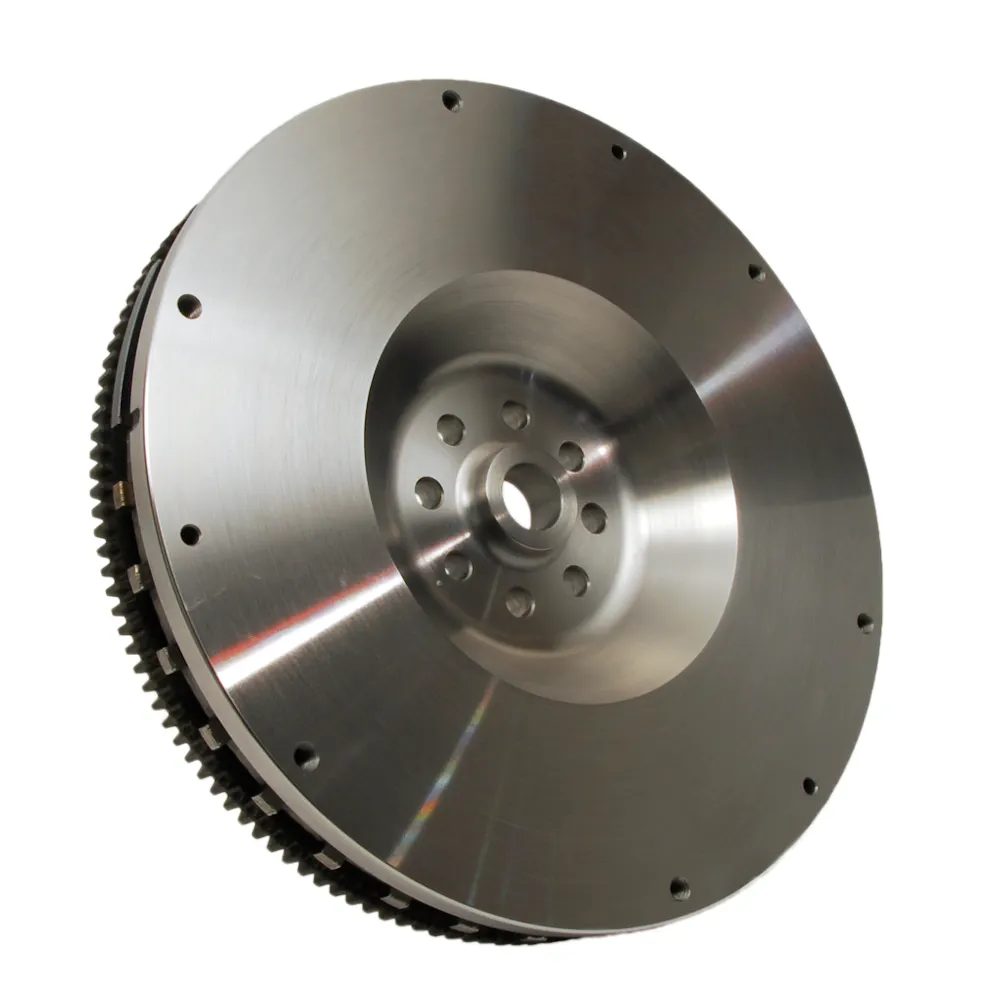

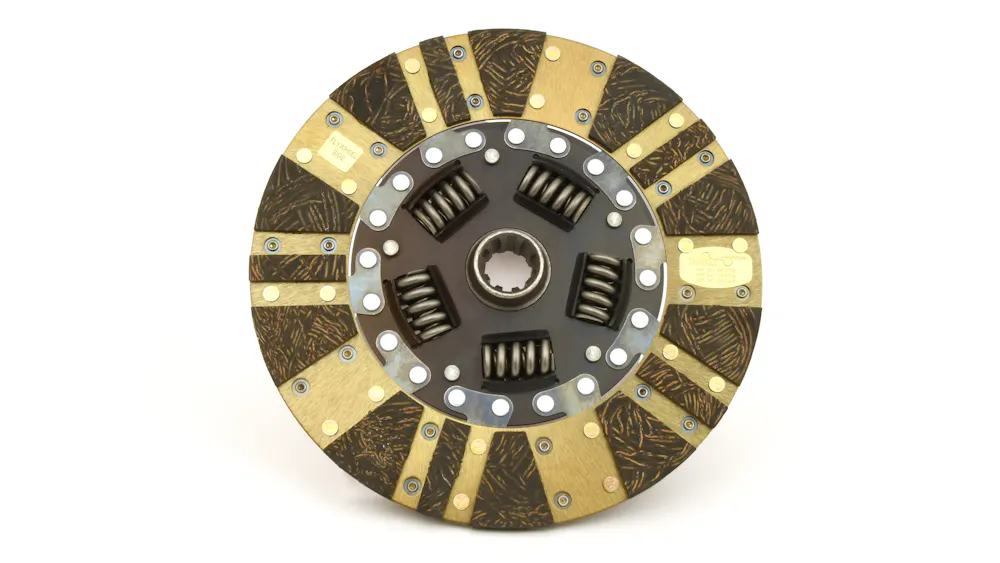

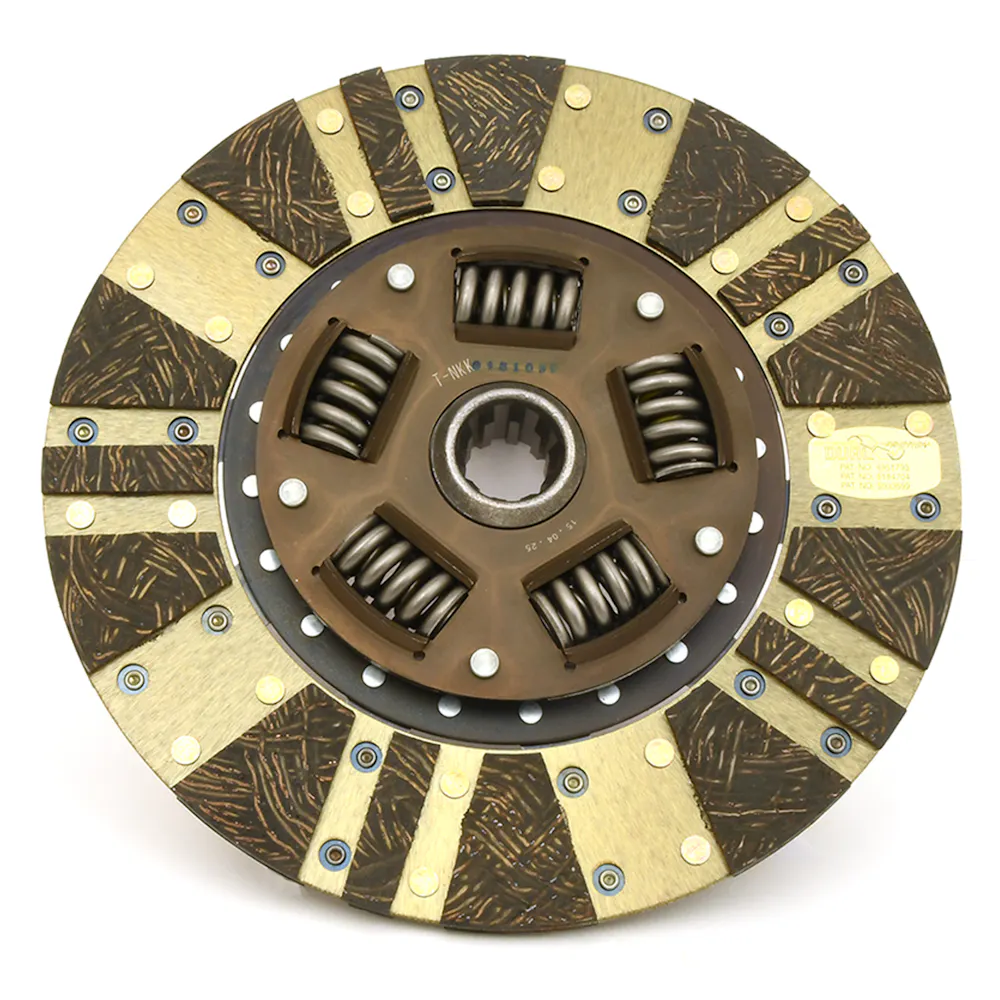

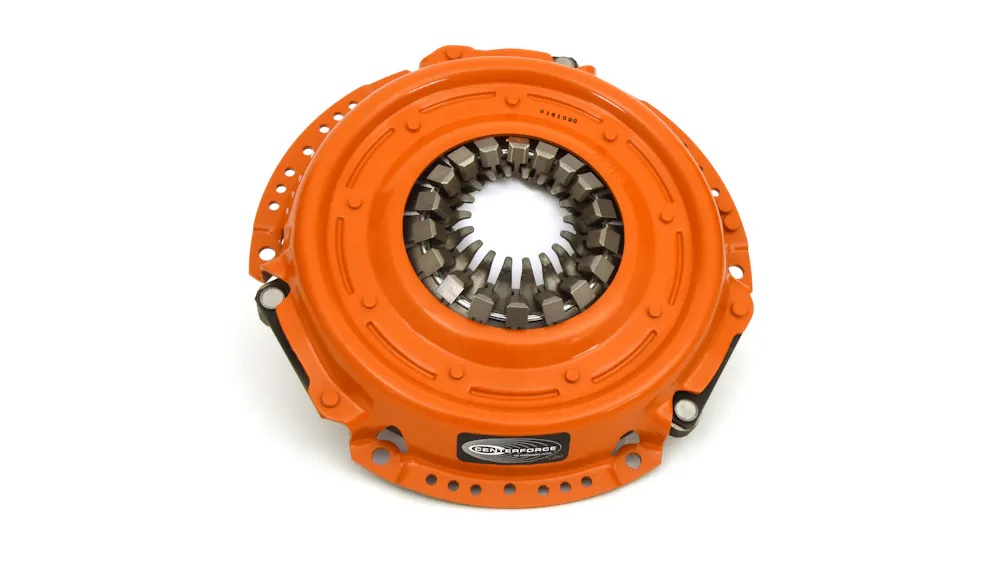

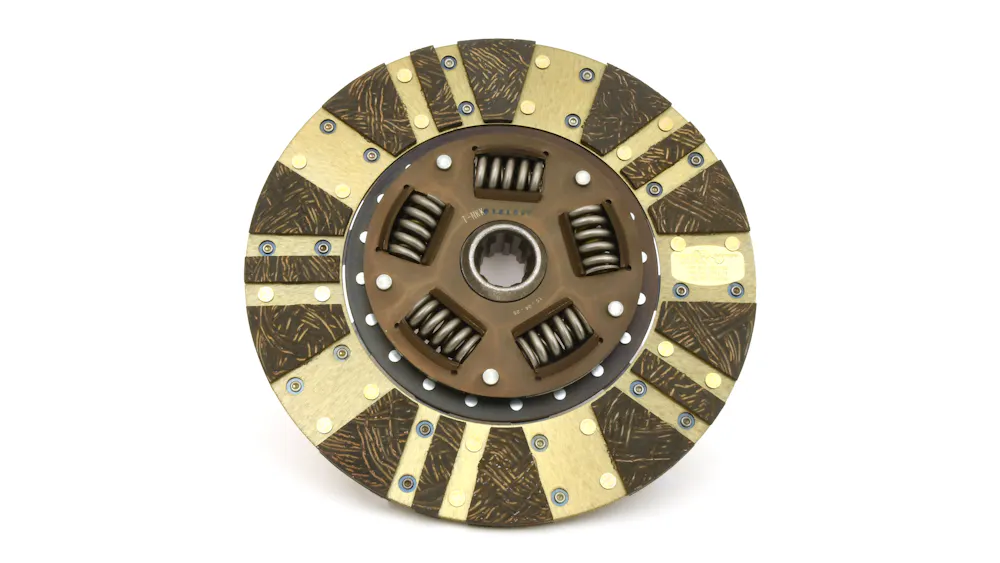

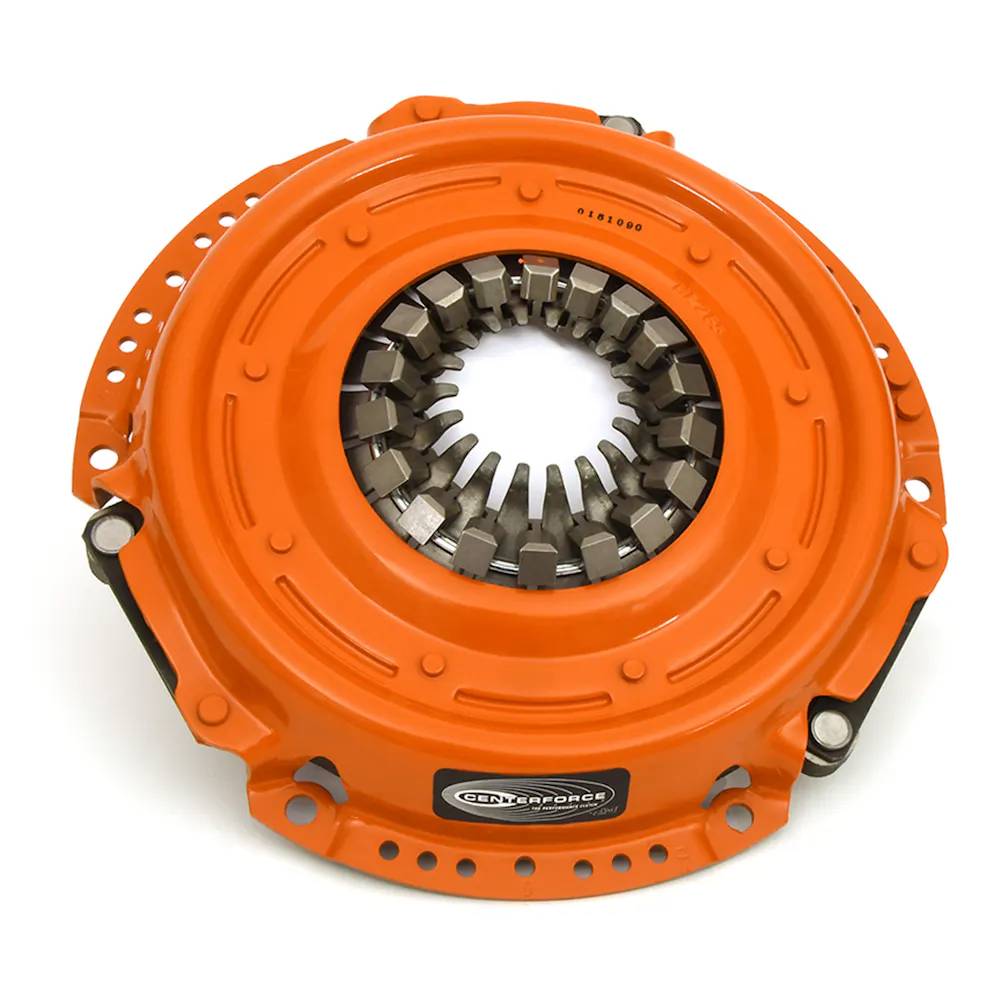

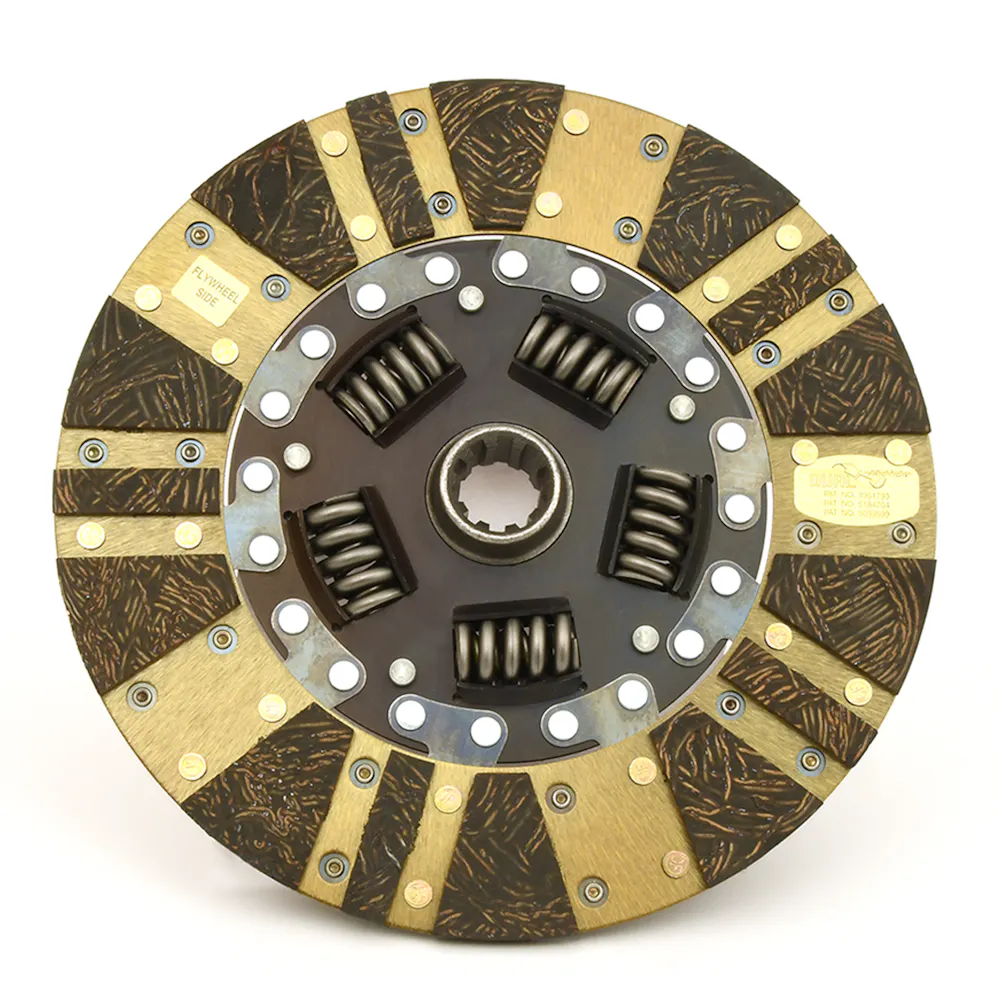

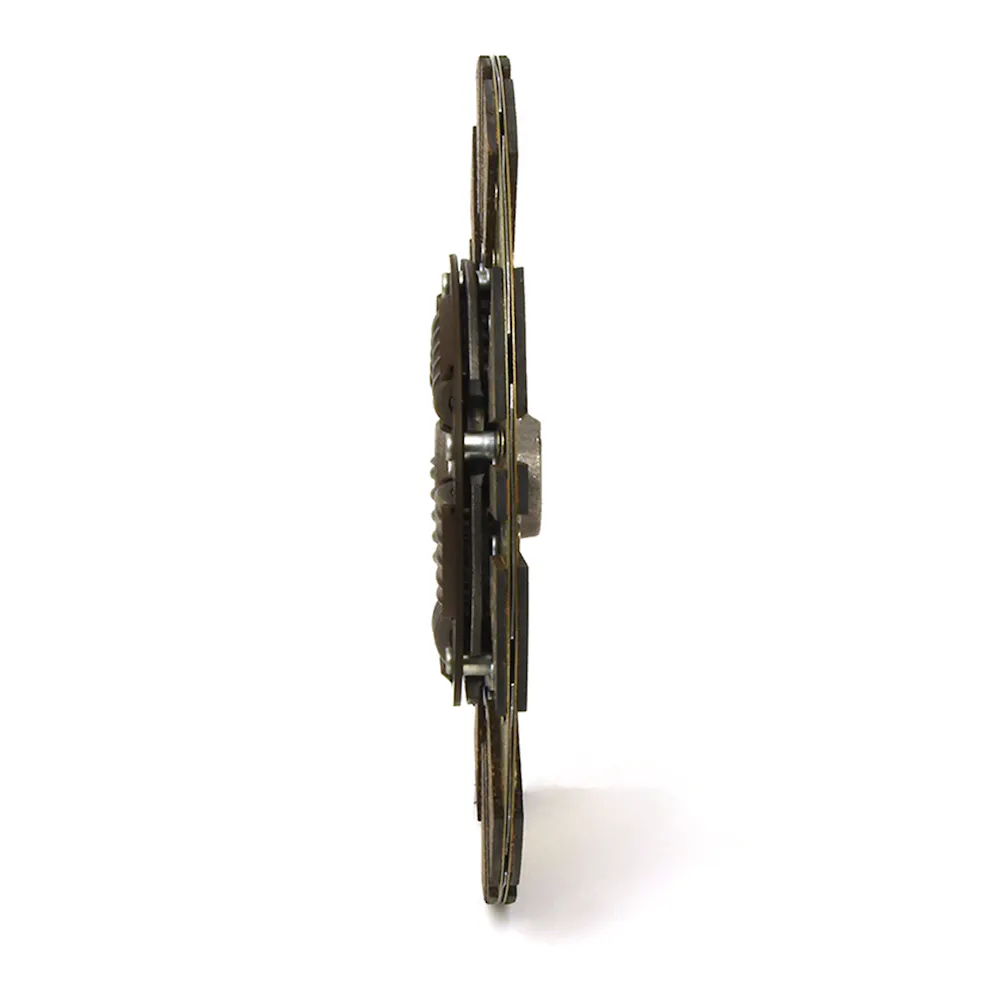

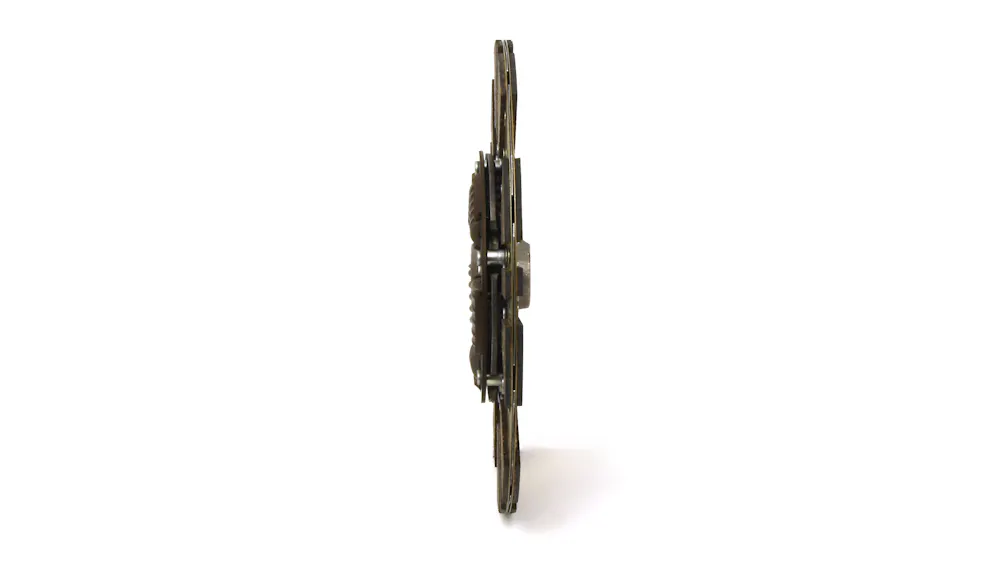

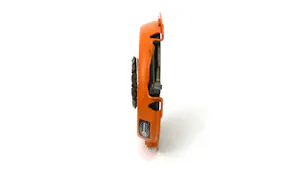

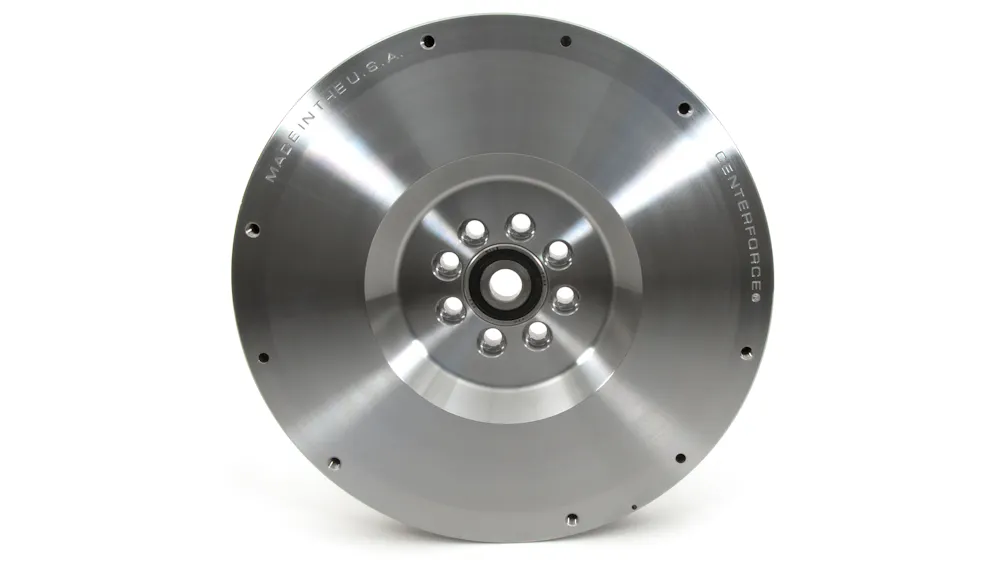

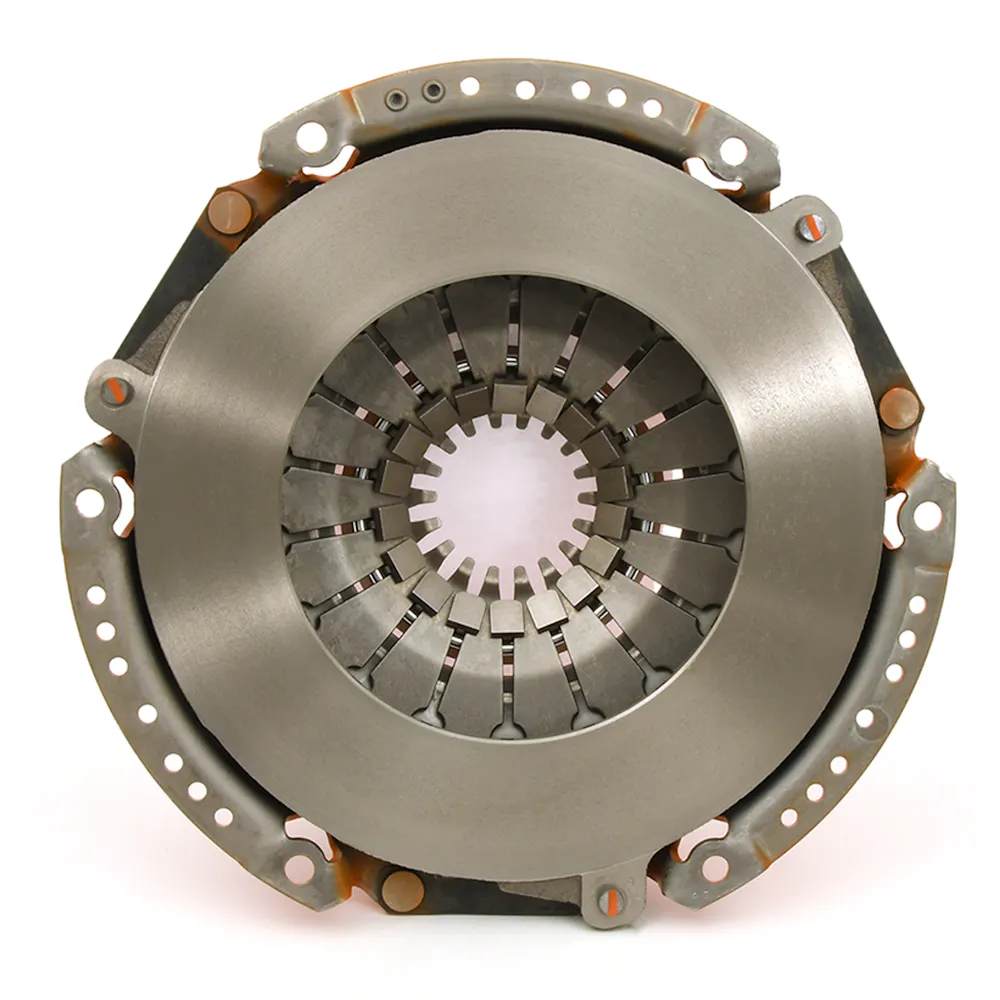

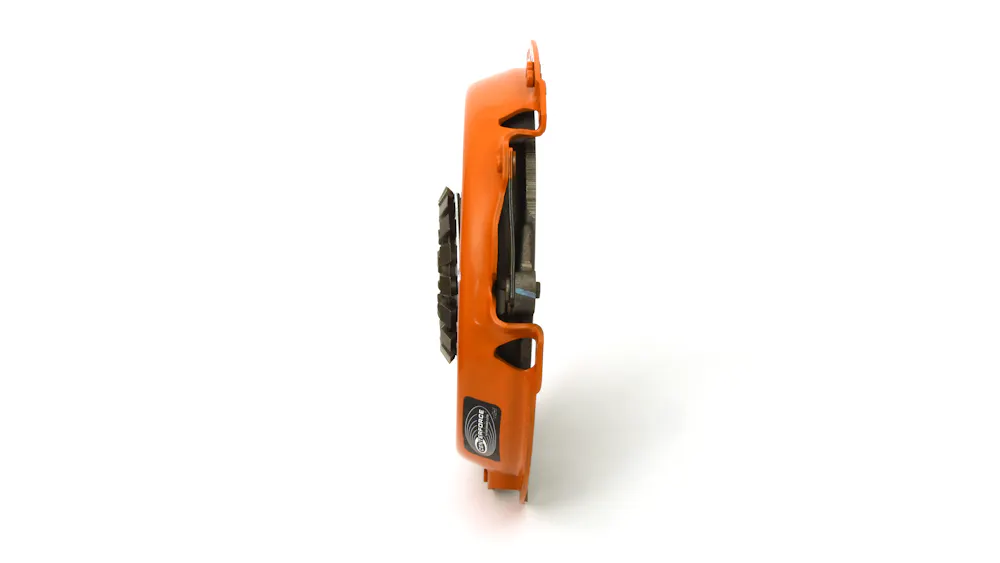

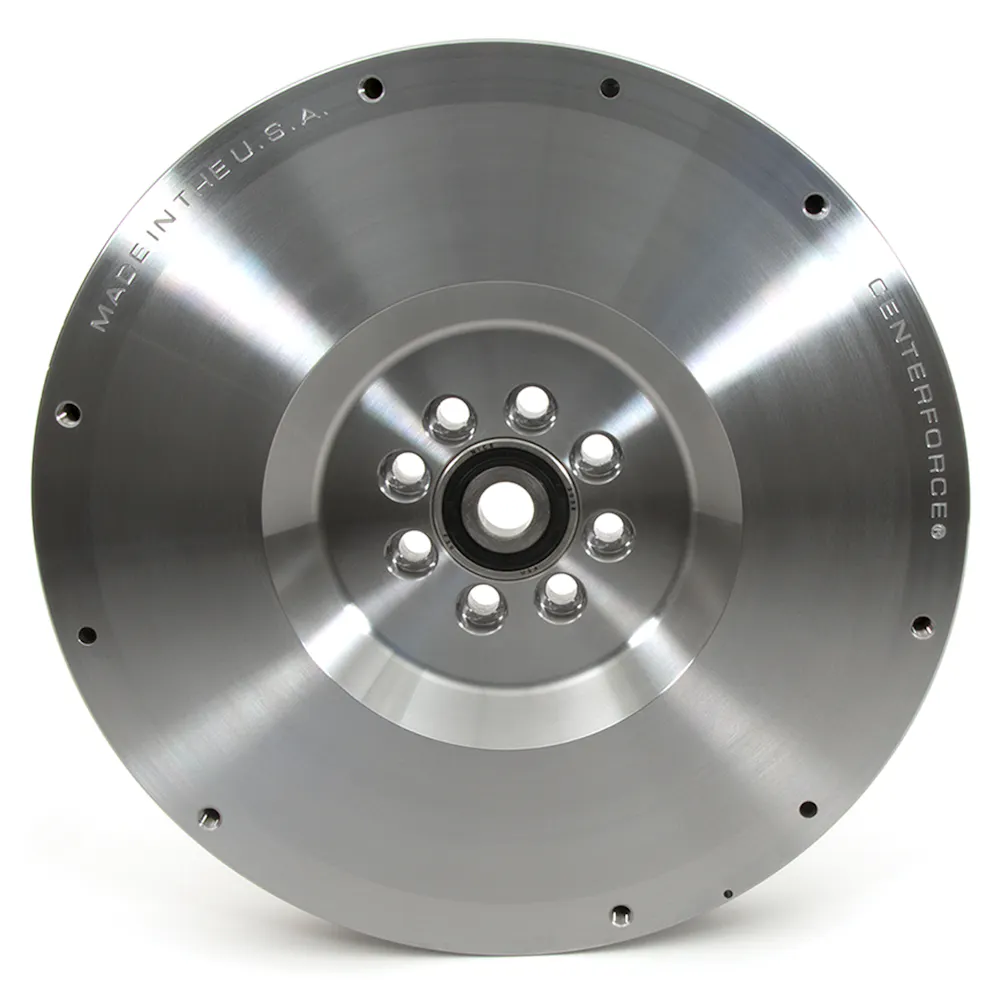

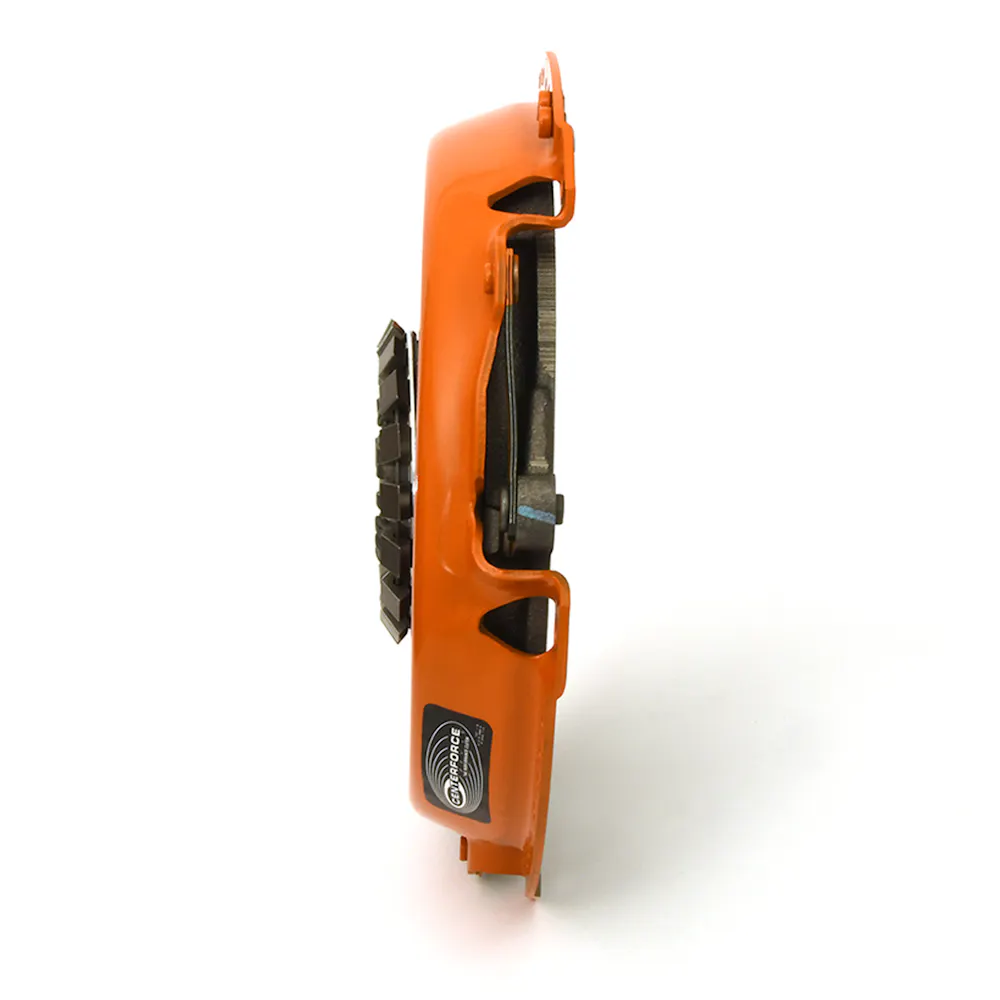

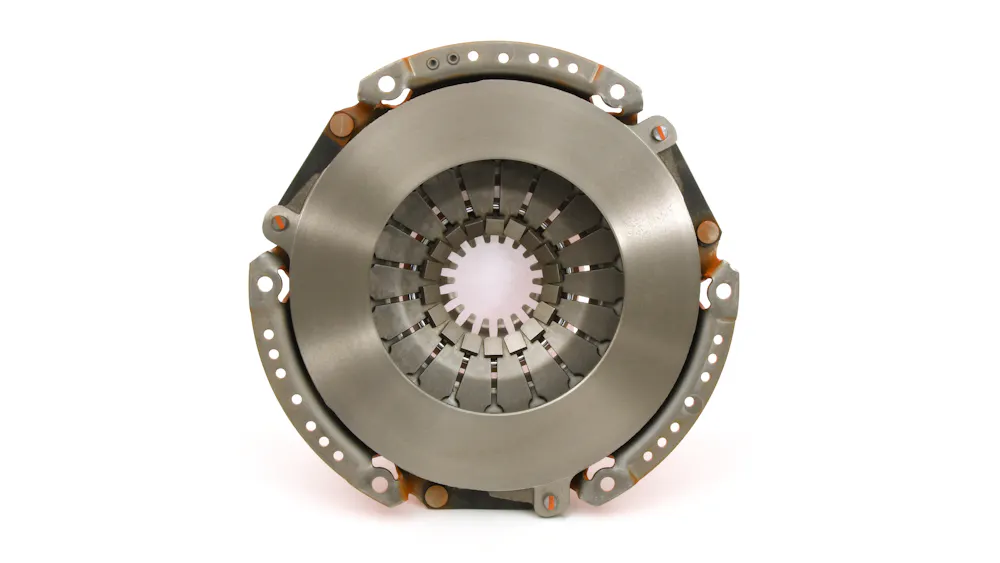

Experience unparalleled performance with the Centerforce Dual Friction Clutch Kit, designed to meet the demands of both street and off-road enthusiasts. This kit features a performance-matched pressure plate and disc combination, utilizing patented technologies to deliver exceptional holding capacity and durability. The high-strength cast iron pressure plate, combined with a high inertia billet steel flywheel, ensures maximum performance and reliability. The high inertia design helps the engine maintain its RPM in rough terrain, providing smoother and more consistent power delivery. The Dual Friction disc, with an organic full facing on one side and an organic segmented facing on the other, provides increased holding capacity and longevity, making it ideal for both street and mild competition applications. The Centerforce Dual Friction Clutch Kit includes all necessary assembly hardware, ensuring a straightforward installation process. With its advanced centrifugal weight system, this clutch kit offers smooth engagement and exceptional street characteristics without sacrificing pedal effort and driver control. Whether you?re navigating city streets or tackling rugged off-road trails, the Centerforce Dual Friction Clutch Kit delivers the ultimate in performance and reliability. Upgrade your vehicle today and feel the difference in power and control. Are you ready to elevate your driving experience?

Application summary

Year	Make / model
2007-2011	Jeep Wrangler

Specifications

GTIN: 00788442030709
Weight: 80 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Size: 8mm
Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic/Carbon Composite
Disc Type: Segmented face
Disc Type Sprung Solid: Sprung
Dowel Pin Quantity Cover To Flywheel: 3
Dowel Pins: 3
Flywheel Counter Balance Weight: 0
Flywheel Crank Flange Register: 1.889
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 10
Made In The USA: Assembled
Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 83.60
Outside Diameter: 12.345
Pilot Bushing Included: Yes

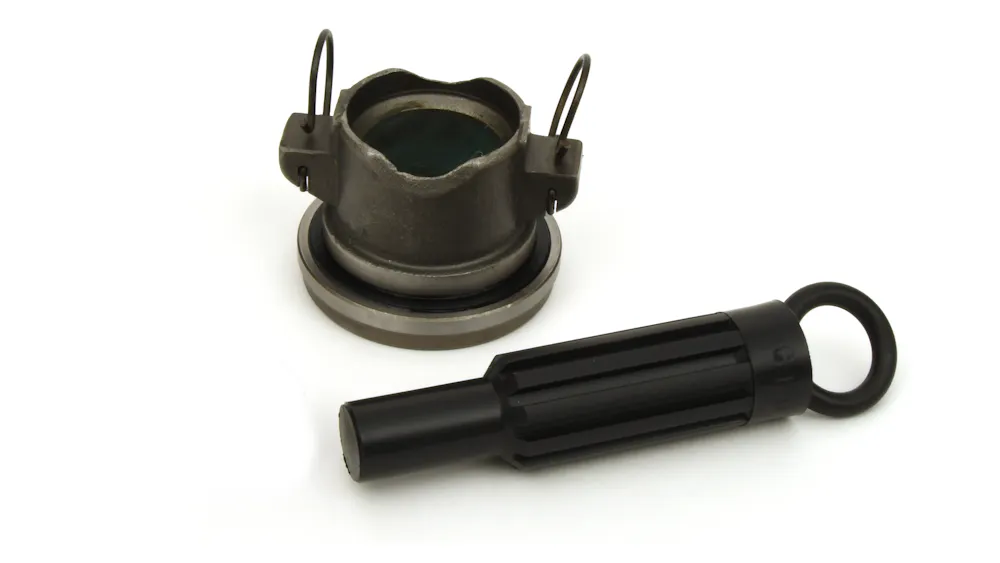

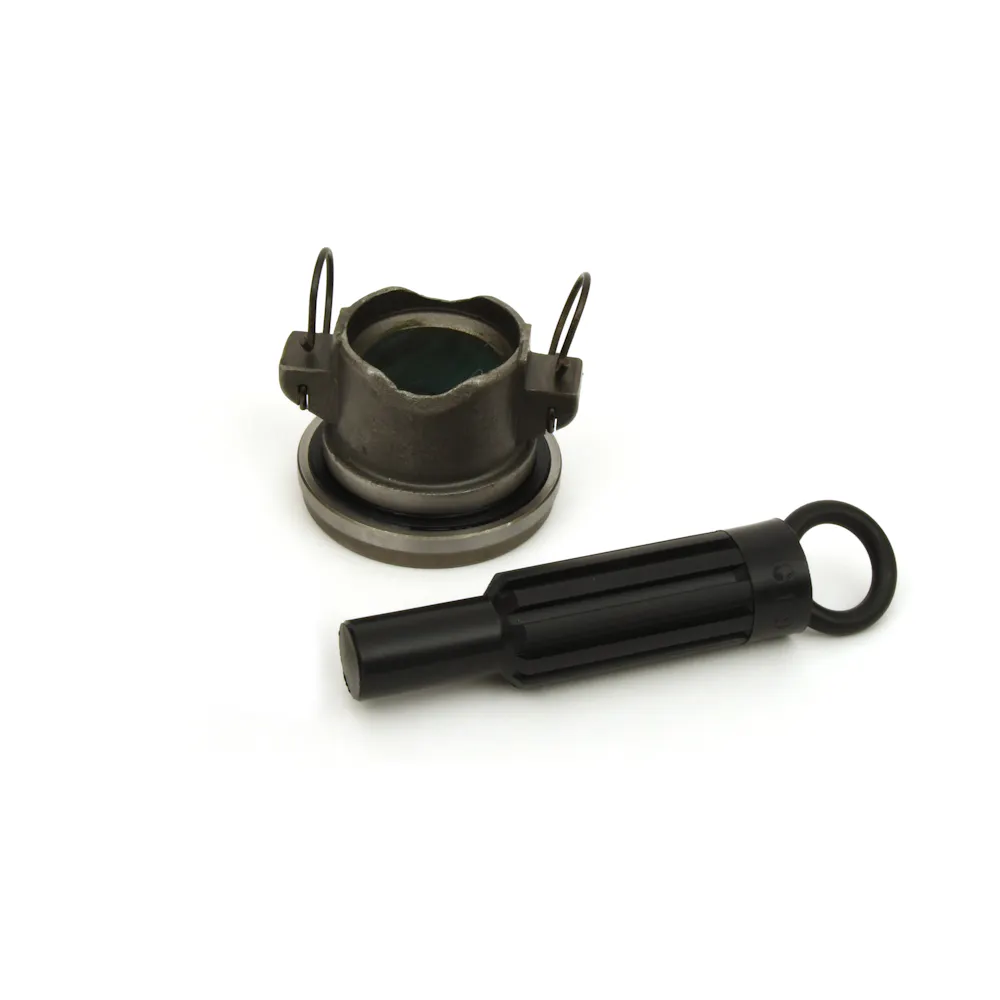

Release Bearing Included: Yes
Replaceable Friction Surface: N
Ring Gear O.D: 12.345
Ring Gear O.D.: 12.345
Ring Gear OD: 12.345
Ring Gear Tooth Count: 146
Title: Centerforce Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L
Tooth Quantity: 146
Torque Capacity: 563
