Centerforce · KCFT770751

Part #: KCFT770751
UPC: 788442037074

Loading availability... Log in for inventory
Notify me when this item is in stock.

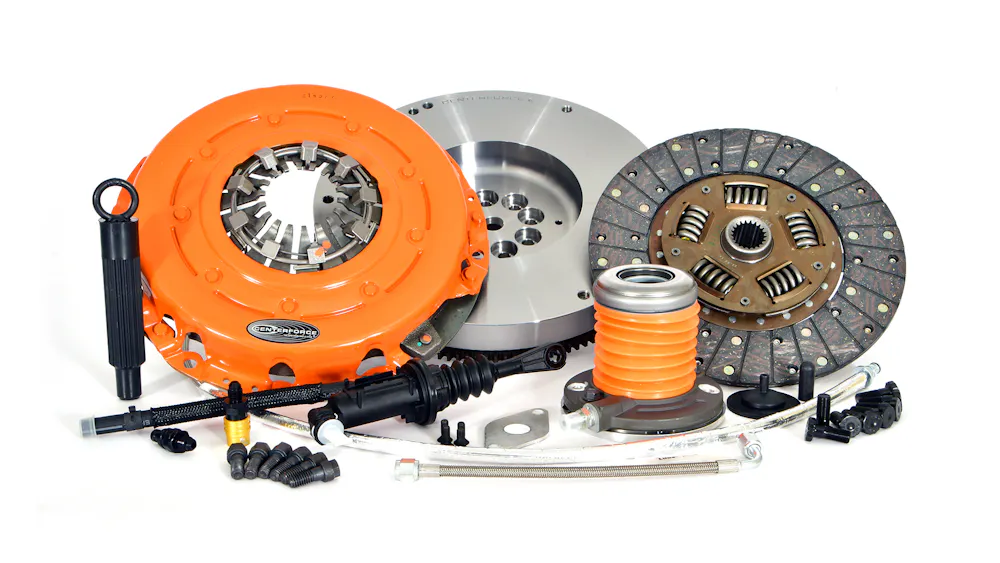

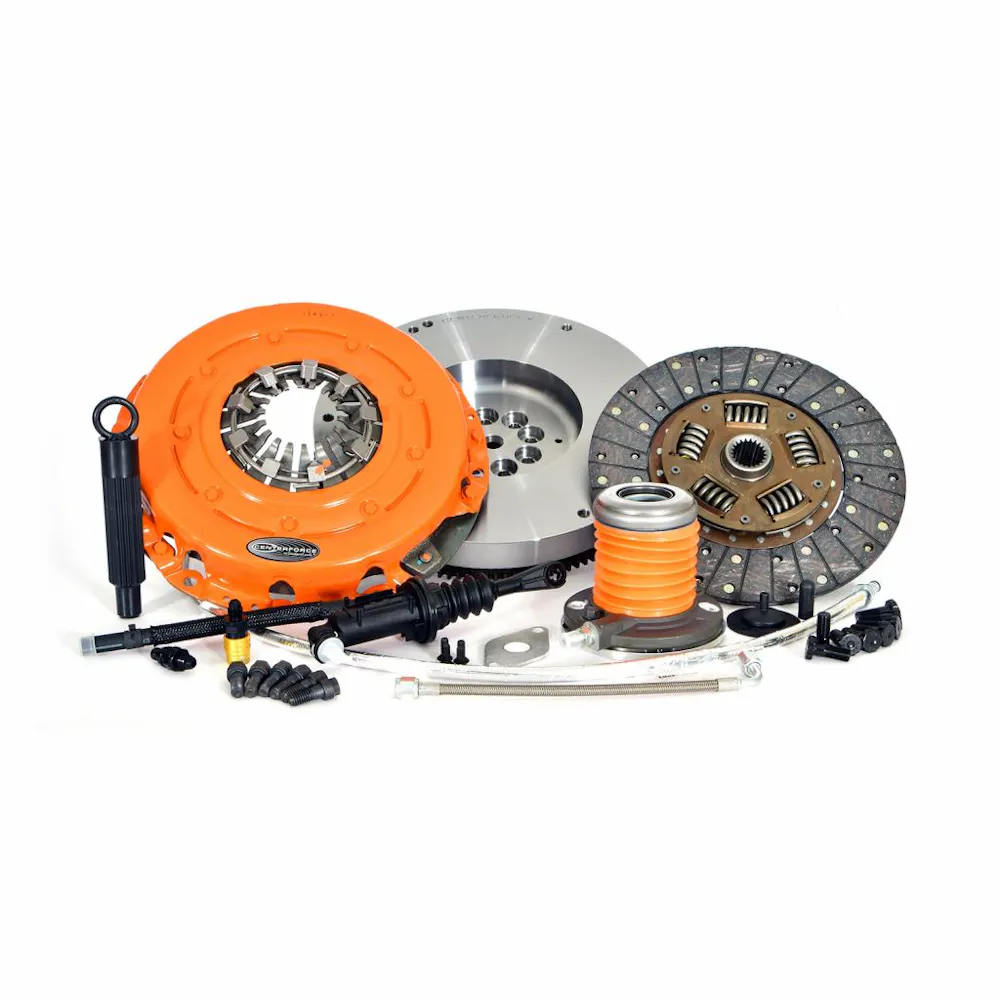

Description: Centerforce(R) II, Clutch and Flywheel Kit; Centerforce(R) II Clutch Series utilizes our centrifugal weights and patented machining processes for superb holding power and maximum clutch life. Includes an inertia flywheel and hydraulic bearing upgrade; see description for more info.

Description:

Description

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc. This kit includes a billet steel inertia flywheel, which has added weight to increase the inertia of the engine. This extra inertia helps smooth rpm when negotiating difficult terrain and helps prevent stalling at slow speeds, which is particularly beneficial for off-road use and during normal city driving. This kit further utilizes the Centerforce Internal Hydraulic Bearing Upgrade. The factory Jeep hydraulics package has a vague clutch pedal feel that many enthusiasts dislike, where there's not much pedal feedback as the clutch is engaged and disengaged. Our internal Hydraulic Bearing Upgrade simplifies the clutch actuation system by replacing the external slave, clutch fork, pivot ball, throwout bearing, and bearing collar with a simplified hydraulic concentric bearing that acts as the throwout bearing and slave all in one compact package. This kit provides a more traditional pedal feel that Jeep enthusiasts are accustomed to along with eliminating potential sources of rattles, especially as the vehicle ages.

Application summary

Year Make / model
2020-2024 Jeep Gladiator
2018-2024 Jeep Wrangler

Specifications

GTIN
00788442037074
Weight
73 lb
Height
5.5 in
Length
18 in
Width
18 in
EO
Legal US
Life cycle
Available to Order
AAM brand code
CEN
Warehouse brand code
CEN
AAIA brand code
BDPL

Attributes

Alignment Tool Included
Yes
California Proposition 65
WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter
264.2
Counterweight Assist
Yes
Crankshaft Bolt Hole Quantity
8
Disc Material
Organic
Disc Quantity
1
Disc Type
Full Face
Disc Type Sprung Solid
Sprung
Flywheel Crank Bolt Size
M10 x 1.00 x 25
Input Shaft Diameter
1-1/8
Input Spline Quantity
21
Made In The USA
Assembled
Material
Cast Iron Pressure Plate / Organic Friction
Mounting Hardware Included
Yes
Release Bearing Included
Yes
Ring Gear O.D.
12.785
Title
Centerforce ? II, Performance Clutch and Flywheel Kit, 127 Tooth Gear, 8 Bolt Crank, 434 ft/lbs Capacity, 10.4in Dia., 21-Spline, Fits Jeep Gladiator and Wrangler 3.6L
Tooth Quantity
127
Torque Capacity
434

Fitment status

Select a vehicle or engine to see whether this part applies to your application.

Application summary

2020-2024 Jeep Gladiator; 2018-2024 Jeep Wrangler
