Centerforce · KCFT409540

Part #: KCFT409540
UPC: 788442036763

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Centerforce II Clutch Kits

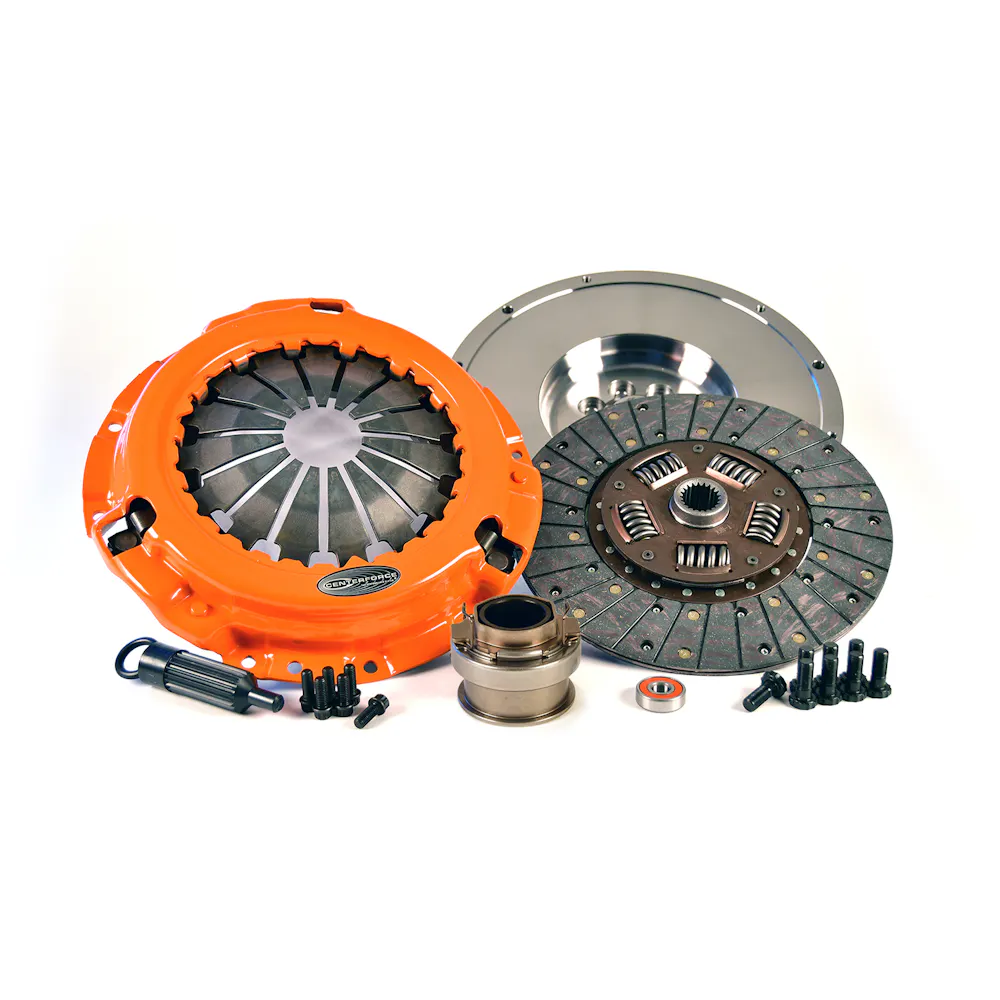

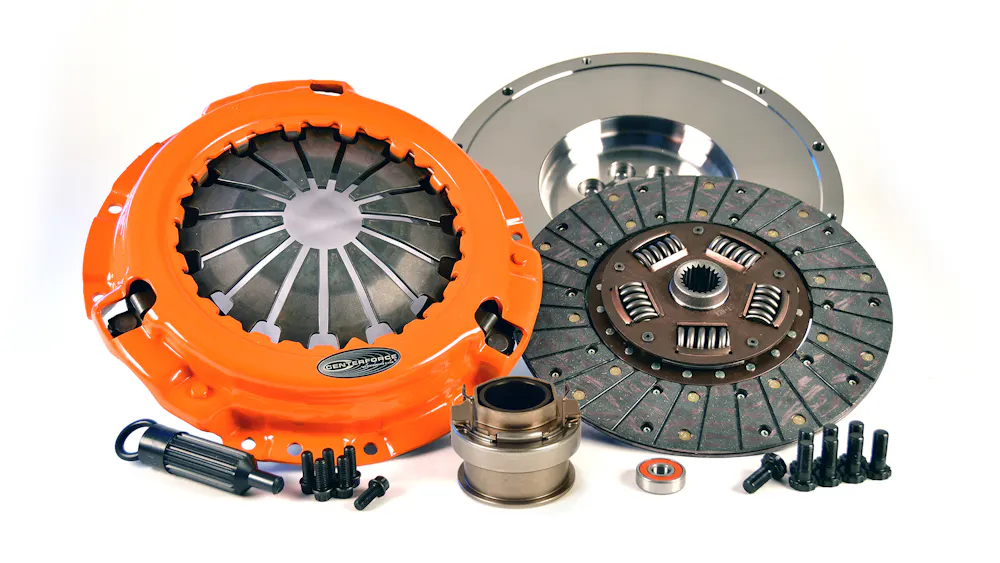

Description: Centerforce(R) II, Clutch and Flywheel Kit; Centerforce(R) II Clutch Series utilizes our centrifugal weights and patented machining processes for superb holding power and maximum clutch life.

Cancer - www.P65Warnings.ca.gov

Description

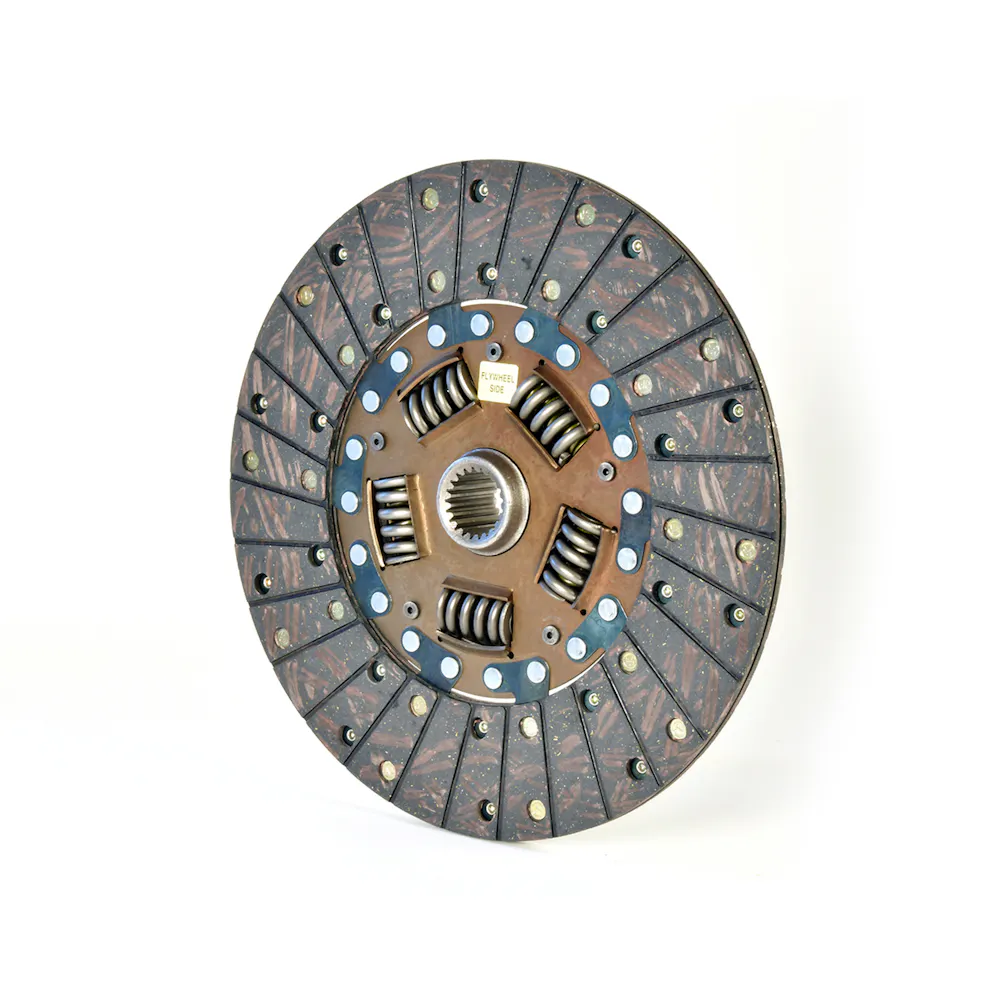

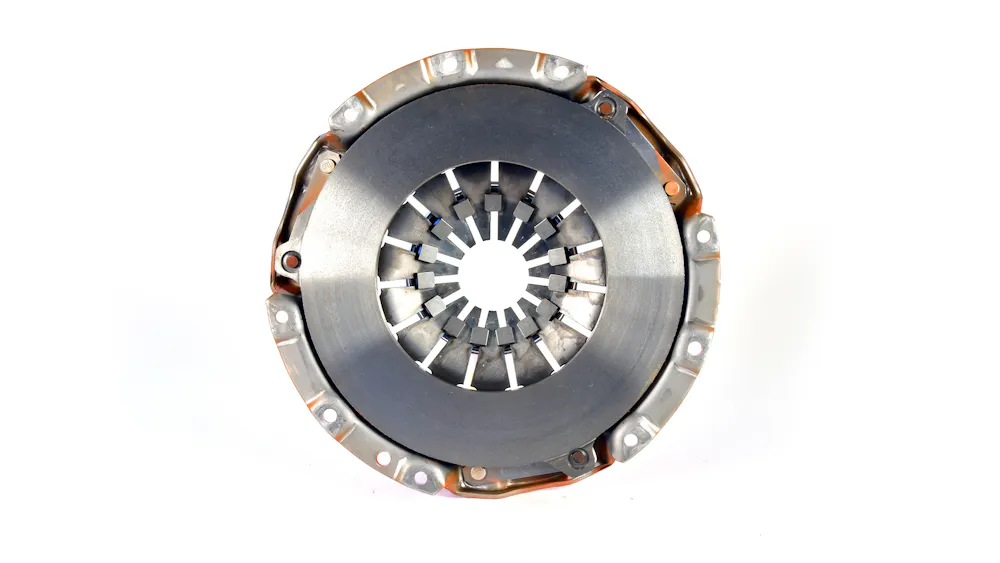

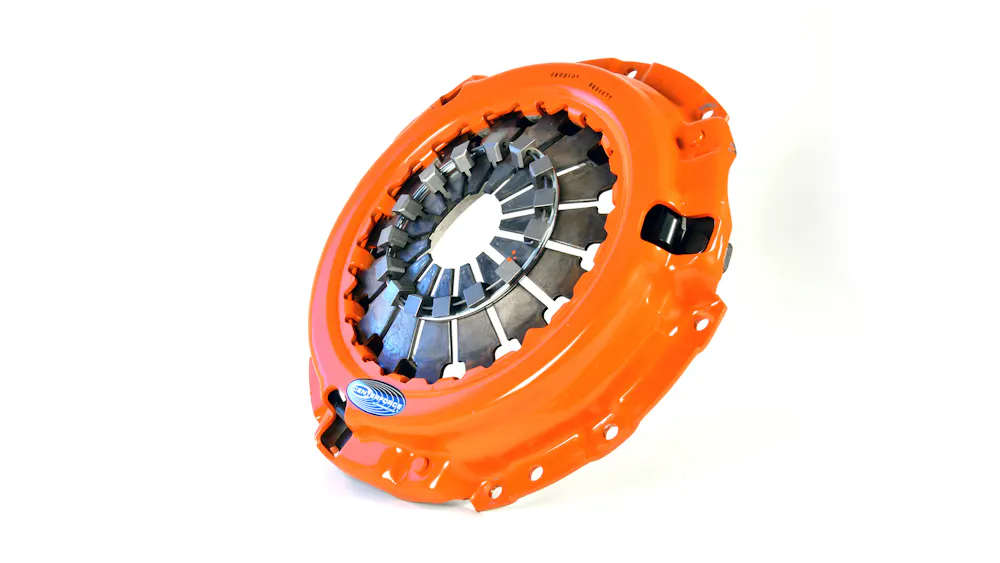

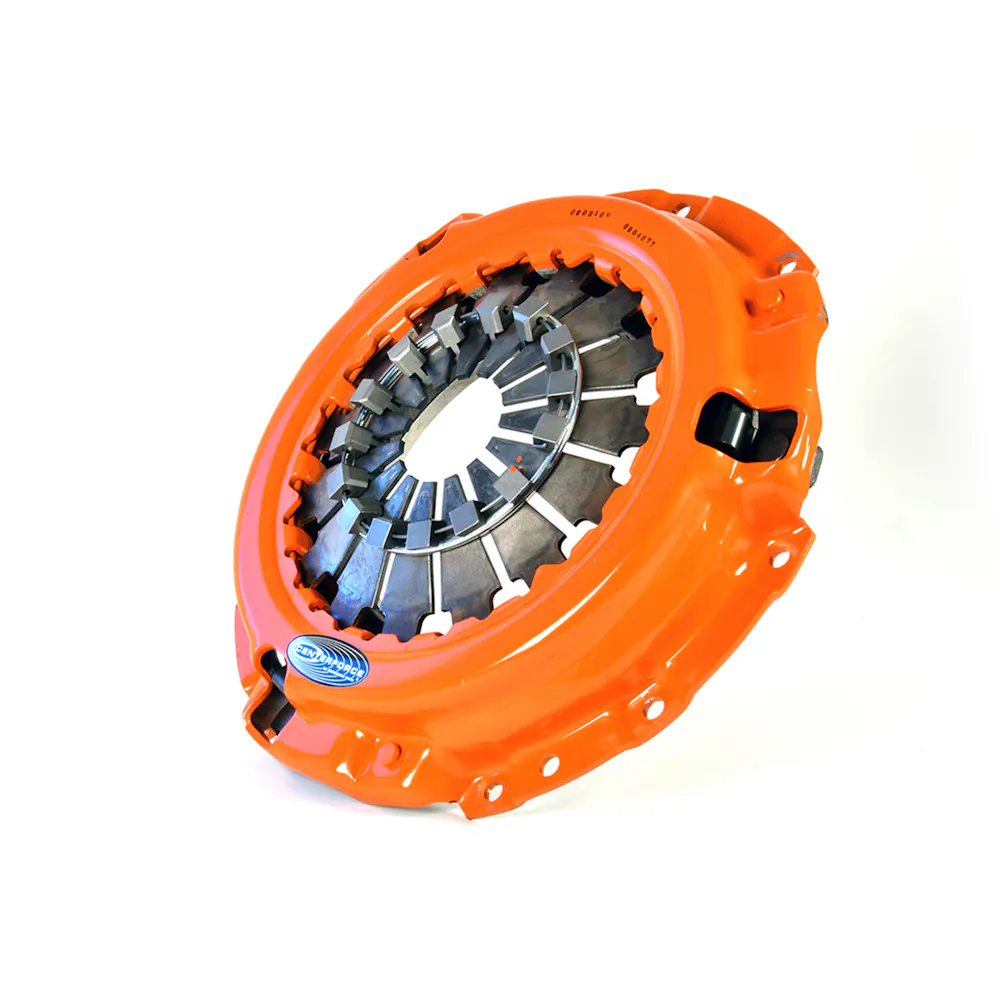

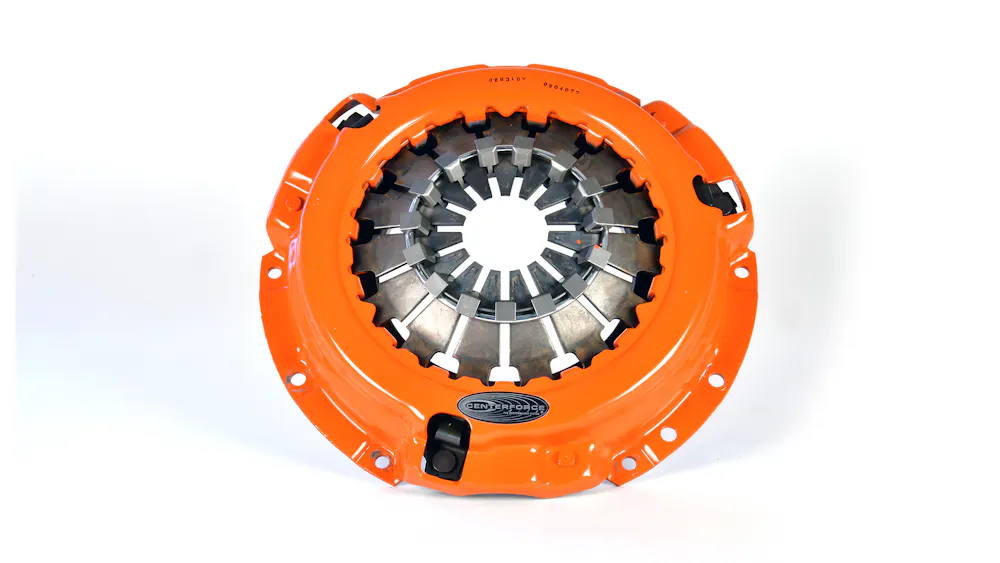

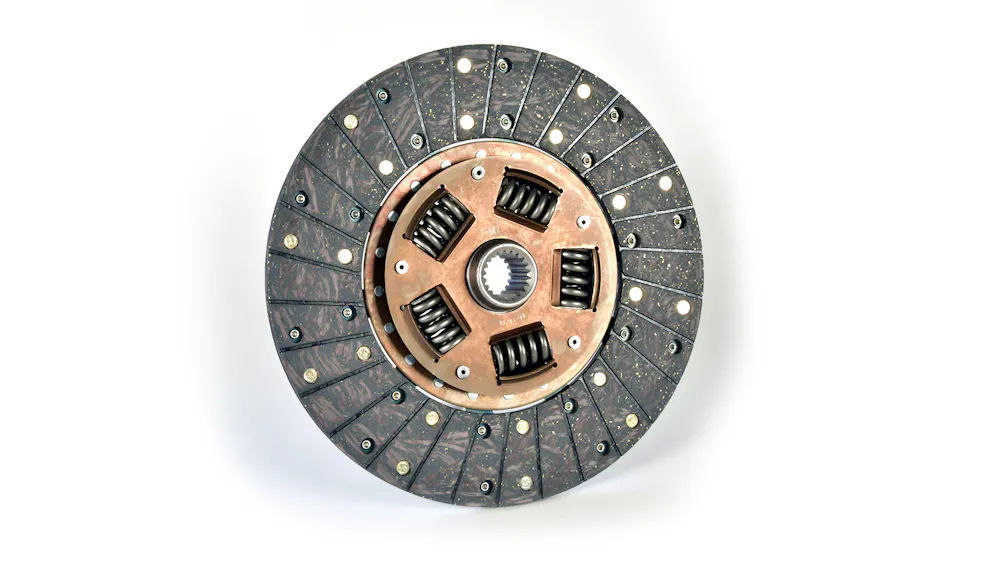

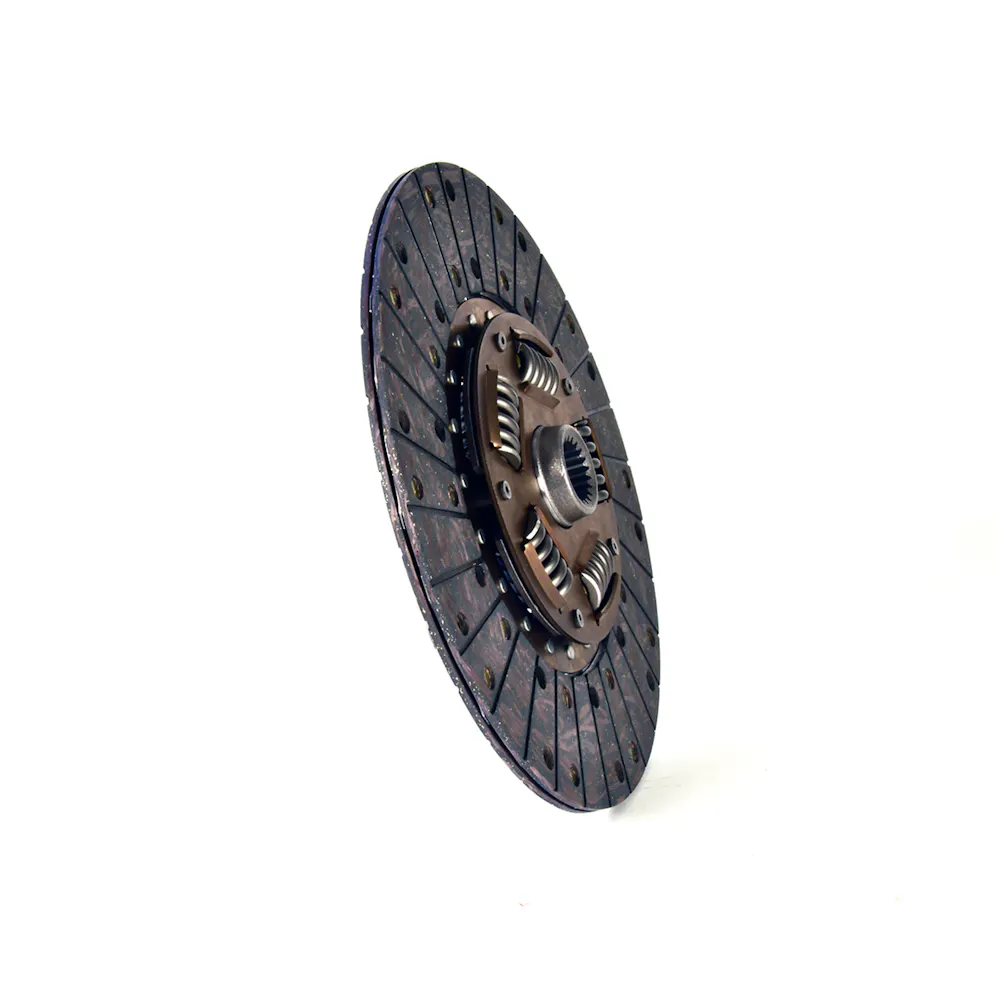

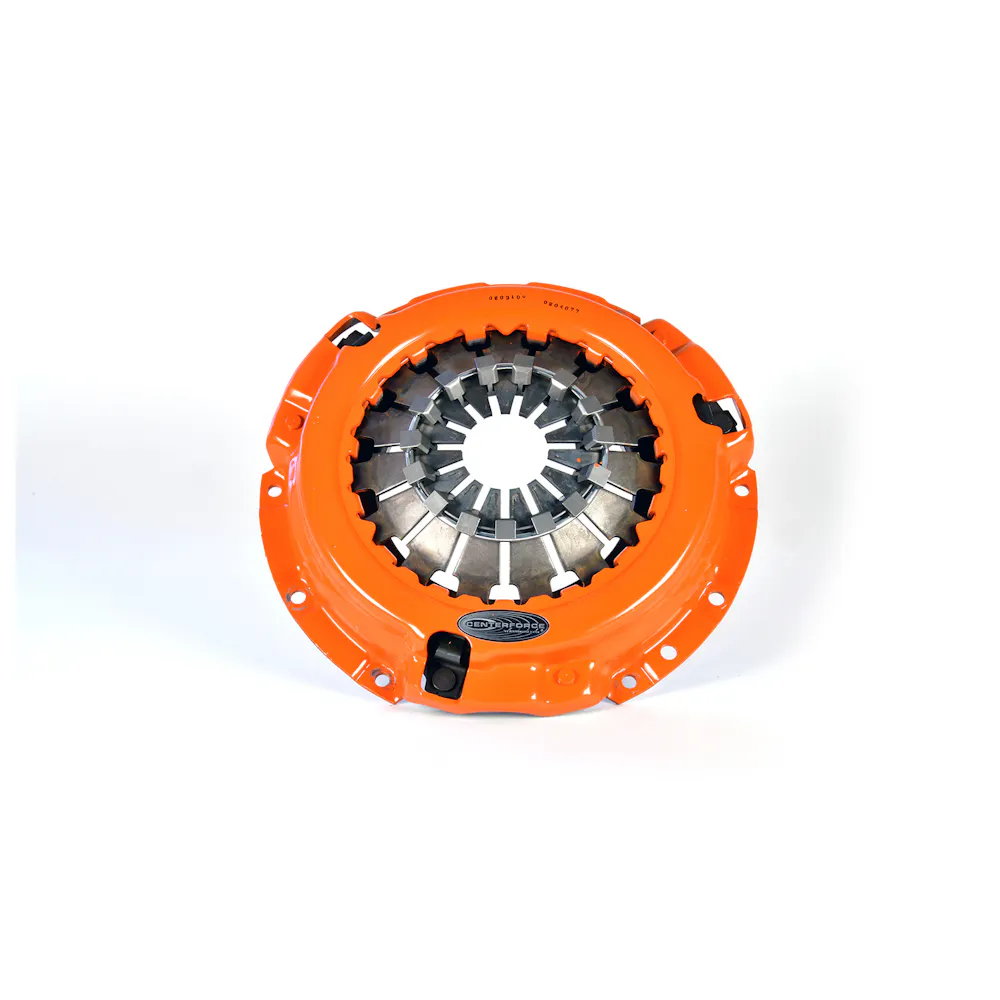

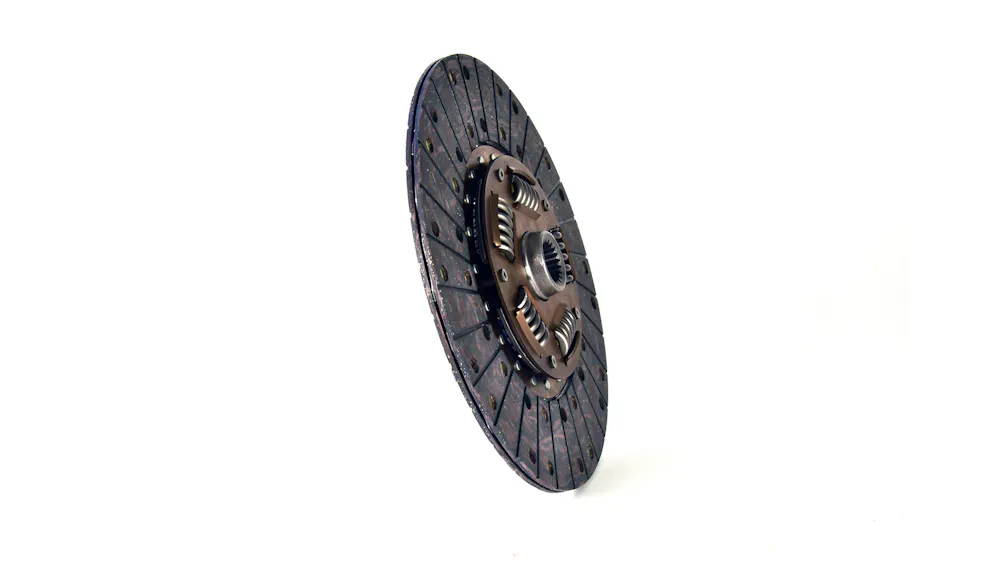

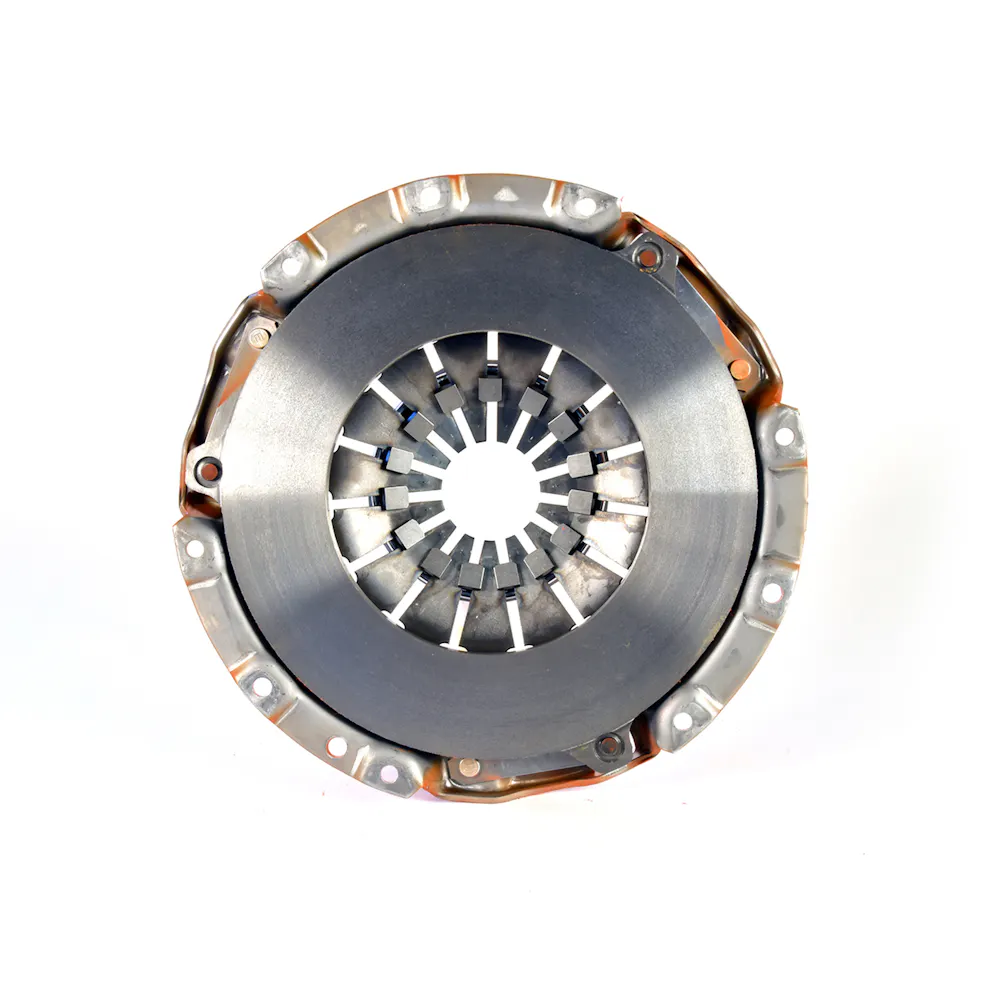

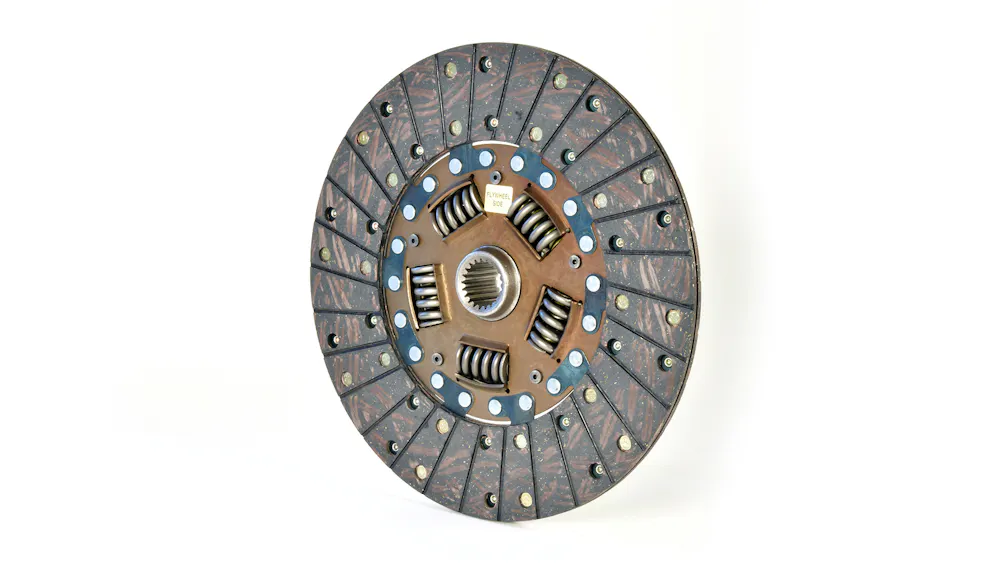

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application summary

Year	Make / model
2007-2014	Toyota FJ Cruiser
2005-2015	Toyota Tacoma

Specifications

GTIN: 00788442036763
Weight: 76 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov

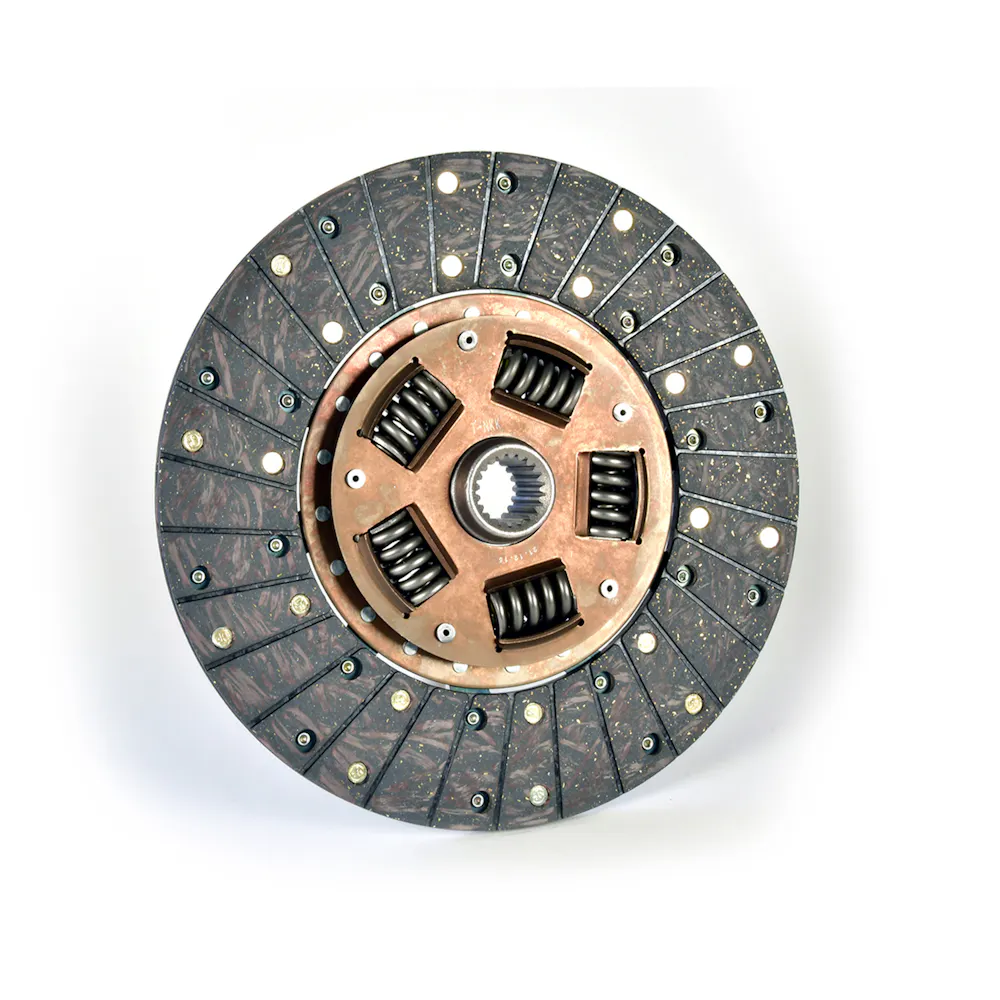

Clutch Disc Diameter: 279.4
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic
Disc Type: Full Face
Disc Type Sprung Solid: Sprung
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 21
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Organic Friction

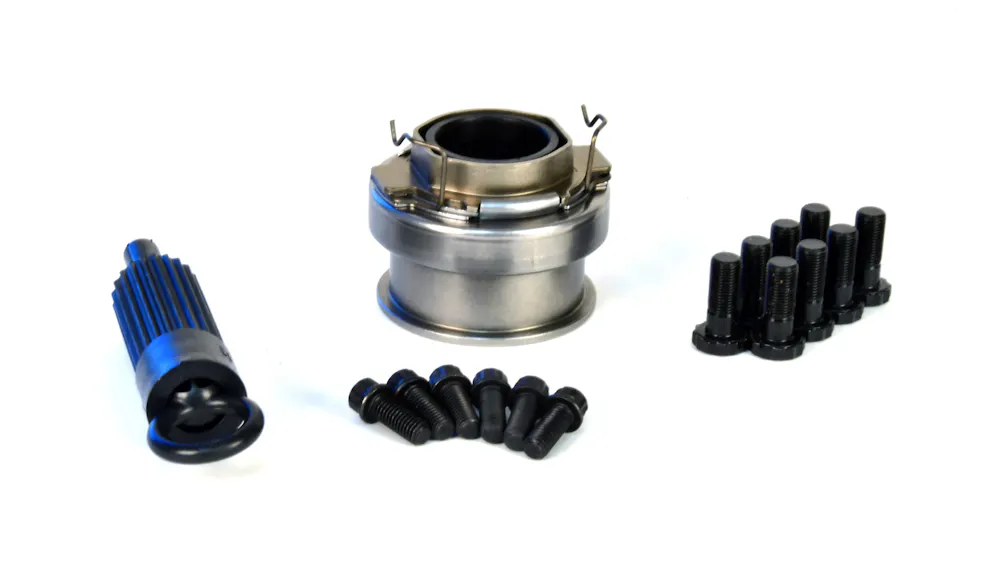

Mounting Hardware Included: Yes
Out of Package Weight: 23.2

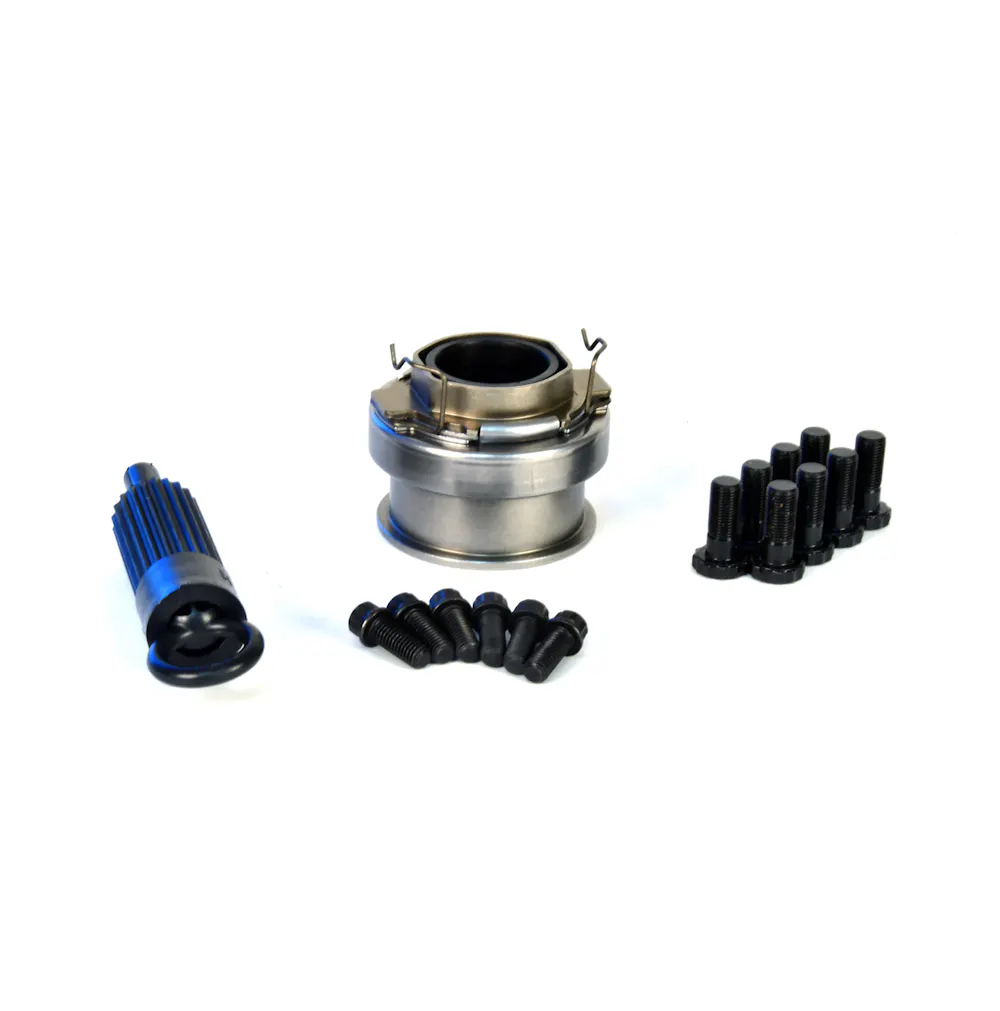

Pilot Bushing Included: Yes
Release Bearing Included: Yes

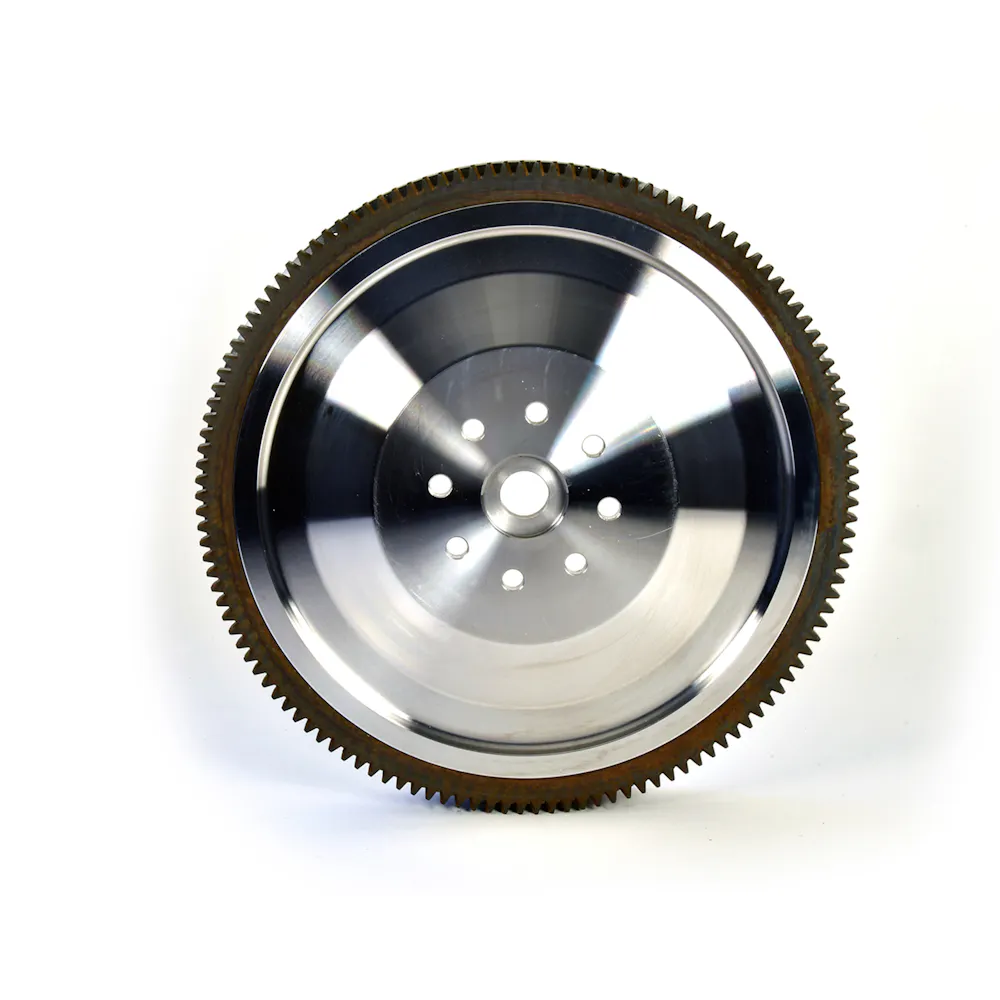

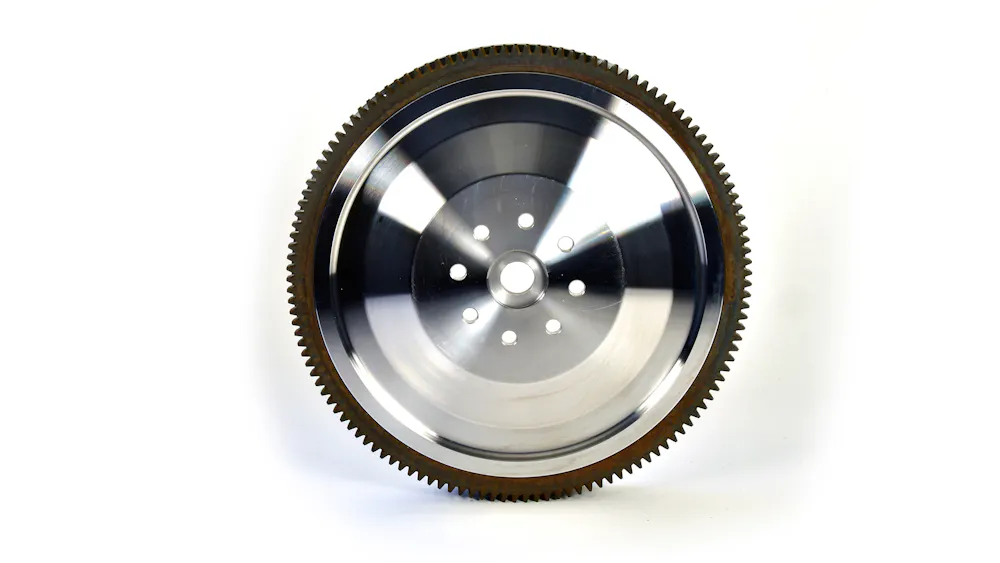

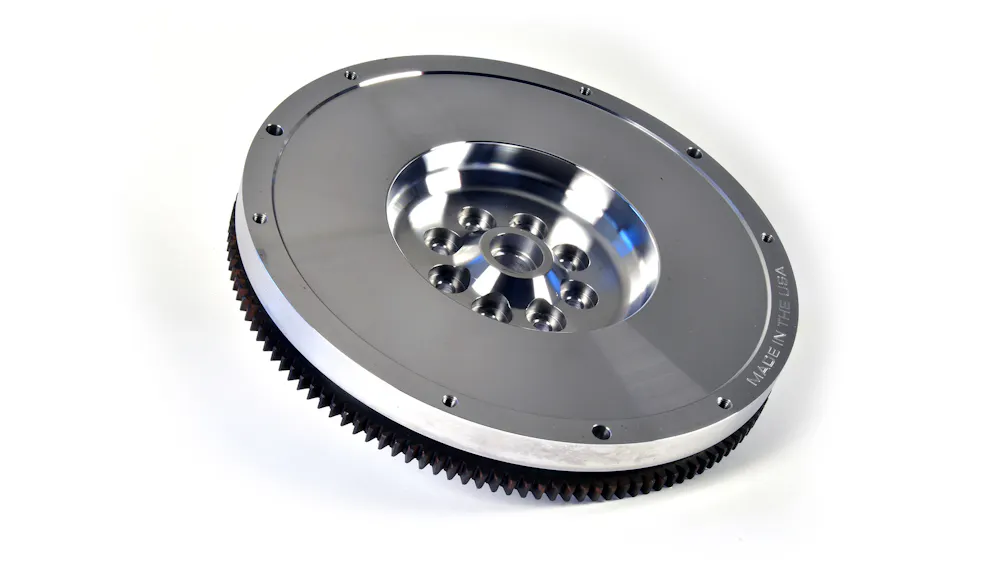

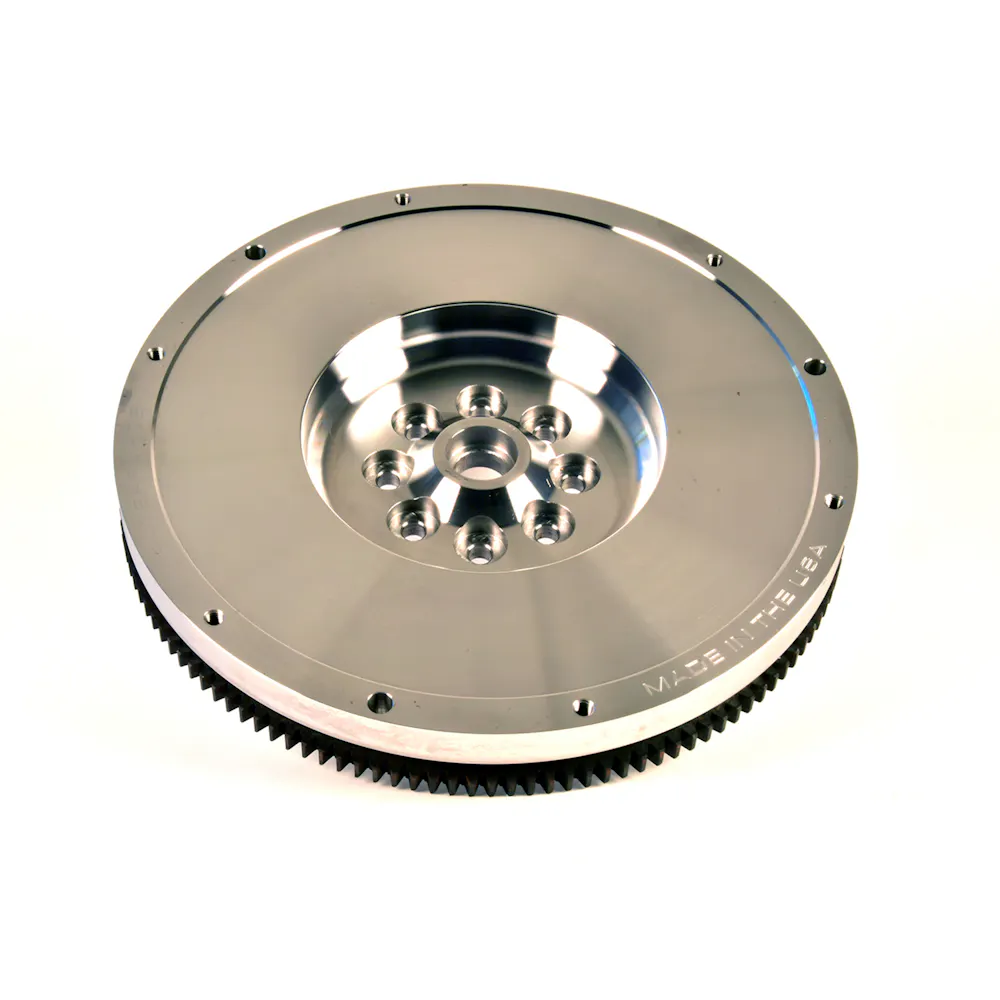

Ring Gear O.D.: 13.195
Ring Gear Tooth Count: 129
Title: Centerforce ? II, Performance Clutch and Flywheel Kit, 23.2 lbs, 129 Tooth Gear, 8 Bolt Crank, 430 ft/lbs Capacity, 11in Dia., 21-Spline, Fits Toyota FJ Cruiser and Tacoma 4.0L
Tooth Quantity: 129
Torque Capacity: 430
