Centerforce · KCFT193890

Part #: KCFT193890
UPC: 788442030815

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: Centerforce II Clutch Kits

Description: Centerforce(R) II, Clutch Kit; Centerforce(R) II Clutch Series utilizes our centrifugal weights and patented machining processes for superb holding power and maximum clutch life.

Cancer - www.P65Warnings.ca.gov

Description

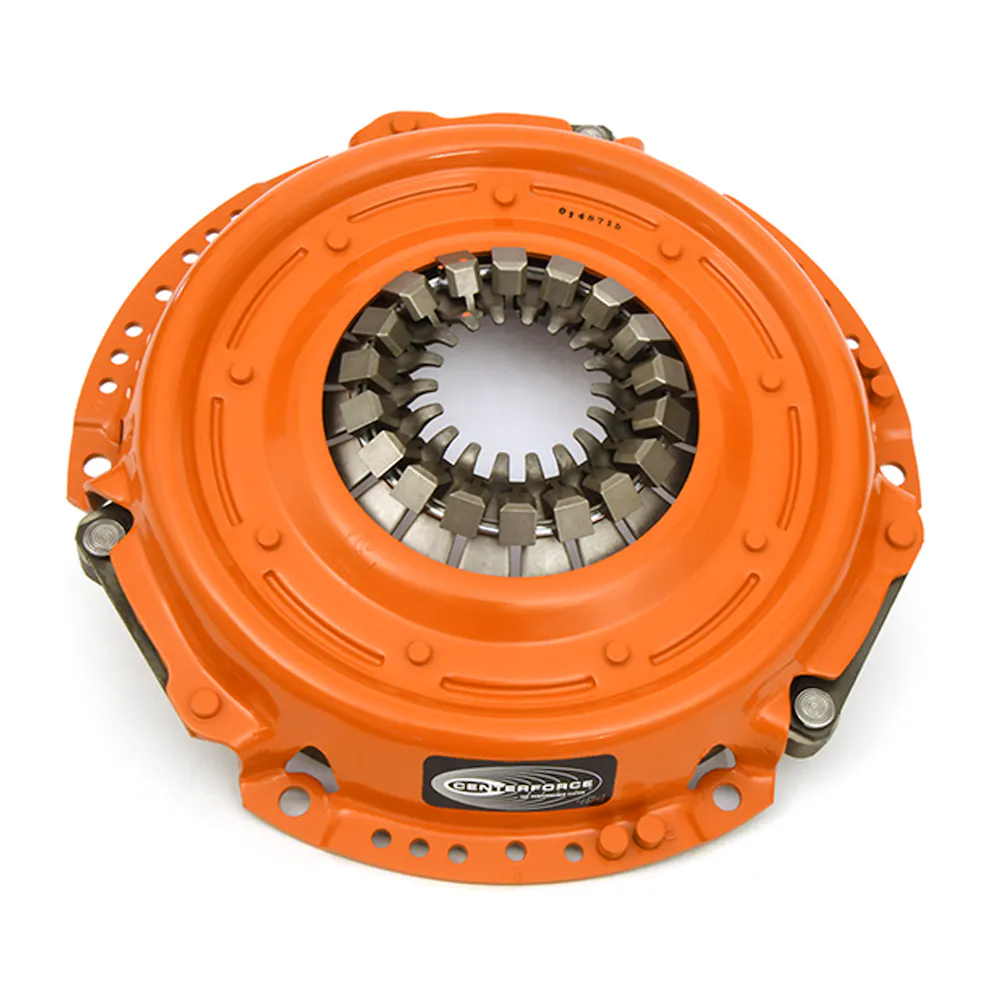

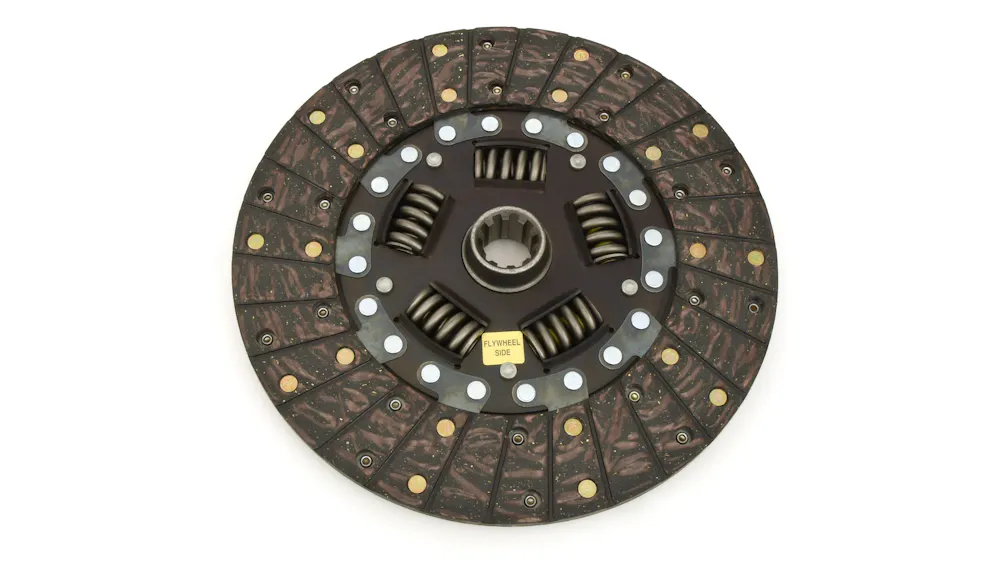

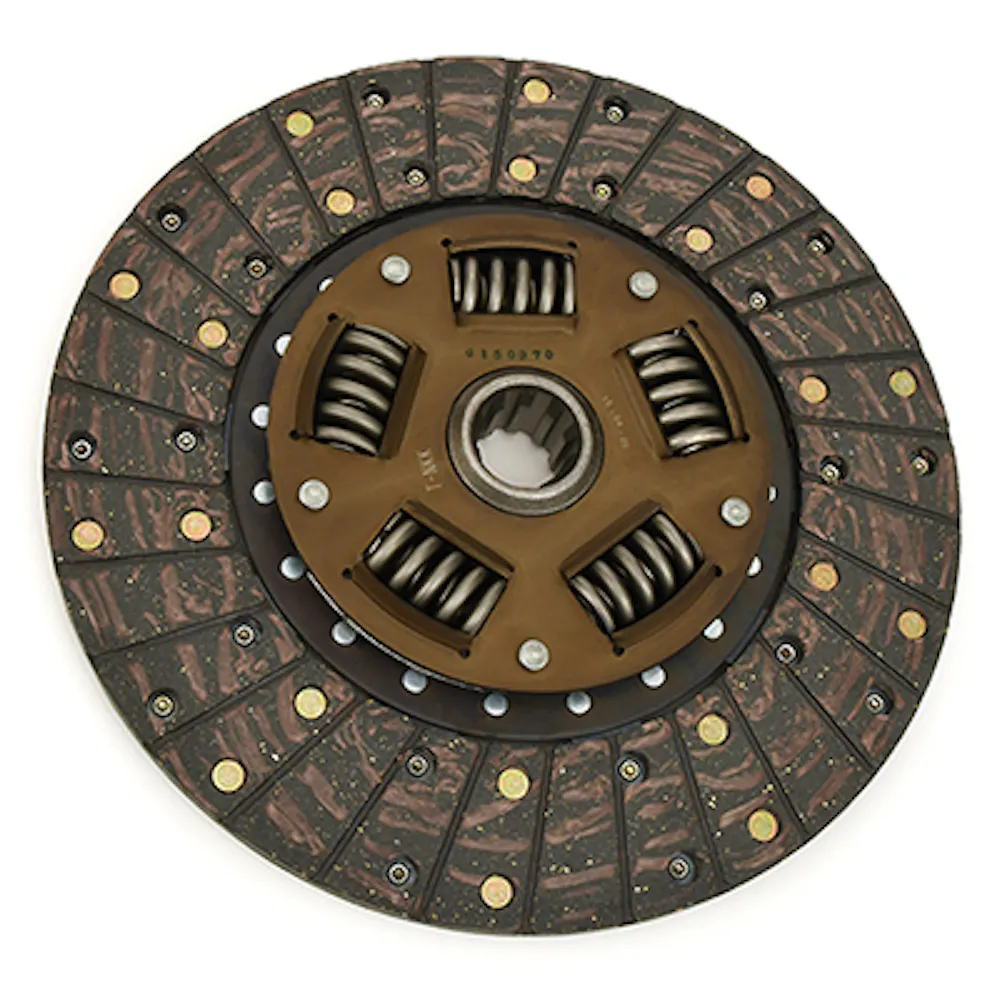

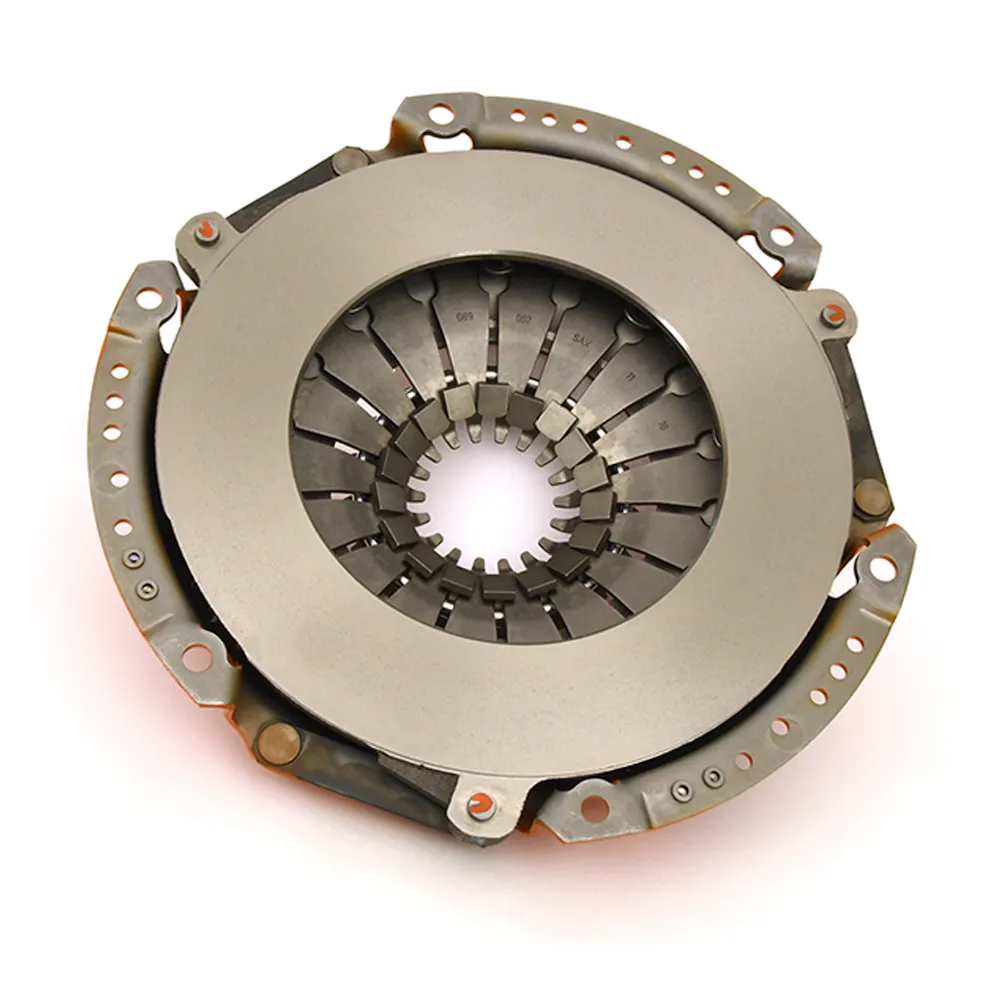

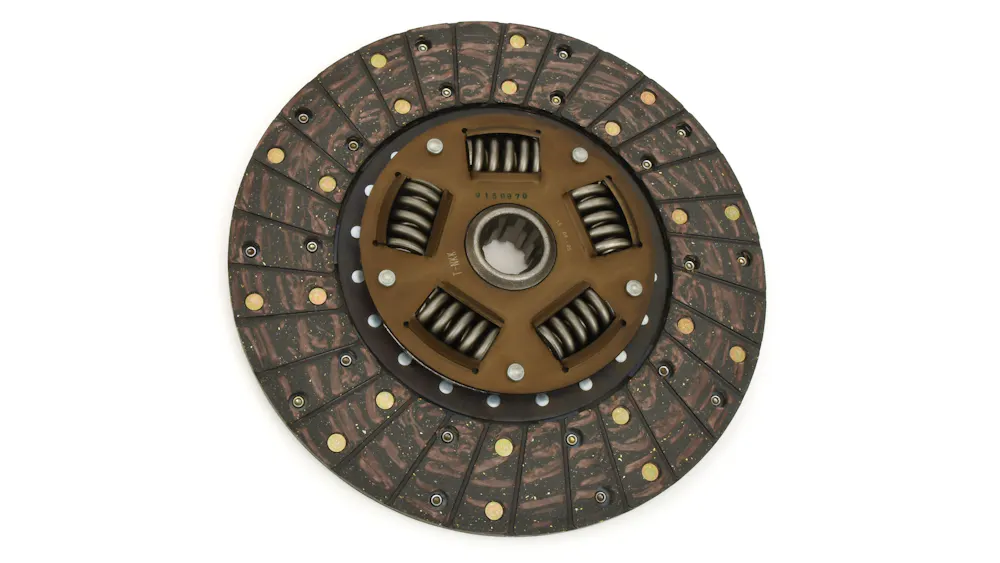

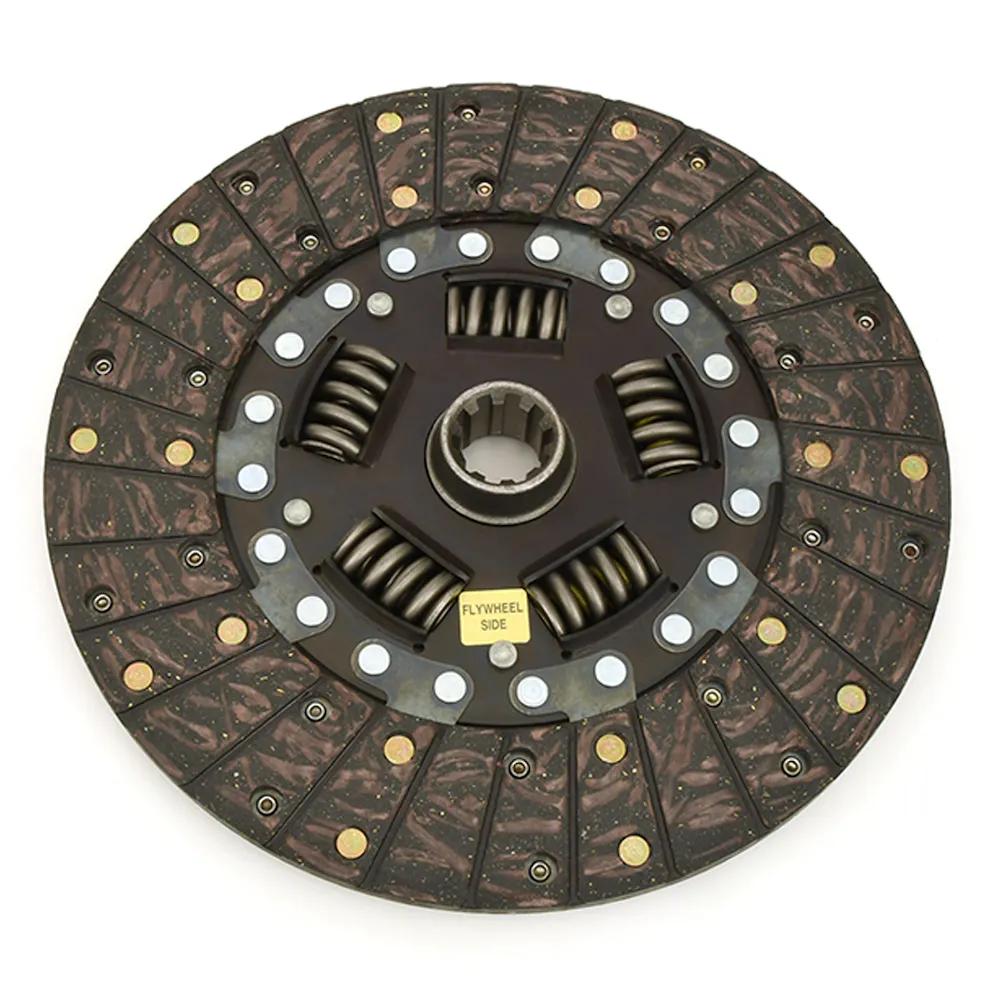

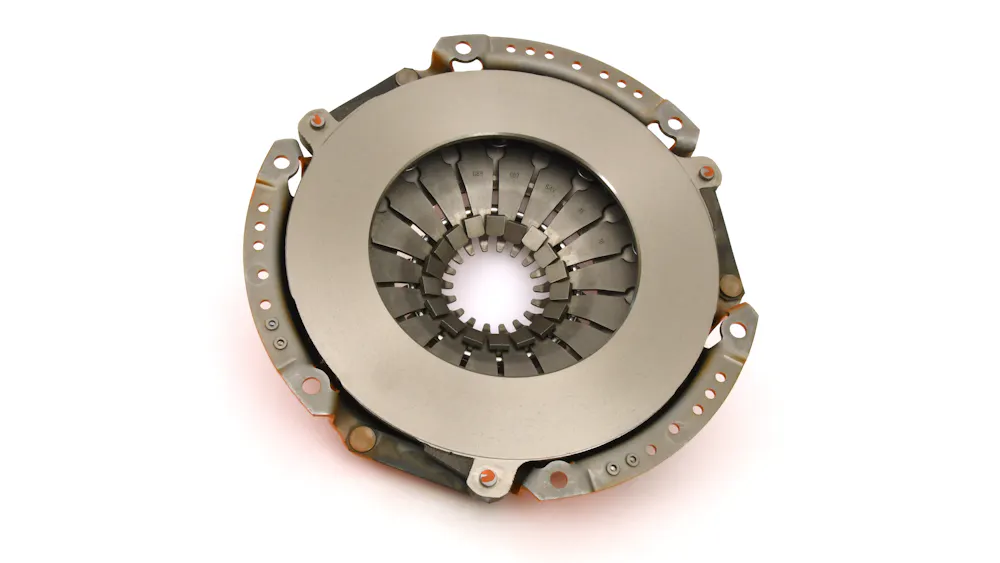

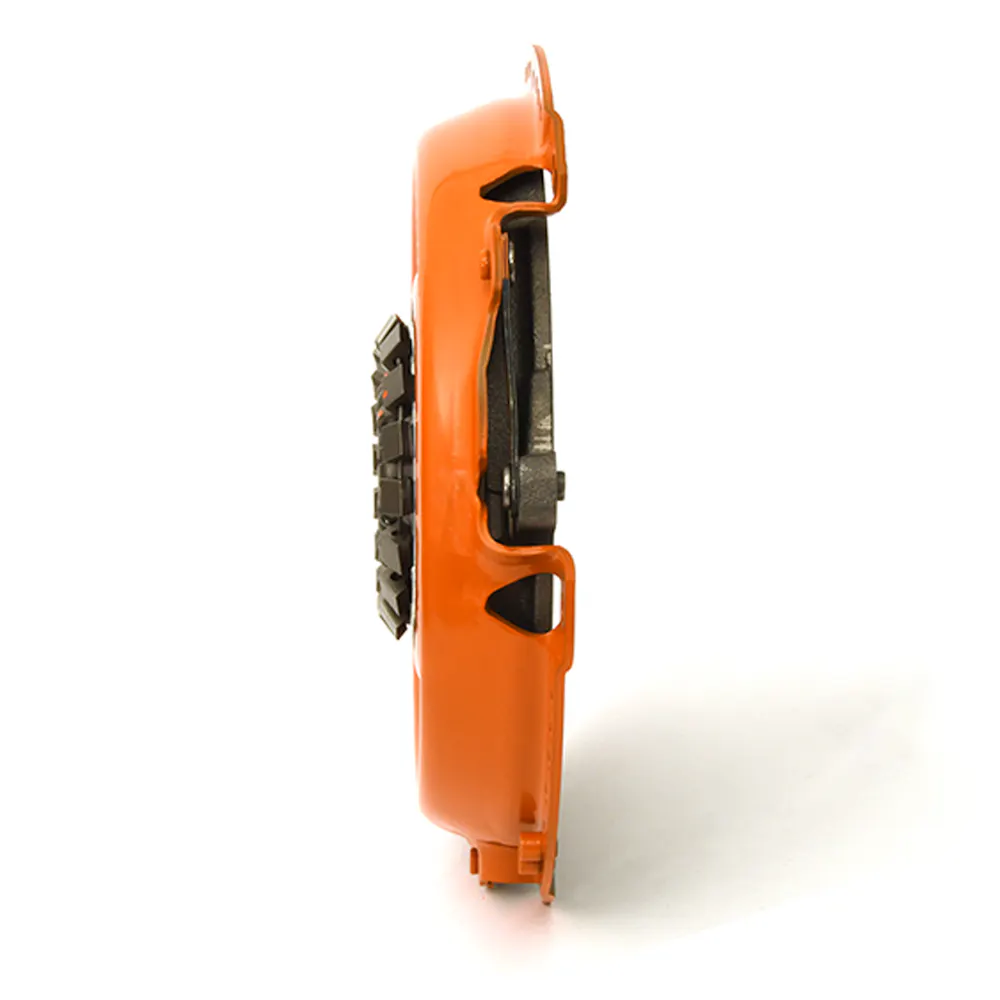

The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application summary

Year	Make / model
1987-1993	Jeep Cherokee
1987-1992	Jeep Comanche
1993	Jeep Grand Cherokee
1987-1990	Jeep Wagoneer
1987-1993	Jeep Wrangler

Specifications

GTIN: 00788442030815
Weight: 23.65 lb
Height: 5.5 in
Length: 18 in
Width: 18 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

Alignment Tool Included: Yes
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 2
Clutch Bolt Size: 3/8 - 16 X 0.900
Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Disc Material: Organic
Disc Type: Full face
Disc Type Sprung Solid: Sprung

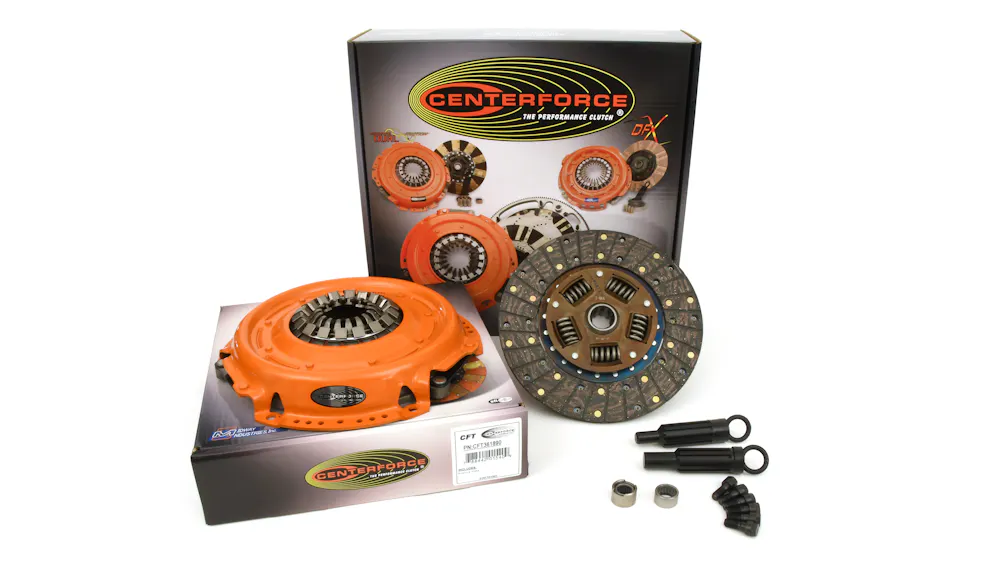

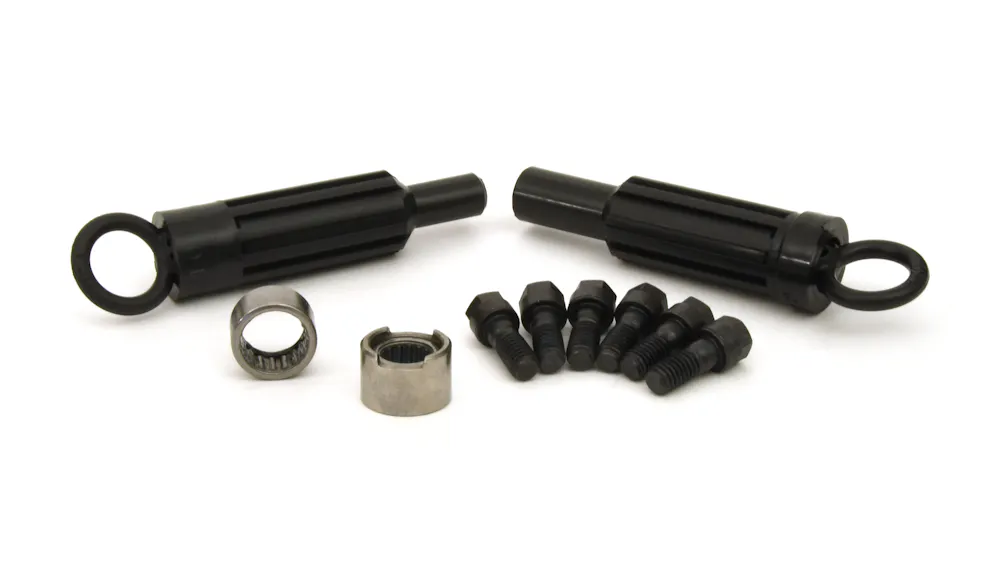

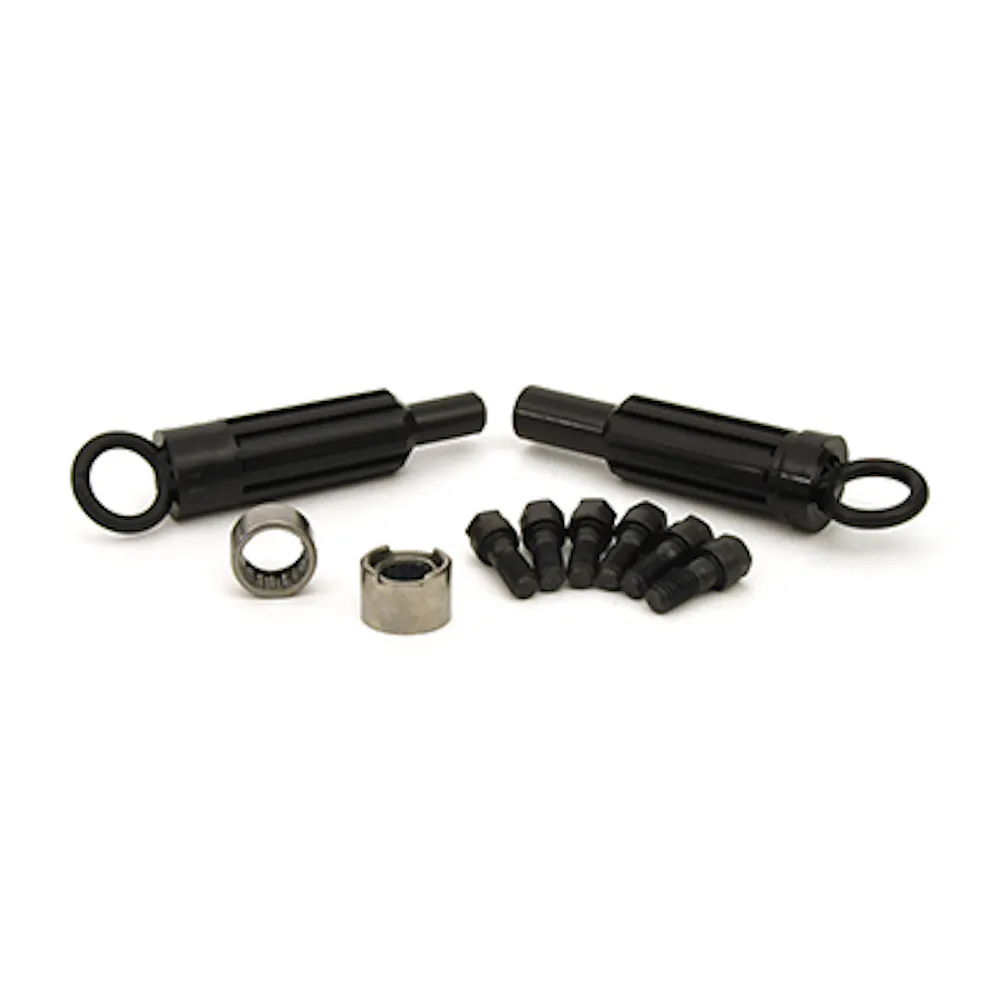

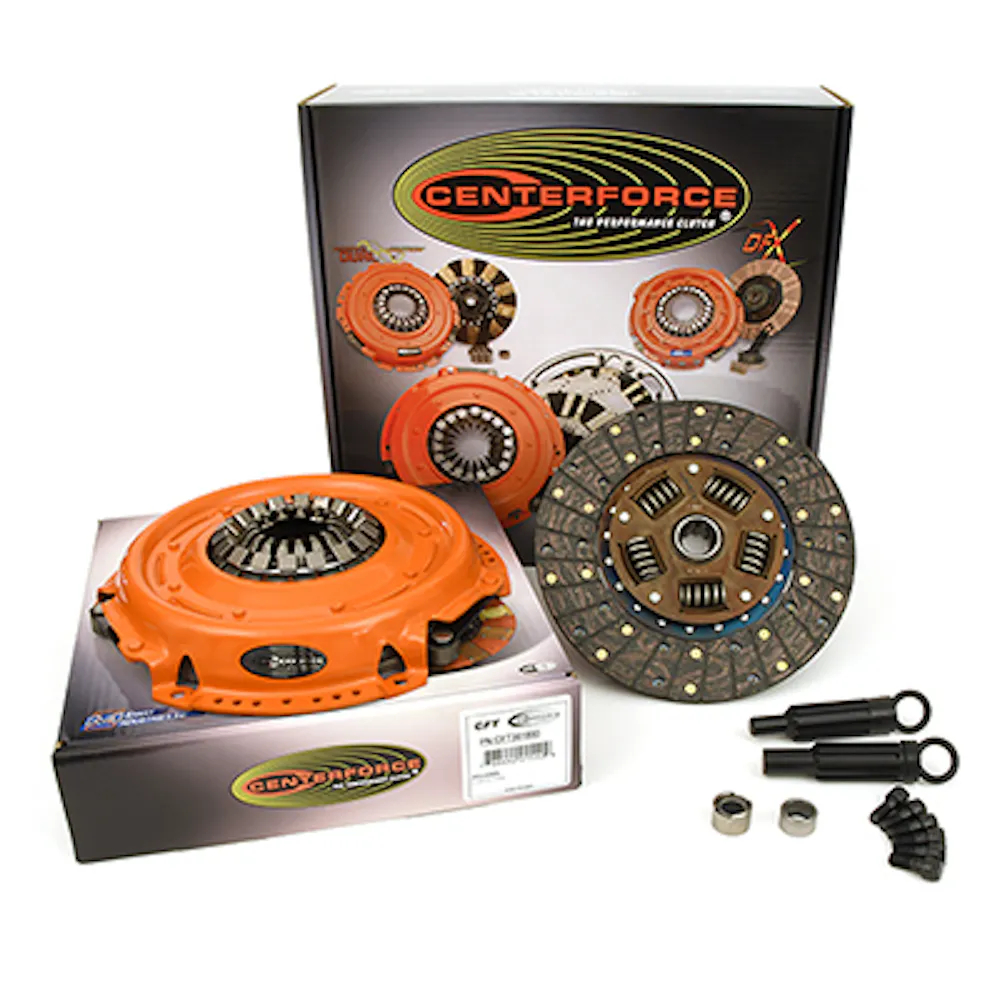

Includes: Pressure Plate, Disc, Alignment Tool, Pilot Bearings, & Bolts
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 10
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 17
Pilot Bushing Included: Yes
Replaceable Friction Surface: N
Title: Centerforce ? II, Performance Clutch Kit, 458 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Trucks 4.0L/4.2L
Torque Capacity: 458
