Centerforce · KCF566116
Part #: KCF566116
UPC: 788442029376
Log in for inventory
Notify me when this item is in stock.
Description: Centerforce(R) I, Clutch Kit; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.
Description:
Description
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1984-1992 | Chevrolet Camaro |
| 1984-1992 | Pontiac Firebird |
Specifications
- GTIN
- 00788442029376
- Weight
- 24 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Includes

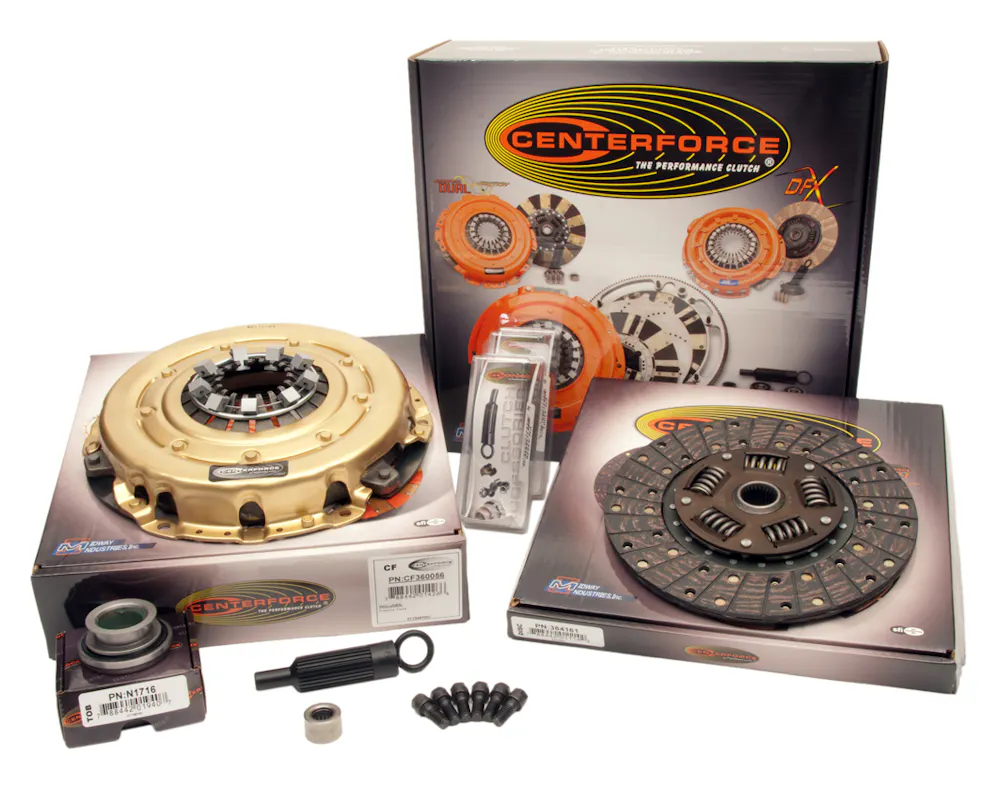

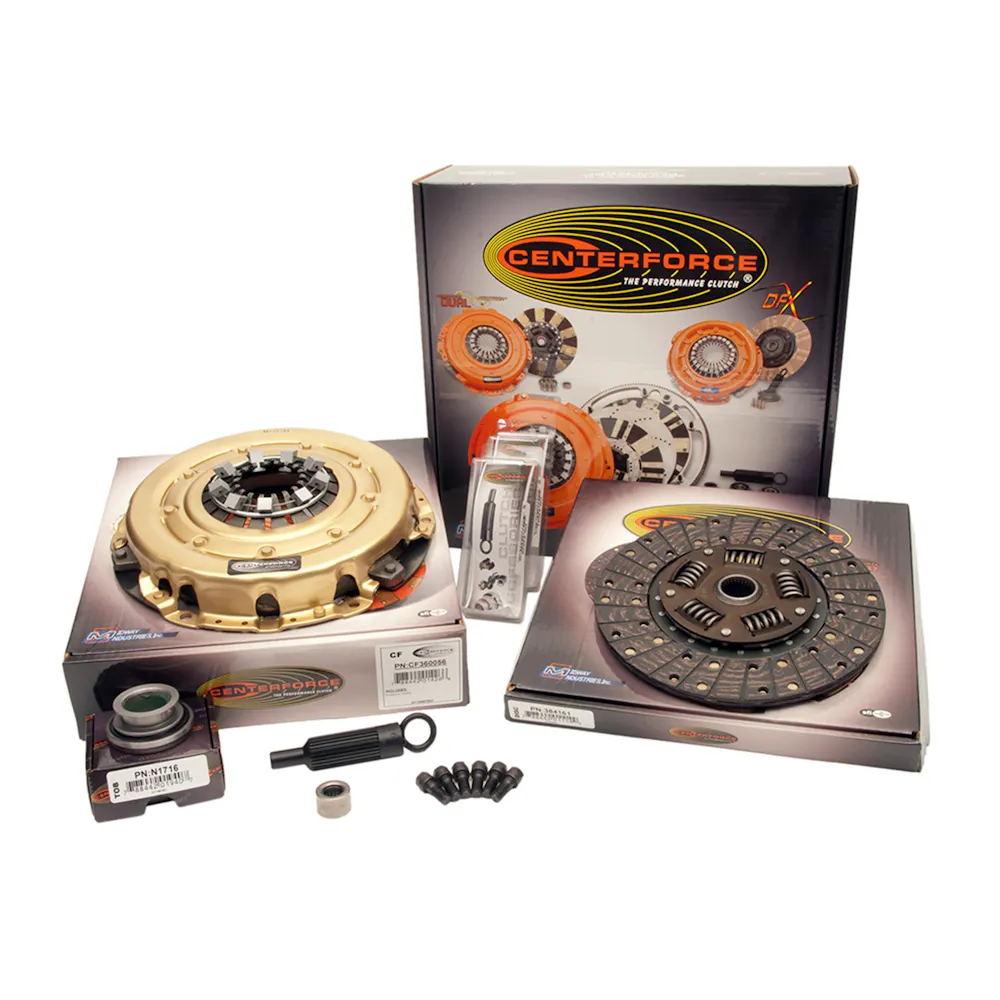

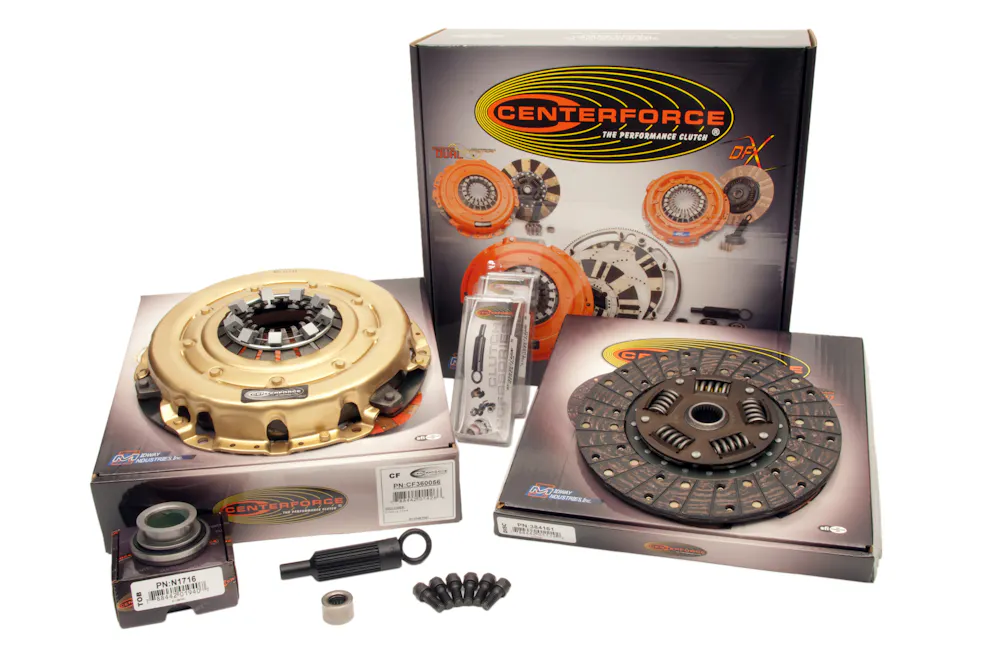

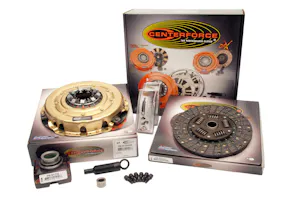

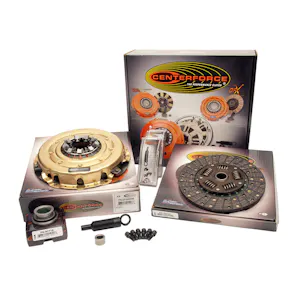

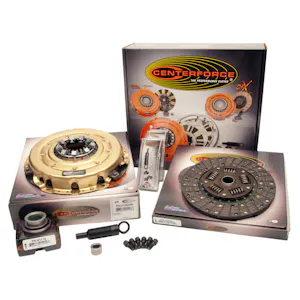

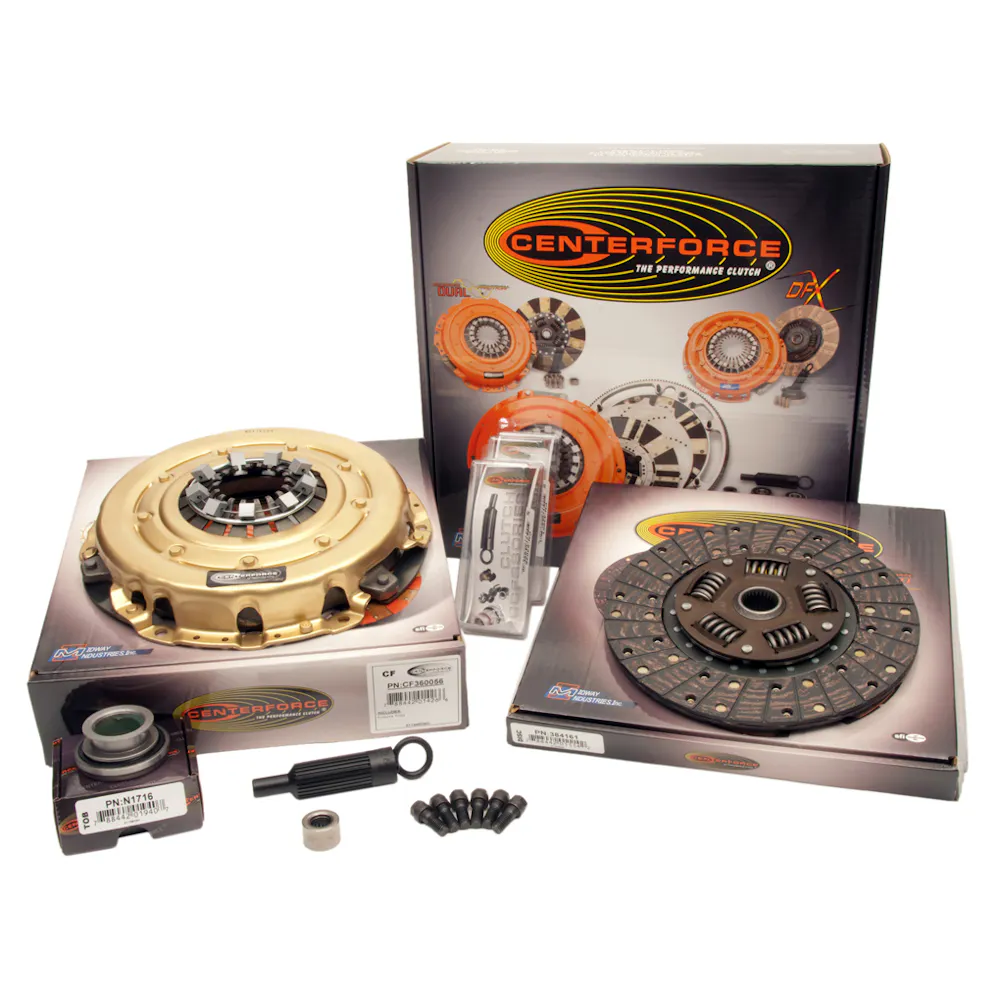

- Pressure Plate, Disc, T.O.B., Pilot Bearing, Bolts, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Release Bearing Included
- Yes
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-26
- Title
- Centerforce ? I, Premium Clutch Kit, 400 ft/lbs Capacity, 10.4in Dia., 26-Spline, Fits Chevrolet/Pontiac Camaro and Firebird 5.0L/5.7L
- Torque Capacity
- 400
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-1992 Chevrolet Camaro; 1984-1992 Pontiac Firebird
