Centerforce · KCF523516
Part #: KCF523516
UPC: 788442028669
Log in for inventory
Notify me when this item is in stock.
Description: Centerforce(R) I, Clutch Kit; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.
Description:
Description
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1966 | Buick Electra |
| 1966-1968 | Buick Skylark |
| 1970 | Buick Skylark |
| 1966-1972 | Chevrolet Bel Air |
| 1965-1972 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1995 | Chevrolet Blazer |
| 1975-1984 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1980 | Chevrolet C10 Suburban |
| 1975-1984 | Chevrolet C20 |
| 1968-1982 | Chevrolet C20 Suburban |
| 1975-1984 | Chevrolet C30 |
| 1962-1967 | Chevrolet C30 Pickup |
| 1967-1970 | Chevrolet Camaro |
| 1966-1972 | Chevrolet Caprice |
| 1967-1969 | Chevrolet Chevelle |
| 1972 | Chevrolet Chevelle |
| 1966-1971 | Chevrolet Corvette |
| 1966-1970 | Chevrolet El Camino |
| 1972 | Chevrolet El Camino |
| 1965-1972 | Chevrolet Impala |
| 1975-1982 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1979 | Chevrolet K10 Suburban |
| 1975-1984 | Chevrolet K20 |
| 1968-1982 | Chevrolet K20 Suburban |
| 1977-1984 | Chevrolet K30 |
| 1975-1982 | Chevrolet K5 Blazer |
| 1970 | Chevrolet Monte Carlo |
| 1972 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1994-1995 | Chevrolet S10 |
| 1994 | Chevrolet S10 Blazer |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1984 | GMC C1500 |
| 1979-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1984 | GMC C2500 |
| 1979-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979-1984 | GMC C3500 |
| 1970-1984 | GMC Jimmy |
| 1994-1995 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979-1984 | GMC K1500 |
| 1979-1980 | GMC K1500 Suburban |
| 1982 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979-1984 | GMC K2500 |
| 1979-1982 | GMC K2500 Suburban |
| 1984 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979-1984 | GMC K3500 |
| 1994-1995 | GMC Sonoma |
| 1971-1972 | GMC Sprint |
Specifications
- GTIN
- 00788442028669
- Weight
- 31.5 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Bolt Size
- 3/8 - 16 X 0.900
- Clutch Bolt Type
- Shouldered
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Flywheel Deck Height
- 2.09
- Flywheel Step Type
- Flat
- Includes
- Pressure Plate, Disc, T.O.B., Pilot Bearing, Bolts, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Organic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter of Friction Surface (Standard)
- 11
- Pilot Bushing Included
- Yes
- Release Bearing Included
- Yes
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce ? I, Premium Clutch Kit, 522 ft/lbs Capacity, 11in Dia., 10-Spline, Fits Buick/Chevrolet/GMC Cars and Trucks 6/8 Cyl
- Torque Capacity
- 522
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 Buick Electra; 1966-1968 Buick Skylark; 1970 Buick Skylark; 1966-1972 Chevrolet Bel Air; 1965-1972 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1995 Chevrolet Blazer; 1975-1984 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1968-1974 Chevrolet C10 Suburban; 1977-1980 Chevrolet C10 Suburban; 1975-1984 Chevrolet C20; 1968-1982 Chevrolet C20 Suburban; 1975-1984 Chevrolet C30; 1962-1967 Chevrolet C30 Pickup; 1967-1970 Chevrolet Camaro; 1966-1972 Chevrolet Caprice; 1967-1969 Chevrolet Chevelle; 1972 Chevrolet Chevelle; 1966-1971 Chevrolet Corvette; 1966-1970 Chevrolet El Camino; 1972 Chevrolet El Camino; 1965-1972 Chevrolet Impala; 1975-1982 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1979 Chevrolet K10 Suburban; 1975-1984 Chevrolet K20; 1968-1982 Chevrolet K20 Suburban; 1977-1984 Chevrolet K30; 1975-1982 Chevrolet K5 Blazer; 1970 Chevrolet Monte Carlo; 1972 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1994-1995 Chevrolet S10; 1994 Chevrolet S10 Blazer; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1984 GMC C1500; 1979-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1984 GMC C2500; 1979-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979-1984 GMC C3500; 1970-1984 GMC Jimmy; 1994-1995 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1968-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979-1984 GMC K1500; 1979-1980 GMC K1500 Suburban; 1982 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1968-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979-1984 GMC K2500; 1979-1982 GMC K2500 Suburban; 1984 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979-1984 GMC K3500; 1994-1995 GMC Sonoma; 1971-1972 GMC Sprint

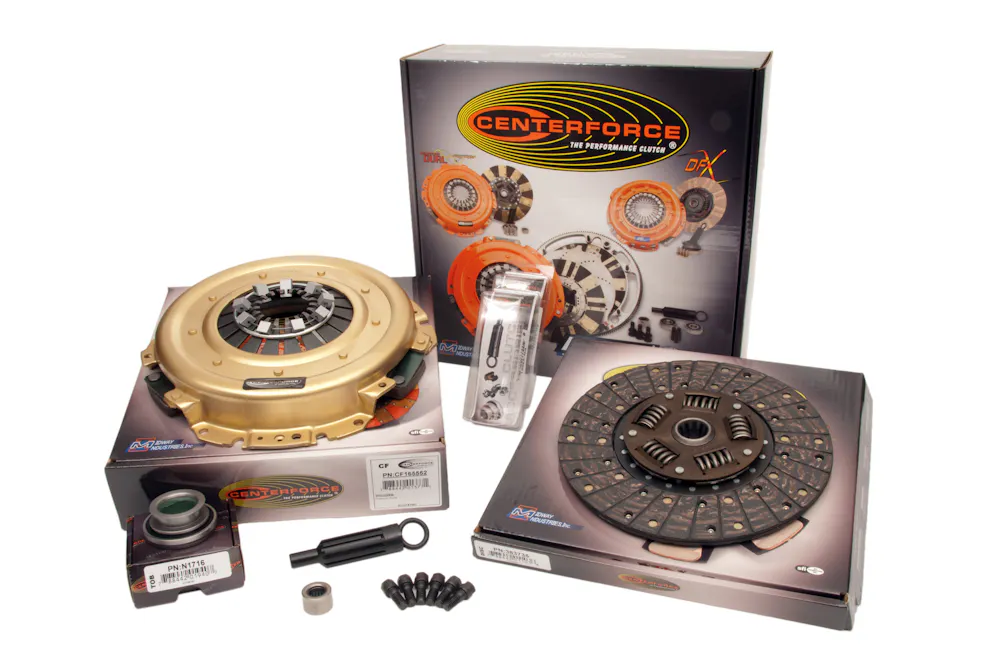

Centerforce KCF523516
