Centerforce / DF842503
Part #: DF842503
UPC: 788442028522
Loading...
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
This part number superseded DF084025.
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1999-2006 | Chevrolet Silverado 1500 |
| 1999-2006 | GMC Sierra 1500 |
Specifications
- GTIN
- 00788442028522
- Weight
- 28 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Y
- Clutch Disc Diameter
- 279.4
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, T.O.B., Pilot Bearing, Bolts, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter of Friction Surface (Standard)
- 11-7/8
- Pilot Bushing Included
- Yes
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 703 ft/lbs Capacity, 11.875in Dia., 10-Spline, Fits Chevrolet/GMC Sierra 1500 and Silverado 1500 4.8L
- Torque Capacity
- 703
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1999-2006 Chevrolet Silverado 1500; 1999-2006 GMC Sierra 1500
Resources
- Brand logo
- Technical Bulletin
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Lifestyle View
- Photo - Primary
- Link To Manufacturer Page
- Centerforce Dual Friction Clutch
- Centerforce Dual Friction Overview
- Centerforce Ram Diesel Clutch Kits

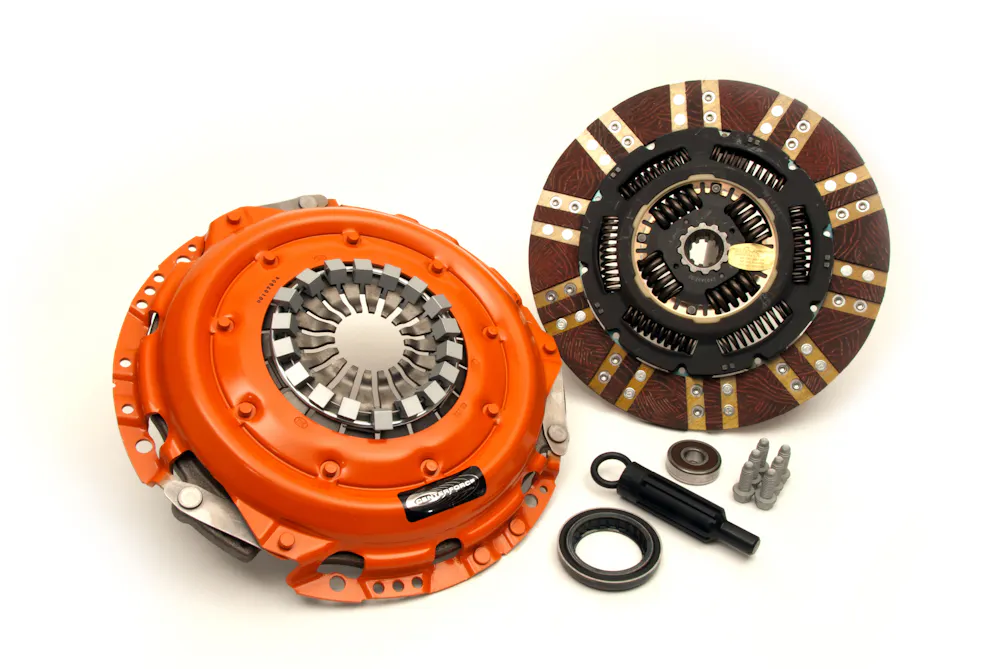

Centerforce DF842503
