Centerforce · DF549035
Part #: DF549035
UPC: 788442021684
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description

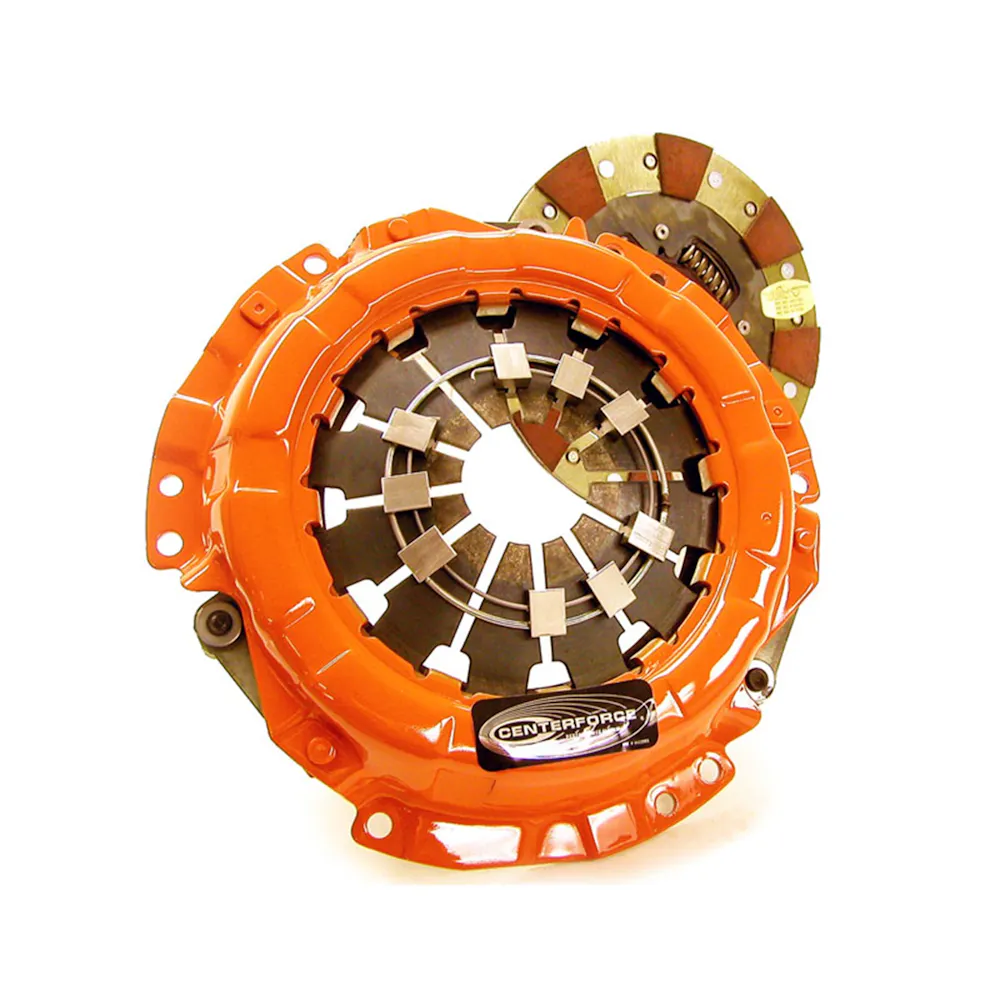

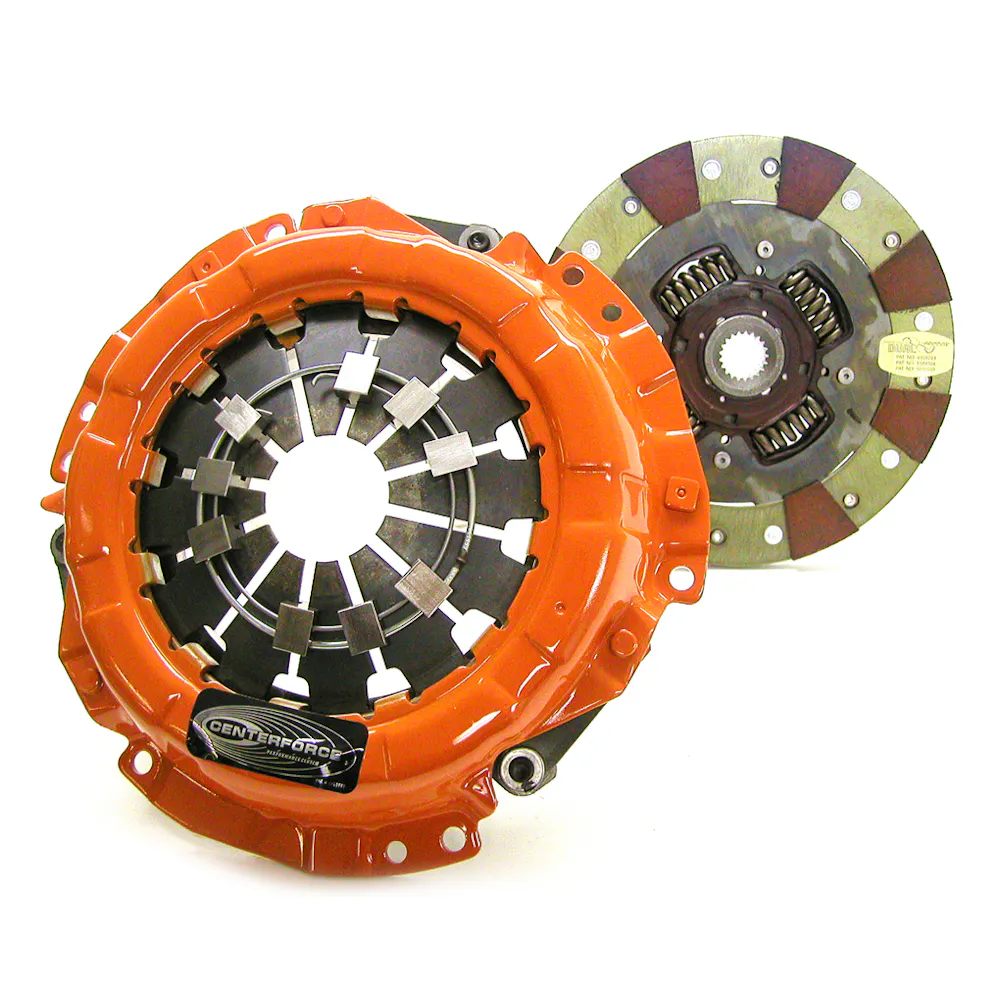

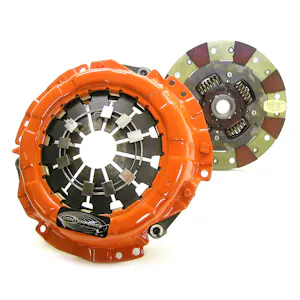

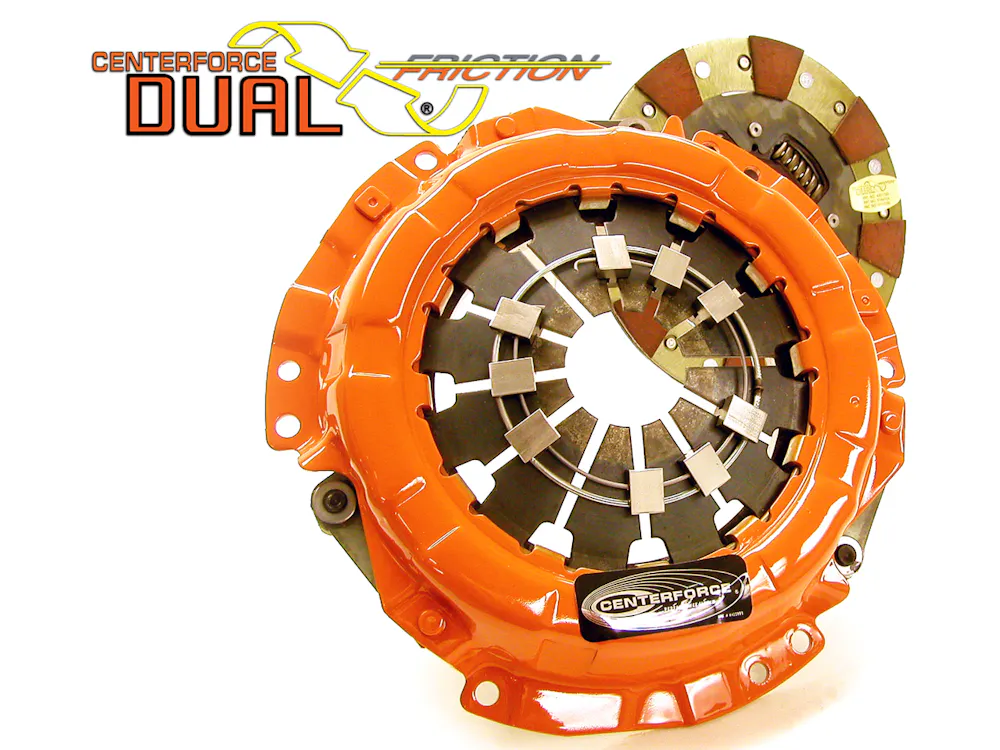

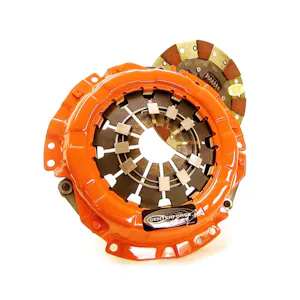

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 2003-2008 | Pontiac Vibe |
| 2004-2006 | Scion xA |
| 2004-2006 | Scion xB |
| 2000-2005 | Toyota Echo |
| 2000-2005 | Toyota MR2 Spyder |
| 2006-2011 | Toyota Yaris |
Specifications
- GTIN
- 00788442021684
- Weight
- 11.45 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Without Centrifugal Weights
- Clutch Disc Diameter
- 212
- Counterweight Assist
- No
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 15/16
- Input Spline Quantity
- 21
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface
- 212
- Outside Diameter of Friction Surface (Metric)
- 212
- Outside Diameter of Friction Surface (Standard)
- 8-3/8
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 15/16"-21
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 264 ft/lbs Capacity, 8.375in Dia., 21-Spline, Fits Pontiac/Scion/Toyota Cars and Trucks 1.5L/1.8L
- Torque Capacity
- 264
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2003-2008 Pontiac Vibe; 2004-2006 Scion xA; 2004-2006 Scion xB; 2000-2005 Toyota Echo; 2000-2005 Toyota MR2 Spyder; 2006-2011 Toyota Yaris
