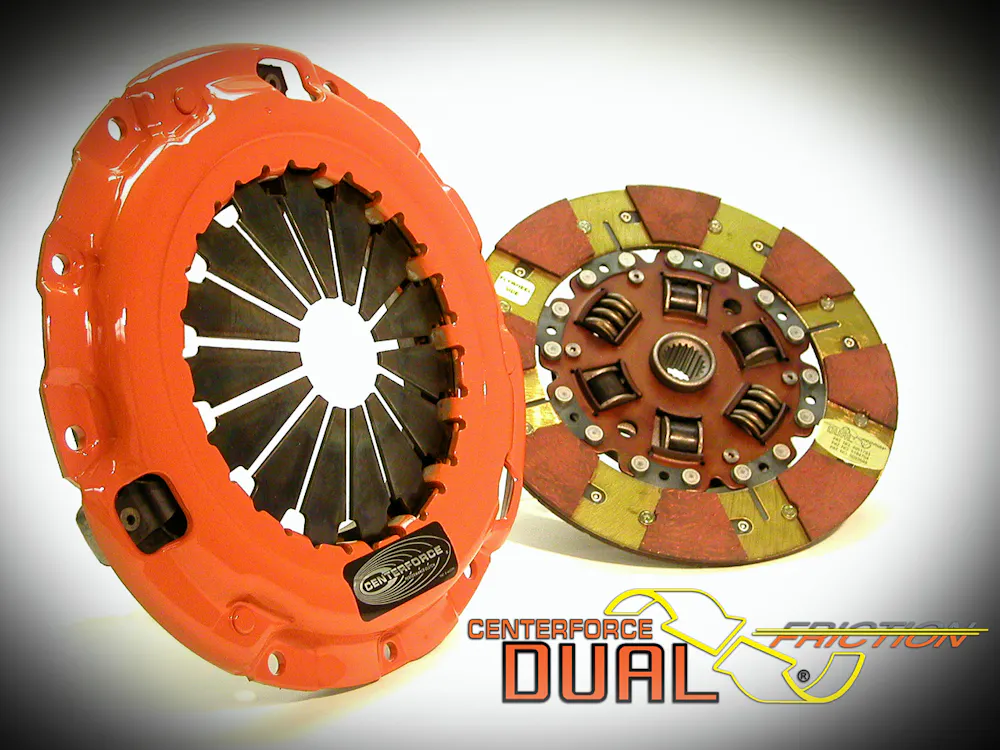

Centerforce · DF536010
Part #: DF536010
UPC: 788442018042
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 2003-2004 | Chrysler Sebring |
| 1991-1996 | Dodge Stealth |
| 2001-2005 | Dodge Stratus |
| 1992-1994 | Eagle Summit |
| 1996 | Eagle Summit |
| 1990-1998 | Eagle Talon |
| 1991-1999 | Mitsubishi 3000GT |
| 1990-2005 | Mitsubishi Eclipse |
| 1993-1995 | Mitsubishi Expo |
| 1991-1992 | Mitsubishi Galant |
| 1994-1997 | Mitsubishi Galant |
| 1990-1994 | Plymouth Laser |
Specifications
- GTIN
- 00788442018042
- Weight
- 12.45 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Without Centrifugal Weights
- Clutch Disc Diameter
- 203.2
- Counterweight Assist
- No
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step
- -0.608
- Flywheel Step Type
- CUP
- Friction Surface Configuration
- CUP
- Includes
- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 7/8
- Input Spline Quantity
- 20
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface
- 225
- Outside Diameter of Friction Surface (Metric)
- 225
- Outside Diameter of Friction Surface (Standard)
- 8-7/8
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 7/8/2020
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 368 ft/lbs Capacity, 8.875in Dia., 20-Spline, Fits Chrysler/Dodge/Eagle/Mitsubishi/Plymouth Cars 4/6 Cyl
- Torque Capacity
- 368
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2003-2004 Chrysler Sebring; 1991-1996 Dodge Stealth; 2001-2005 Dodge Stratus; 1992-1994 Eagle Summit; 1996 Eagle Summit; 1990-1998 Eagle Talon; 1991-1999 Mitsubishi 3000GT; 1990-2005 Mitsubishi Eclipse; 1993-1995 Mitsubishi Expo; 1991-1992 Mitsubishi Galant; 1994-1997 Mitsubishi Galant; 1990-1994 Plymouth Laser
