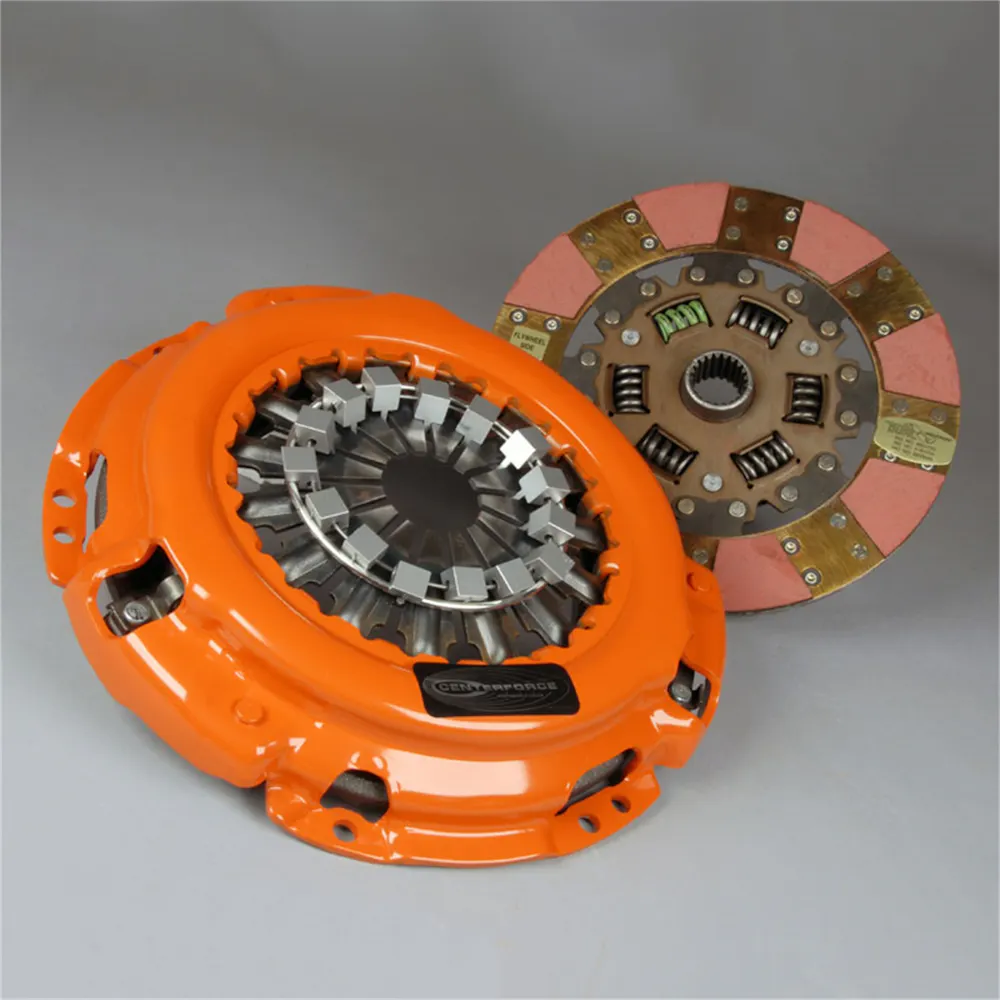

Centerforce · DF522018
Part #: DF522018
UPC: 788442017854
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description

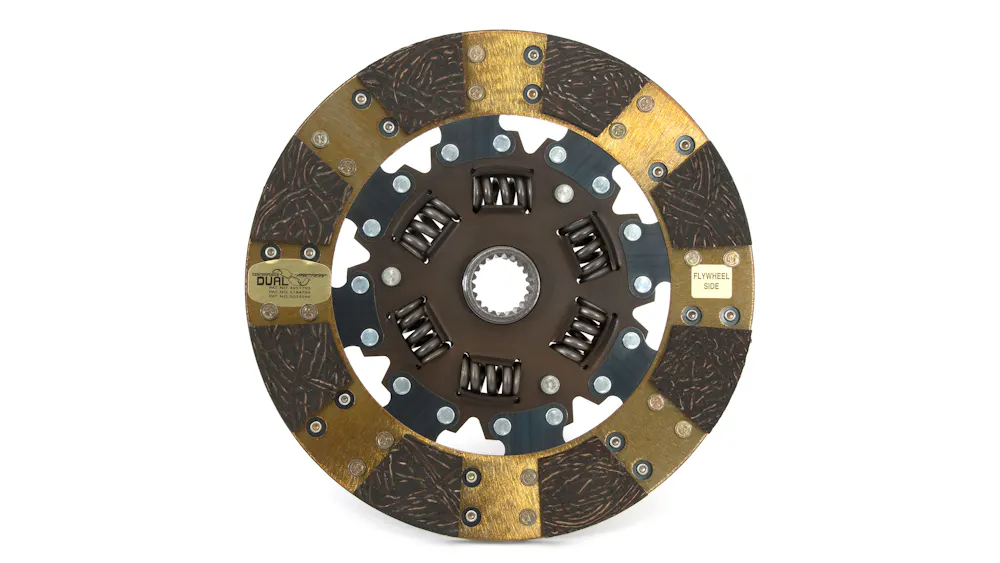

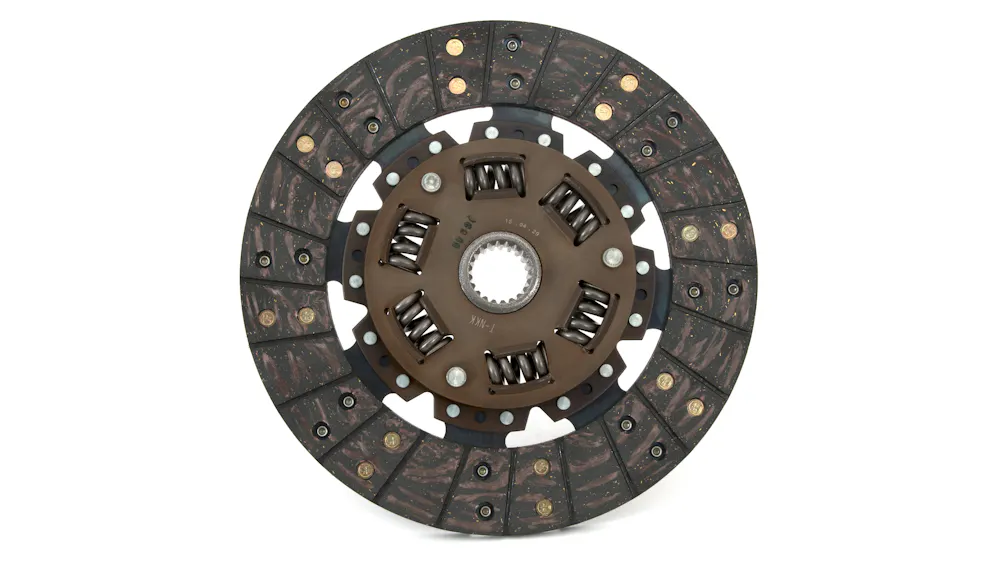

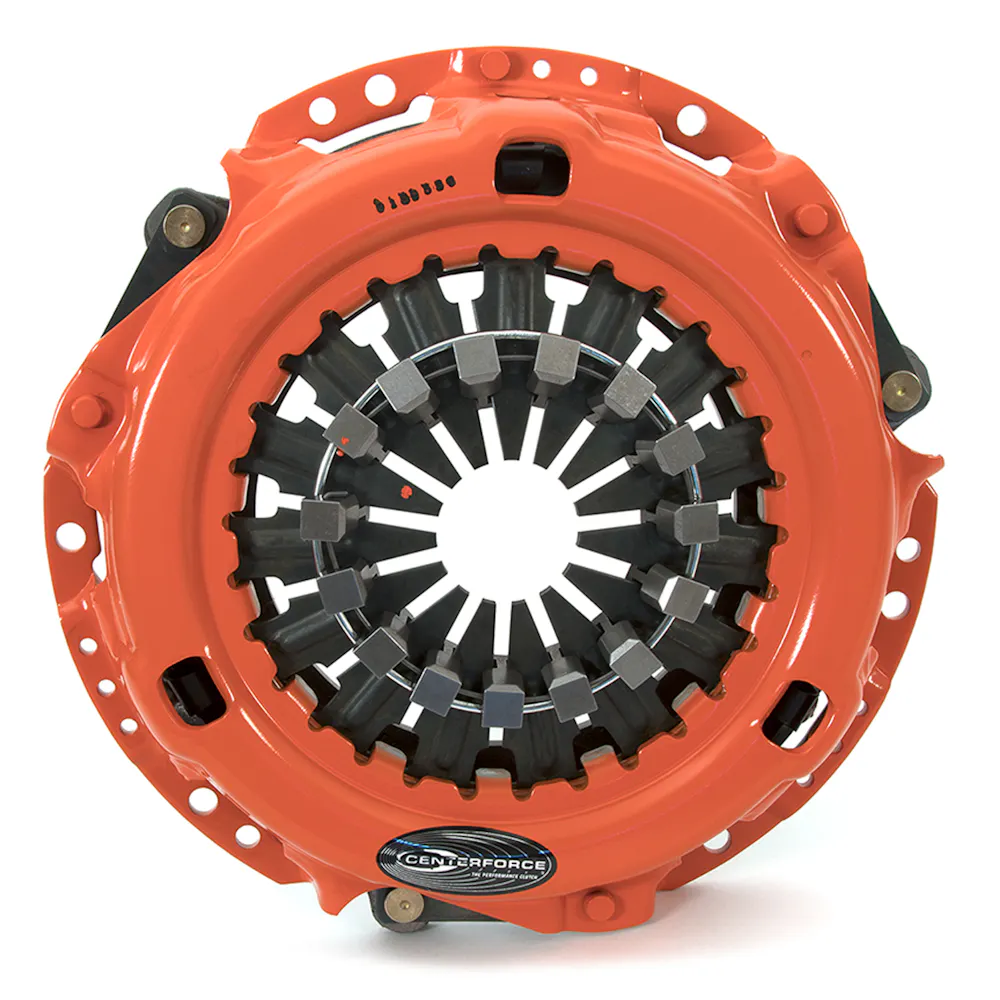

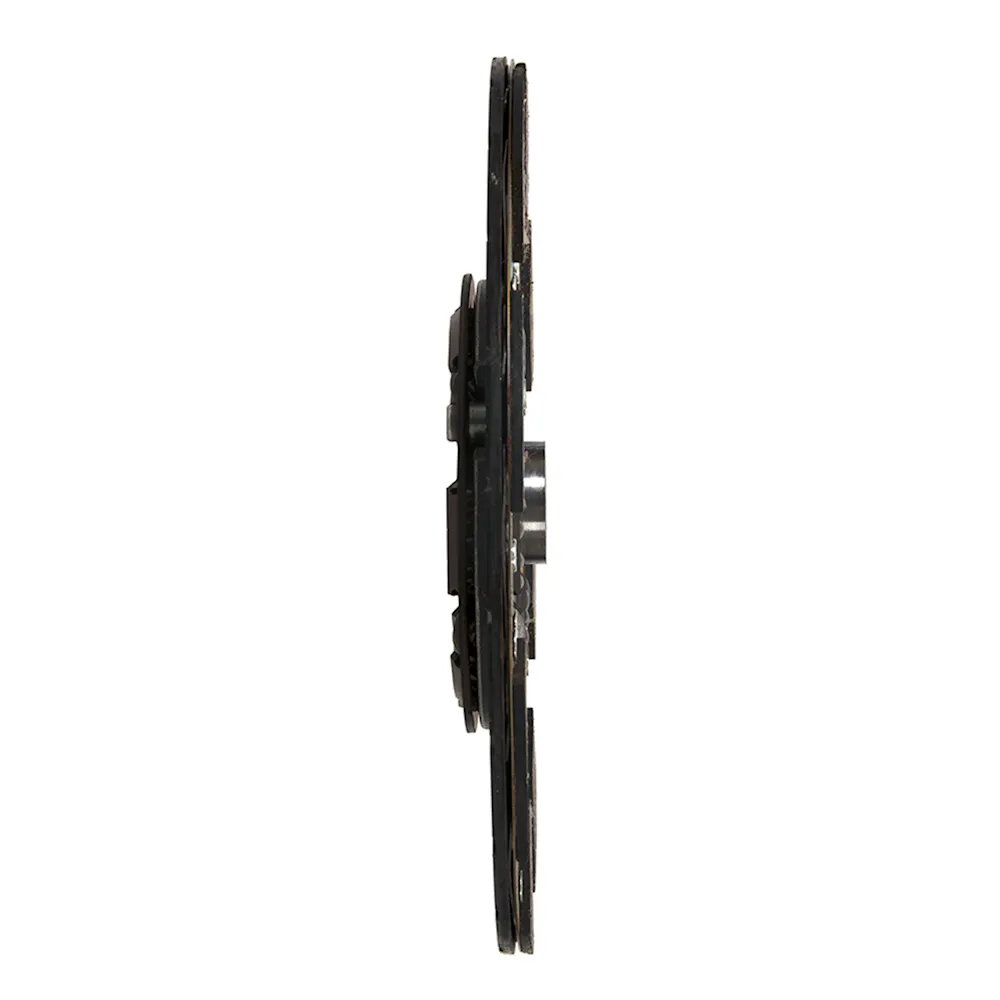

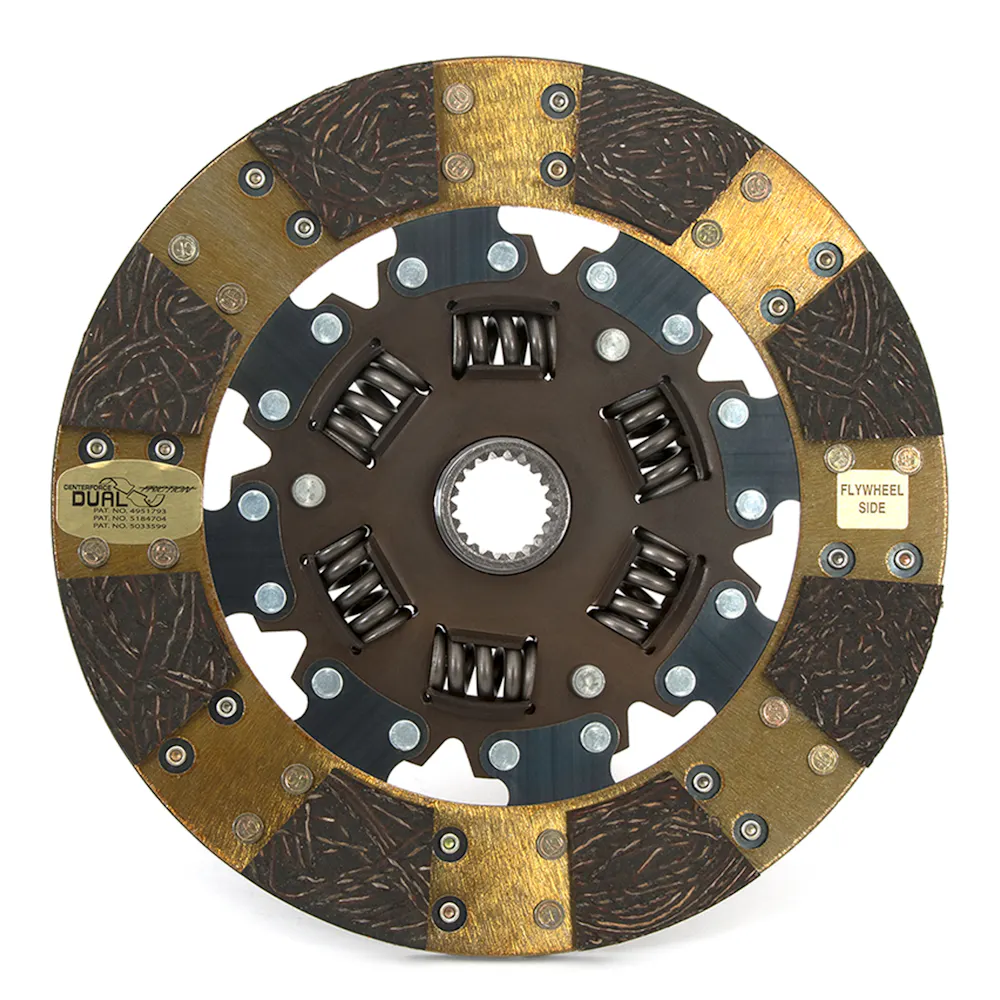

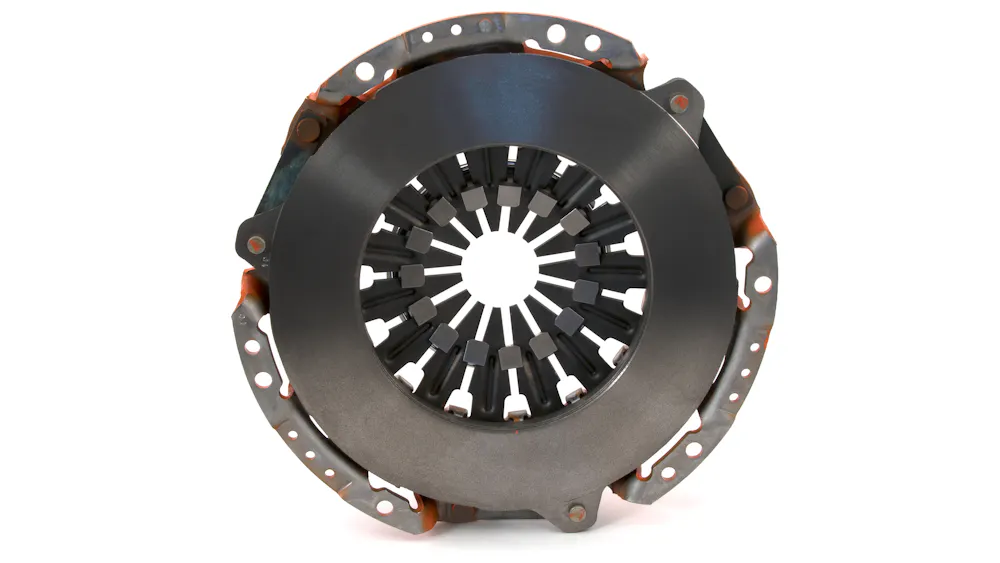

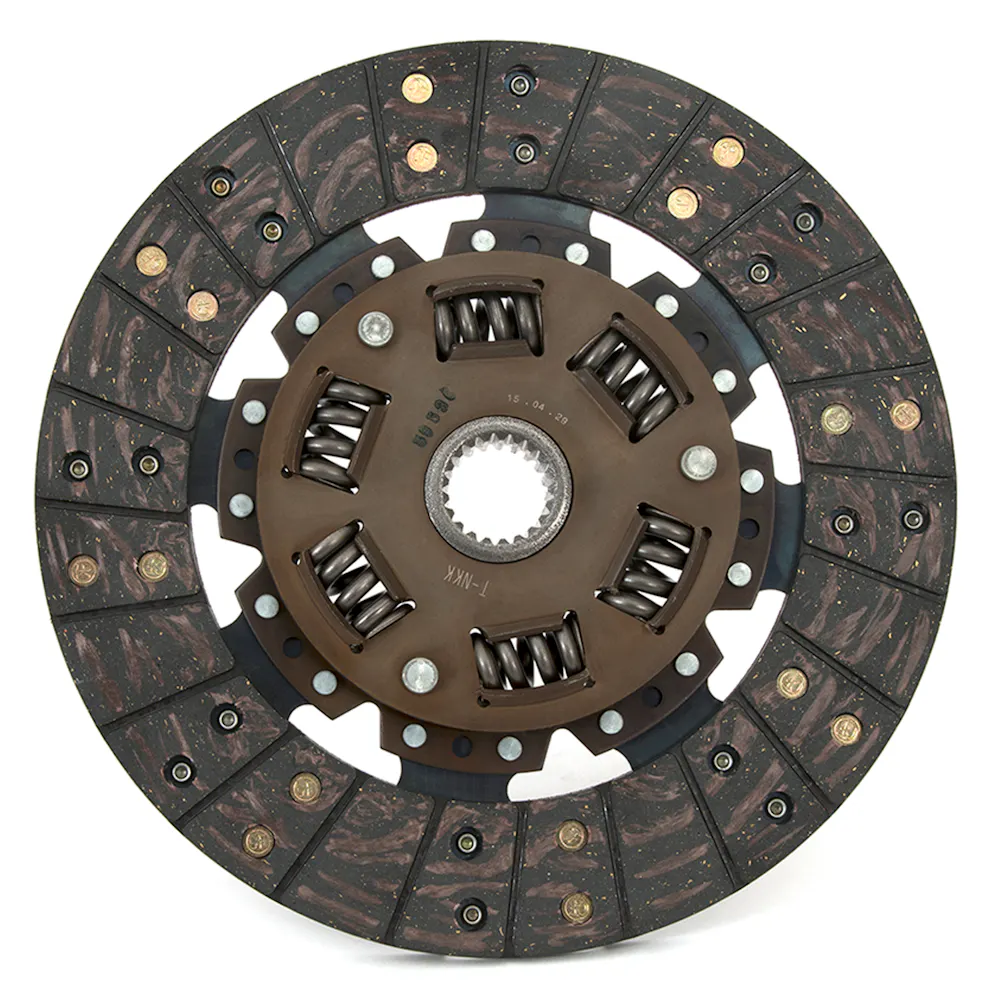

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1992-1997 | Lexus SC300 |
| 1985-1988 | Toyota 4Runner |
| 1992-1995 | Toyota 4Runner |
| 1982-1985 | Toyota Celica |
| 1984-1987 | Toyota Cressida |
| 1985-1988 | Toyota Pickup |
| 1992-1995 | Toyota Pickup |
| 1986-1992 | Toyota Supra |
| 1995-2004 | Toyota Tacoma |
Specifications
- GTIN
- 00788442017854
- Weight
- 18.2 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1

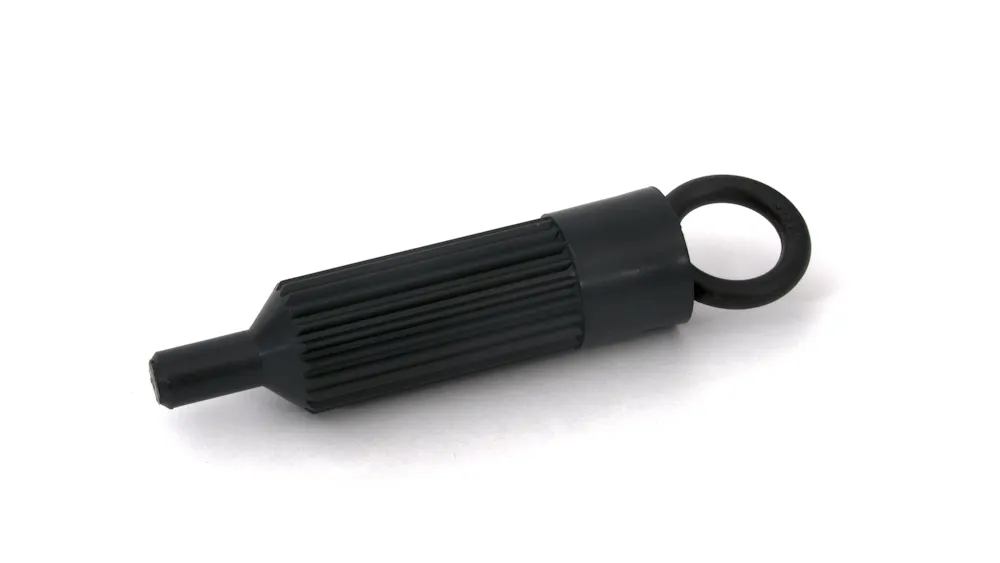

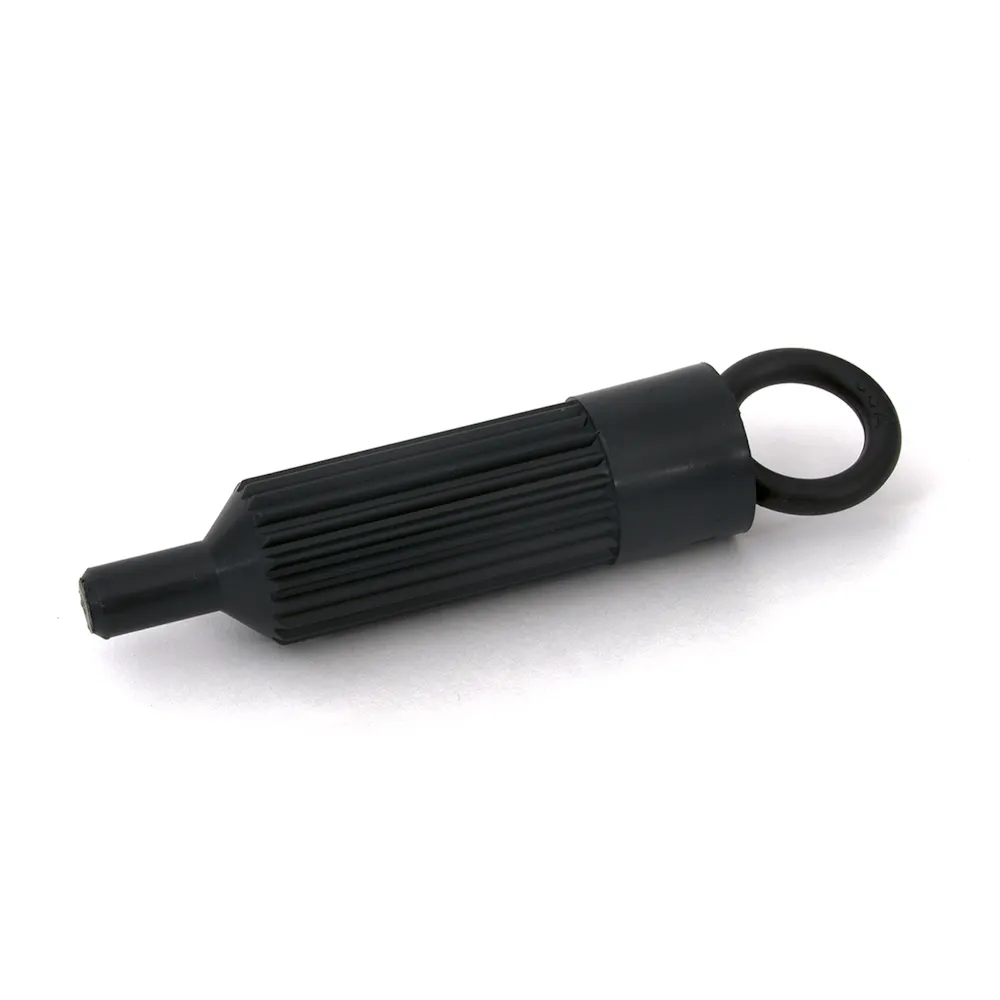

- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 236
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step
- 0.018
- Flywheel Step Type
- STEP
- Friction Surface Configuration
- STEP

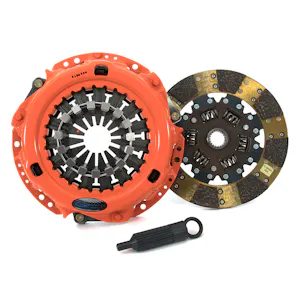

- Includes

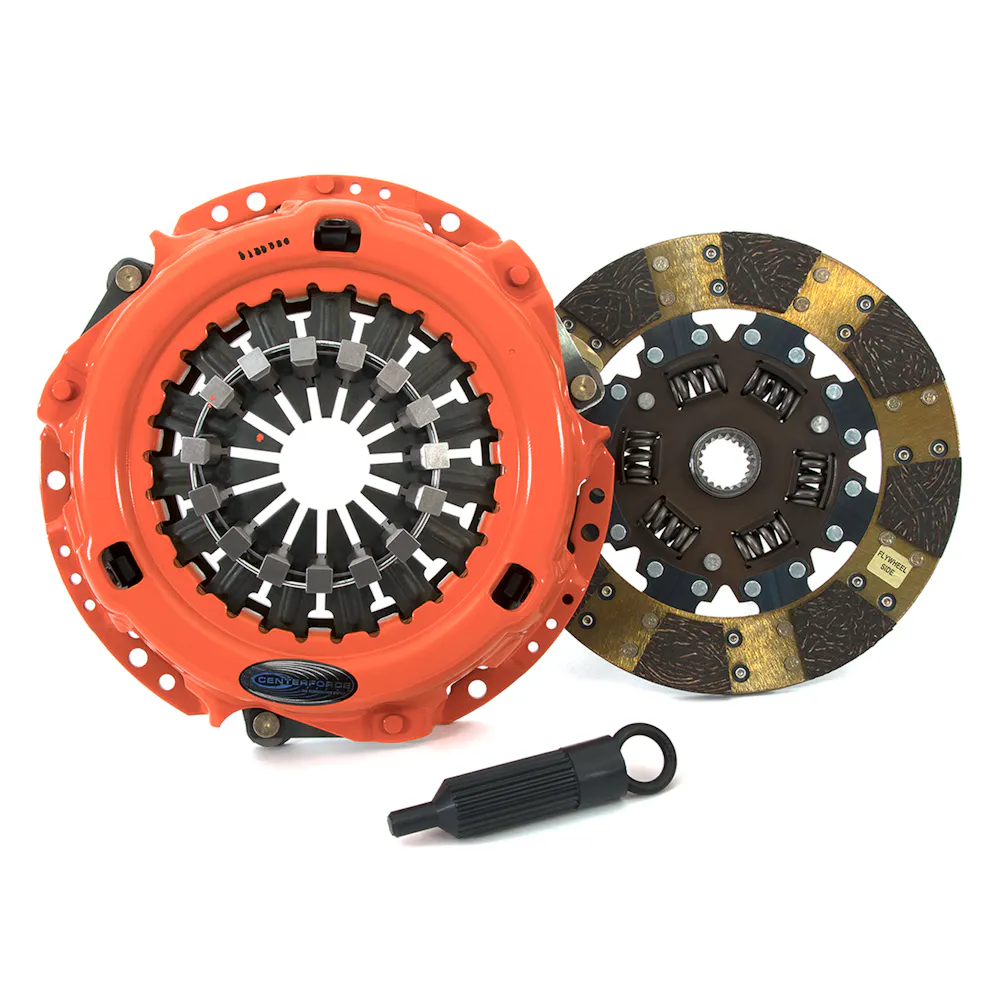

- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 21
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface
- 236
- Outside Diameter of Friction Surface (Metric)
- 236
- Outside Diameter of Friction Surface (Standard)
- 9-1/4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-21
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 442 ft/lbs Capacity, 9.250in Dia., 21-Spline, Fits Lexus/Toyota Cars and Trucks 4/6 Cyl
- Torque Capacity
- 442
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1992-1997 Lexus SC300; 1985-1988 Toyota 4Runner; 1992-1995 Toyota 4Runner; 1982-1985 Toyota Celica; 1984-1987 Toyota Cressida; 1985-1988 Toyota Pickup; 1992-1995 Toyota Pickup; 1986-1992 Toyota Supra; 1995-2004 Toyota Tacoma
Resources
- Brand logo
- Technical Bulletin
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Lifestyle View
- Photo - Primary
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Link To Manufacturer Page
- Centerforce Dual Friction Overview
- Centerforce Ram Diesel Clutch Kits
- Centerforce Dual Friction Clutch

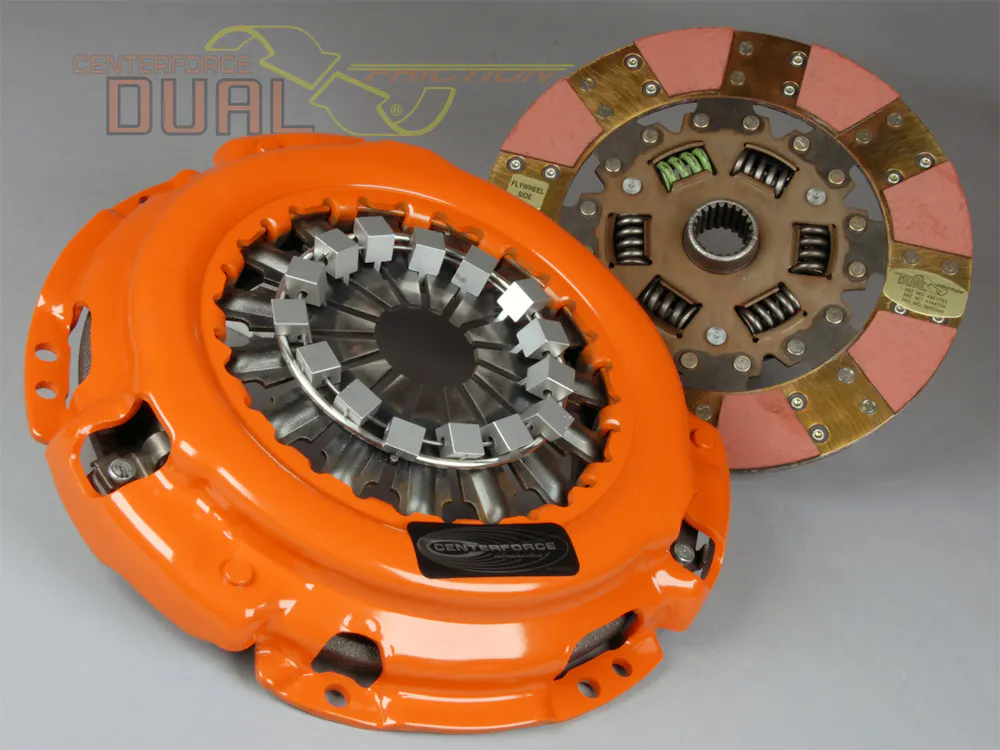

Centerforce DF522018
