Centerforce · DF505019

Part #: DF505019
UPC: 788442017496

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

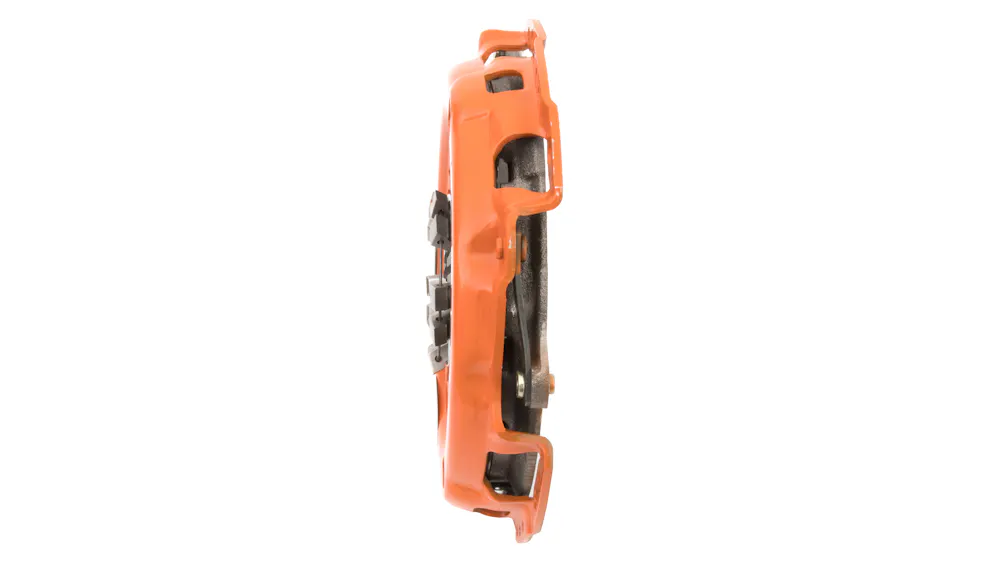

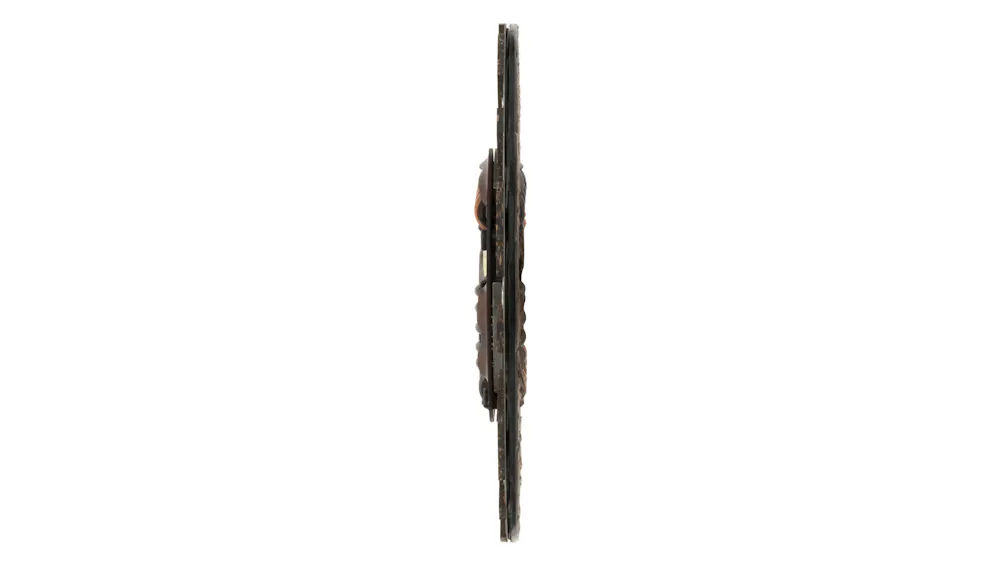

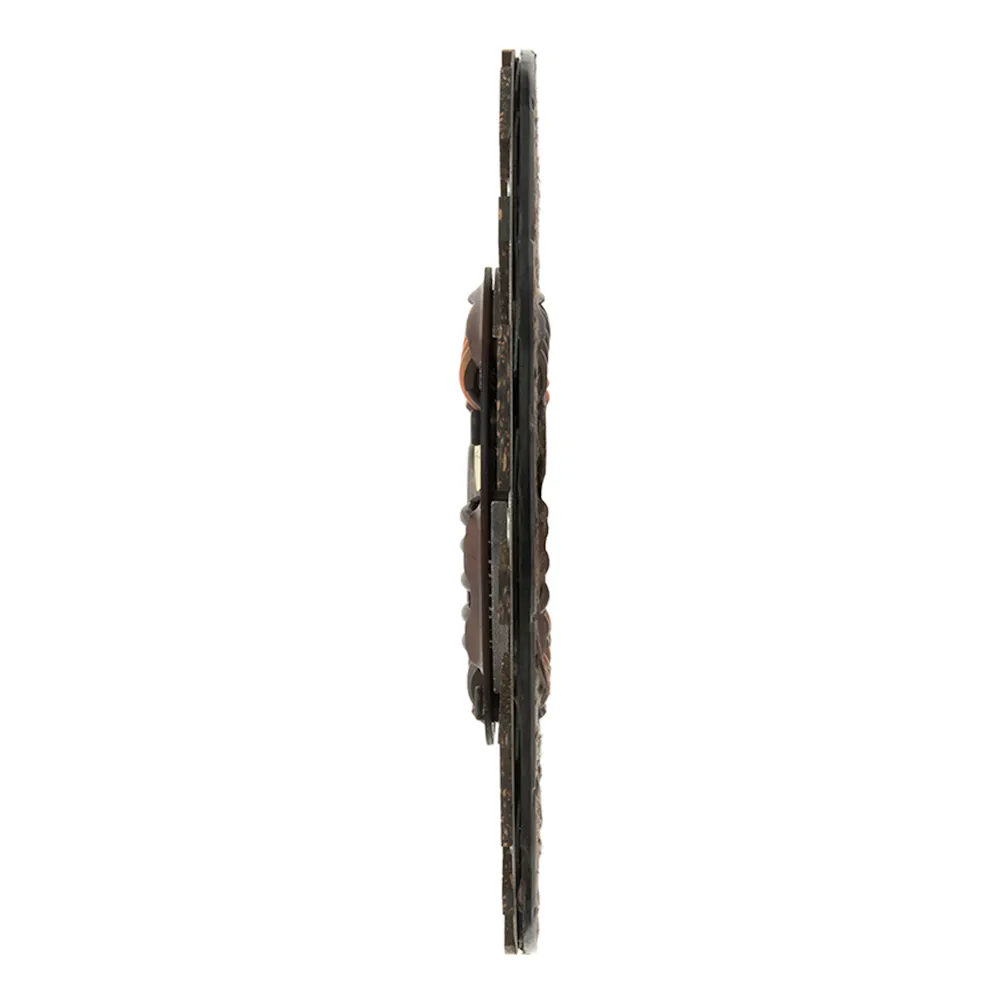

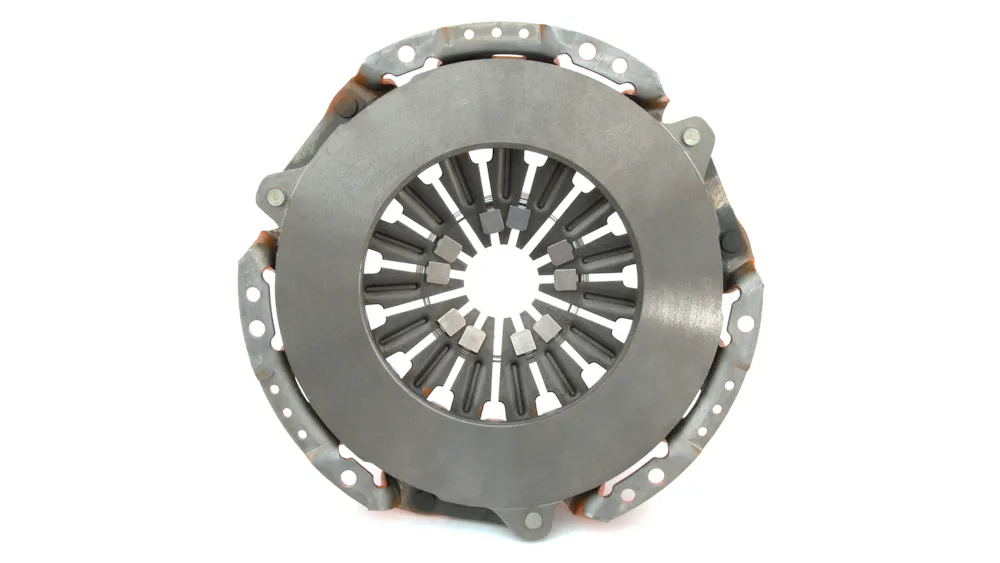

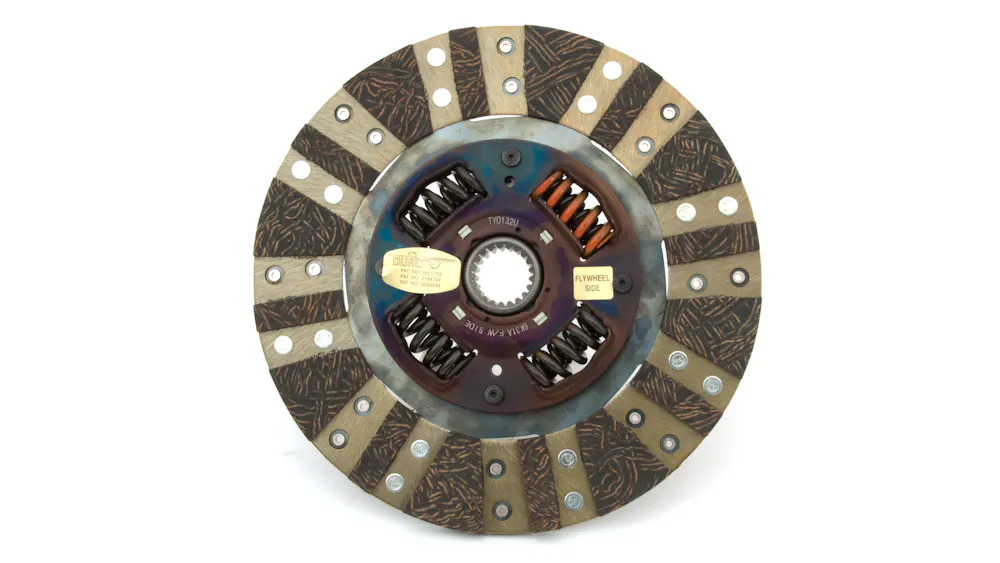

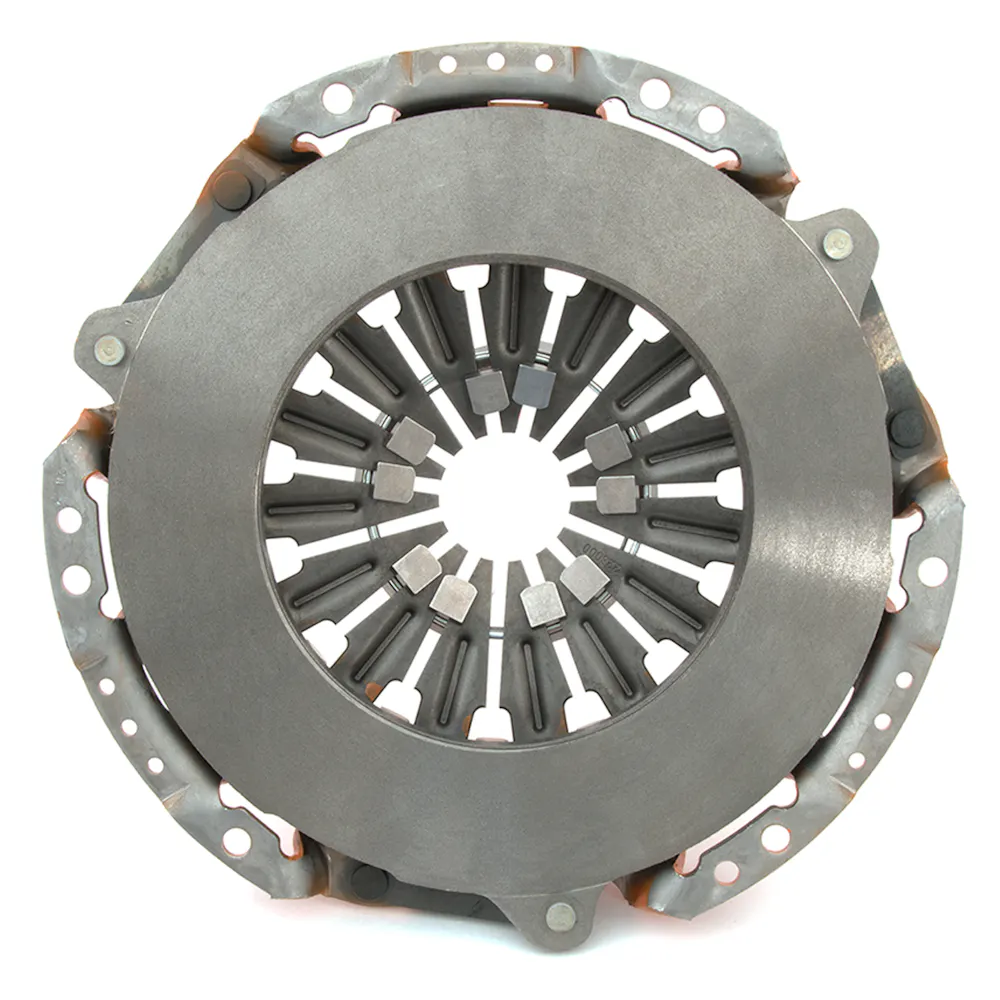

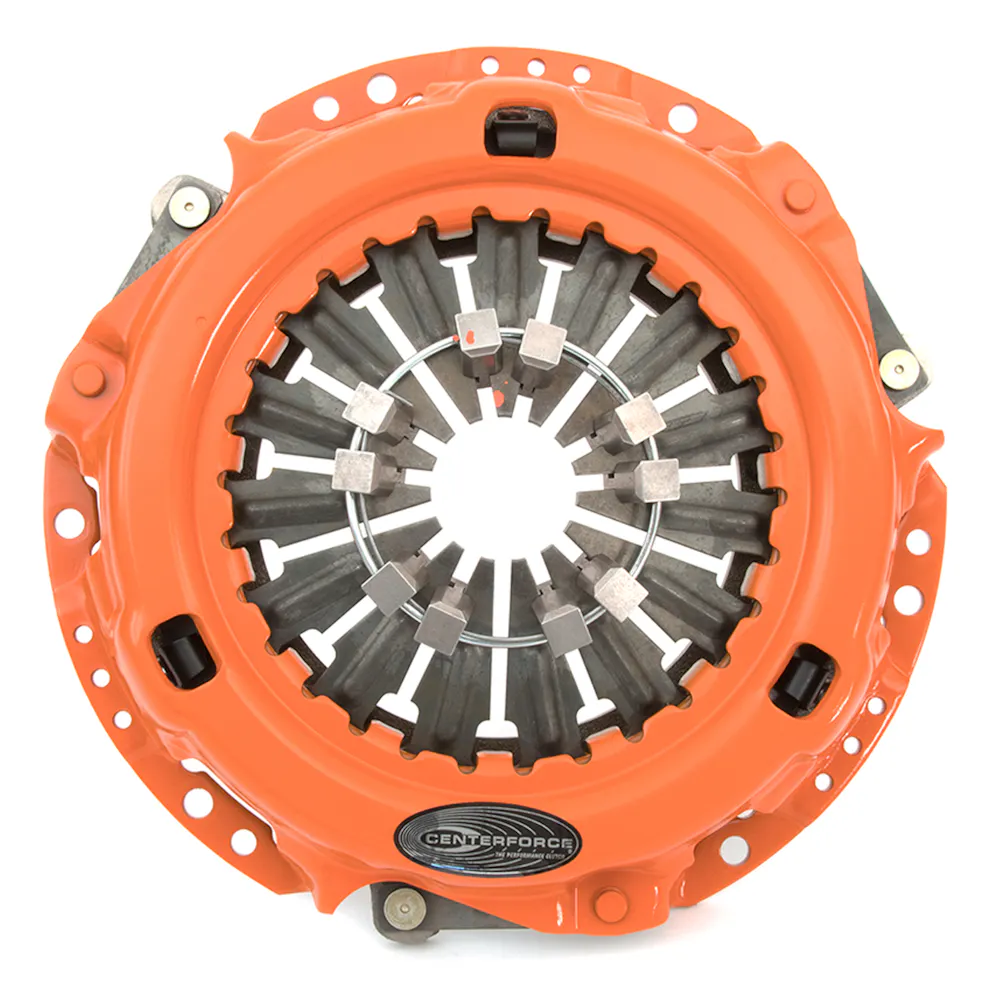

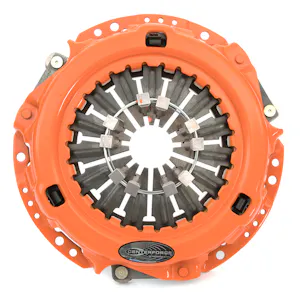

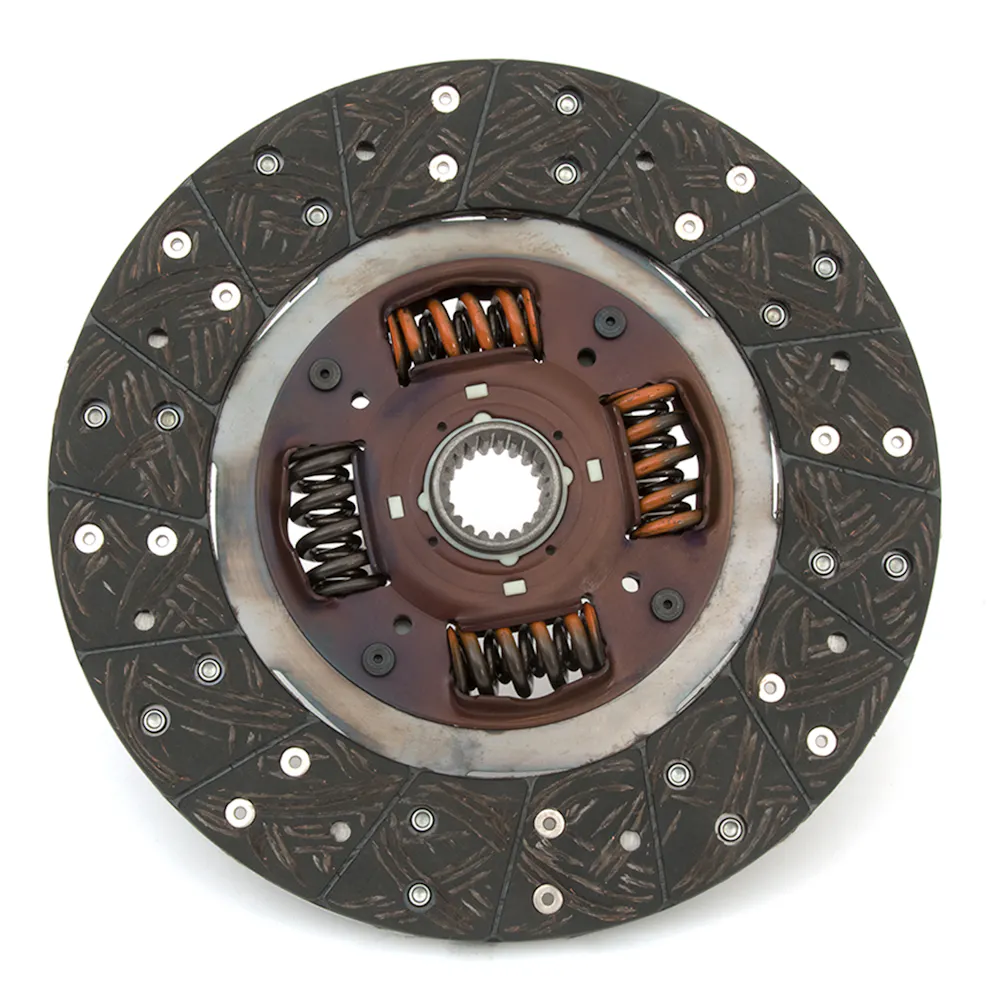

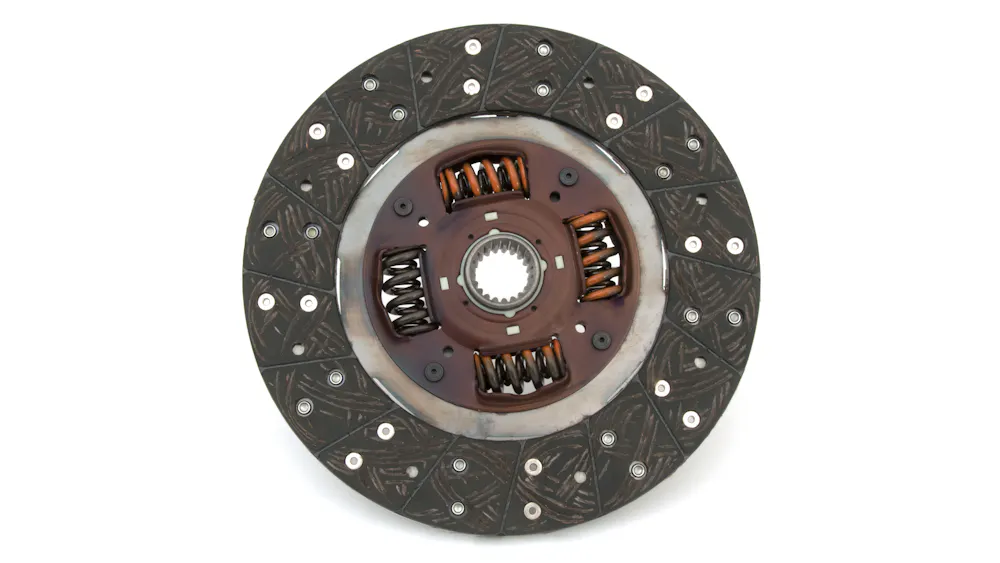

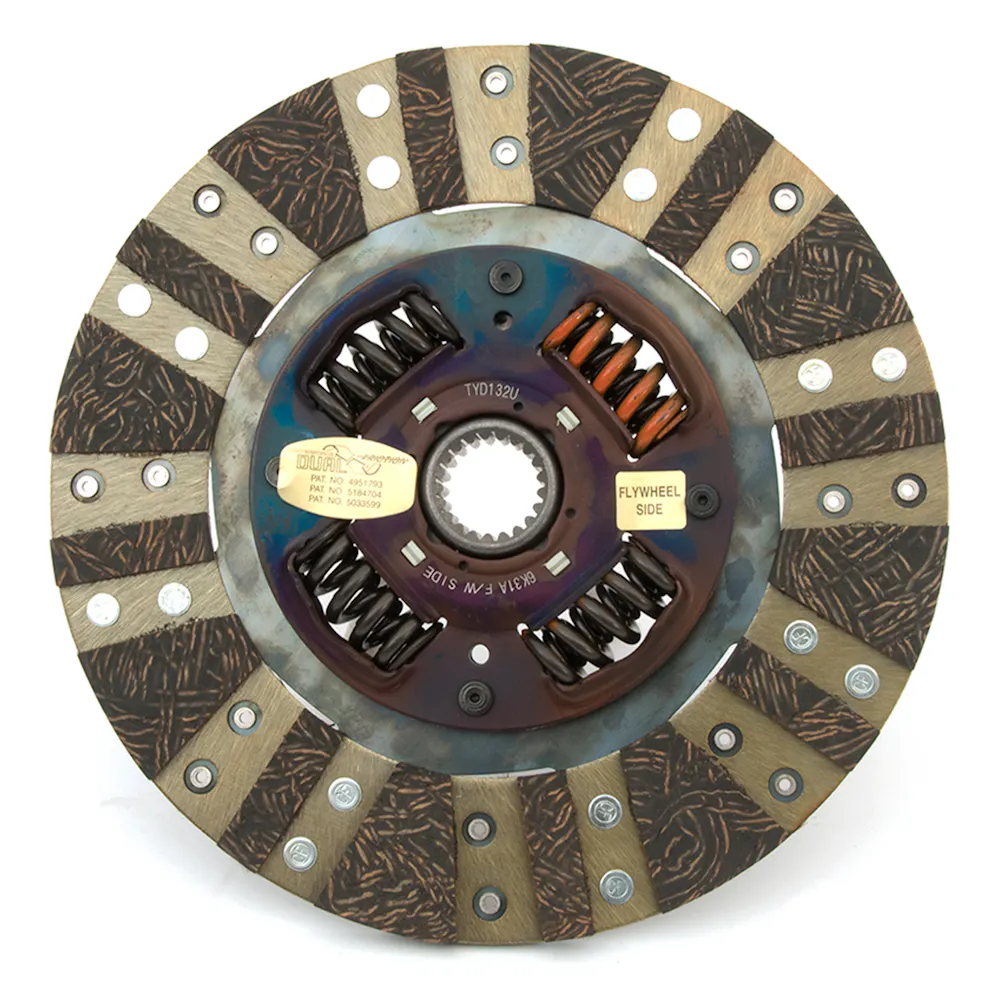

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
1996-2001	Toyota 4Runner
1995-1998	Toyota T100
1995-2004	Toyota Tacoma
2000-2004	Toyota Tundra

Specifications

GTIN: 00788442017496
Weight: 18.05 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1
Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 20
Clutch Disc Diameter: 250
Counterweight Assist: YES
Disc Material: Organic/Carbon Composite
Disc Type: Full face/Segmented face
Disc Type Sprung Solid: Sprung
Flywheel Step: 0.018
Flywheel Step Type: STEP
Friction Surface Configuration: STEP

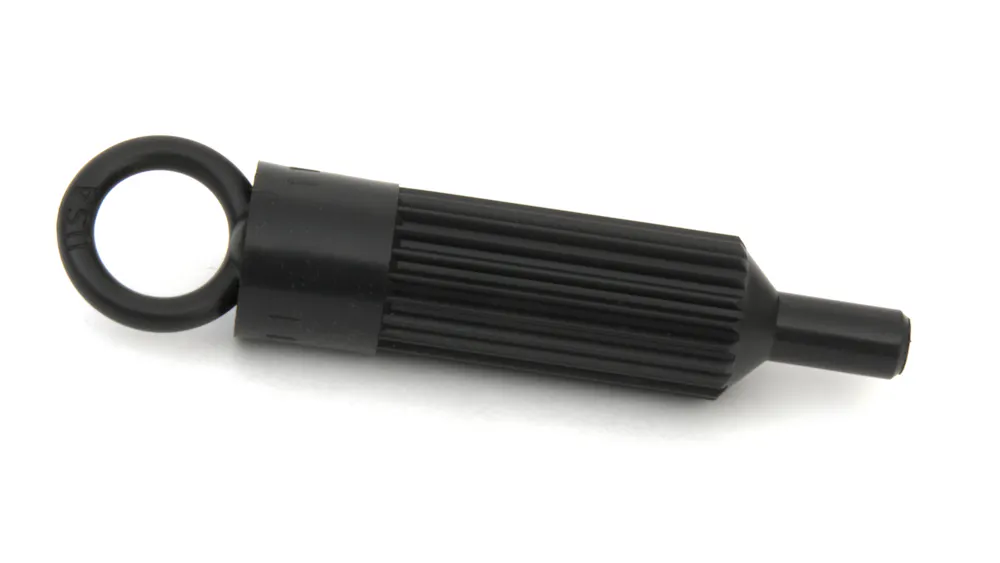

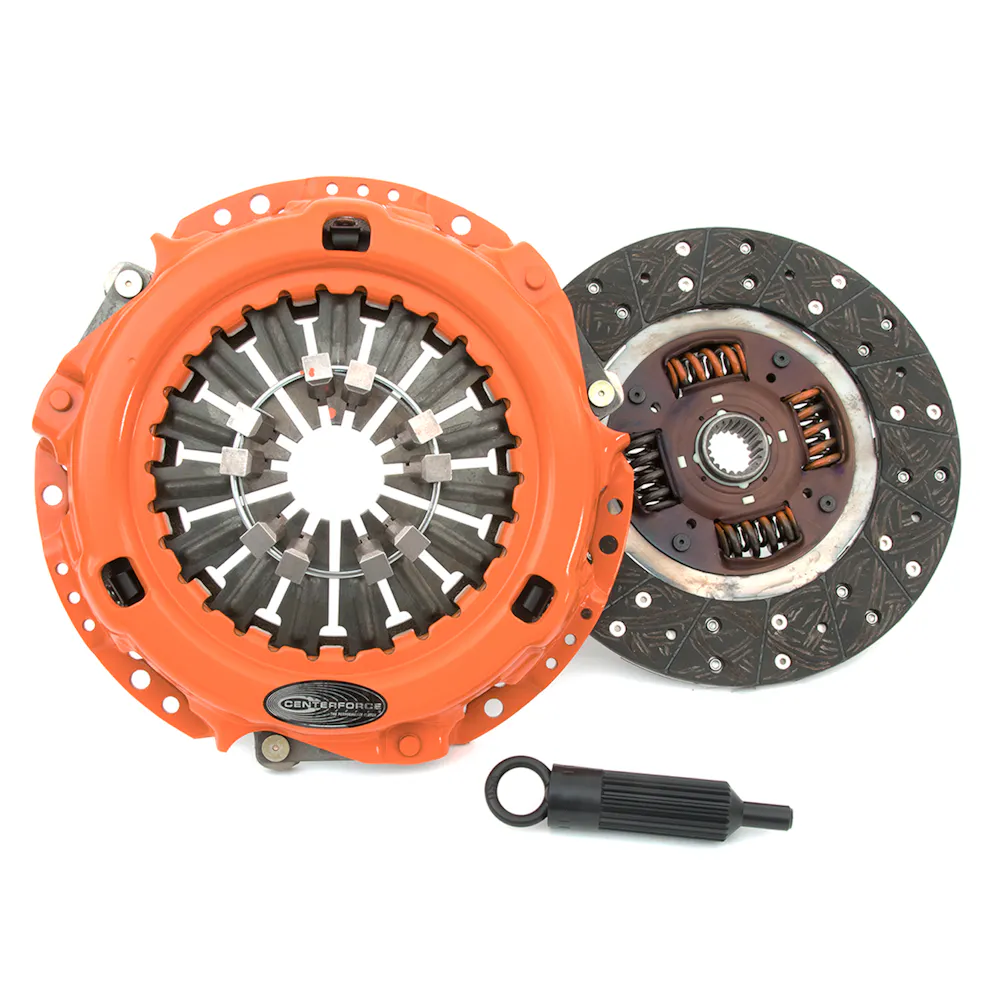

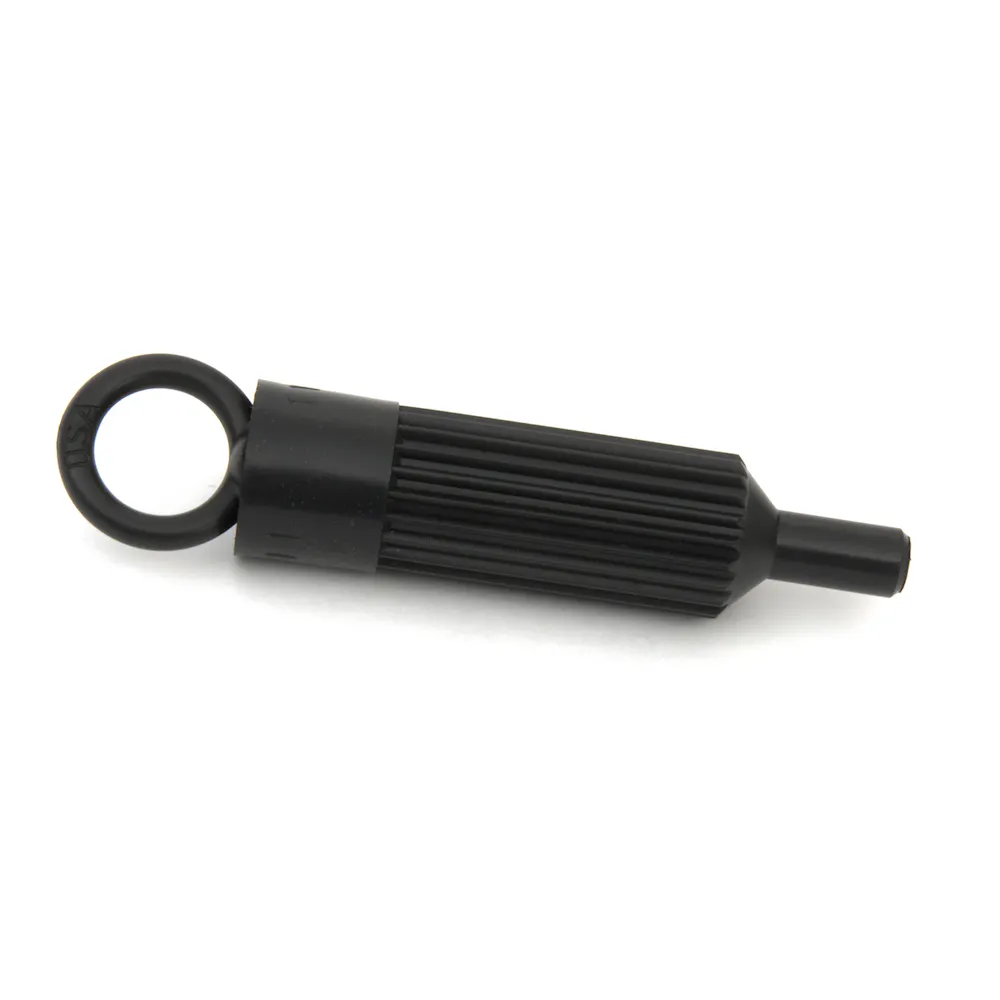

Includes: Pressure Plate, Disc, Alignment Tool
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 21
Made In The USA: Assembled

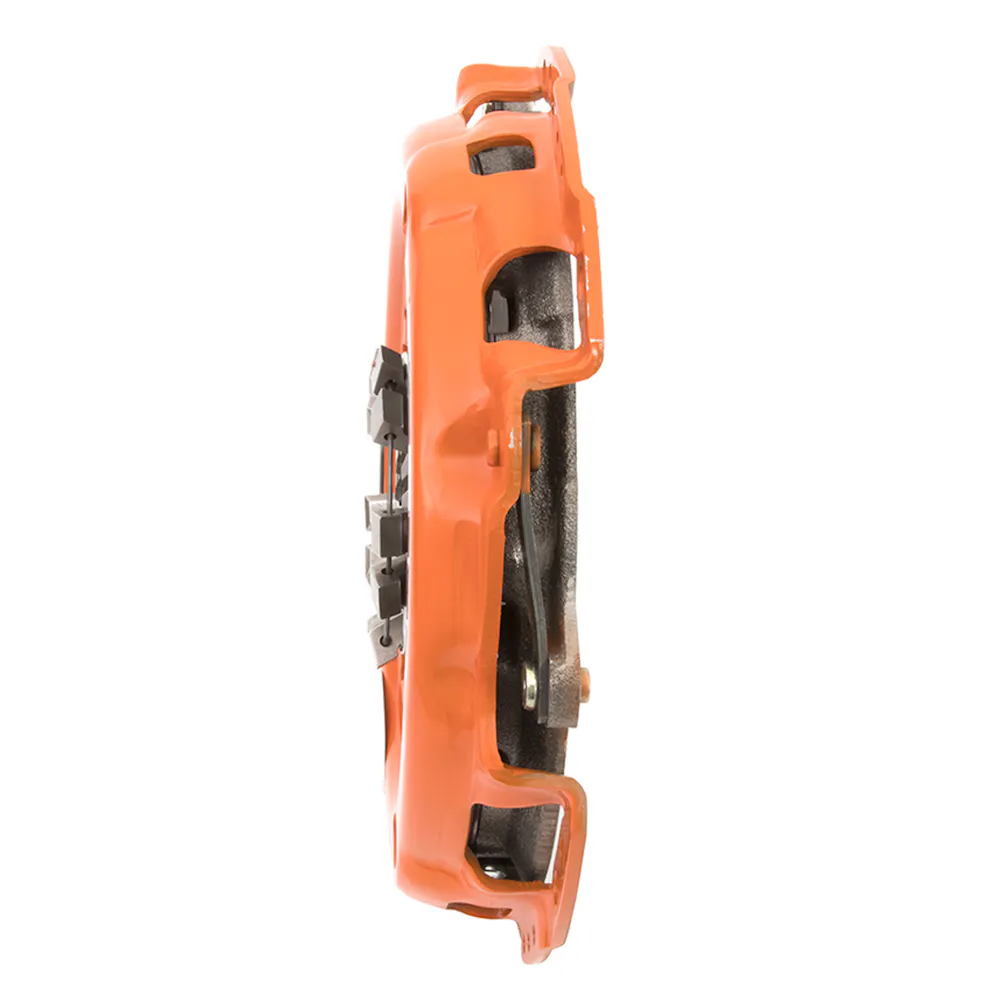

Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Outside Diameter of Friction Surface: 250
Outside Diameter of Friction Surface (Metric): 250
Outside Diameter of Friction Surface (Standard): 10
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 1-1/8"-21
Title: Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 442 ft/lbs Capacity, 10in Dia., 21-Spline, Fits Toyota Trucks 3.4L
Torque Capacity: 442
