Centerforce · DF474898
Part #: DF474898
UPC: 788442037579
Log in for inventory
Notify me when this item is in stock.

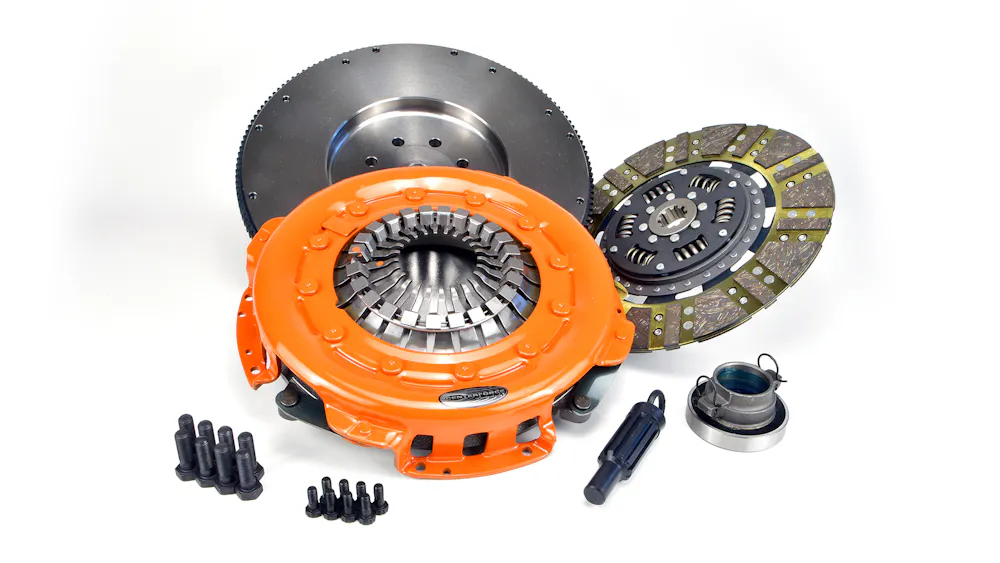

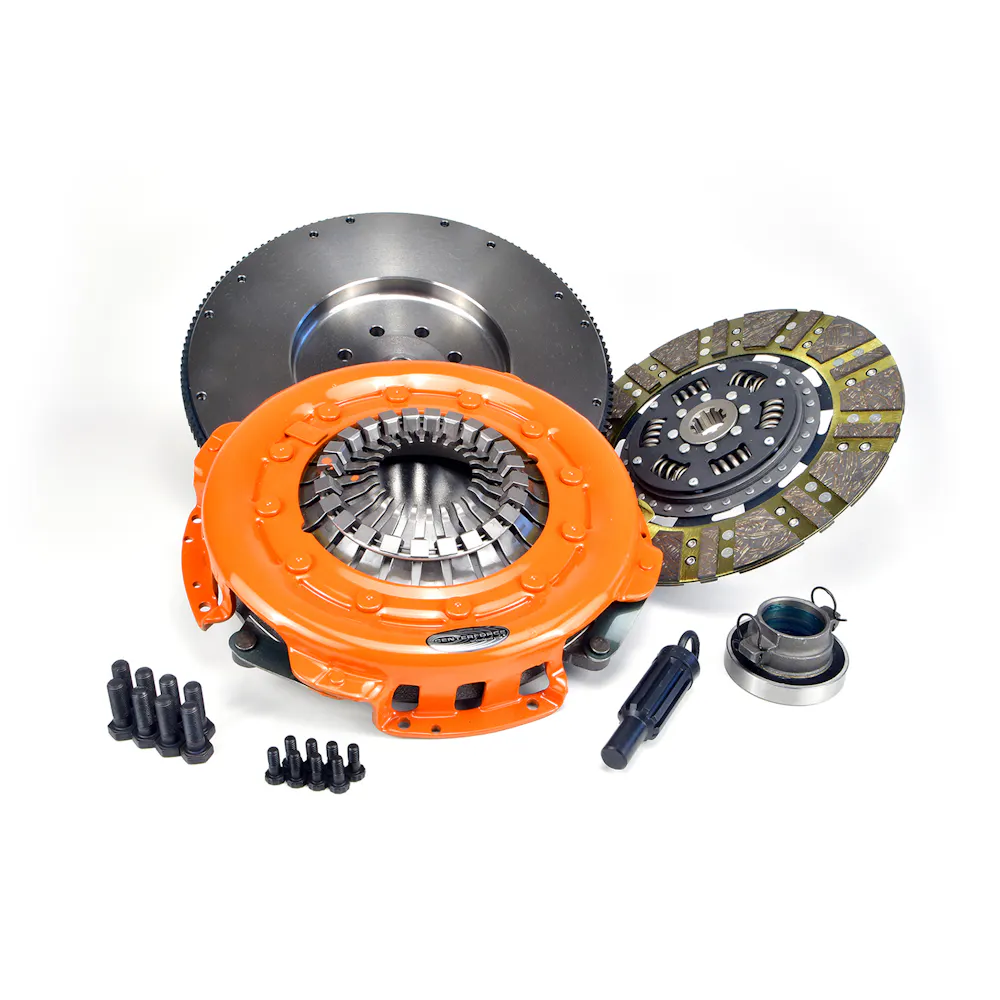

Description: Dual Friction(R), Clutch Pressure Plate, Disc, and Flywheel Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1994-2005 | Dodge Ram 2500 |
| 1994-2005 | Dodge Ram 3500 |
Specifications
- GTIN
- 00788442037579
- Weight
- 92.4 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 22
- Clutch Bolt Type
- with Shoulder Bolt
- Clutch Disc Diameter
- 12.25
- Counterweight Assist
- Yes
- Crankshaft Bolt Hole Quantity
- 8
- Disc Material
- Organic/Carbon Composite
- Disc Quantity
- 1
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Counter Balance Weight
- 0
- Input Shaft Diameter
- 1-1/4
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Mounting Hardware Included
- Yes
- Out of Package Weight
- 93.20
- Release Bearing Included
- Yes
- Ring Gear O.D.
- 15.625
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate, High Performance Disc, High Performance and Flywheel Set, 93.20 lbs, 152 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 1153 ft/lbs Capacity, 12.25in Dia., 10-Spline, Fits Dodge Ram 2500 and Ram 3500 5.9L
- Tooth Quantity
- 152
- Torque Capacity
- 1153
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1994-2005 Dodge Ram 2500; 1994-2005 Dodge Ram 3500
