Centerforce · DF381488
Part #: DF381488
UPC: 788442027570
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Friction Disc; Centerforce(R) brings together high-quality friction materials and patented processes to give you top-of-the-line discs.
Description:
Description

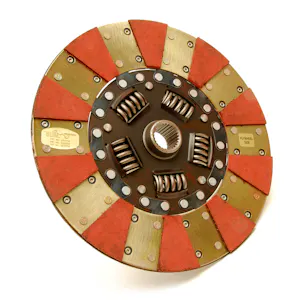

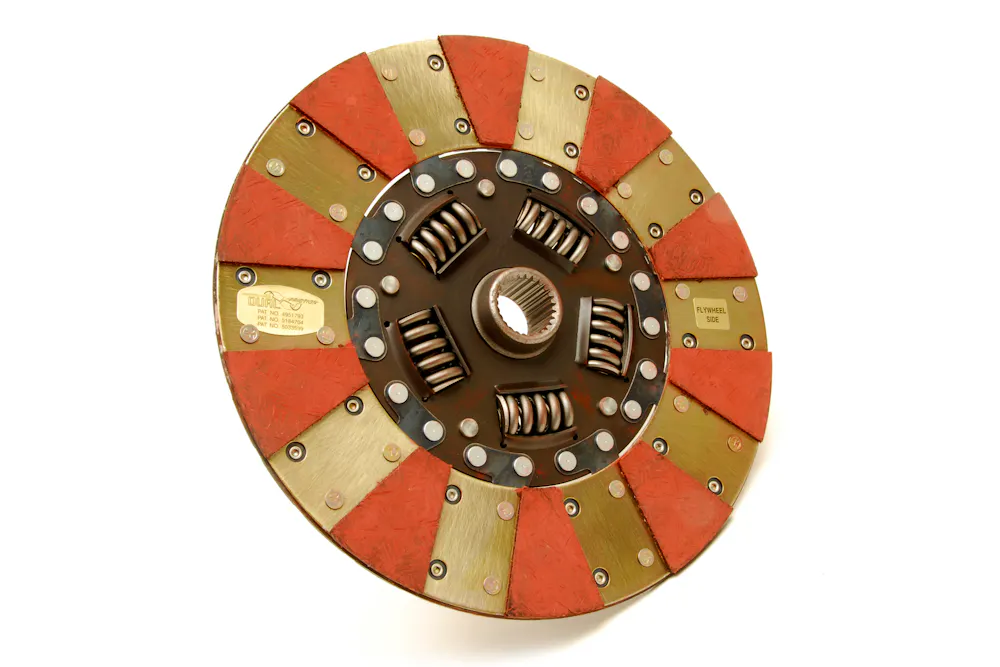

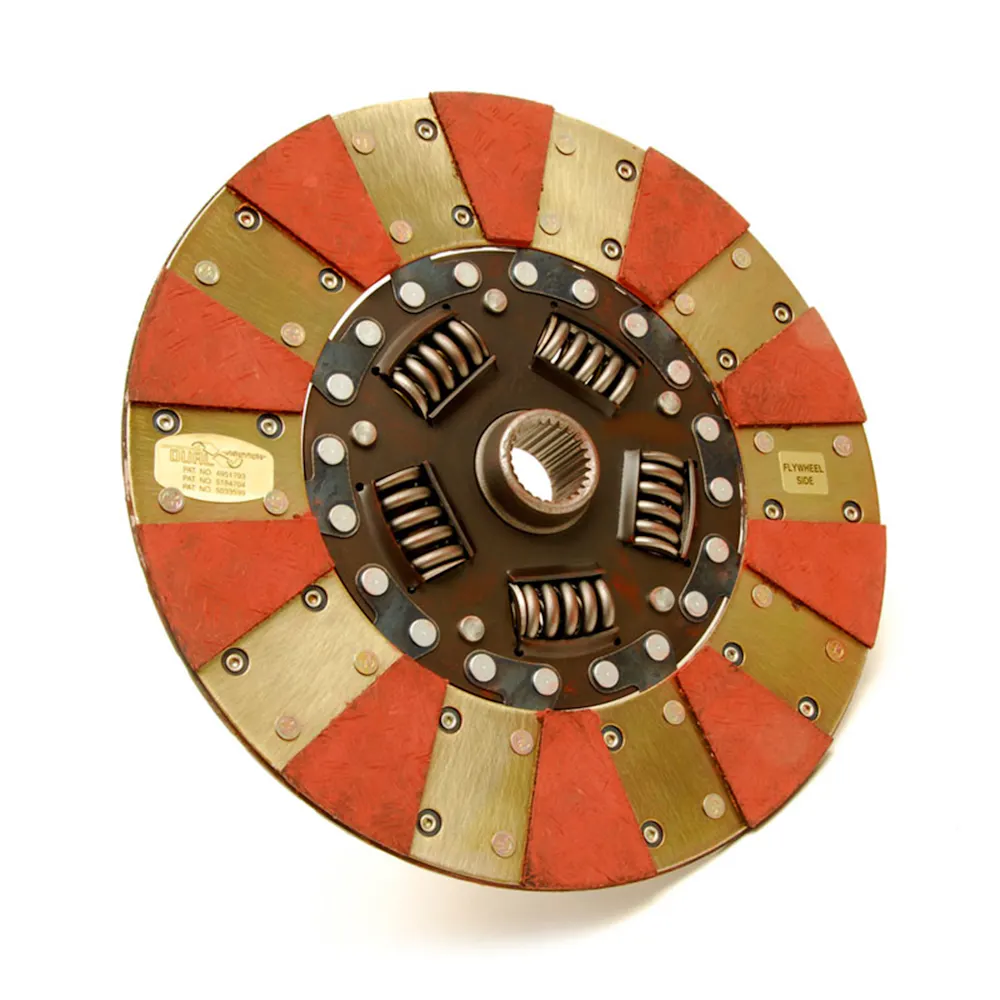

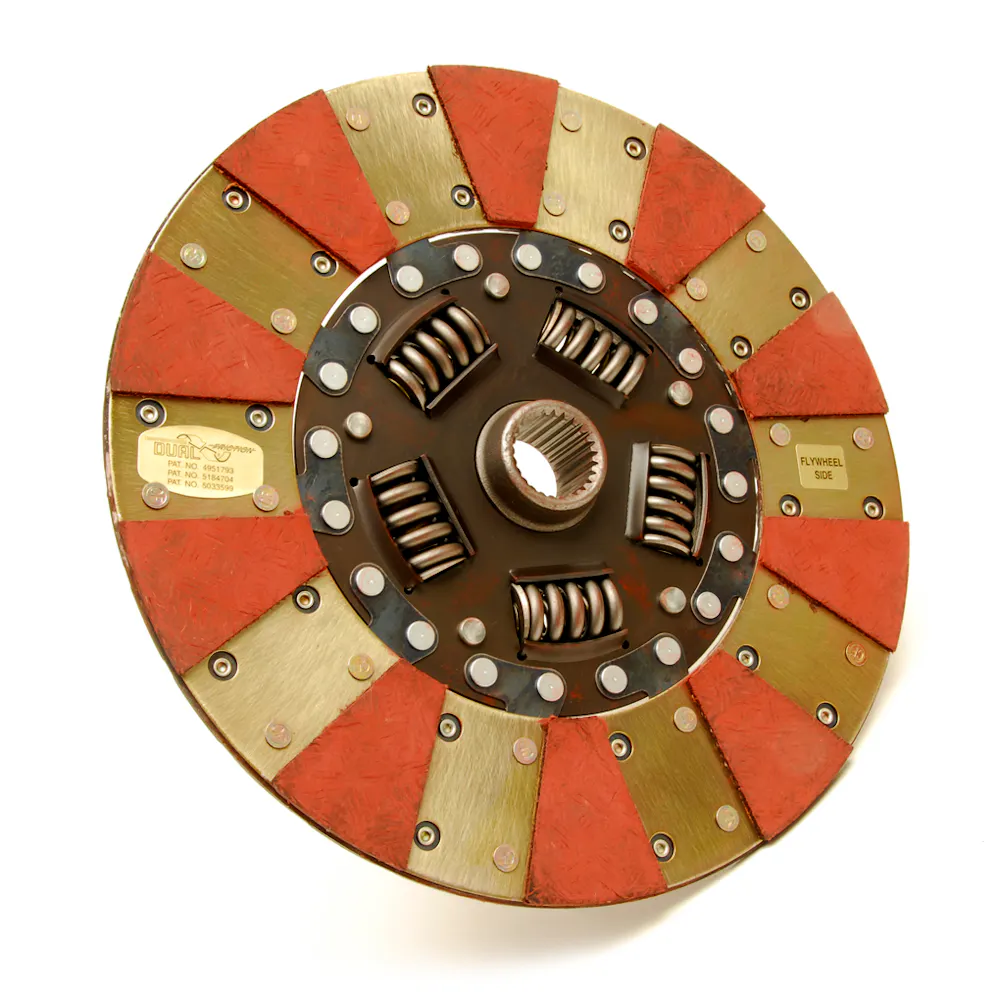

The Centerforce(R) Dual Friction(R) Disc Series uses a single disc with patented dual friction technology by distributing pressure plate clamp force evenly over a 360-degree friction-facing on one side of the clutch disc, while the opposing side uses a segmented friction-facing to concentrate clamping pressure and increase clutch holding-capacity. These discs are made for Centerforce Dual Friction pressure plates.
Application summary
| Year | Make / model |
|---|---|
| 1998-2002 | Chevrolet Camaro |
| 1997-2004 | Chevrolet Corvette |
| 1998-2002 | Pontiac Firebird |
| 2004 | Pontiac GTO |
Specifications
- GTIN
- 00788442027570
- Weight
- 5.23 lb
- Height
- 2 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 279.4
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Includes
- Disc
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Inside Diameter of Friction Surface
- 6.490
- Made In The USA
- Assembled
- Material
- Full Face and Segmented Organic Friction
- Out of Package Weight
- 4.68
- Outside Diameter of Friction Surface (Standard)
- 11
- Spline Diameter and Tooth Count
- 1-1/8"-26
- Title
- Centerforce Dual Friction ?, High Performance Clutch Friction Disc, 11in Dia., 26-Spline, Fits Chevrolet/Pontiac Cars 5.7L
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1998-2002 Chevrolet Camaro; 1997-2004 Chevrolet Corvette; 1998-2002 Pontiac Firebird; 2004 Pontiac GTO
