Centerforce · DF320539
Part #: DF320539
UPC: 788442025897
Log in for inventory
Notify me when this item is in stock.

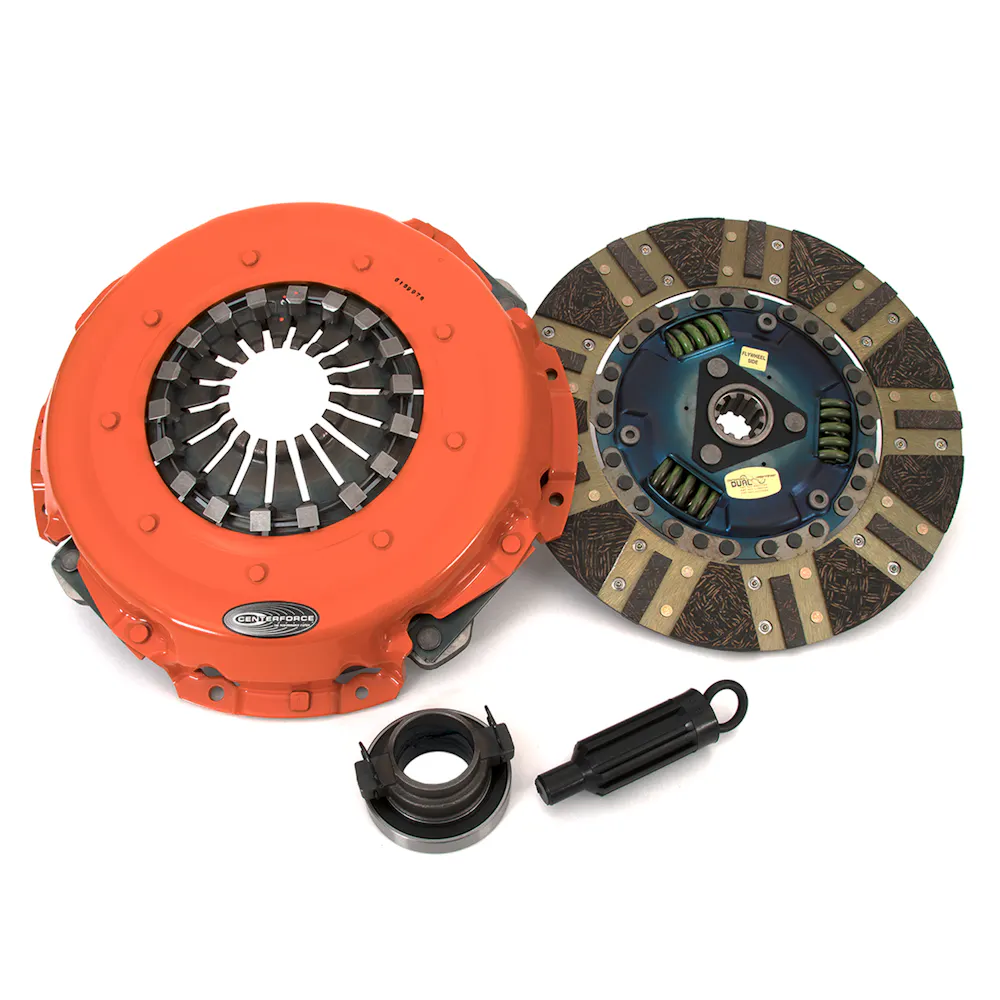

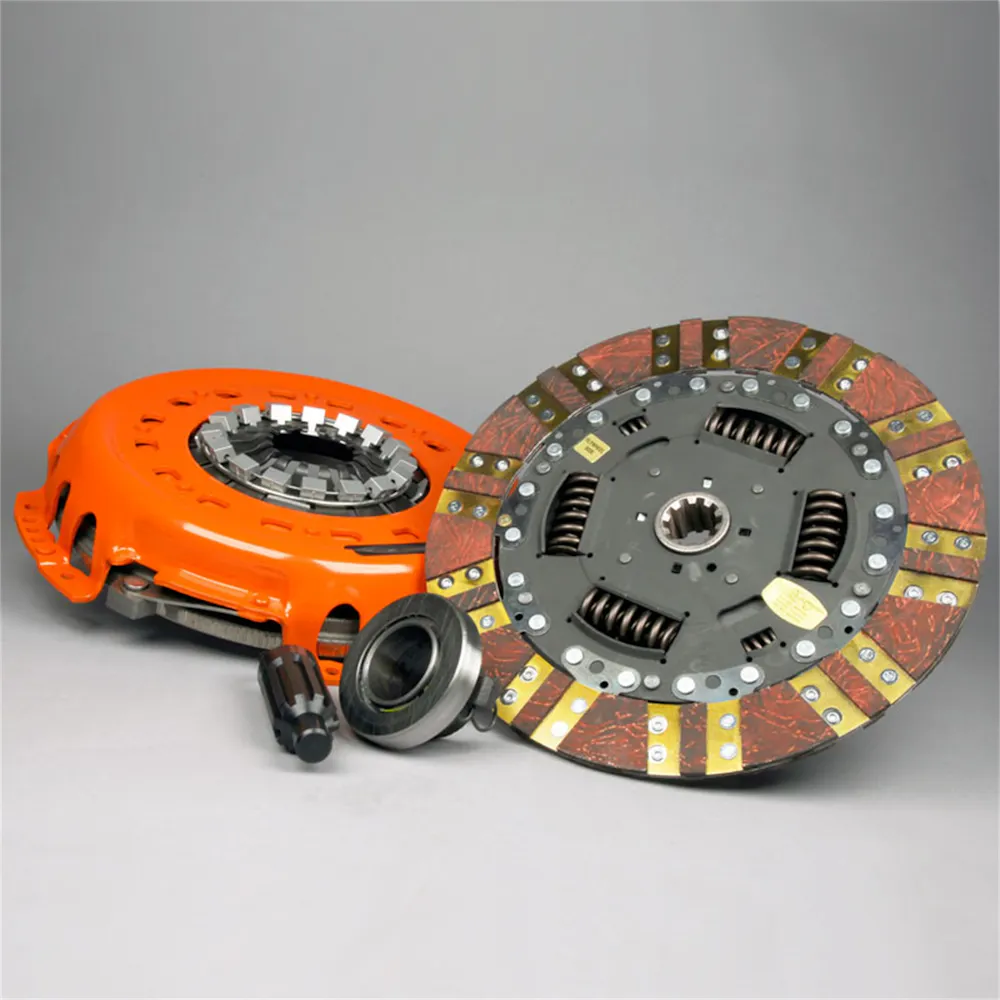

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
This part number superseded DF935023.
Description

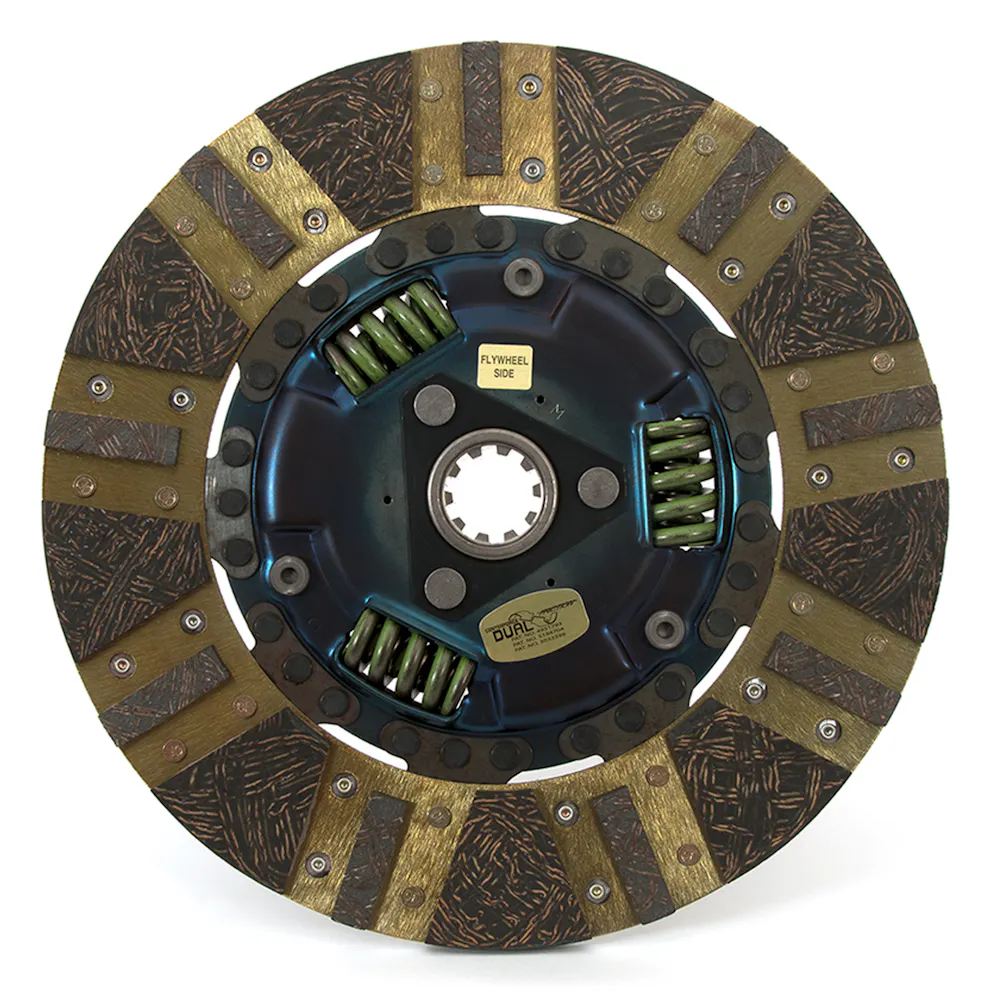

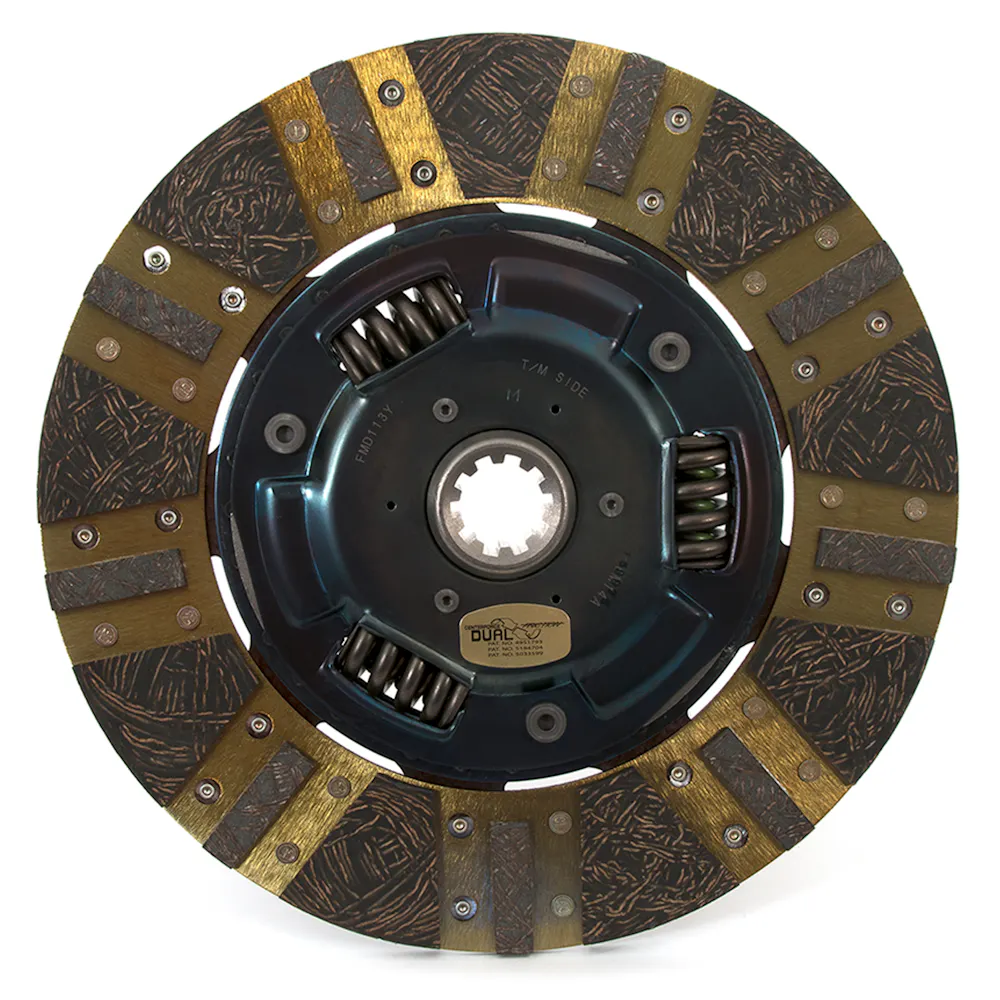

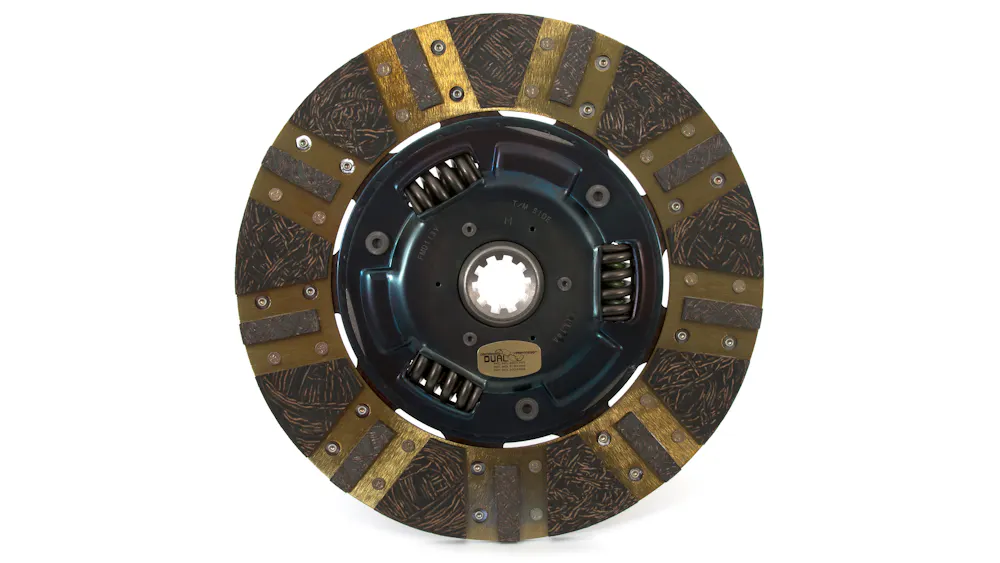

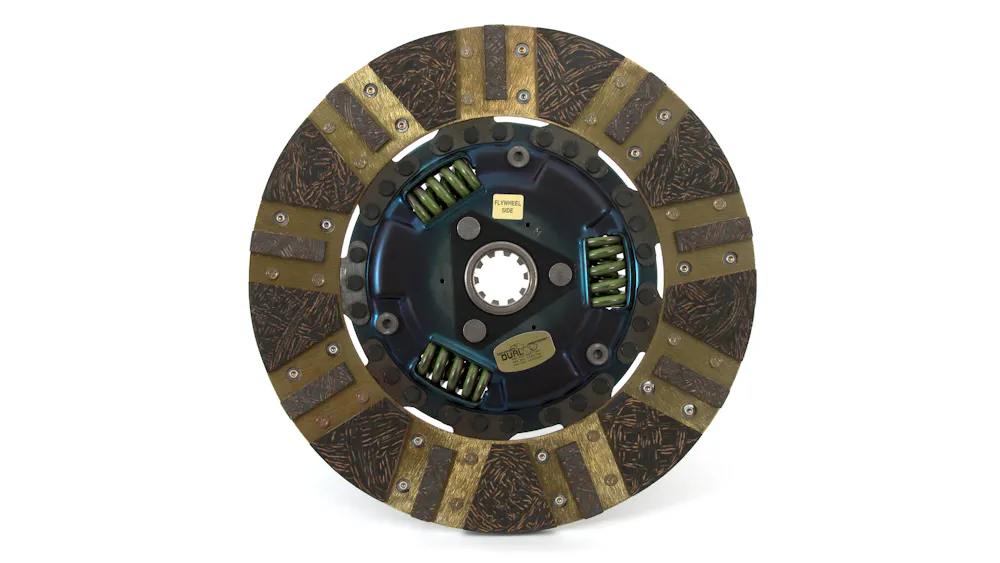

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 2001-2010 | Dodge Ram 2500 |
| 2001-2010 | Dodge Ram 3500 |
| 2008-2010 | Dodge Ram 4500 |
| 2008-2010 | Dodge Ram 5500 |
| 2011-2018 | Ram 2500 |
| 2011-2018 | Ram 3500 |
| 2011-2017 | Ram 4500 |
| 2011-2016 | Ram 5500 |
Specifications
- GTIN
- 00788442025897
- Weight
- 46.7 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 23
- Clutch Disc Diameter
- 330.2
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Segmented face
- Disc Type Sprung Solid
- Sprung
- Includes

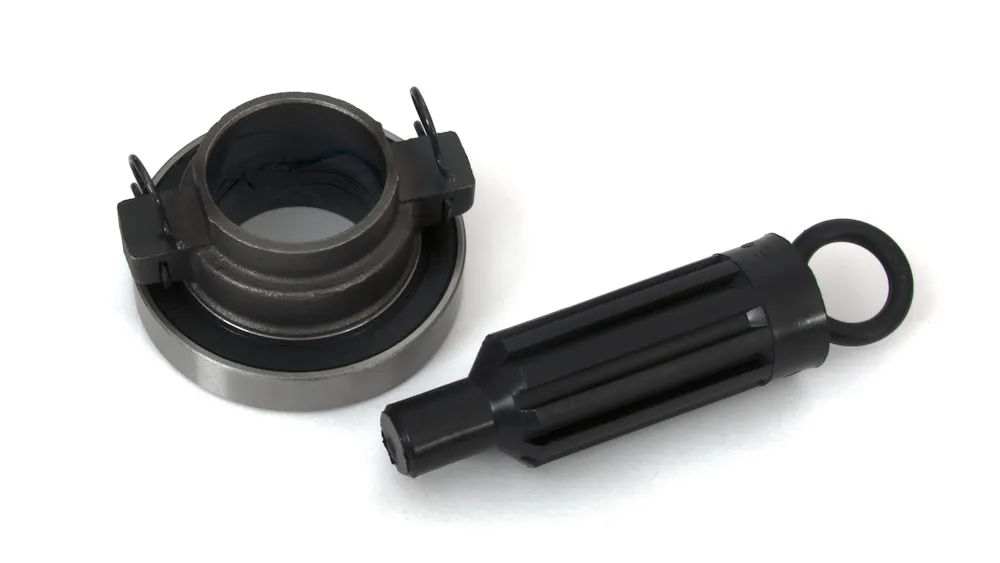

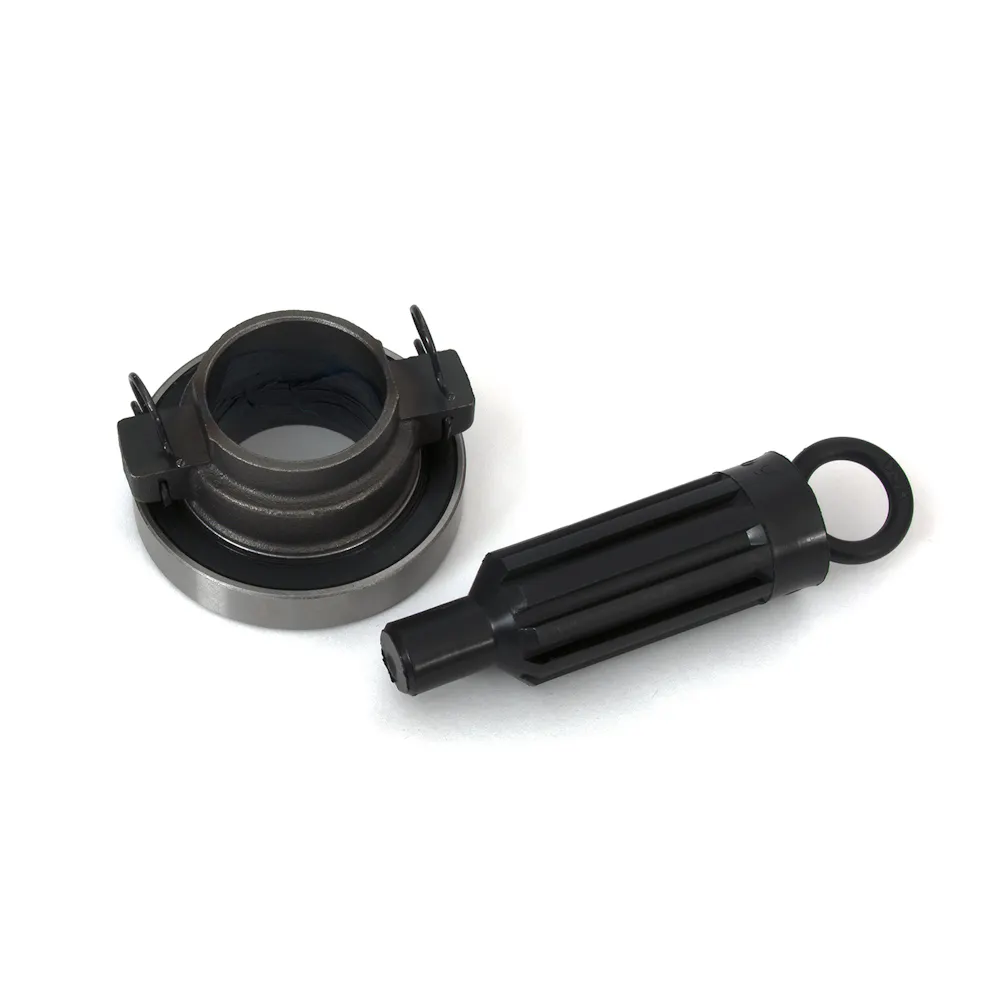

- Pressure Plate, Disc, T.O.B., Alignment Tool
- Input Shaft Diameter
- 1-3/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material

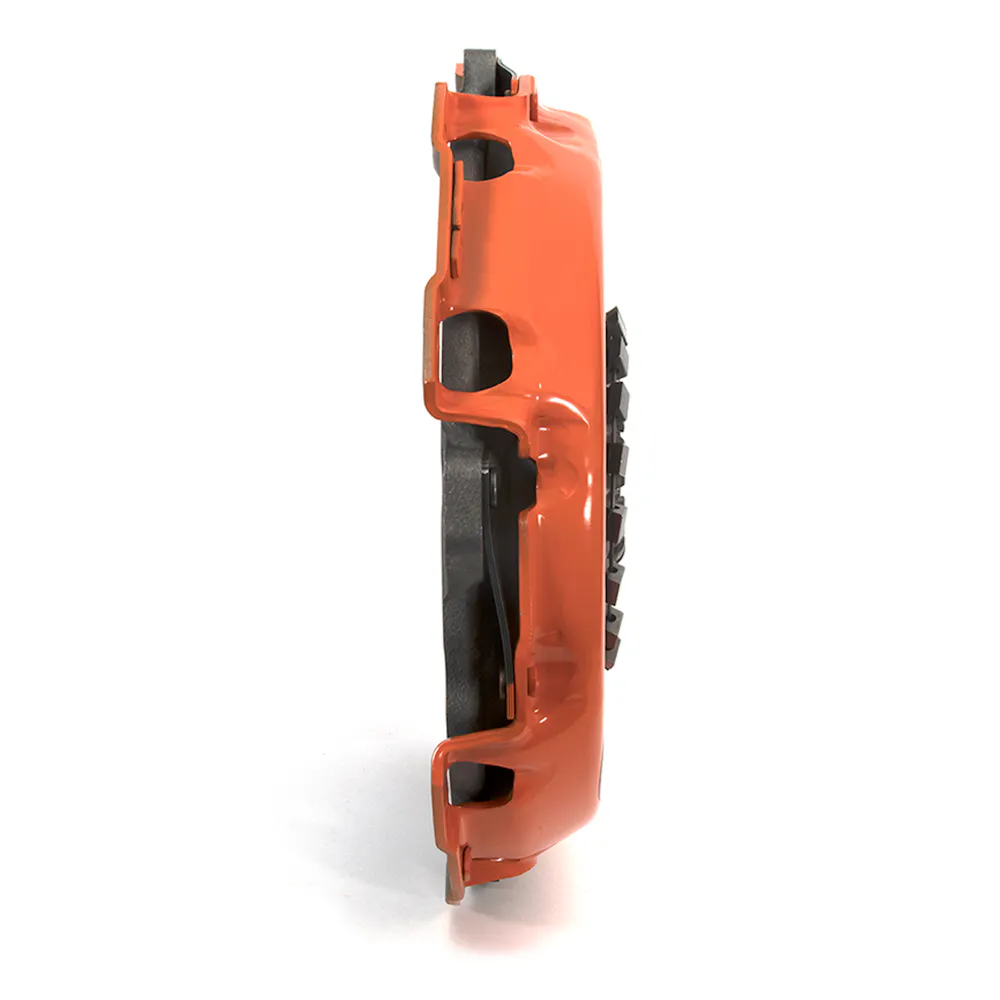

- Cast Iron Pressure Plate / Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 13
- Release Bearing Included
- Yes
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-3/8"-10
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 900 ft/lbs Capacity, 13in Dia., 10-Spline, Fits Dodge/Ram Cars and Trucks 5.9L/6.7L
- Torque Capacity
- 900
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2001-2010 Dodge Ram 2500; 2001-2010 Dodge Ram 3500; 2008-2010 Dodge Ram 4500; 2008-2010 Dodge Ram 5500; 2011-2018 Ram 2500; 2011-2018 Ram 3500; 2011-2017 Ram 4500; 2011-2016 Ram 5500
Resources
- Brand logo
- Technical Bulletin
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Installation Instructions
- Logo Image
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Out of Package
- Photo - Lifestyle View
- Photo - Primary
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Photo - Unmounted
- Link To Manufacturer Page
- Centerforce Dual Friction Overview
- Centerforce Ram Diesel Clutch Kits
- Centerforce Dual Friction Clutch

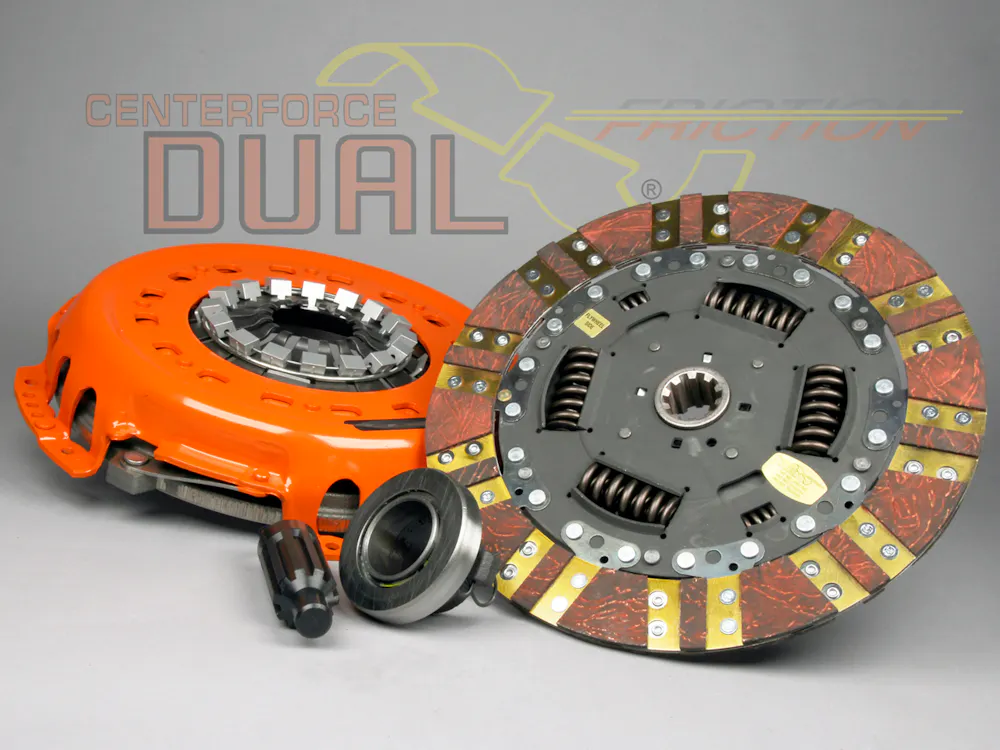

Centerforce DF320539
