Centerforce · DF271874
Part #: DF271874
UPC: 788442017120
Log in for inventory
Notify me when this item is in stock.

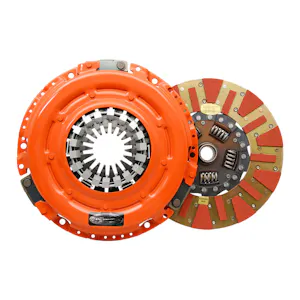

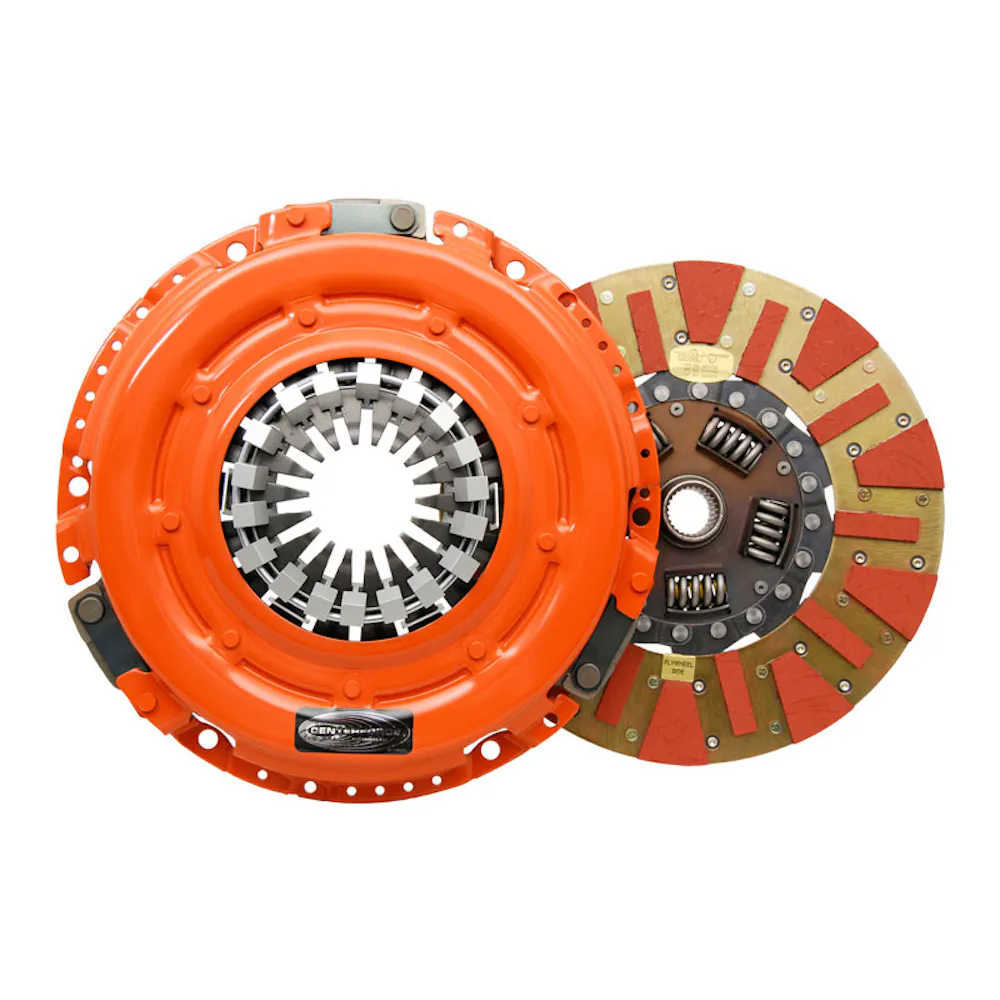

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
This part number superseded DF824874.
Description
The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1973-1975 | Buick Apollo |
| 1976-1978 | Buick Century |
| 1964-1965 | Buick LeSabre |
| 1976-1979 | Buick Regal |
| 1964-1967 | Buick Skylark |
| 1976 | Buick Skylark |
| 1978-1979 | Buick Skylark |
| 1964-1967 | Buick Special |
| 1969-1974 | Chevrolet Blazer |
| 1975-1976 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1967-1976 | Chevrolet C10 Suburban |
| 1975-1976 | Chevrolet C20 |
| 1967-1974 | Chevrolet C20 Suburban |
| 1967-1979 | Chevrolet Camaro |
| 1964-1973 | Chevrolet Chevelle |
| 1967 | Chevrolet Chevy II |
| 1958-1961 | Chevrolet Corvette |
| 1959-1960 | Chevrolet El Camino |
| 1964-1981 | Chevrolet El Camino |
| 1975-1976 | Chevrolet K10 |
| 1967-1976 | Chevrolet K10 Suburban |
| 1975-1976 | Chevrolet K20 |
| 1967-1974 | Chevrolet K20 Suburban |
| 1975-1976 | Chevrolet K5 Blazer |
| 1975 | Chevrolet Malibu |
| 1978-1981 | Chevrolet Malibu |
| 1976-1979 | Chevrolet Monte Carlo |
| 1969-1978 | Chevrolet Nova |
| 1975-1976 | GMC C15 |
| 1975-1976 | GMC C15 Suburban |
| 1967-1974 | GMC C15/C1500 Pickup |
| 1975 | GMC C25 |
| 1967-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1975 | GMC C35 |
| 1967-1974 | GMC C35/C3500 Pickup |
| 1978 | GMC Caballero |
| 1975-1976 | GMC Jimmy |
| 1975-1976 | GMC K15 |
| 1975-1976 | GMC K15 Suburban |
| 1967-1974 | GMC K15/K1500 Pickup |
| 1975-1976 | GMC K25 |
| 1967-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1971-1977 | GMC Sprint |
| 1971 | Oldsmobile Cutlass |
| 1975-1979 | Oldsmobile Cutlass |
| 1973-1978 | Oldsmobile Omega |
| 1975-1976 | Oldsmobile Starfire |
| 1967-1978 | Pontiac Firebird |
| 1964-1970 | Pontiac LeMans |
| 1976-1978 | Pontiac LeMans |
| 1978 | Pontiac Phoenix |
| 1964-1970 | Pontiac Tempest |
| 1971-1977 | Pontiac Ventura |
Specifications
- GTIN
- 00788442017120
- Weight
- 22.35 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 2
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Deck Height
- 1.6
- Flywheel Step Type
- FLAT
- Friction Surface Configuration
- FLAT
- Includes
- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 541 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Buick/Chevrolet/GMC/Oldsmobile/Pontiac Cars and Trucks
- Torque Capacity
- 541
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1973-1975 Buick Apollo; 1976-1978 Buick Century; 1964-1965 Buick LeSabre; 1976-1979 Buick Regal; 1964-1967 Buick Skylark; 1976 Buick Skylark; 1978-1979 Buick Skylark; 1964-1967 Buick Special; 1969-1974 Chevrolet Blazer; 1975-1976 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1967-1976 Chevrolet C10 Suburban; 1975-1976 Chevrolet C20; 1967-1974 Chevrolet C20 Suburban; 1967-1979 Chevrolet Camaro; 1964-1973 Chevrolet Chevelle; 1967 Chevrolet Chevy II; 1958-1961 Chevrolet Corvette; 1959-1960 Chevrolet El Camino; 1964-1981 Chevrolet El Camino; 1975-1976 Chevrolet K10; 1967-1976 Chevrolet K10 Suburban; 1975-1976 Chevrolet K20; 1967-1974 Chevrolet K20 Suburban; 1975-1976 Chevrolet K5 Blazer; 1975 Chevrolet Malibu; 1978-1981 Chevrolet Malibu; 1976-1979 Chevrolet Monte Carlo; 1969-1978 Chevrolet Nova; 1975-1976 GMC C15; 1975-1976 GMC C15 Suburban; 1967-1974 GMC C15/C1500 Pickup; 1975 GMC C25; 1967-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1975 GMC C35; 1967-1974 GMC C35/C3500 Pickup; 1978 GMC Caballero; 1975-1976 GMC Jimmy; 1975-1976 GMC K15; 1975-1976 GMC K15 Suburban; 1967-1974 GMC K15/K1500 Pickup; 1975-1976 GMC K25; 1967-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1970-1974 GMC K35/K3500 Pickup; 1971-1977 GMC Sprint; 1971 Oldsmobile Cutlass; 1975-1979 Oldsmobile Cutlass; 1973-1978 Oldsmobile Omega; 1975-1976 Oldsmobile Starfire; 1967-1978 Pontiac Firebird; 1964-1970 Pontiac LeMans; 1976-1978 Pontiac LeMans; 1978 Pontiac Phoenix; 1964-1970 Pontiac Tempest; 1971-1977 Pontiac Ventura
