Centerforce · DF271662
Part #: DF271662
UPC: 788442017090
Log in for inventory
Notify me when this item is in stock.
Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description

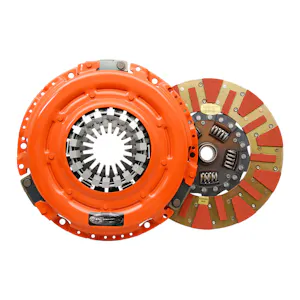

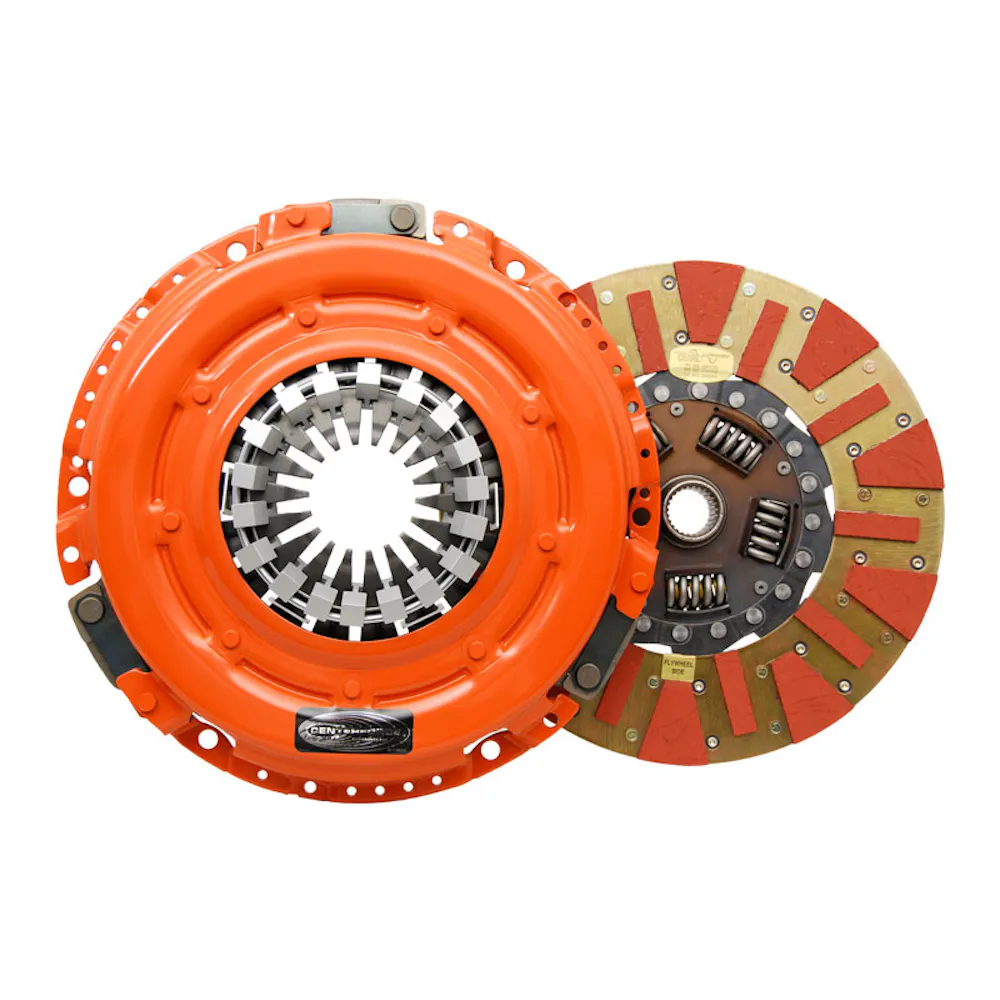

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1966 | Jeep CJ3 |
| 1966-1971 | Jeep CJ5 |
| 1966-1968 | Jeep CJ5A |
| 1966-1971 | Jeep CJ6 |
| 1966-1968 | Jeep CJ6A |
| 1966-1971 | Jeep Commando |
| 1966-1969 | Jeep Dispatcher |
| 1966-1971 | Jeep DJ5 |
| 1966-1968 | Jeep DJ6 |
| 1966-1971 | Jeep Jeepster |
Specifications
- GTIN
- 00788442017090
- Weight
- 22.9 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 264.2
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step Type
- FLAT
- Friction Surface Configuration
- FLAT
- Includes
- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 10
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 10.4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-10
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 541 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Trucks 3.7L
- Torque Capacity
- 541
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1966 Jeep CJ3; 1966-1971 Jeep CJ5; 1966-1968 Jeep CJ5A; 1966-1971 Jeep CJ6; 1966-1968 Jeep CJ6A; 1966-1971 Jeep Commando; 1966-1969 Jeep Dispatcher; 1966-1971 Jeep DJ5; 1966-1968 Jeep DJ6; 1966-1971 Jeep Jeepster
