Centerforce · DF201614

Part #: DF201614
UPC: 788442016826

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

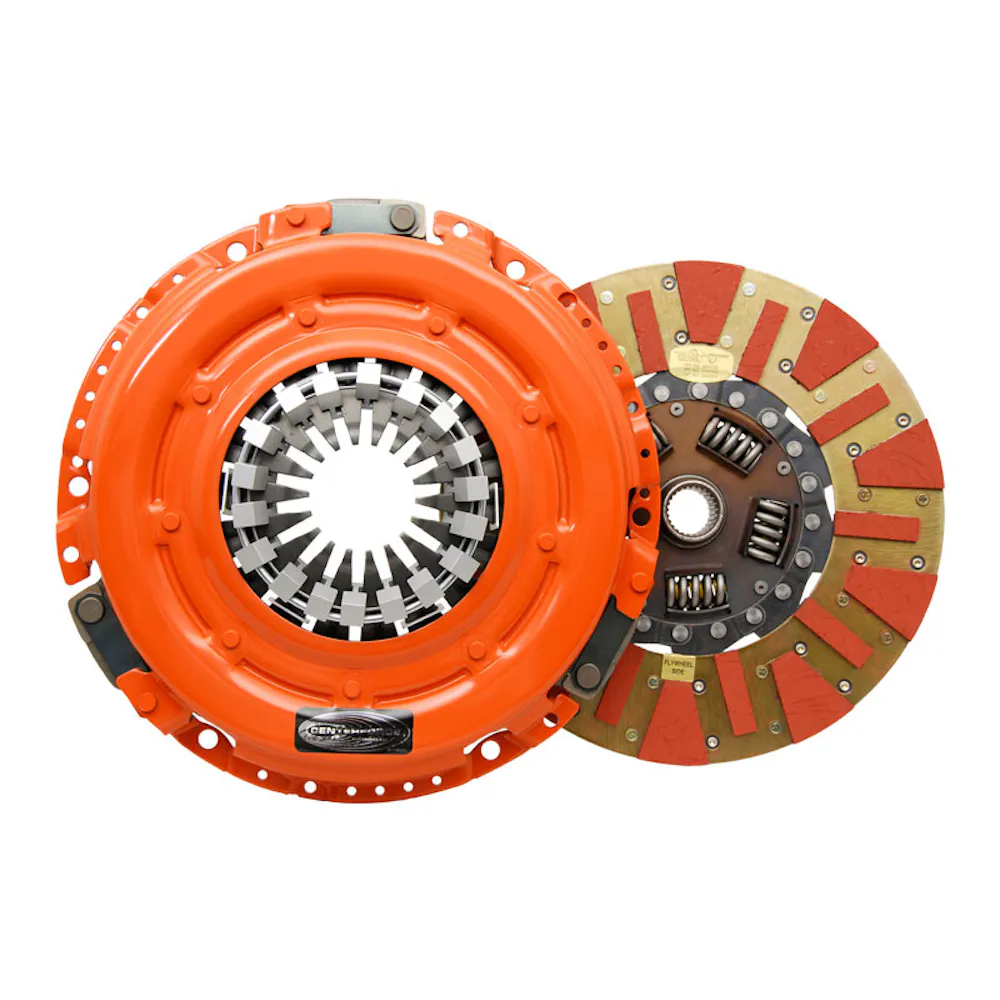

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

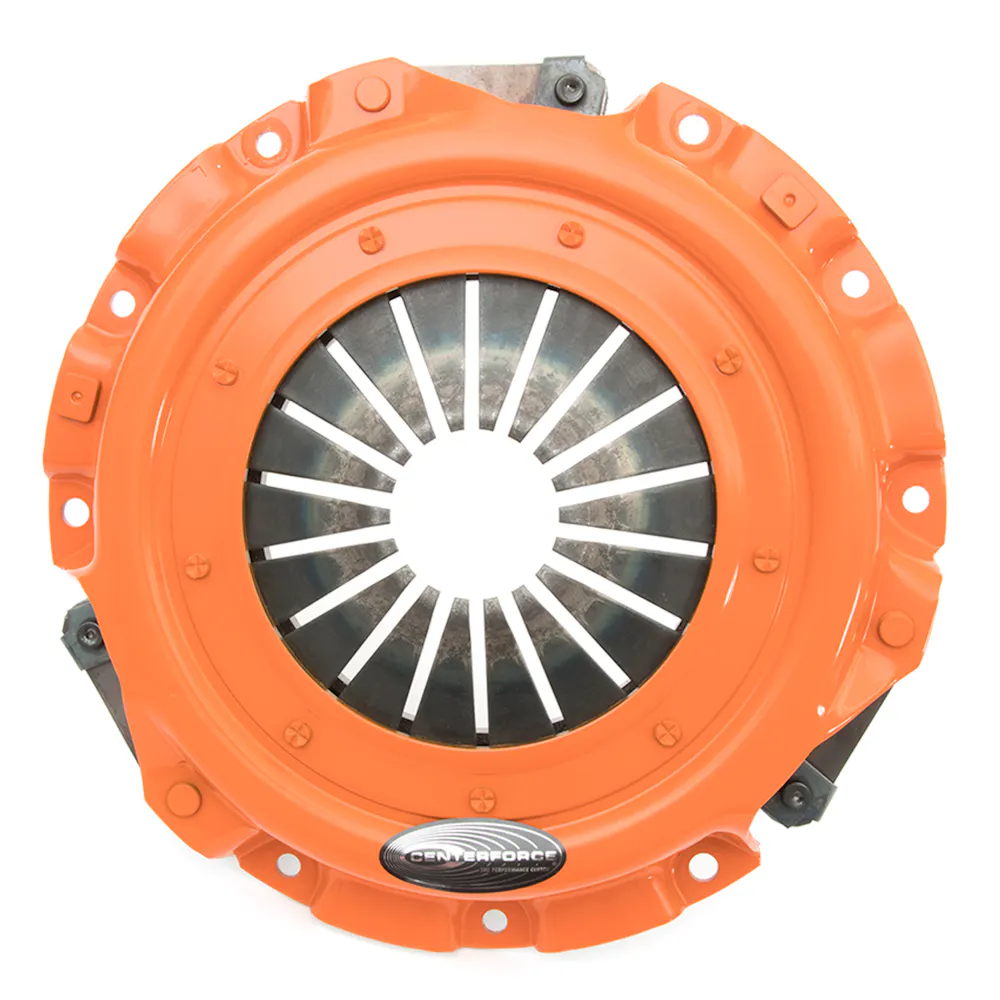

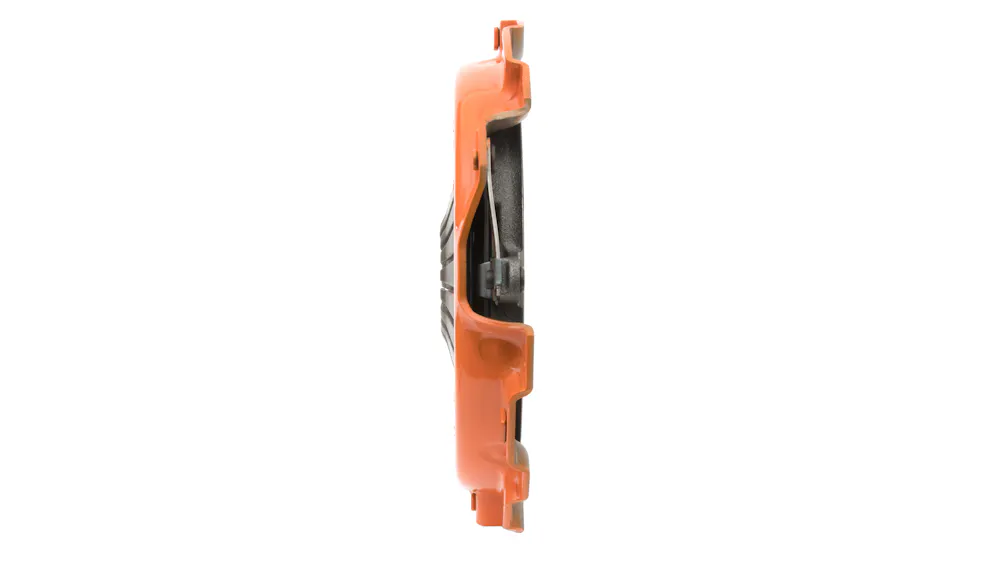

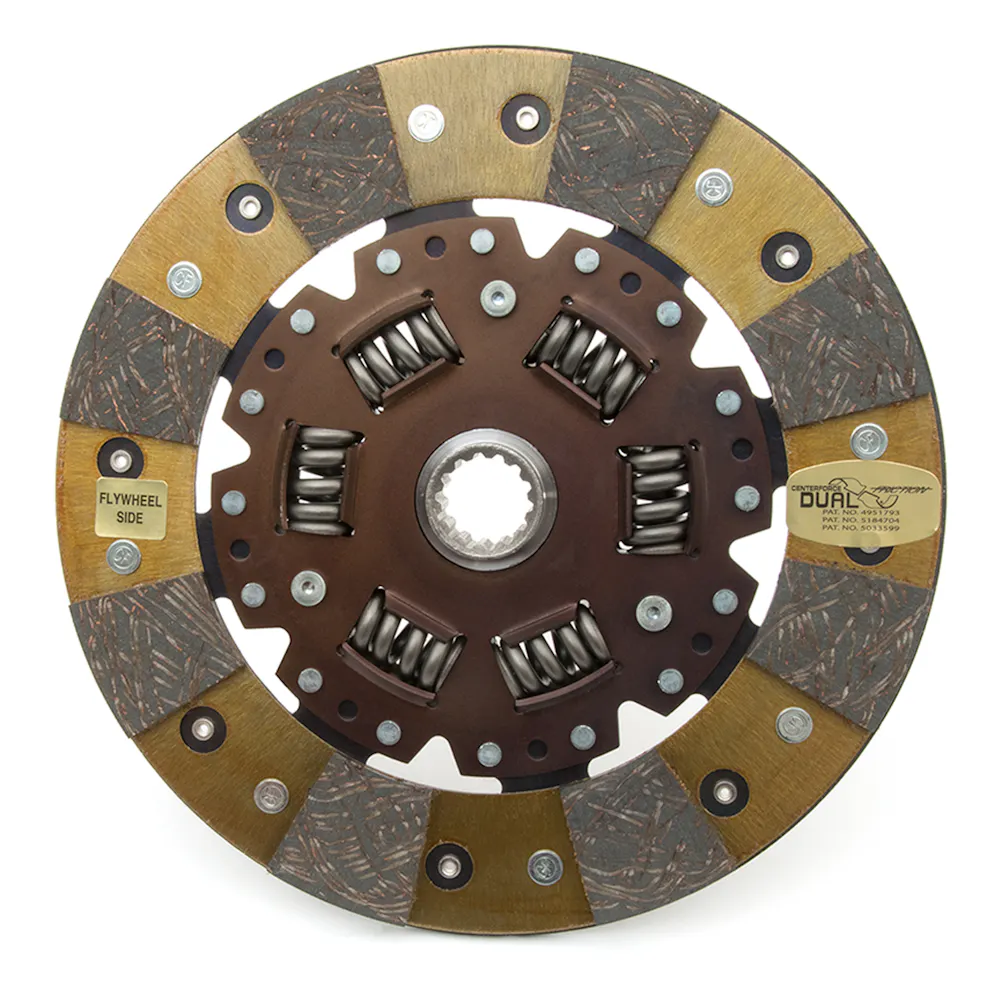

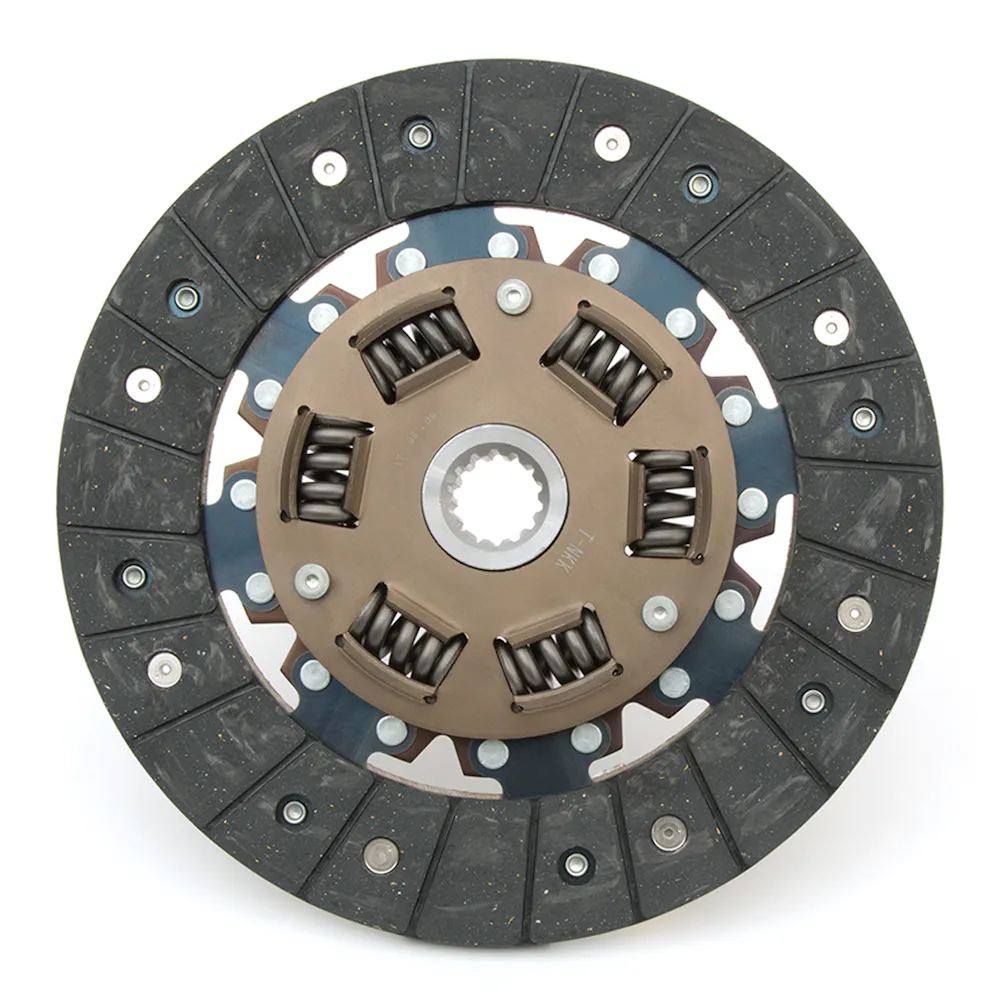

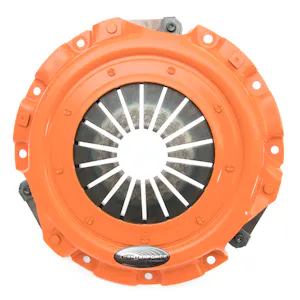

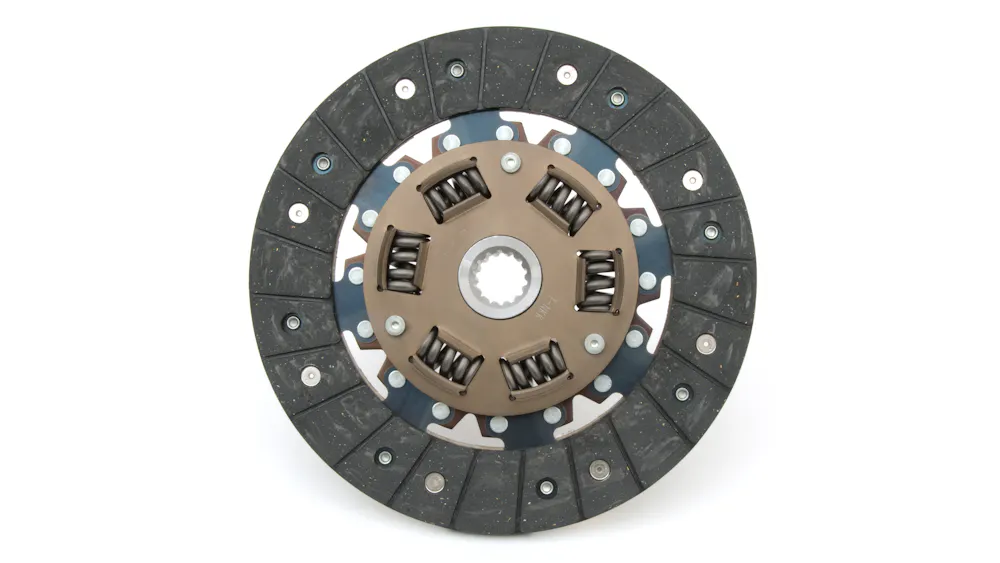

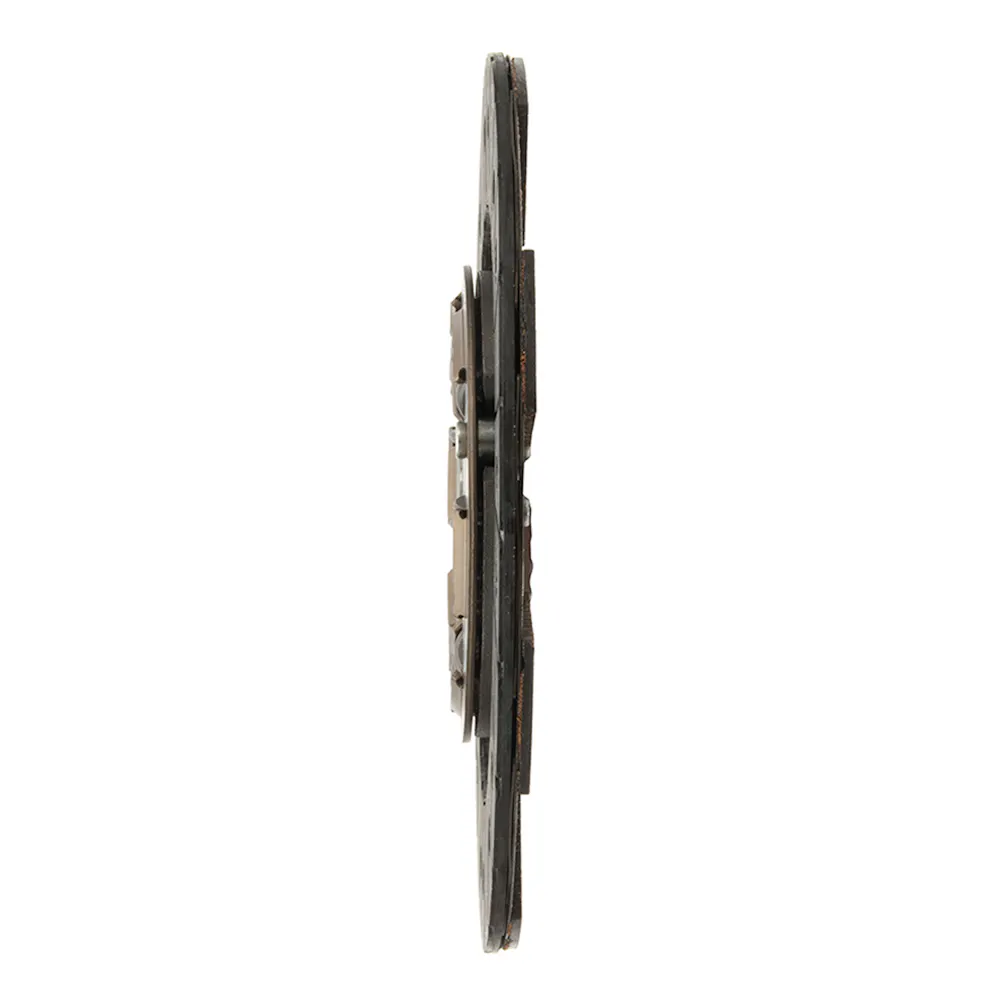

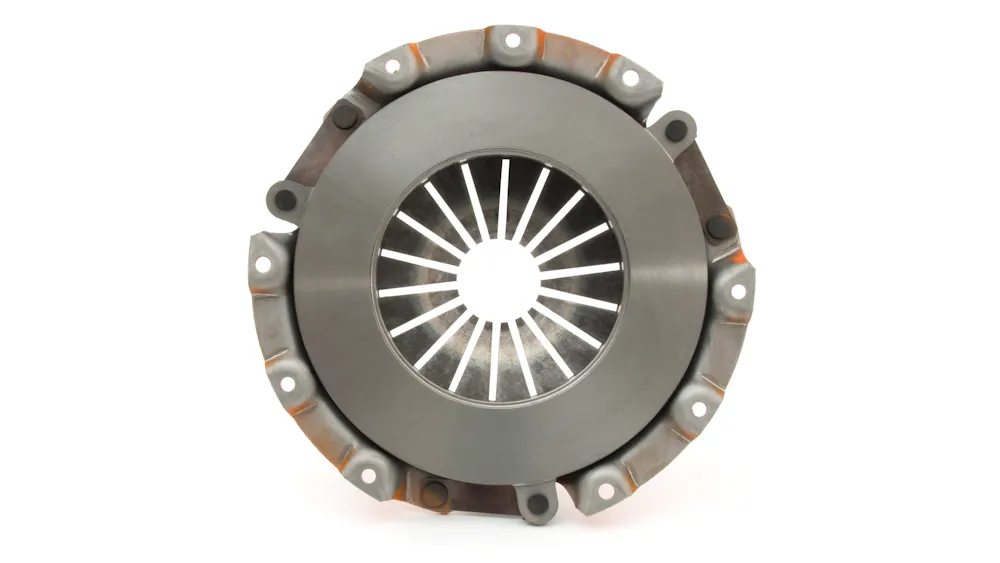

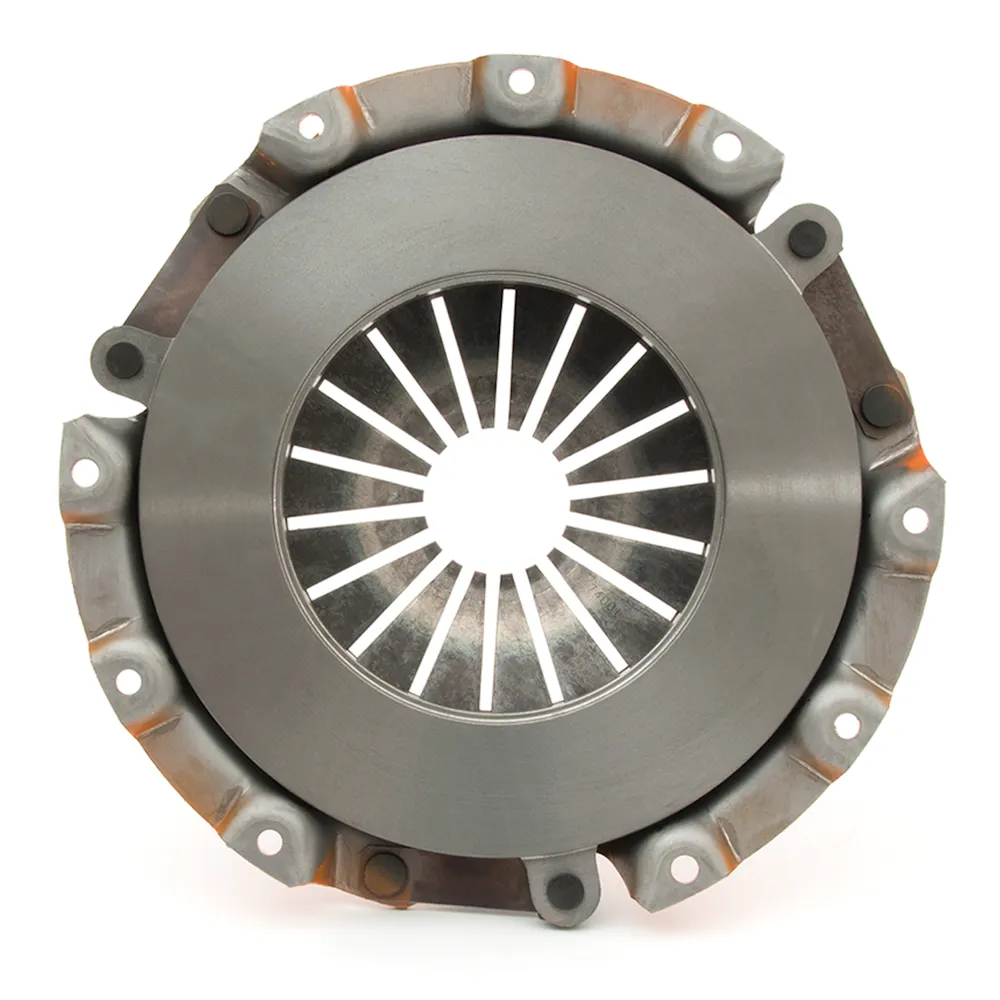

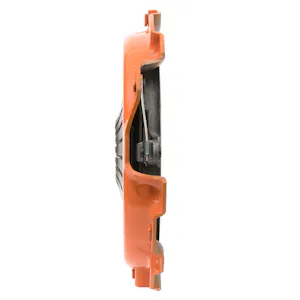

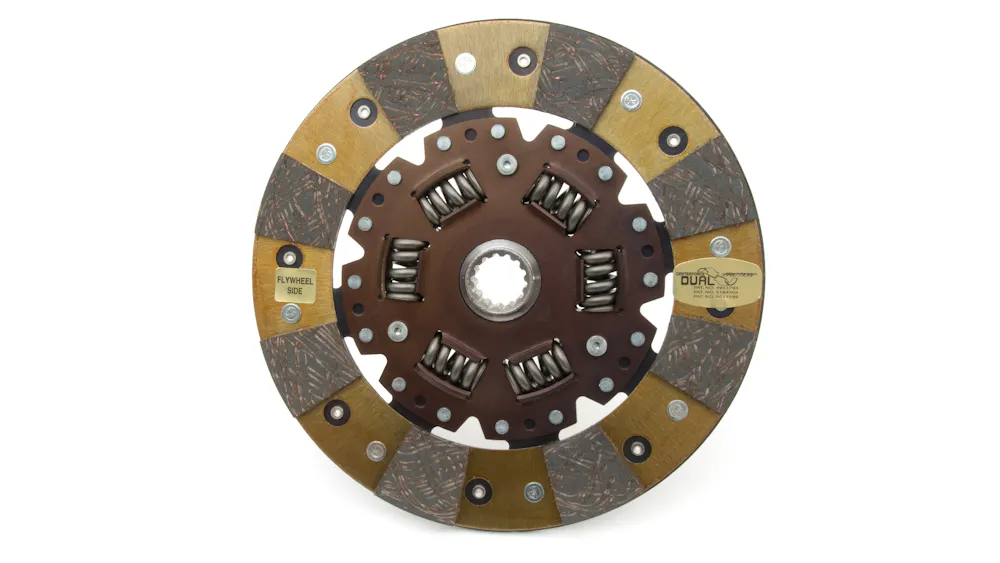

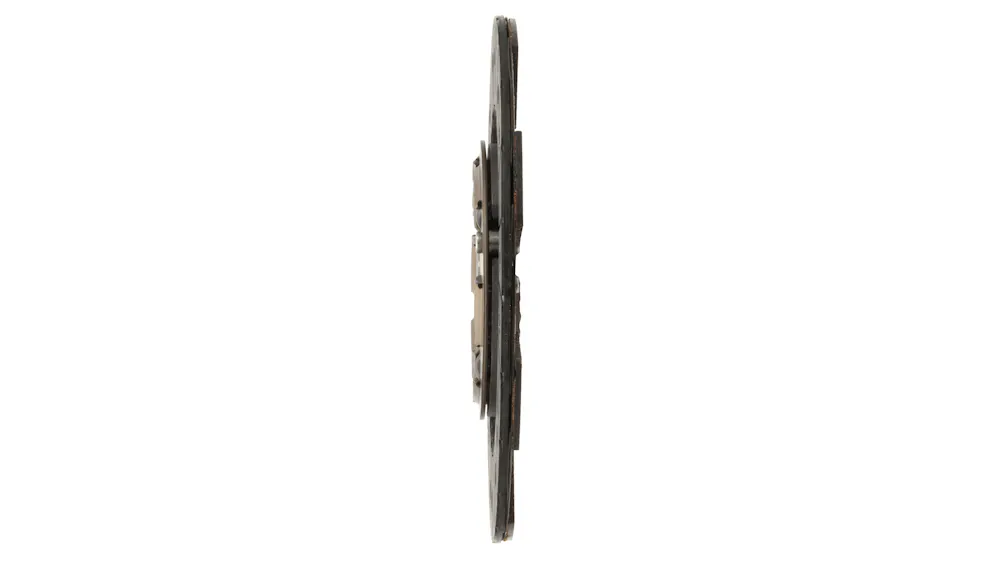

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
1986-2000	Jeep Cherokee
1986	Jeep CJ7
1986-1992	Jeep Comanche
1986-1987	Jeep Wagoneer
1987-1995	Jeep Wrangler
1997-2002	Jeep Wrangler

Specifications

GTIN: 00788442016826
Weight: 15.05 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1

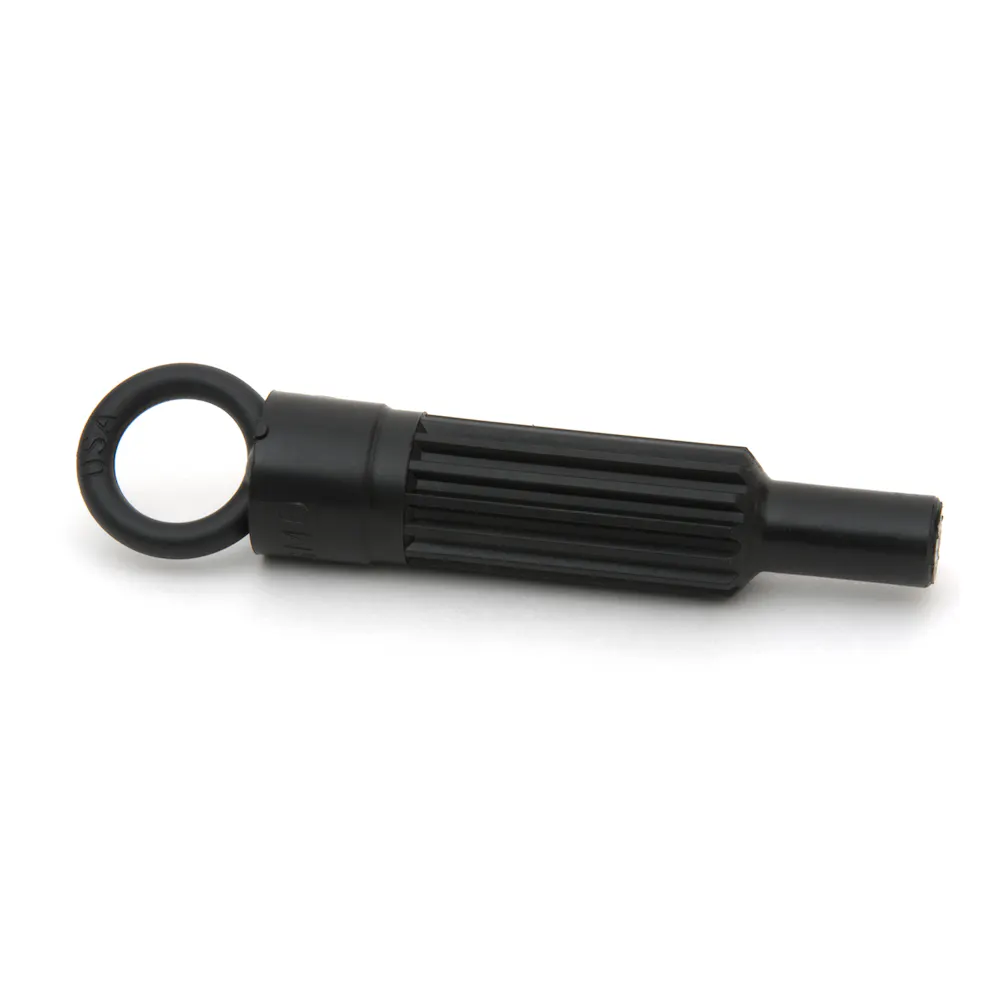

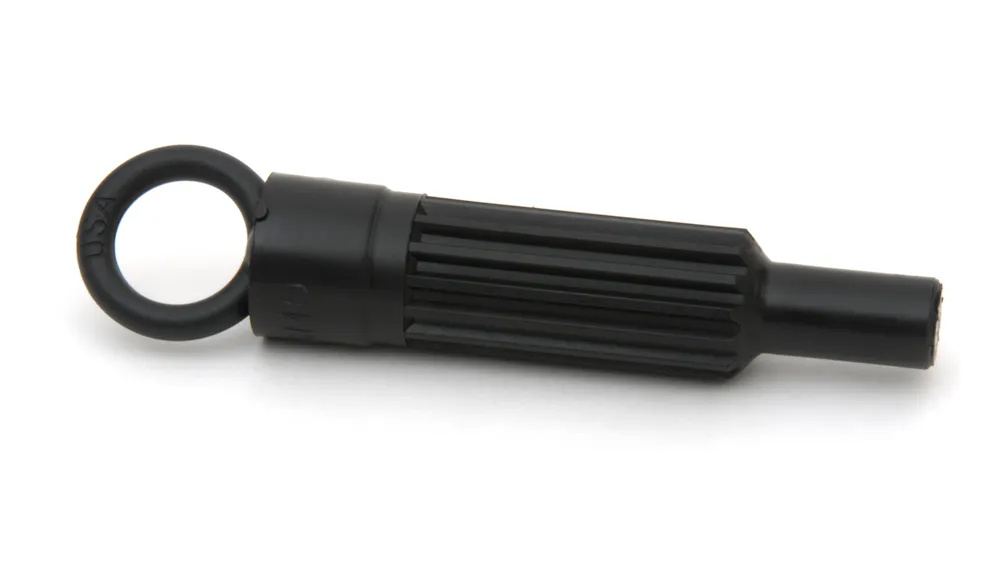

Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Centrifugal Weights: Without Centrifugal Weights
Clutch Disc Diameter: 236
Counterweight Assist: No
Disc Material: Organic/Carbon Composite
Disc Type: Full face/Segmented face
Disc Type Sprung Solid: Sprung
Flywheel Deck Height: 14
Flywheel Step Type: FLAT
Friction Surface Configuration: FLAT

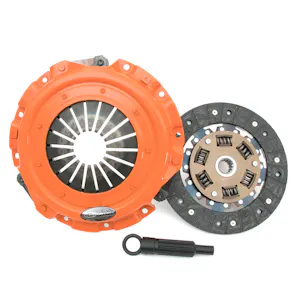

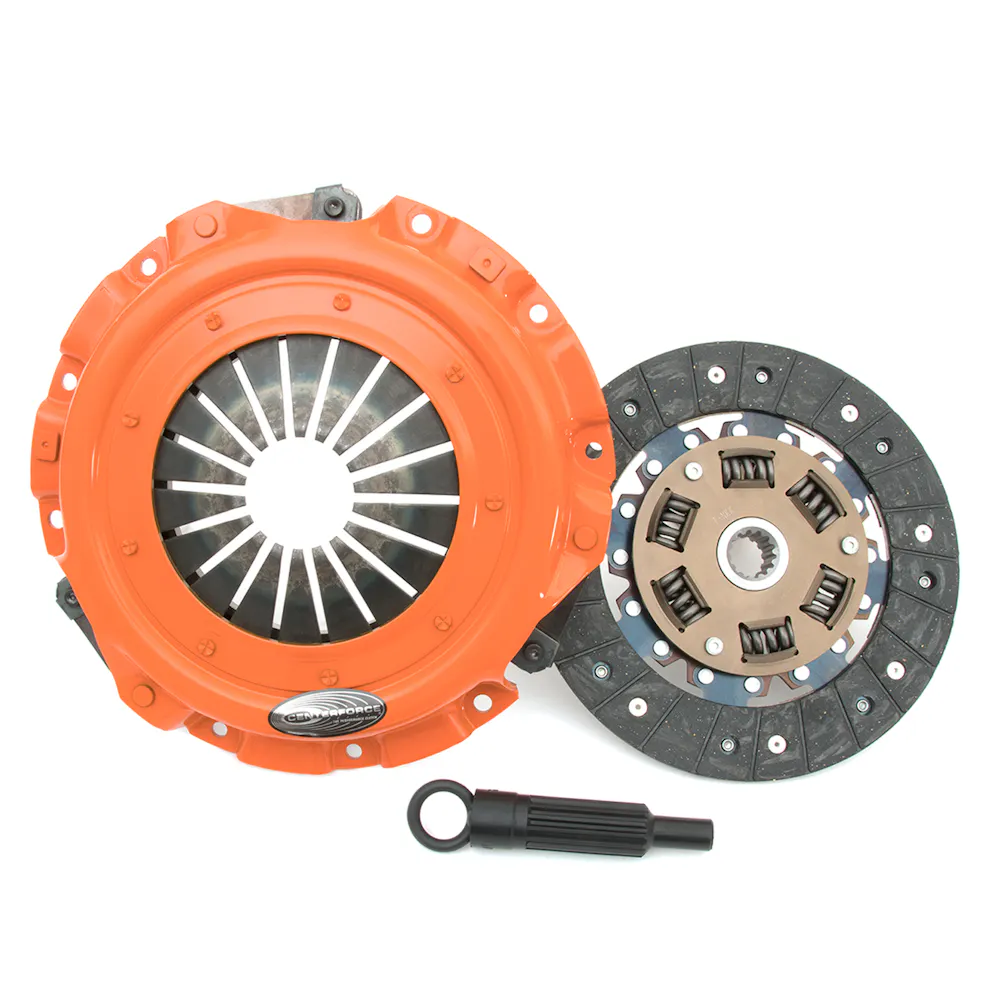

Includes: Pressure Plate, Disc, Alignment Tool
Input Shaft Diameter: 1
Input Spline Quantity: 14
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Full Face and Segmented Organic Friction
Outside Diameter of Friction Surface (Standard): 9-1/8
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 1"-14
Title: Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 310 ft/lbs Capacity, 9.125in Dia., 14-Spline, Fits Jeep Trucks 2.5L
Torque Capacity: 310
