Centerforce · DF148552
Part #: DF148552
UPC: 788442016536
Log in for inventory
Notify me when this item is in stock.

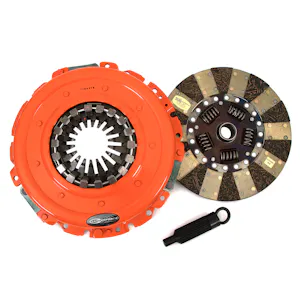

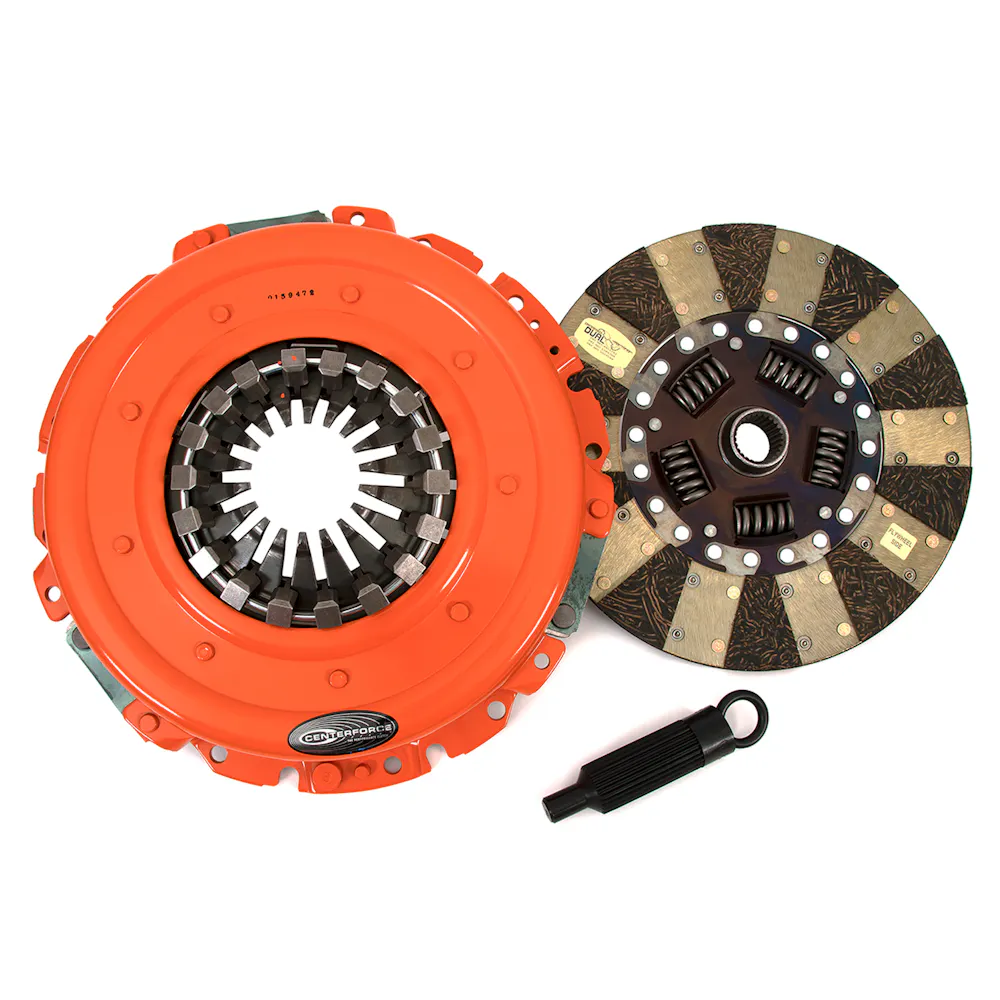

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.
Description:
Description

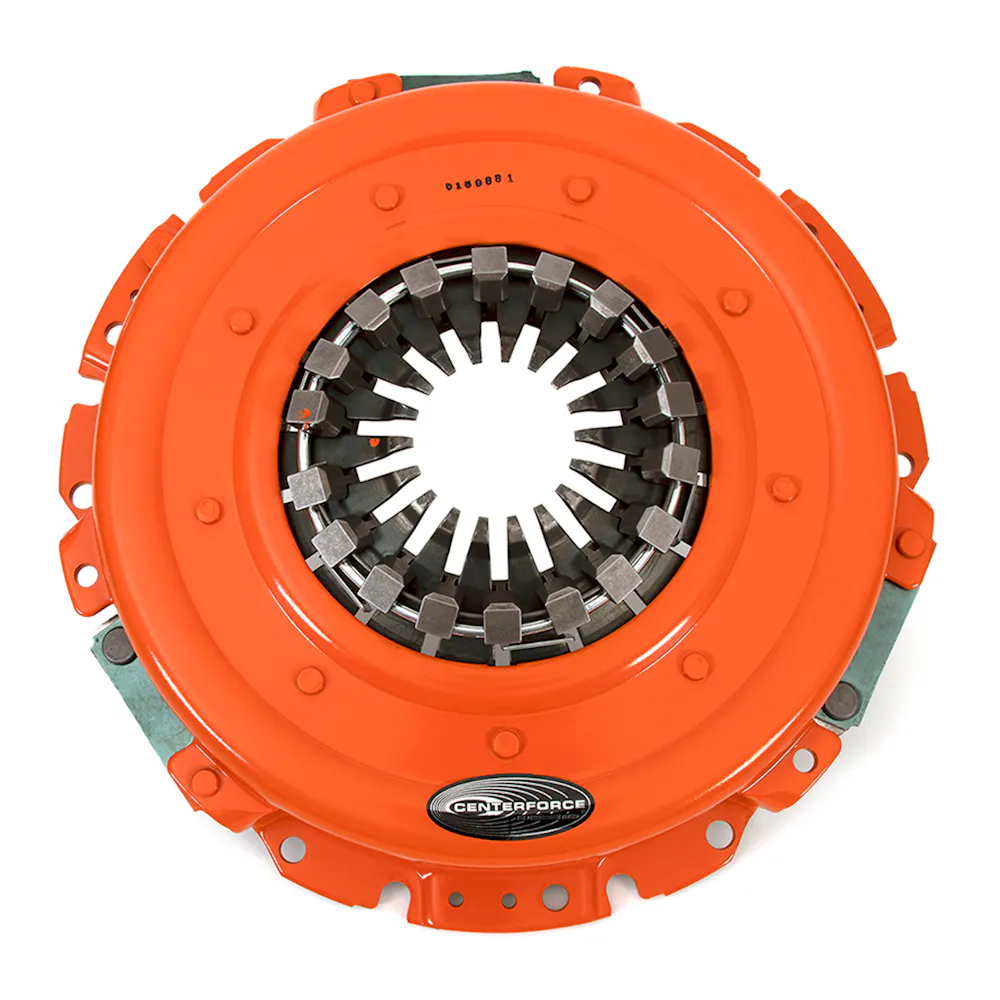

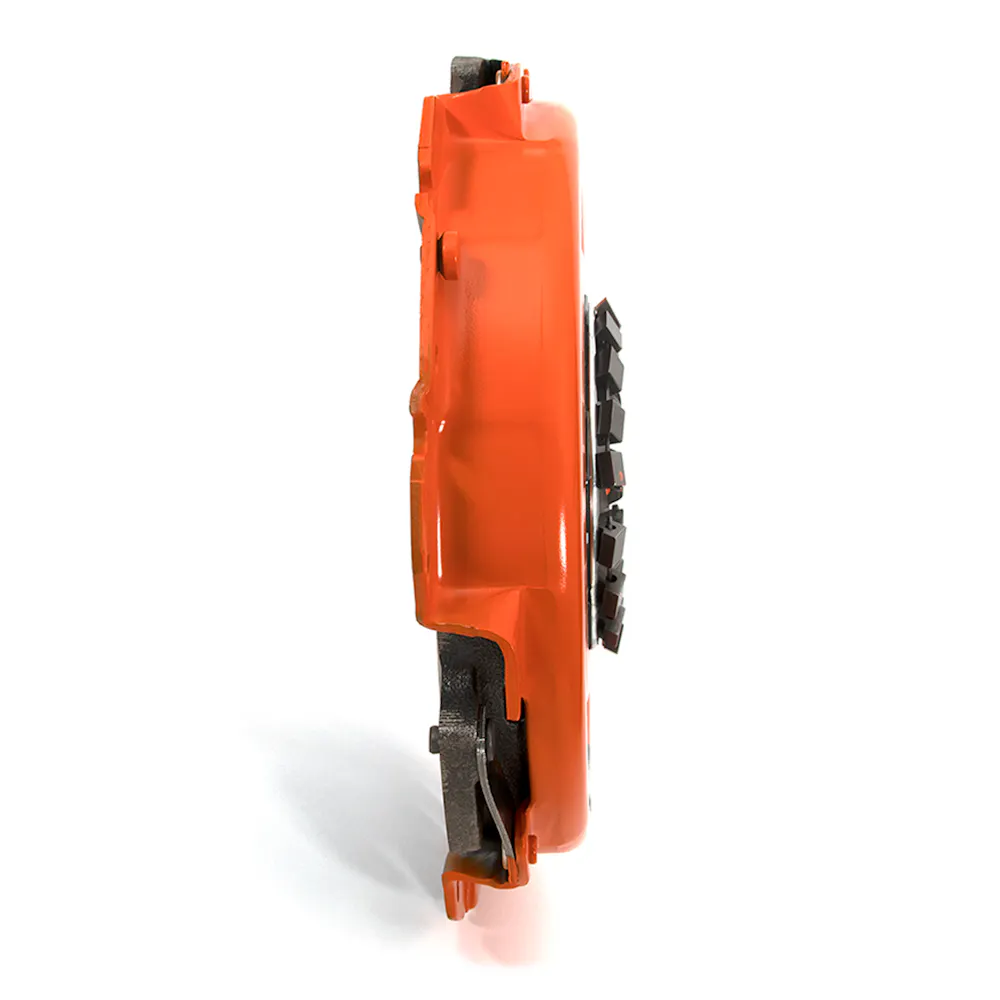

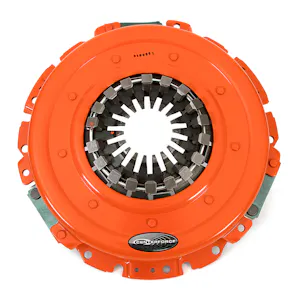

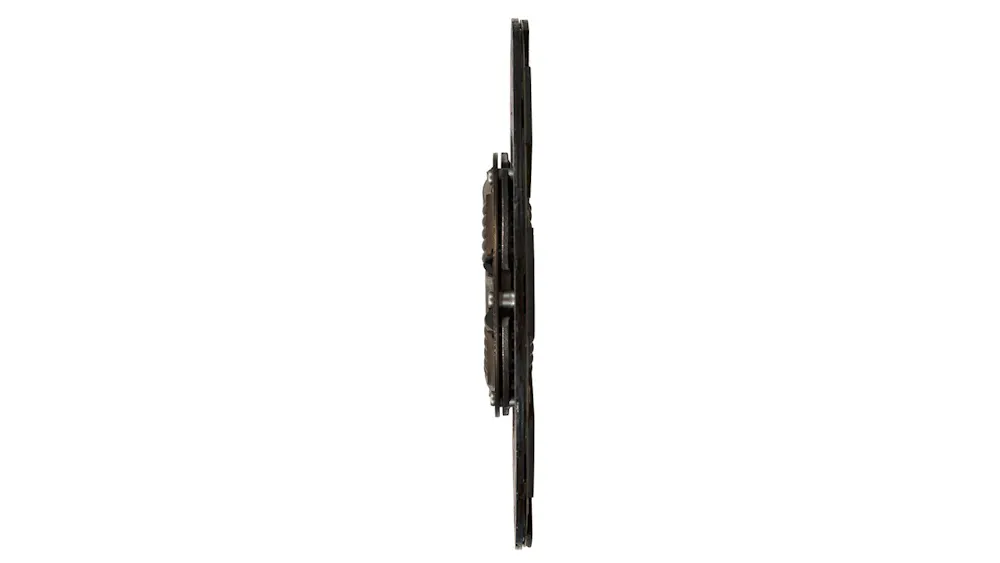

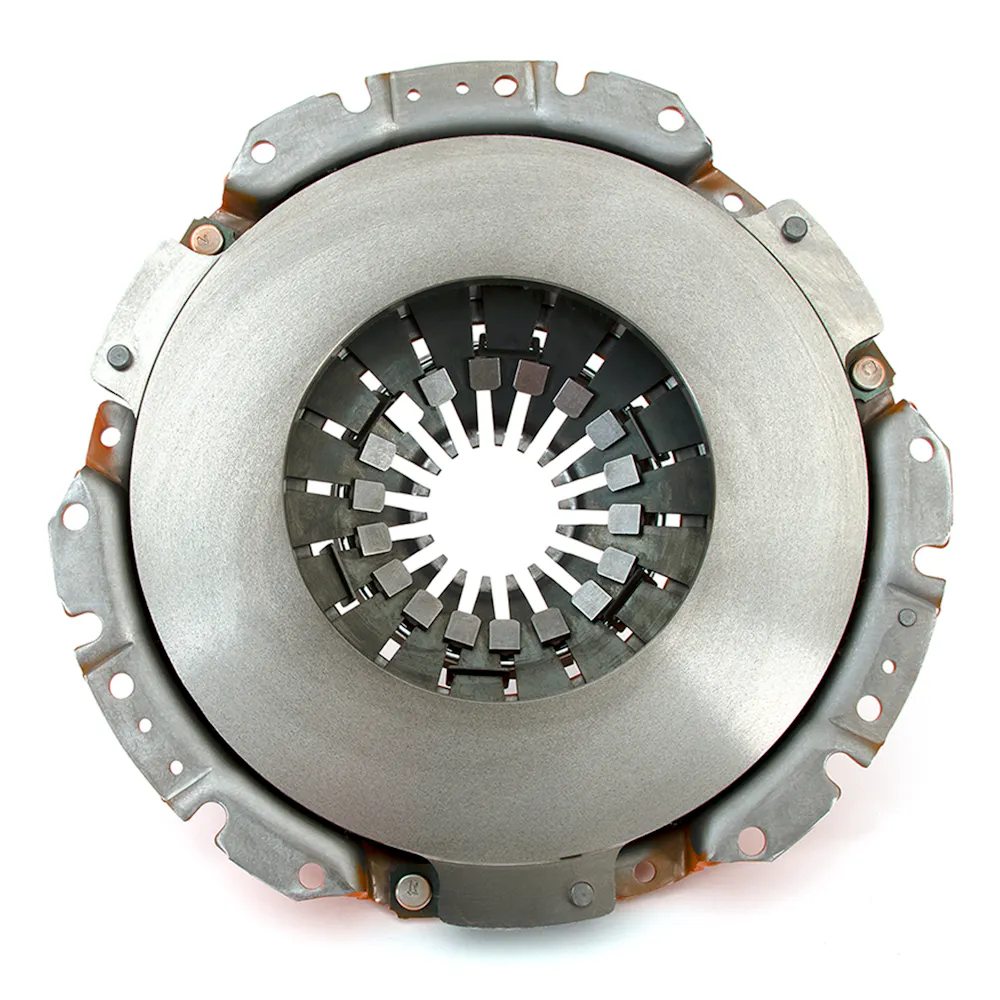

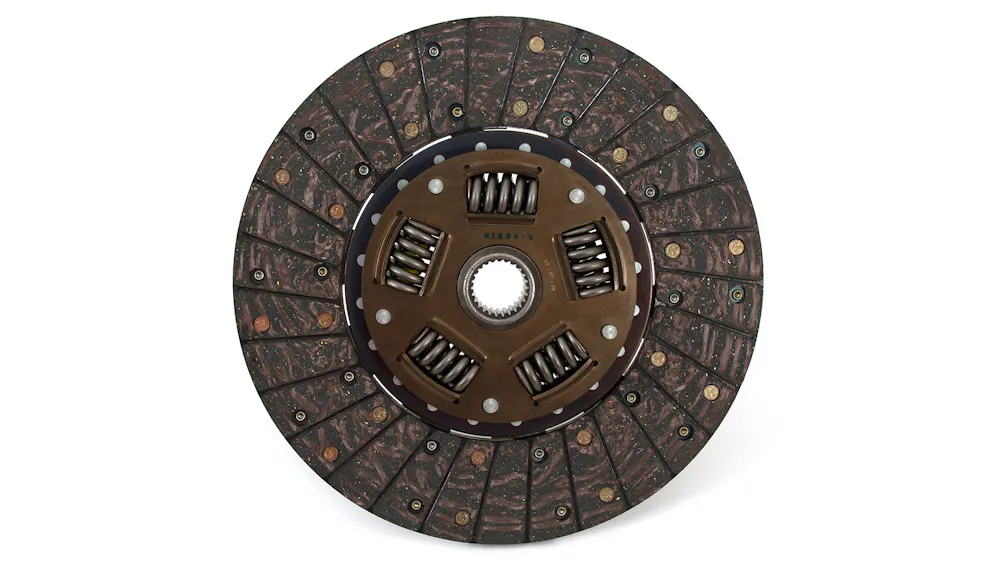

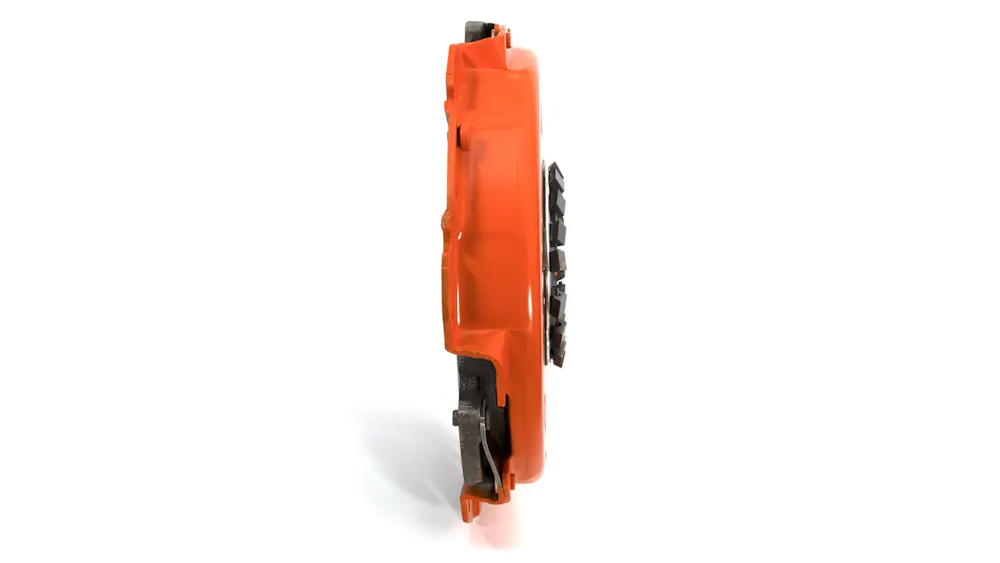

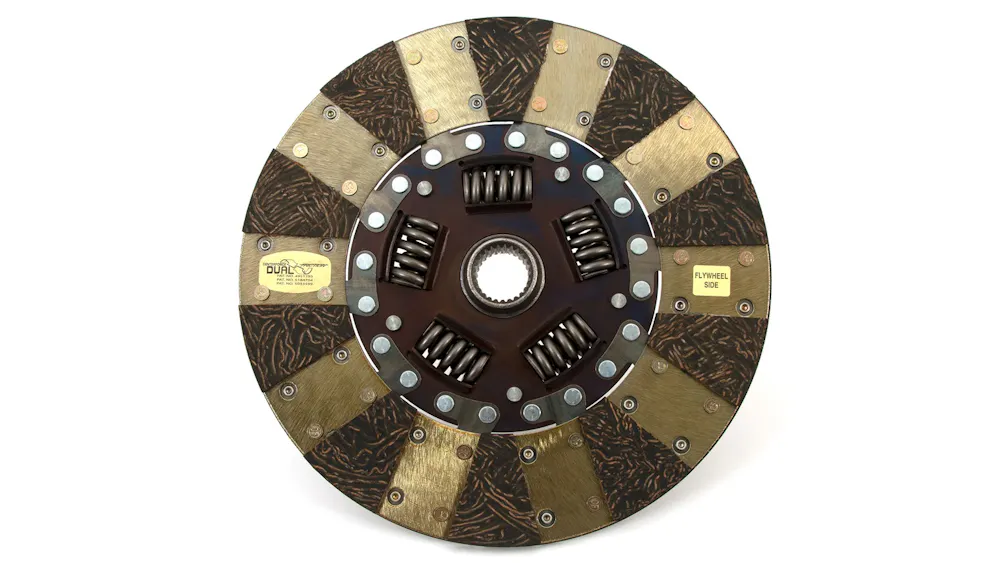

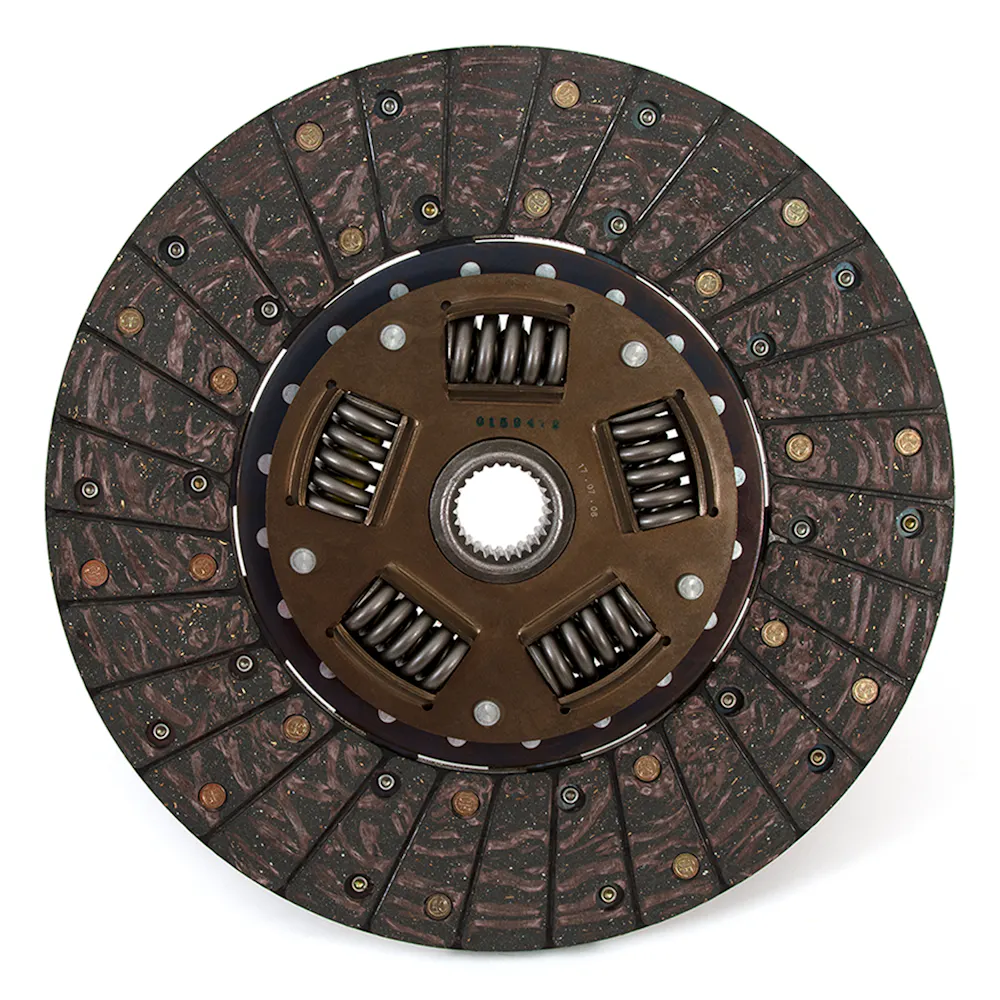

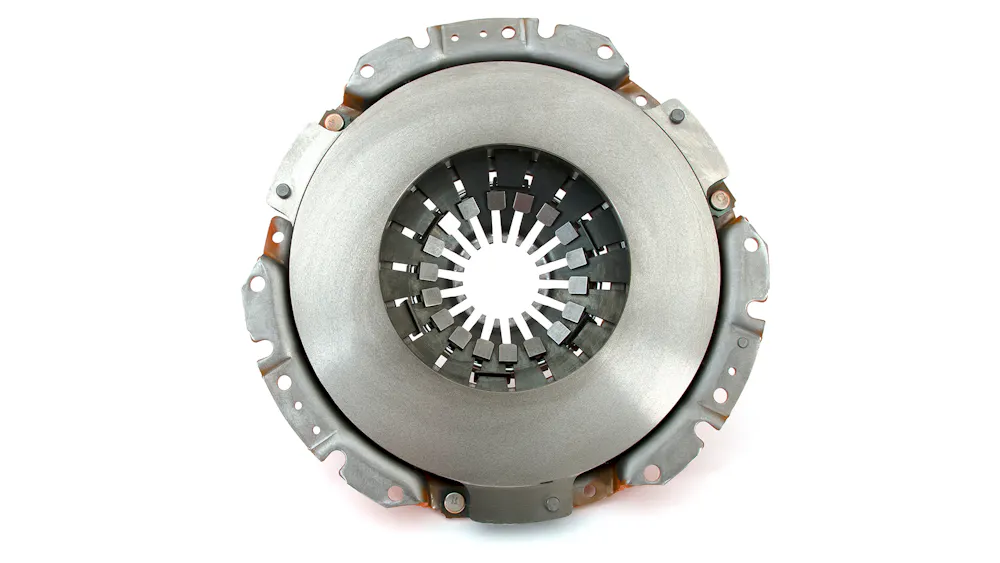

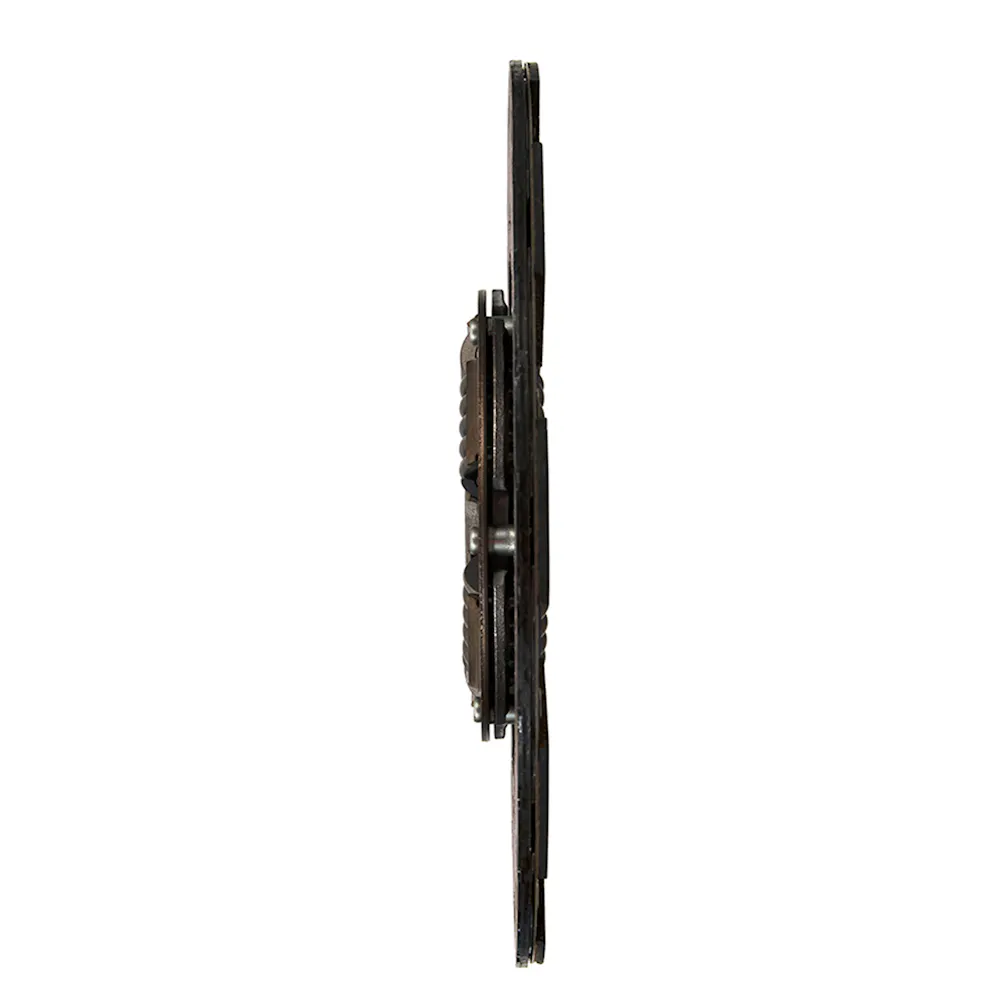

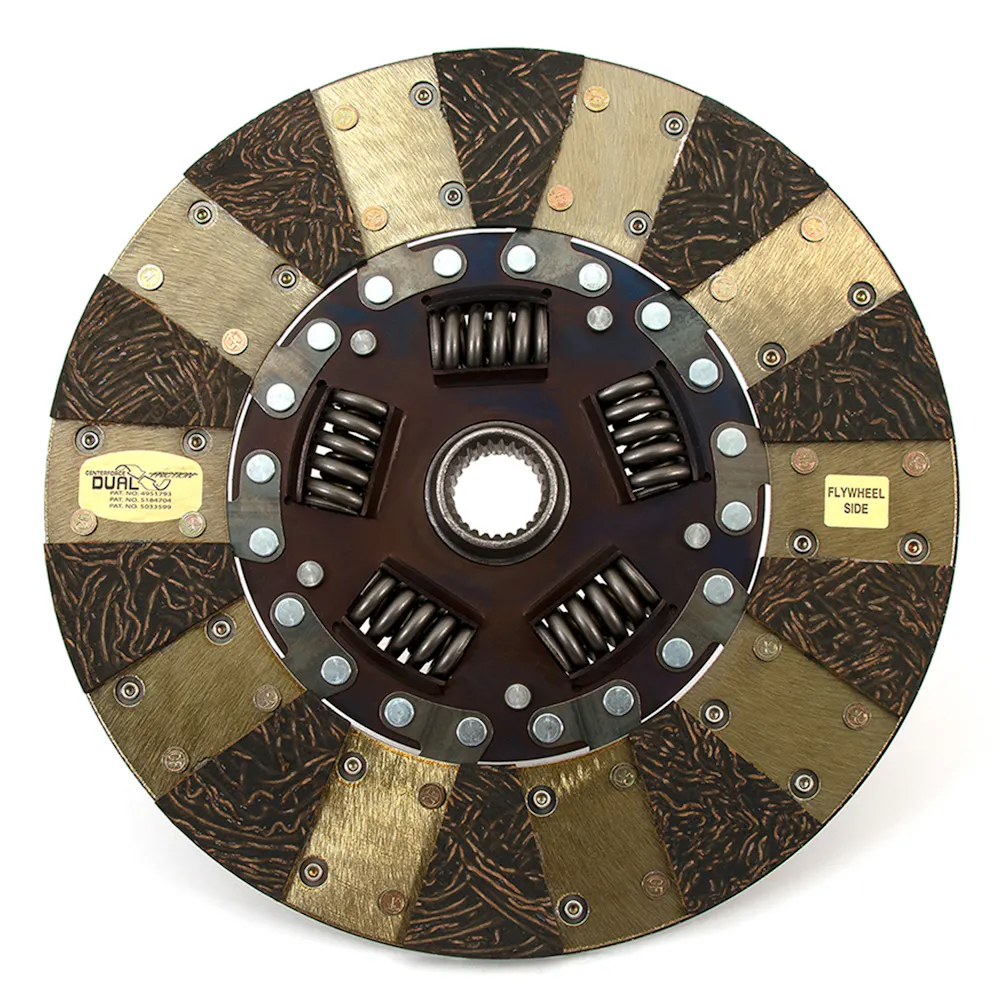

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.
Application summary
| Year | Make / model |
|---|---|
| 1971 | Buick Skylark |
| 1966-1969 | Chevrolet Bel Air |
| 1971 | Chevrolet Bel Air |
| 1965-1969 | Chevrolet Biscayne |
| 1971 | Chevrolet Biscayne |
| 1969-1974 | Chevrolet Blazer |
| 1975-1979 | Chevrolet C10 |
| 1969-1974 | Chevrolet C10 Pickup |
| 1968-1974 | Chevrolet C10 Suburban |
| 1977-1979 | Chevrolet C10 Suburban |
| 1975-1979 | Chevrolet C20 |
| 1968-1974 | Chevrolet C20 Suburban |
| 1977-1979 | Chevrolet C20 Suburban |
| 1975-1979 | Chevrolet C30 |
| 1962-1967 | Chevrolet C30 Pickup |
| 1967-1981 | Chevrolet Camaro |
| 1966-1969 | Chevrolet Caprice |
| 1971 | Chevrolet Caprice |
| 1967-1972 | Chevrolet Chevelle |
| 1970-1981 | Chevrolet Corvette |
| 1966-1974 | Chevrolet El Camino |
| 1965-1969 | Chevrolet Impala |
| 1971 | Chevrolet Impala |
| 1975-1979 | Chevrolet K10 |
| 1968-1973 | Chevrolet K10 Suburban |
| 1977-1979 | Chevrolet K10 Suburban |
| 1975-1979 | Chevrolet K20 |
| 1968-1974 | Chevrolet K20 Suburban |
| 1978 | Chevrolet K20 Suburban |
| 1977-1979 | Chevrolet K30 |
| 1975-1979 | Chevrolet K5 Blazer |
| 1970-1974 | Chevrolet Monte Carlo |
| 1969-1970 | Chevrolet Nova |
| 1975-1978 | GMC C15 |
| 1975-1978 | GMC C15 Suburban |
| 1968-1974 | GMC C15/C1500 Pickup |
| 1968-1974 | GMC C15/C1500 Suburban |
| 1979-1984 | GMC C1500 |
| 1979 | GMC C1500 Suburban |
| 1981-1984 | GMC C1500 Suburban |
| 1975-1978 | GMC C25 |
| 1975-1978 | GMC C25 Suburban |
| 1968-1974 | GMC C25/C2500 Pickup |
| 1968-1974 | GMC C25/C2500 Suburban |
| 1979-1984 | GMC C2500 |
| 1979 | GMC C2500 Suburban |
| 1982-1984 | GMC C2500 Suburban |
| 1975-1978 | GMC C35 |
| 1968-1974 | GMC C35/C3500 Pickup |
| 1979 | GMC C3500 |
| 1970-1984 | GMC Jimmy |
| 1975-1978 | GMC K15 |
| 1975-1978 | GMC K15 Suburban |
| 1968-1974 | GMC K15/K1500 Pickup |
| 1968-1974 | GMC K15/K1500 Suburban |
| 1979 | GMC K1500 |
| 1981-1984 | GMC K1500 |
| 1979 | GMC K1500 Suburban |
| 1982 | GMC K1500 Suburban |
| 1975-1978 | GMC K25 |
| 1975-1978 | GMC K25 Suburban |
| 1968-1974 | GMC K25/K2500 Pickup |
| 1968-1974 | GMC K25/K2500 Suburban |
| 1979 | GMC K2500 |
| 1979 | GMC K2500 Suburban |
| 1977-1978 | GMC K35 |
| 1970-1974 | GMC K35/K3500 Pickup |
| 1979 | GMC K3500 |
| 1971-1974 | GMC Sprint |
| 1971 | Oldsmobile 442 |
| 1971-1972 | Oldsmobile Cutlass |
| 1971-1972 | Oldsmobile Delta 88 |
| 1971-1972 | Oldsmobile Vista Cruiser |
Specifications
- GTIN
- 00788442016536
- Weight
- 31.3 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1

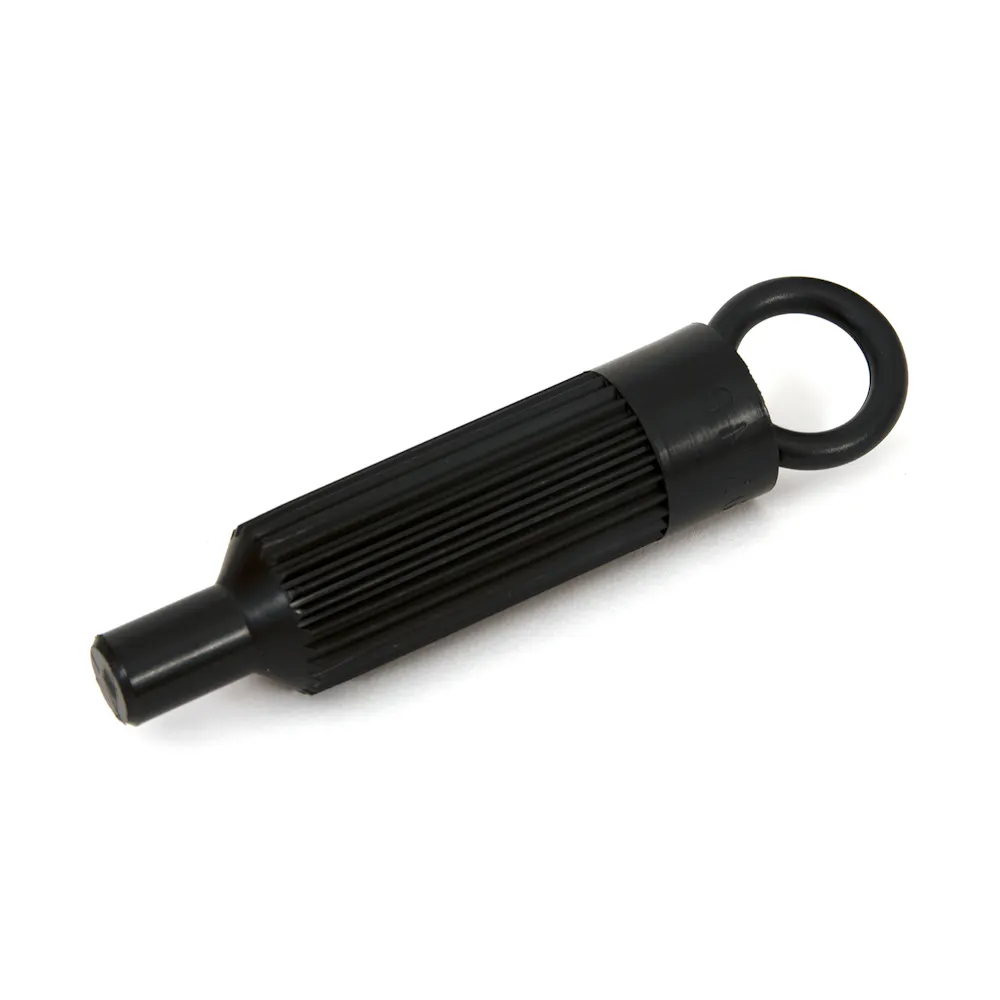

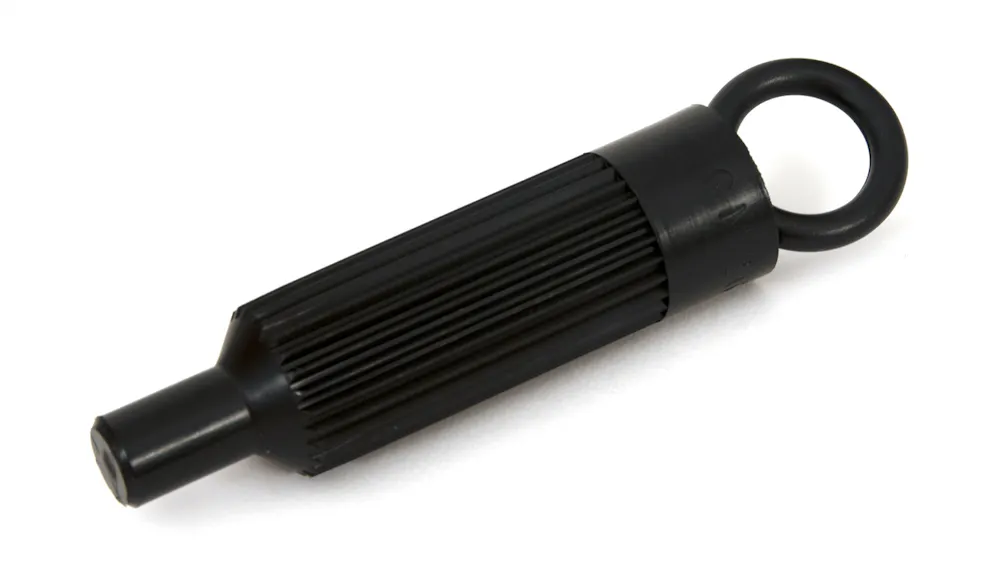

- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 3
- Clutch Disc Diameter
- 279.4
- Clutch Disc Type
- Solid
- Counterweight Assist
- YES
- Disc Material
- Organic/Carbon Composite
- Disc Type
- Full face/Segmented face
- Disc Type Sprung Solid
- Sprung
- Flywheel Deck Height
- 2.09
- Flywheel Step Type
- Flat
- Friction Surface Configuration
- FLAT
- Includes
- Pressure Plate, Disc, Alignment Tool
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Nodular Iron Pressure Plate / Full Face and Segmented Organic Friction
- Outside Diameter of Friction Surface (Standard)
- 11
- Replaceable Friction Surface
- N
- Spline Diameter and Tooth Count
- 1-1/8"-26
- Title
- Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 622 ft/lbs Capacity, 11in Dia., 26-Spline, Fits - Cars and Trucks 8 Cyl
- Torque Capacity
- 622
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1971 Buick Skylark; 1966-1969 Chevrolet Bel Air; 1971 Chevrolet Bel Air; 1965-1969 Chevrolet Biscayne; 1971 Chevrolet Biscayne; 1969-1974 Chevrolet Blazer; 1975-1979 Chevrolet C10; 1969-1974 Chevrolet C10 Pickup; 1968-1974 Chevrolet C10 Suburban; 1977-1979 Chevrolet C10 Suburban; 1975-1979 Chevrolet C20; 1968-1974 Chevrolet C20 Suburban; 1977-1979 Chevrolet C20 Suburban; 1975-1979 Chevrolet C30; 1962-1967 Chevrolet C30 Pickup; 1967-1981 Chevrolet Camaro; 1966-1969 Chevrolet Caprice; 1971 Chevrolet Caprice; 1967-1972 Chevrolet Chevelle; 1970-1981 Chevrolet Corvette; 1966-1974 Chevrolet El Camino; 1965-1969 Chevrolet Impala; 1971 Chevrolet Impala; 1975-1979 Chevrolet K10; 1968-1973 Chevrolet K10 Suburban; 1977-1979 Chevrolet K10 Suburban; 1975-1979 Chevrolet K20; 1968-1974 Chevrolet K20 Suburban; 1978 Chevrolet K20 Suburban; 1977-1979 Chevrolet K30; 1975-1979 Chevrolet K5 Blazer; 1970-1974 Chevrolet Monte Carlo; 1969-1970 Chevrolet Nova; 1975-1978 GMC C15; 1975-1978 GMC C15 Suburban; 1968-1974 GMC C15/C1500 Pickup; 1968-1974 GMC C15/C1500 Suburban; 1979-1984 GMC C1500; 1979 GMC C1500 Suburban; 1981-1984 GMC C1500 Suburban; 1975-1978 GMC C25; 1975-1978 GMC C25 Suburban; 1968-1974 GMC C25/C2500 Pickup; 1968-1974 GMC C25/C2500 Suburban; 1979-1984 GMC C2500; 1979 GMC C2500 Suburban; 1982-1984 GMC C2500 Suburban; 1975-1978 GMC C35; 1968-1974 GMC C35/C3500 Pickup; 1979 GMC C3500; 1970-1984 GMC Jimmy; 1975-1978 GMC K15; 1975-1978 GMC K15 Suburban; 1968-1974 GMC K15/K1500 Pickup; 1968-1974 GMC K15/K1500 Suburban; 1979 GMC K1500; 1981-1984 GMC K1500; 1979 GMC K1500 Suburban; 1982 GMC K1500 Suburban; 1975-1978 GMC K25; 1975-1978 GMC K25 Suburban; 1968-1974 GMC K25/K2500 Pickup; 1968-1974 GMC K25/K2500 Suburban; 1979 GMC K2500; 1979 GMC K2500 Suburban; 1977-1978 GMC K35; 1970-1974 GMC K35/K3500 Pickup; 1979 GMC K3500; 1971-1974 GMC Sprint; 1971 Oldsmobile 442; 1971-1972 Oldsmobile Cutlass; 1971-1972 Oldsmobile Delta 88; 1971-1972 Oldsmobile Vista Cruiser; ...
