Centerforce / DF145117

Part #: DF145117
UPC: 788442024586

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: Dual Friction Clutch Kits

Description: Dual Friction(R), Clutch Pressure Plate and Disc Set; The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Cancer - www.P65Warnings.ca.gov

Description

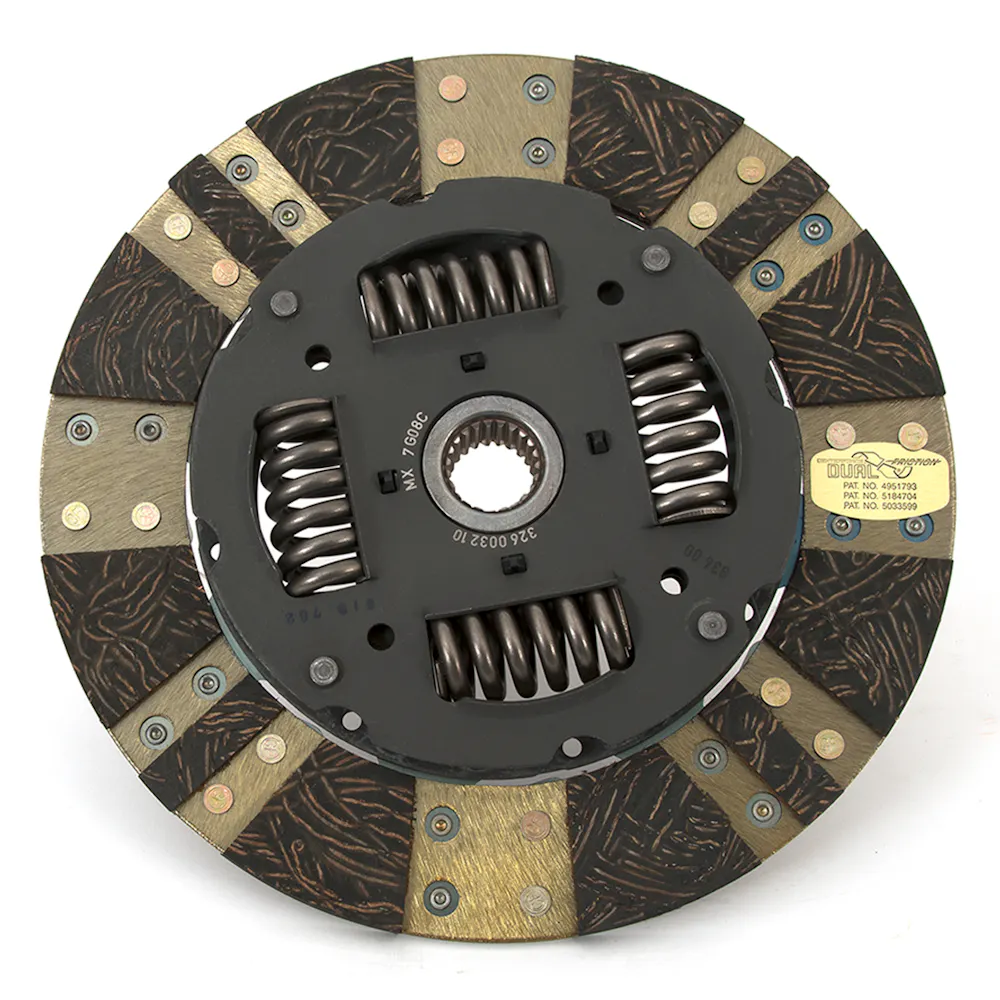

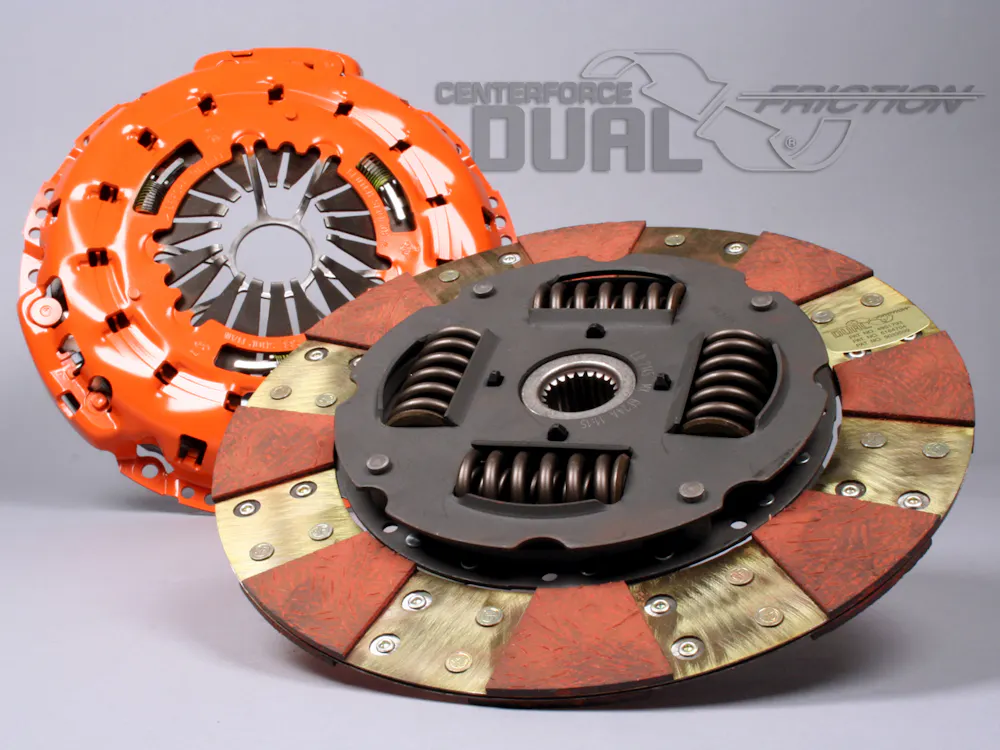

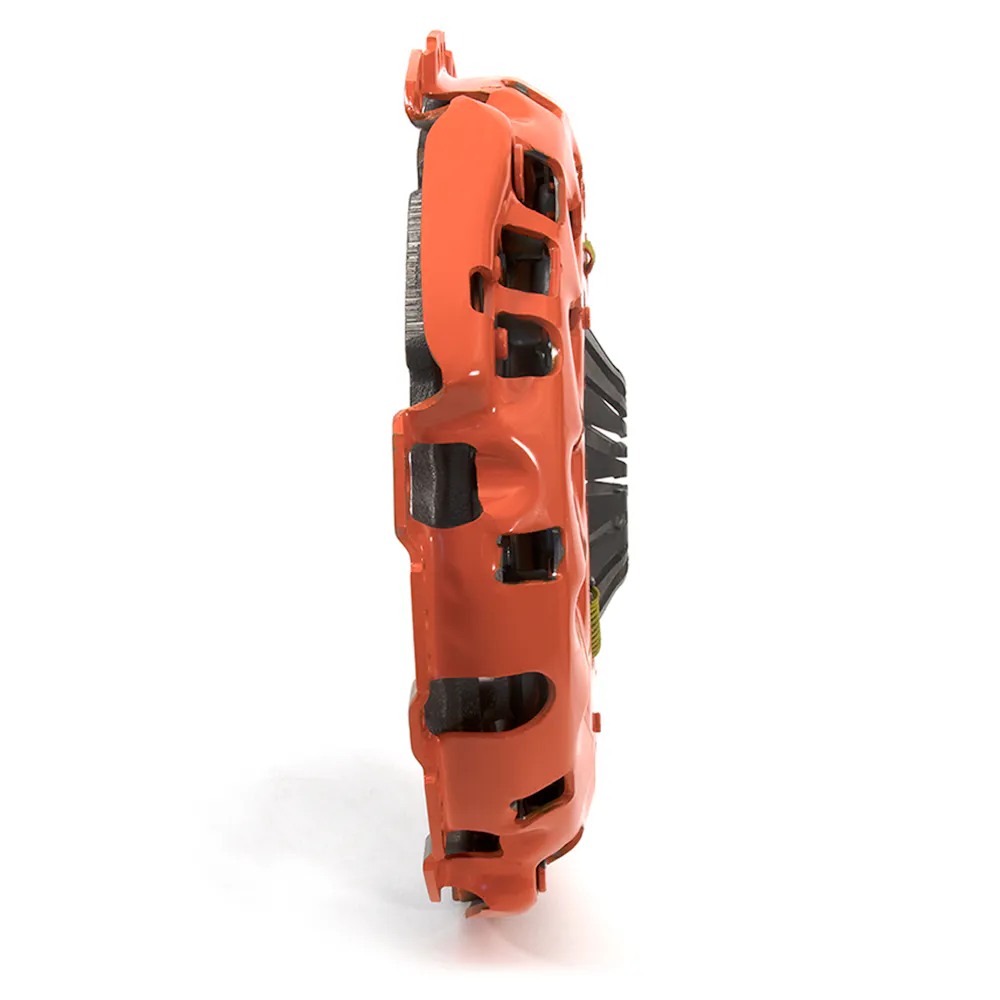

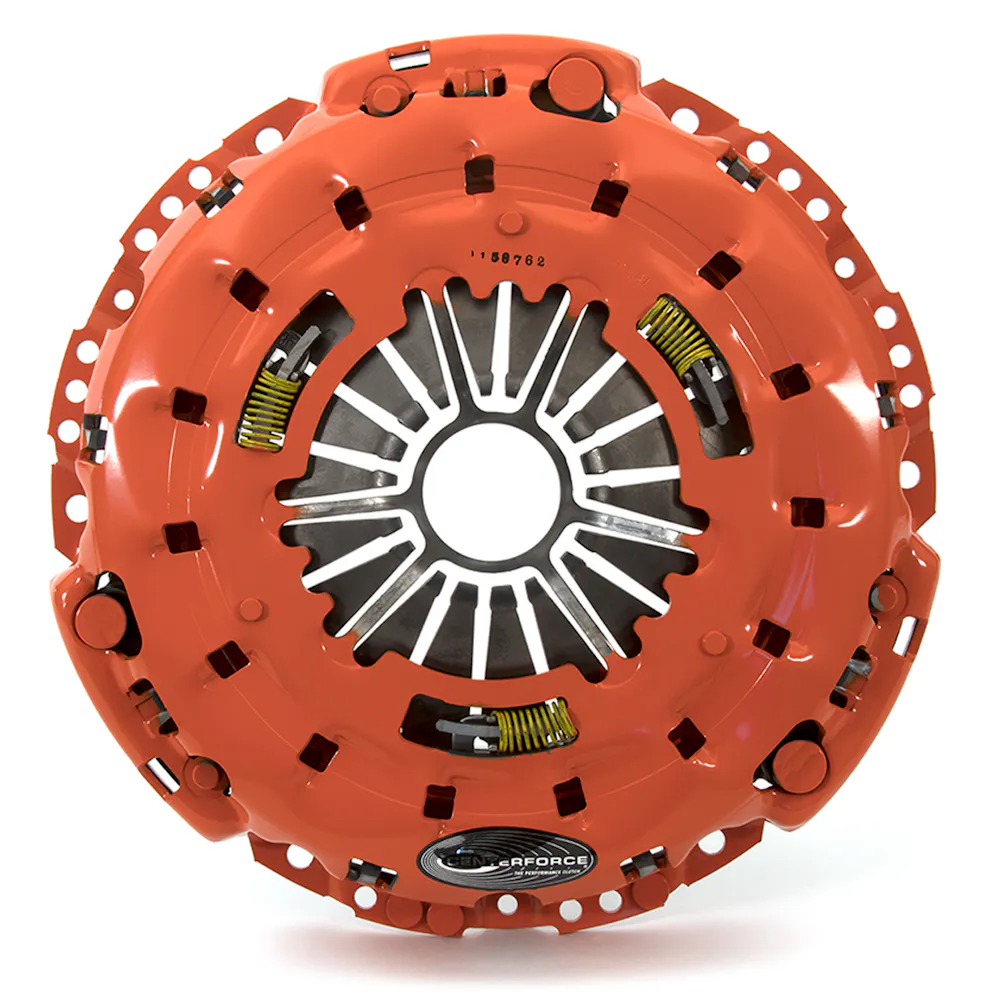

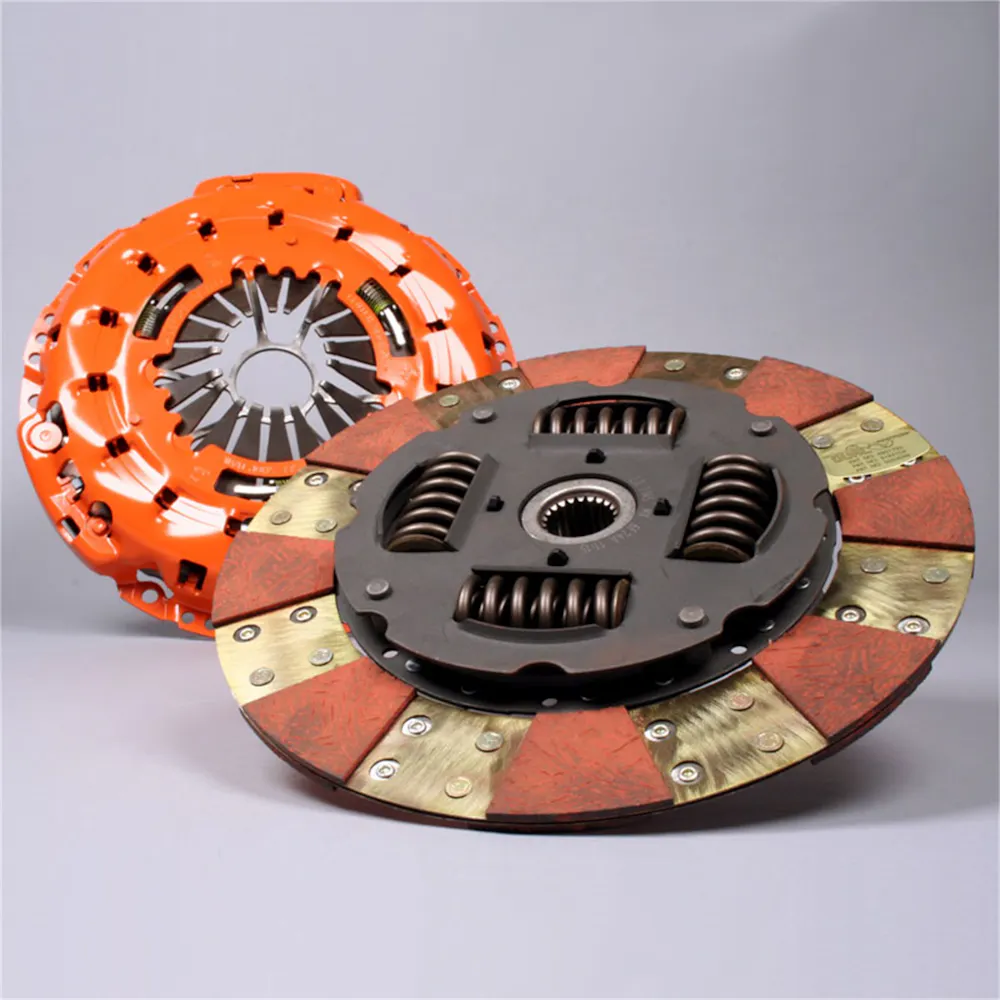

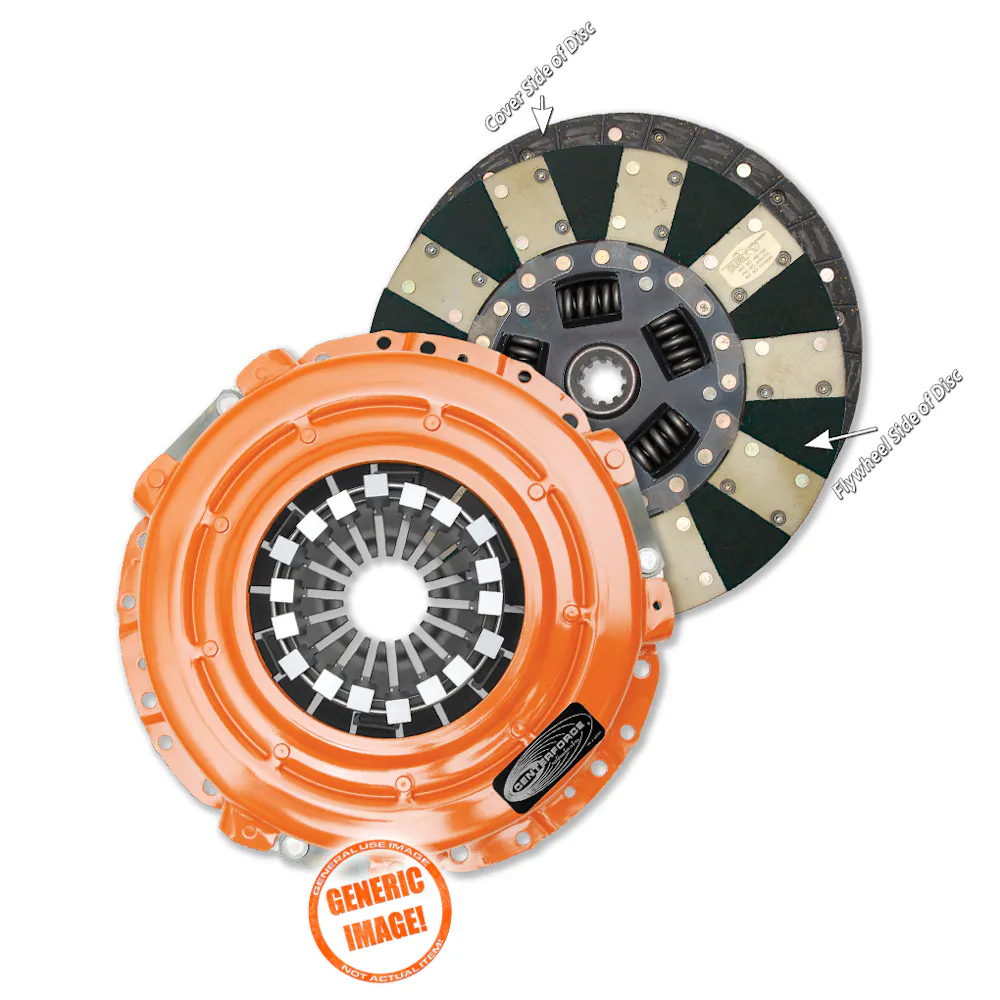

The Centerforce(R) Dual Friction(R) Clutch Series is a performance matched pressure plate & disc combination featuring the patented Centerforce centrifugal weight system (where applicable) and specialized machining processes to provide a performance clutch that offers exceptional street characteristics, while offering outstanding holding-capacity and durability. Furthermore, the Centerforce Dual Friction disc has an organic full facing on one side for longevity and an organic segmented facing on the other side providing increased holding capacity. Some applications have the organic segmented facings of both sides. The Dual Friction clutch is engineered for those who are looking for the ultimate in street/strip holding power and performance without sacrificing pedal effort and driver control. While the Dual Friction has been engineered primarily as a street clutch it can be used in mild competition applications.

Application summary

Year	Make / model
2001-2002	Ford Explorer
2001-2003	Ford Explorer Sport Trac
2001-2011	Ford Ranger

Specifications

GTIN: 00788442024586
Weight: 20.1 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1

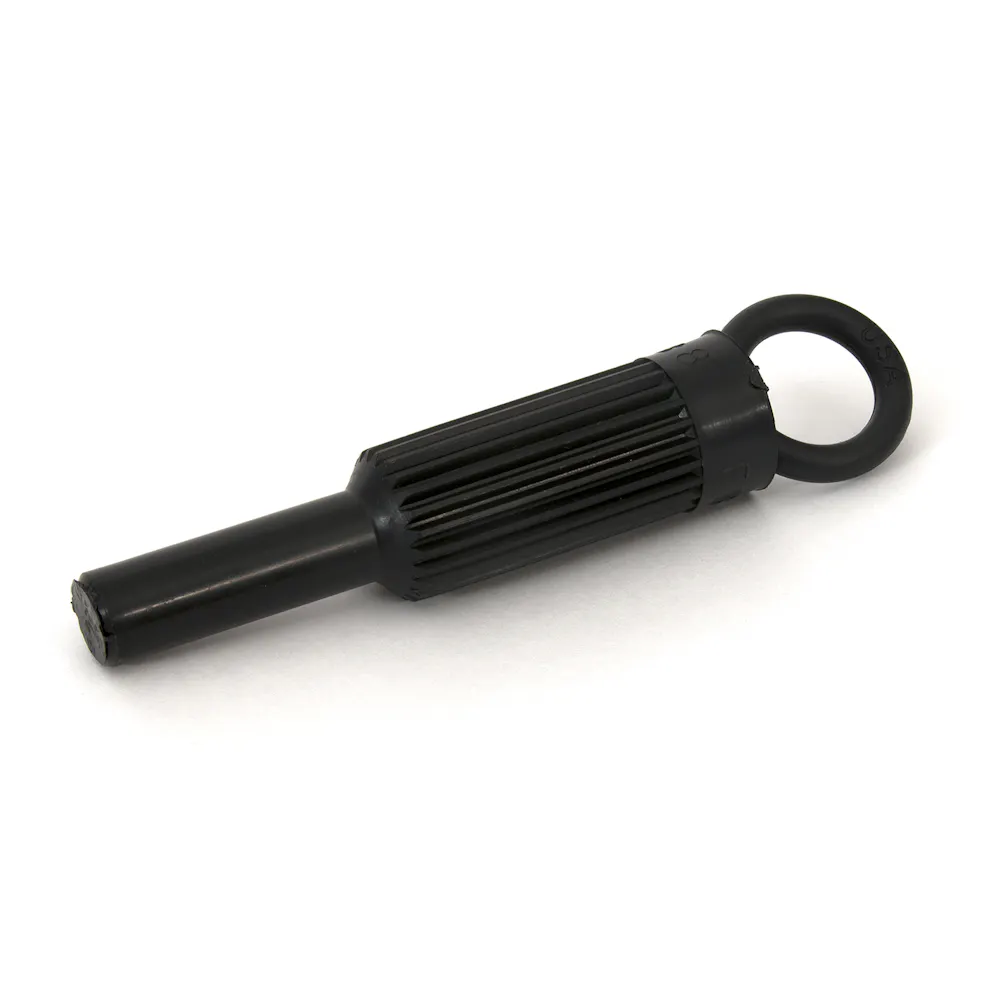

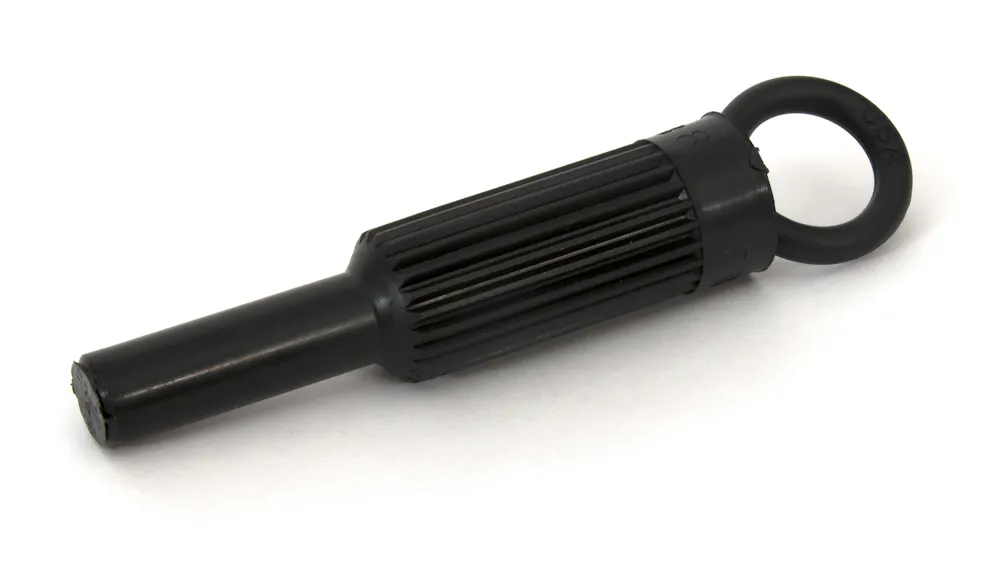

Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Centrifugal Weights: Without Centrifugal Weights
Clutch Disc Diameter: 254.0
Counterweight Assist: No
Disc Material: Organic/Carbon Composite

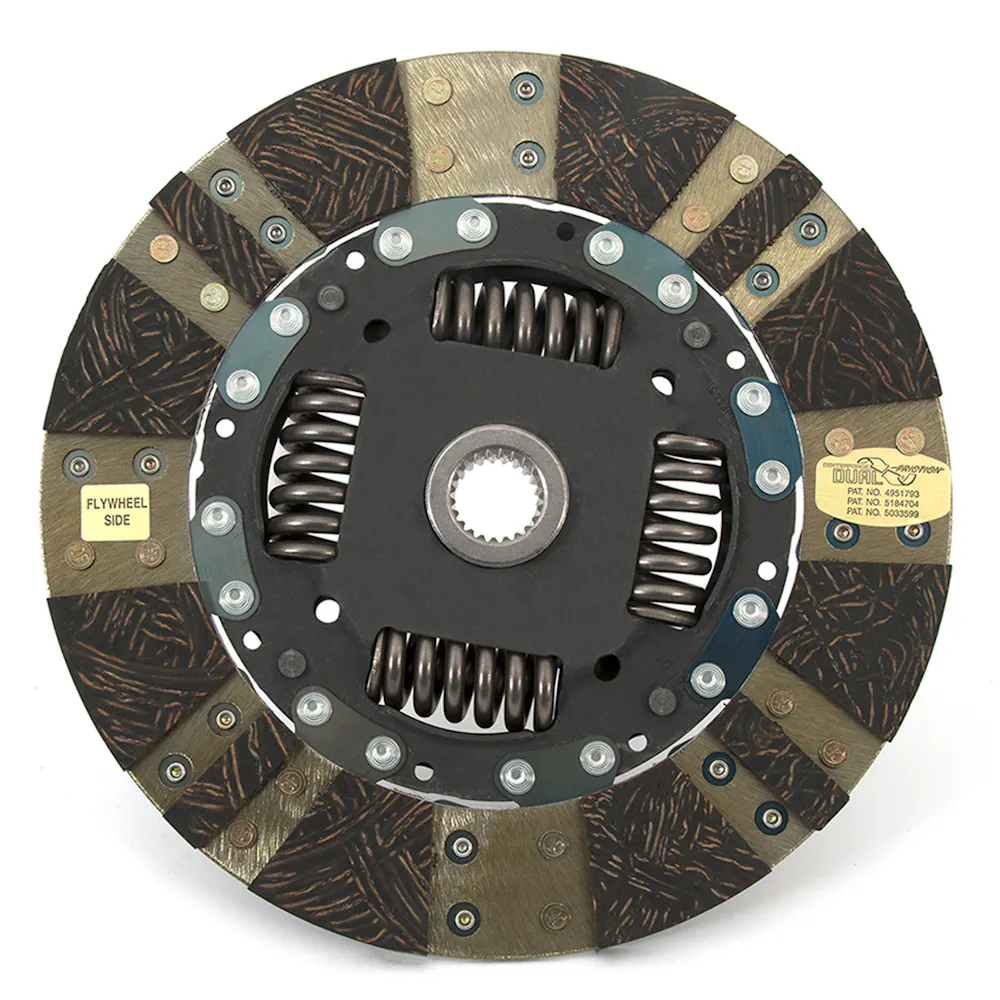

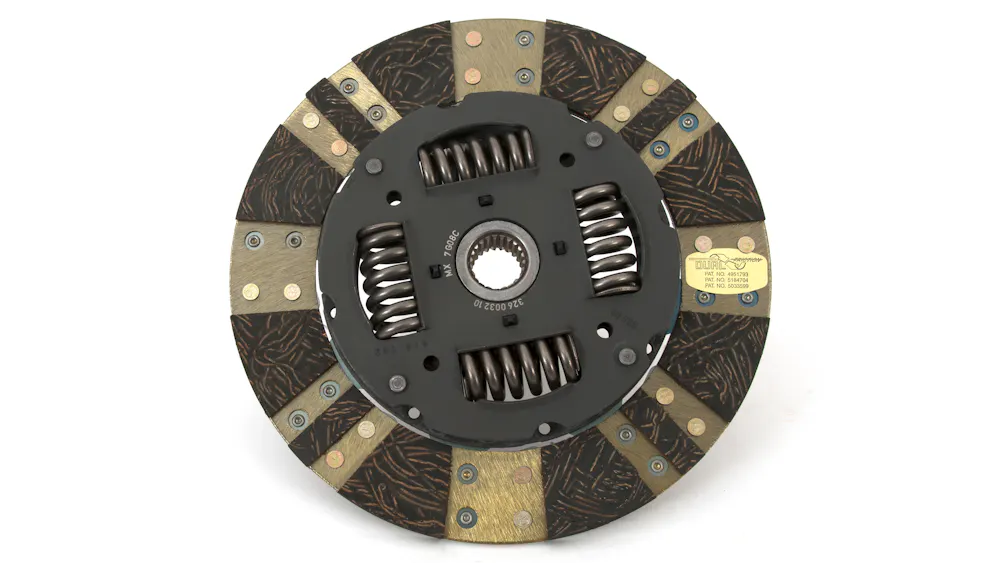

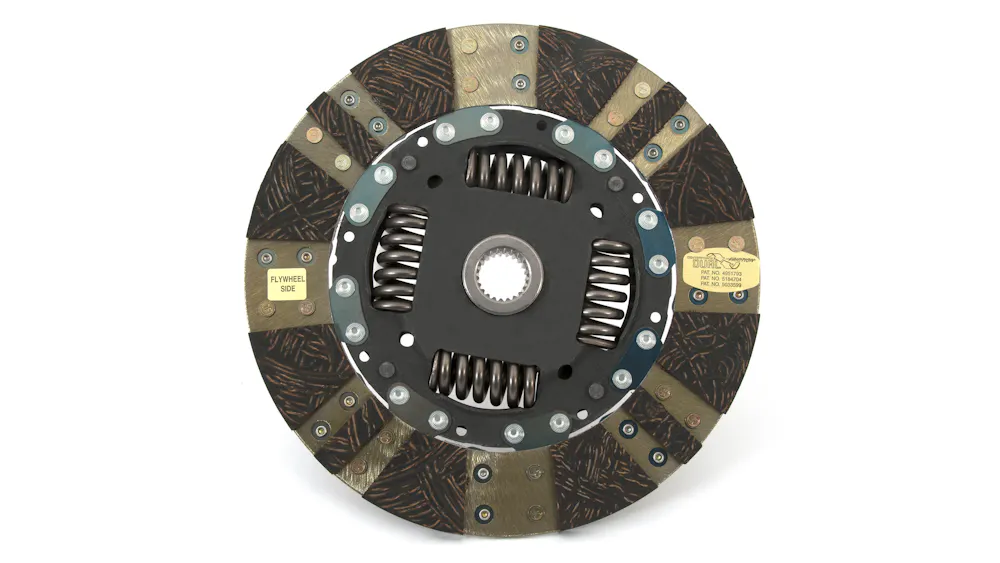

Disc Type: Segmented face
Disc Type Sprung Solid: Sprung

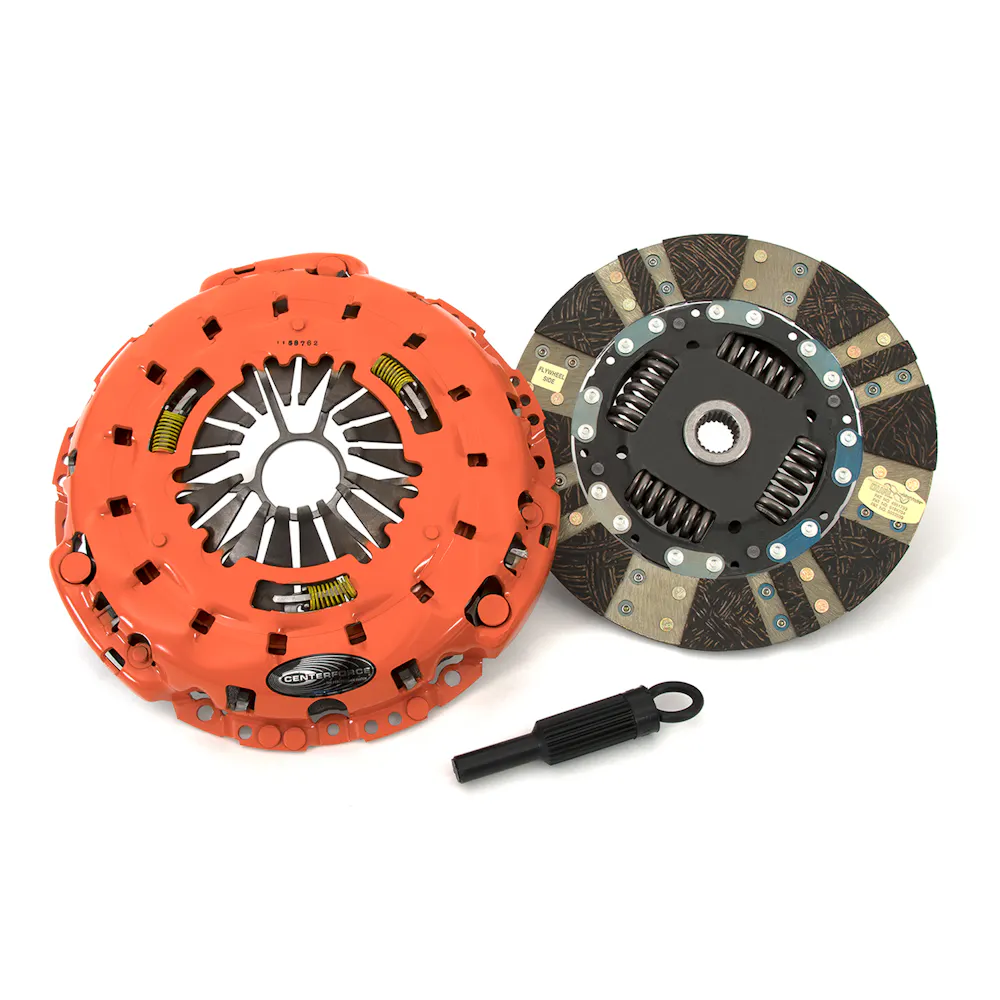

Includes: Pressure Plate, Disc, Alignment Tool
Input Shaft Diameter: 1
Input Spline Quantity: 23M
Made In The USA: Assembled

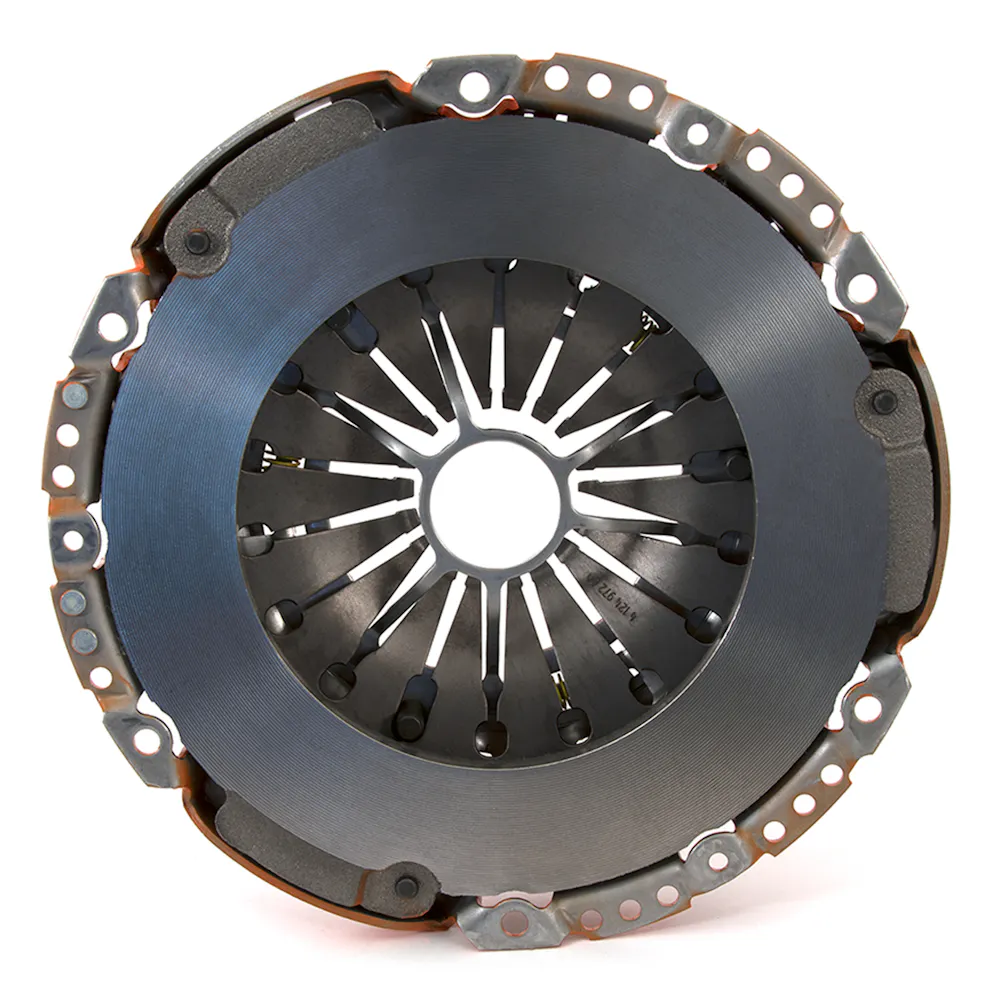

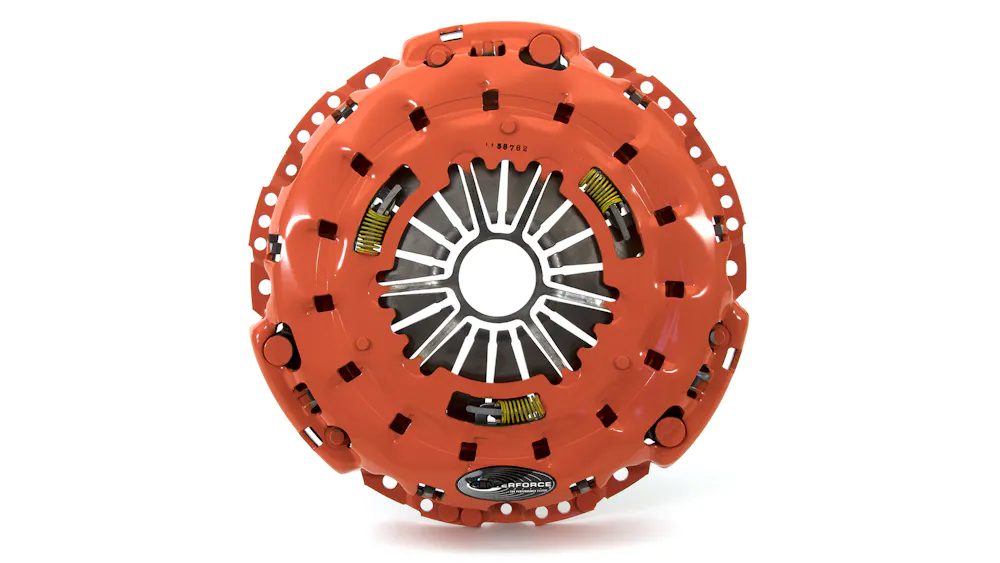

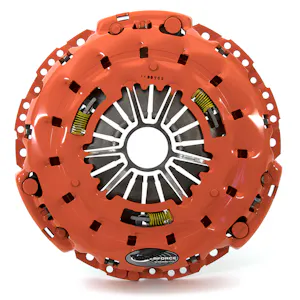

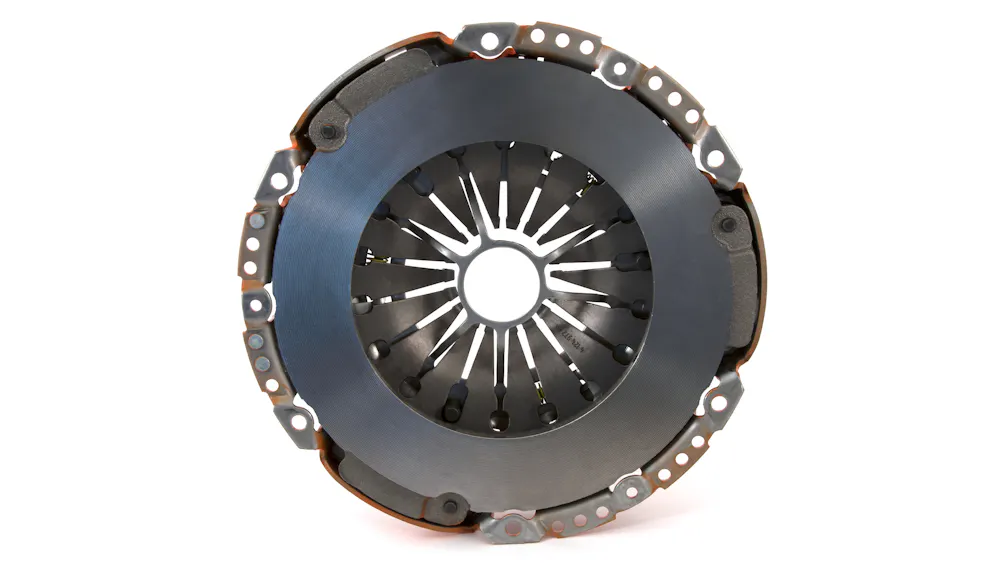

Material: Cast Iron Pressure Plate / Segmented Organic Friction
Outside Diameter of Friction Surface (Standard): 10-1/8
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 1"-23M
Title: Centerforce Dual Friction ?, High Performance Clutch Pressure Plate and Disc Set, 265 ft/lbs Capacity, 10.125in Dia., 23M-Spline, Fits Ford/Mazda Trucks 4.0L
Torque Capacity: 265
