Centerforce · CFT116116
Part #: CFT116116
UPC: 788442026092
Log in for inventory
Notify me when this item is in stock.

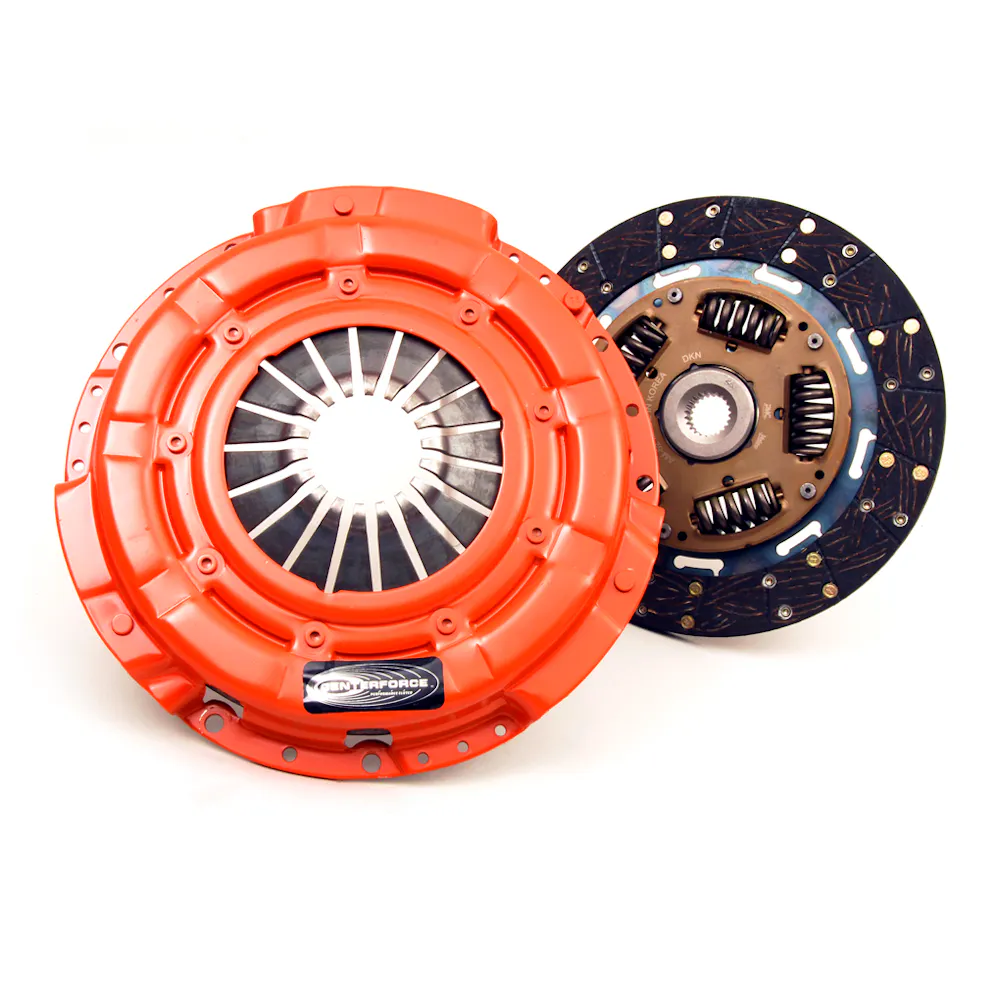

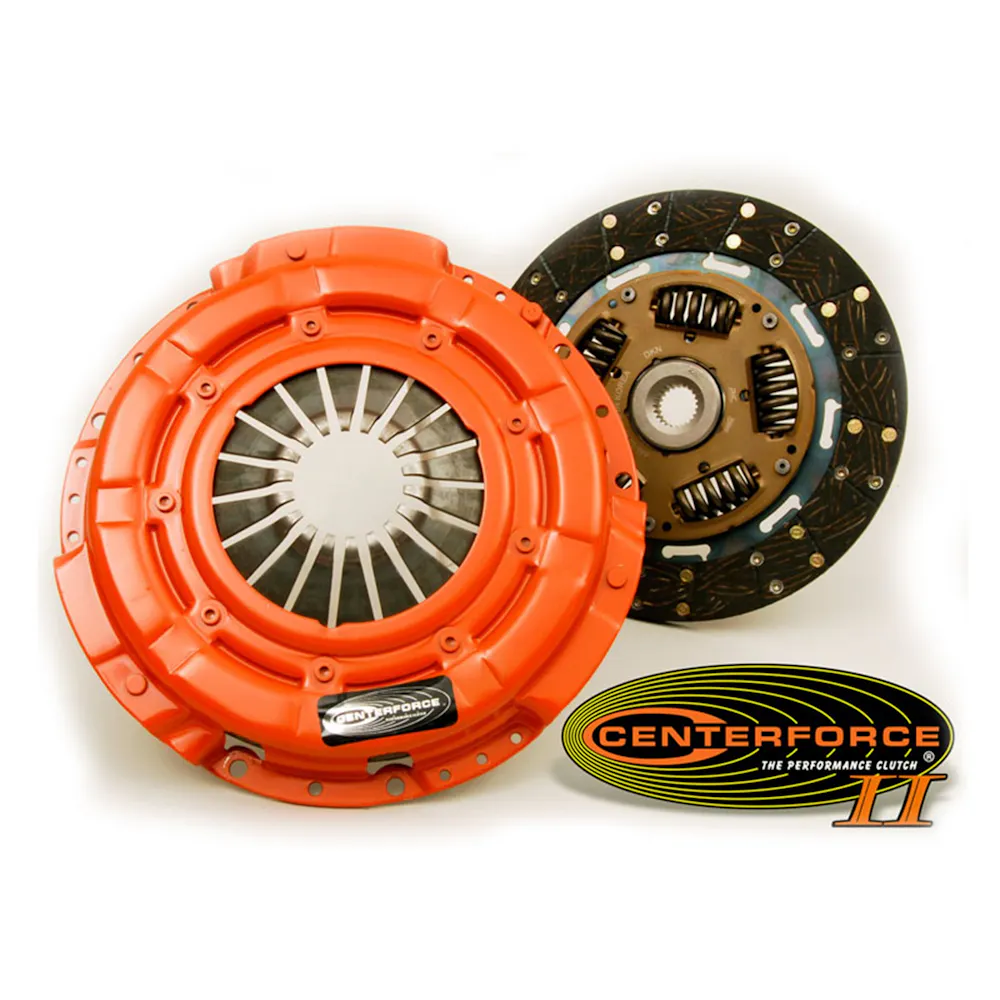

Description: Centerforce(R) II, Clutch Pressure Plate and Disc Set; Centerforce(R) II Clutch Series utilizes our centrifugal weights and patented machining processes for superb holding power and maximum clutch life.
Description:
This part number superseded CFT360116.
Description
The Centerforce(R) II Clutch Series utilizes a full facing disc with premium friction material and a pressure plate with centrifugal weights (where applicable). Furthermore, static clamp load is increased via our patented machining processes; this combination allows superb holding power and maximum clutch life, making this clutch ideal for selected street/strip, off-road and towing applications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce II Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1991-1997 | Ford Explorer |
| 1990-1997 | Ford Ranger |
Specifications
- GTIN
- 00788442026092
- Weight
- 19.1 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Centrifugal Weights
- Without Centrifugal Weights
- Clutch Disc Diameter
- 252
- Counterweight Assist
- No
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23M
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Organic Friction
- Outside Diameter of Friction Surface
- 260
- Outside Diameter of Friction Surface (Metric)
- 260
- Outside Diameter of Friction Surface (Standard)
- 10-5/16
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1"-23M
- Title
- Centerforce ? II, Performance Clutch Pressure Plate and Disc Set, 516 ft/lbs Capacity, 9.9375in Dia., 23M-Spline, Fits Ford/Mazda Trucks 4.0L
- Torque Capacity
- 516
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1991-1997 Ford Explorer; 1990-1997 Ford Ranger
