Centerforce · CF276506
Part #: CF276506
UPC: 788442013924
Log in for inventory
Notify me when this item is in stock.
Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.
Description:
Description
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1968-1973 | Nissan 510 |
| 1969-1972 | Nissan 521 Pickup |
| 1973 | Nissan 610 |
| 1972-1973 | Nissan 620 Pickup |
Specifications
- GTIN
- 00788442013924
- Weight
- 13.75 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 200
- Counterweight Assist
- YES
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step
- 0.004
- Flywheel Step Type
- STEP
- Friction Surface Configuration
- STEP
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 24
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Organic Friction
- Outside Diameter of Friction Surface
- 200
- Outside Diameter of Friction Surface (Metric)
- 200
- Outside Diameter of Friction Surface (Standard)
- 7-7/8
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1"-24
- Title
- Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 154 ft/lbs Capacity, 7.875in Dia., 24-Spline, Fits Nissan Cars and Trucks 1.6L/1.8L
- Torque Capacity
- 154
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1968-1973 Nissan 510; 1969-1972 Nissan 521 Pickup; 1973 Nissan 610; 1972-1973 Nissan 620 Pickup

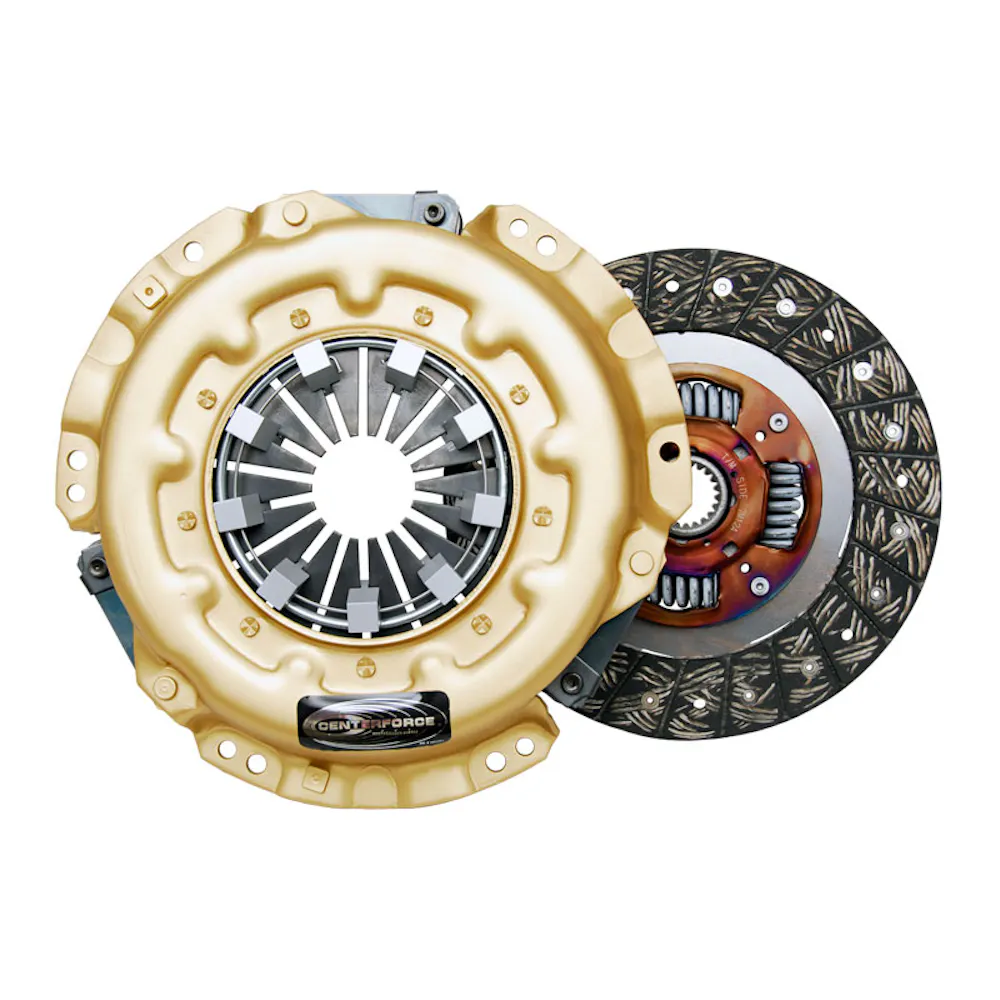

Centerforce CF276506
