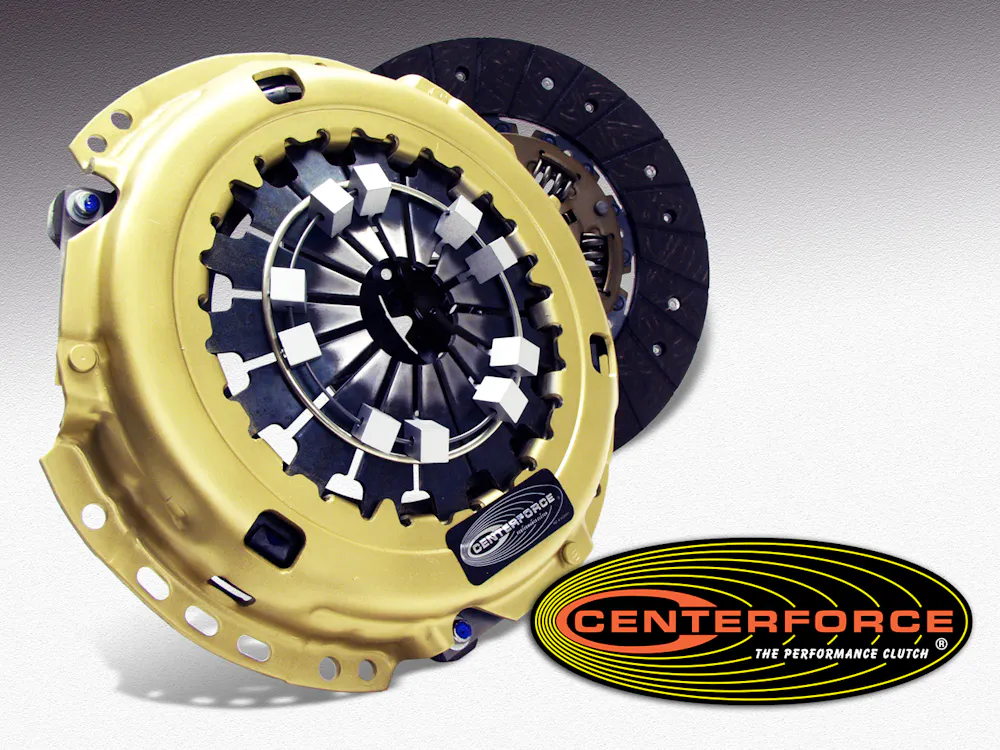

Centerforce · CF110501

Part #: CF110501
UPC: 788442013559

Loading availability... Log in for inventory

Notify me when this item is in stock.

Brand: Centerforce Series: Centerforce I Clutch Kits

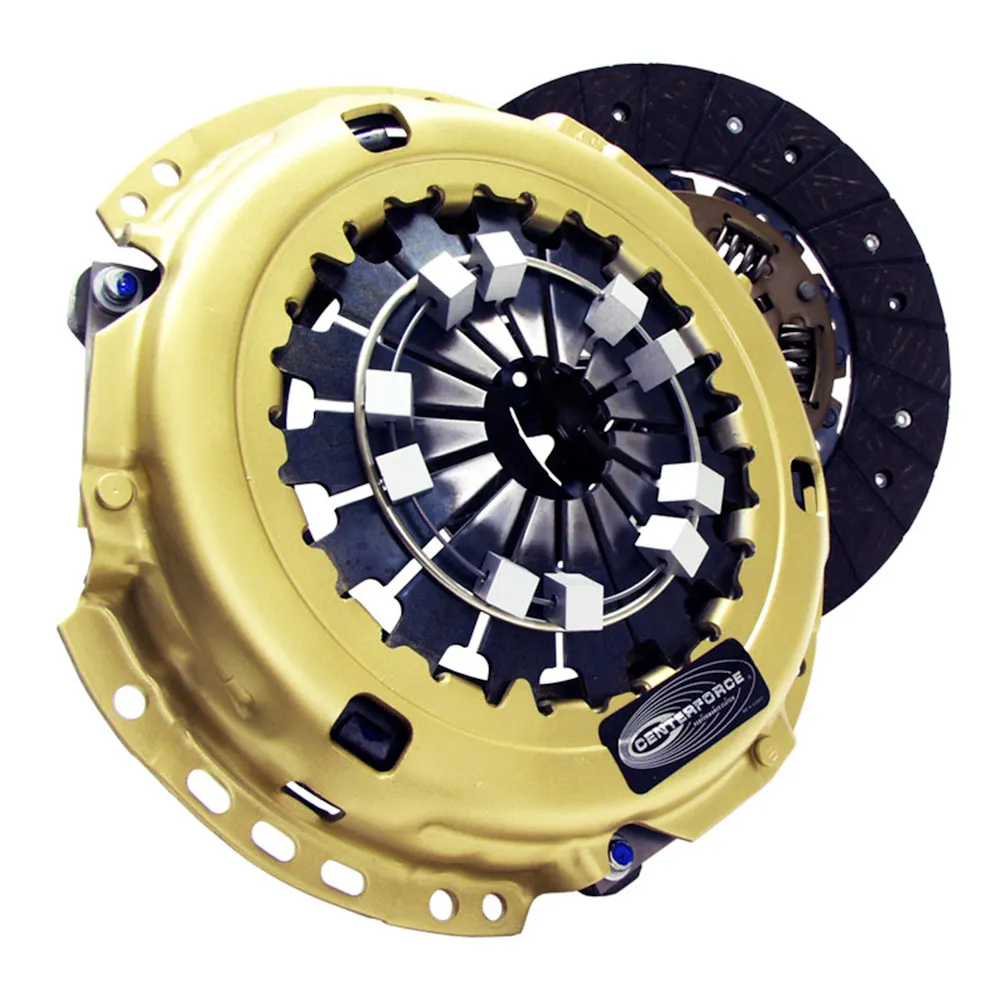

Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.

Cancer - www.P65Warnings.ca.gov

Description

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application summary

Year	Make / model
1988-1995	Toyota 4Runner
1988-1995	Toyota Pickup
1993-1994	Toyota T100

Specifications

GTIN: 00788442013559
Weight: 15.6 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1

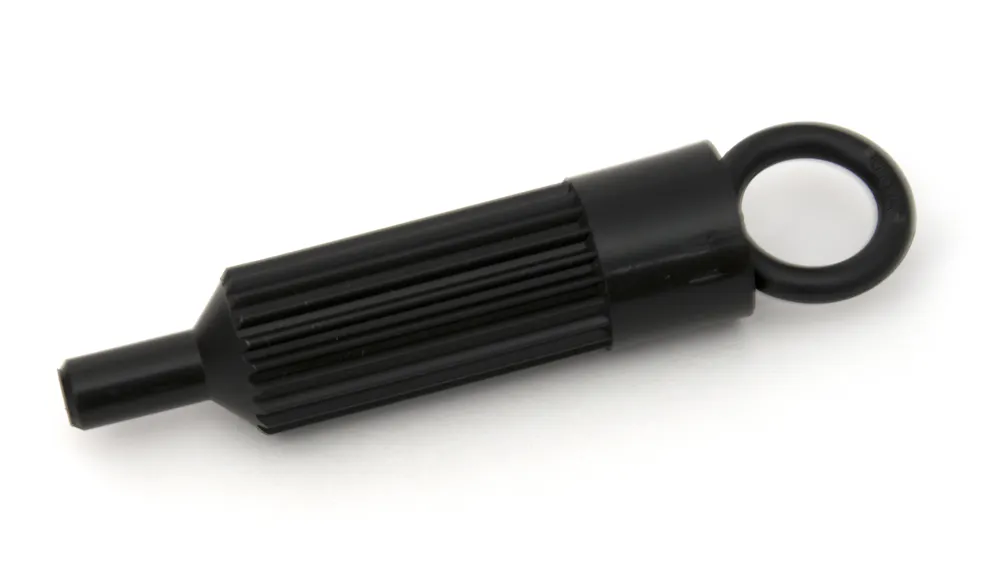

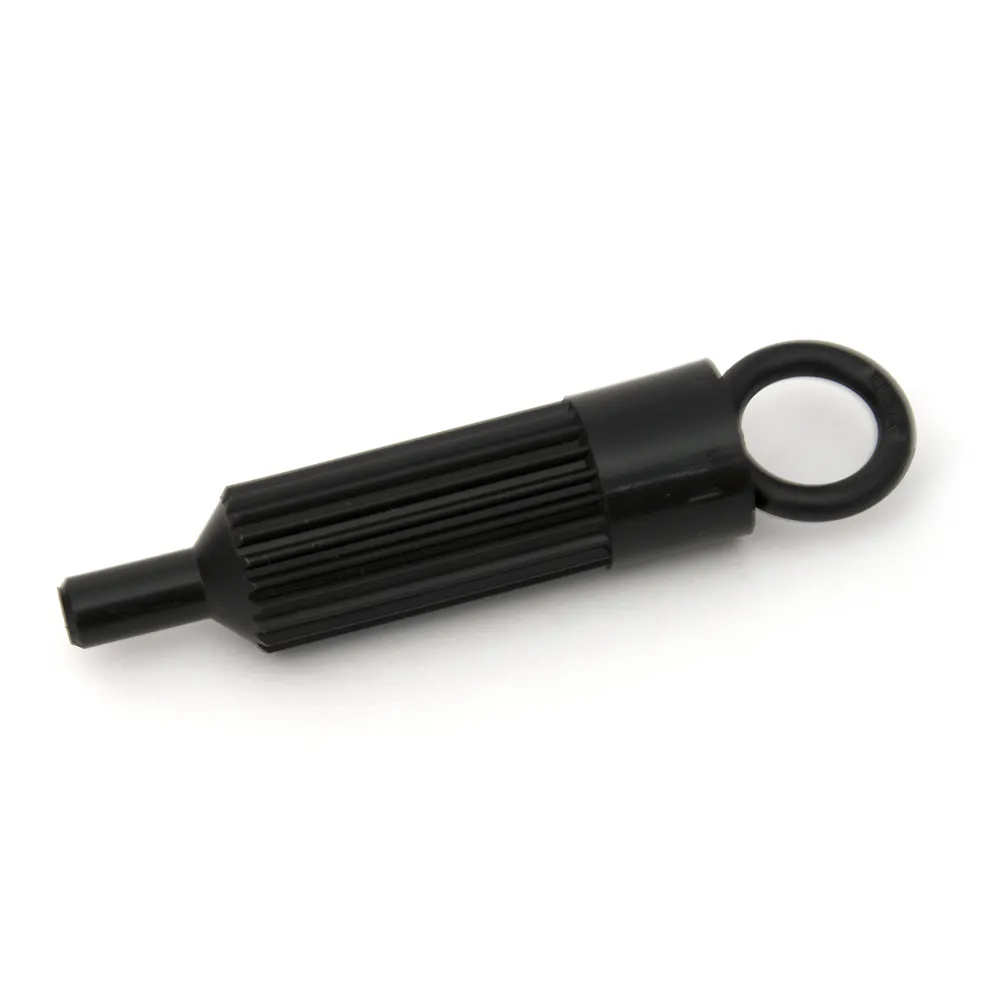

Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Bolt Pattern: 12
Clutch Disc Diameter: 236
Counterweight Assist: YES

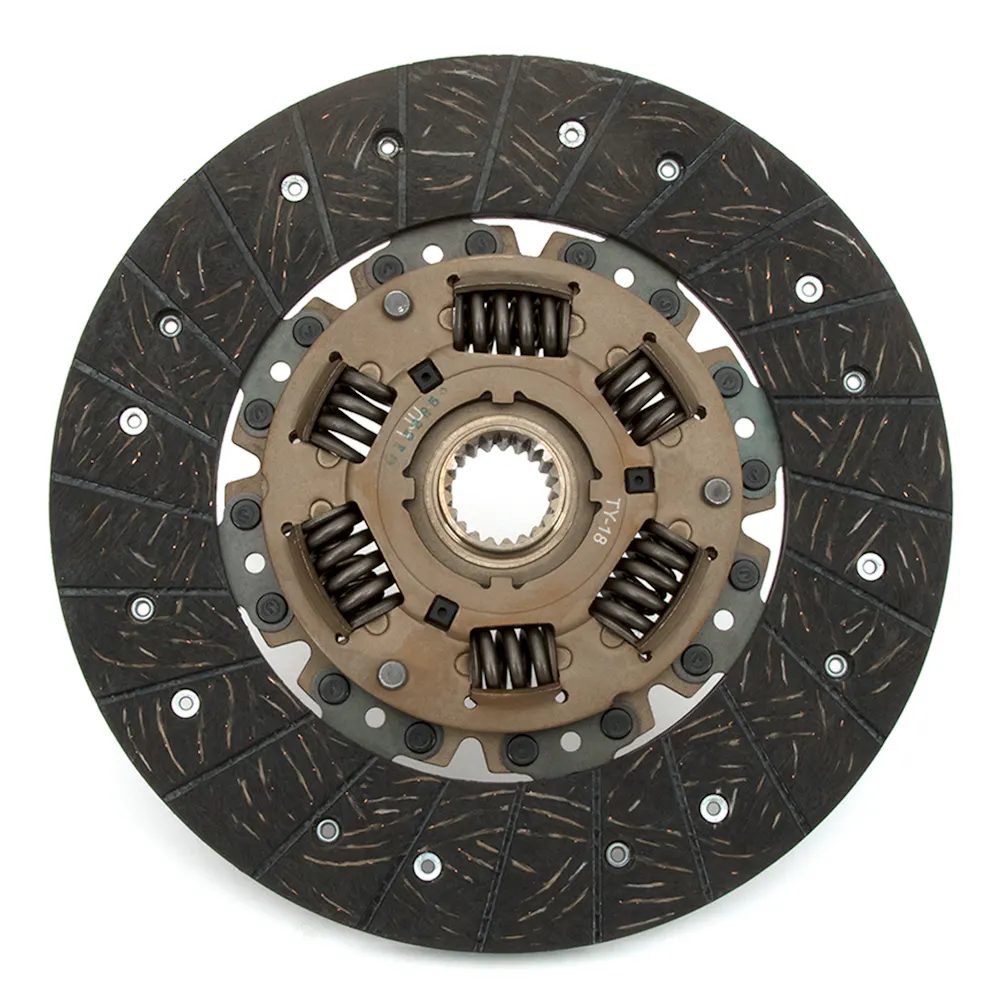

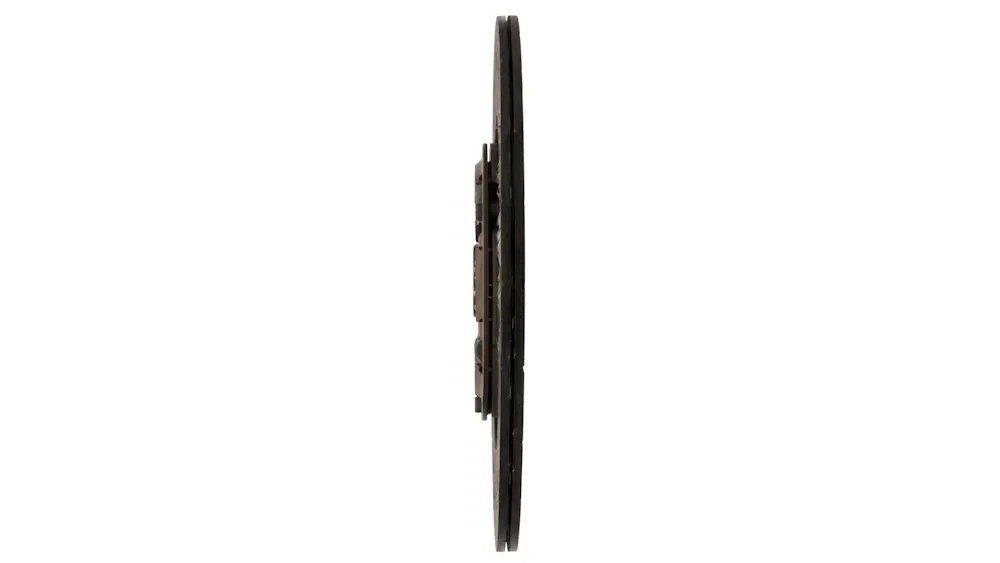

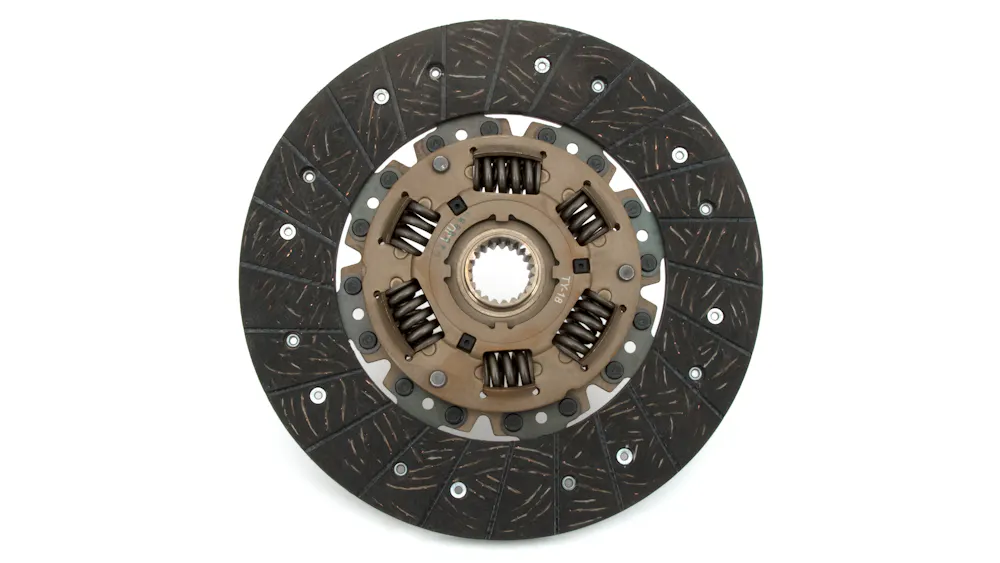

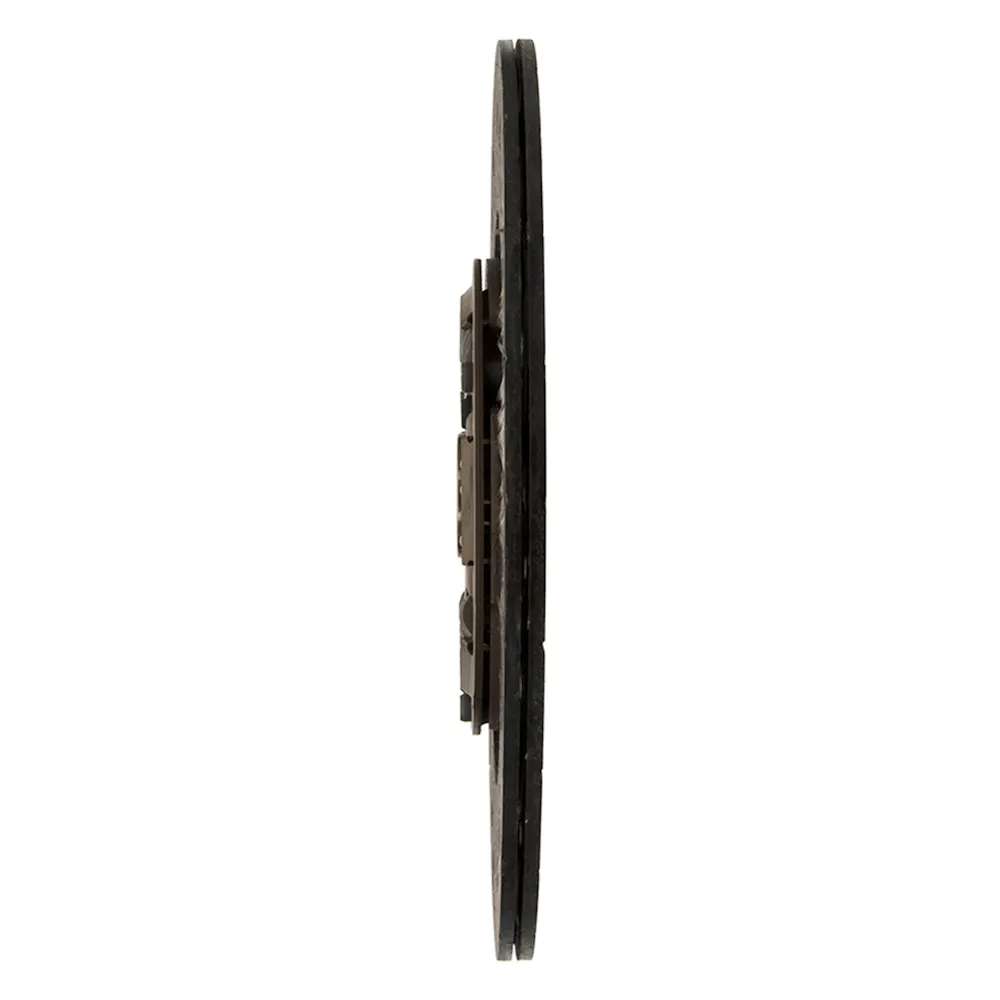

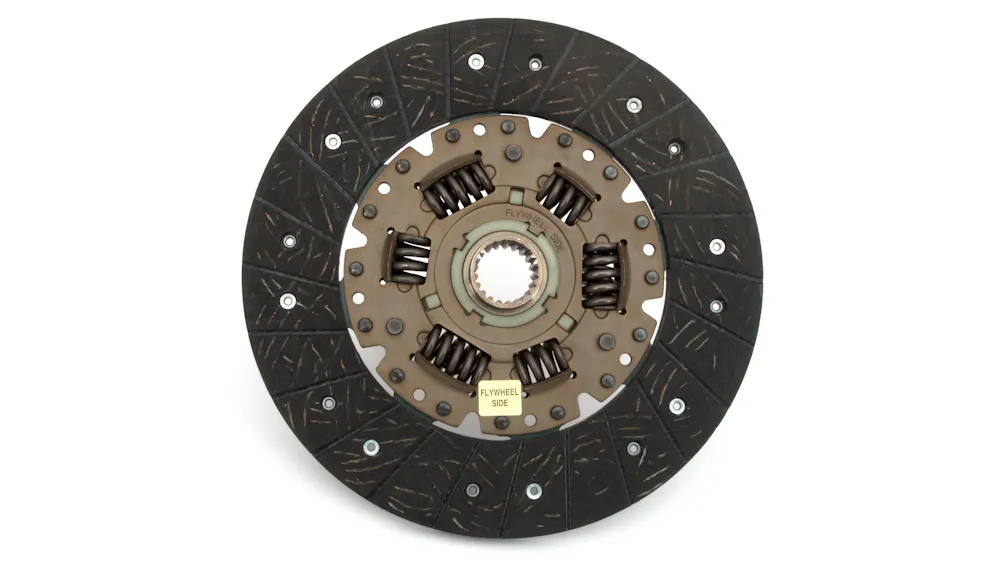

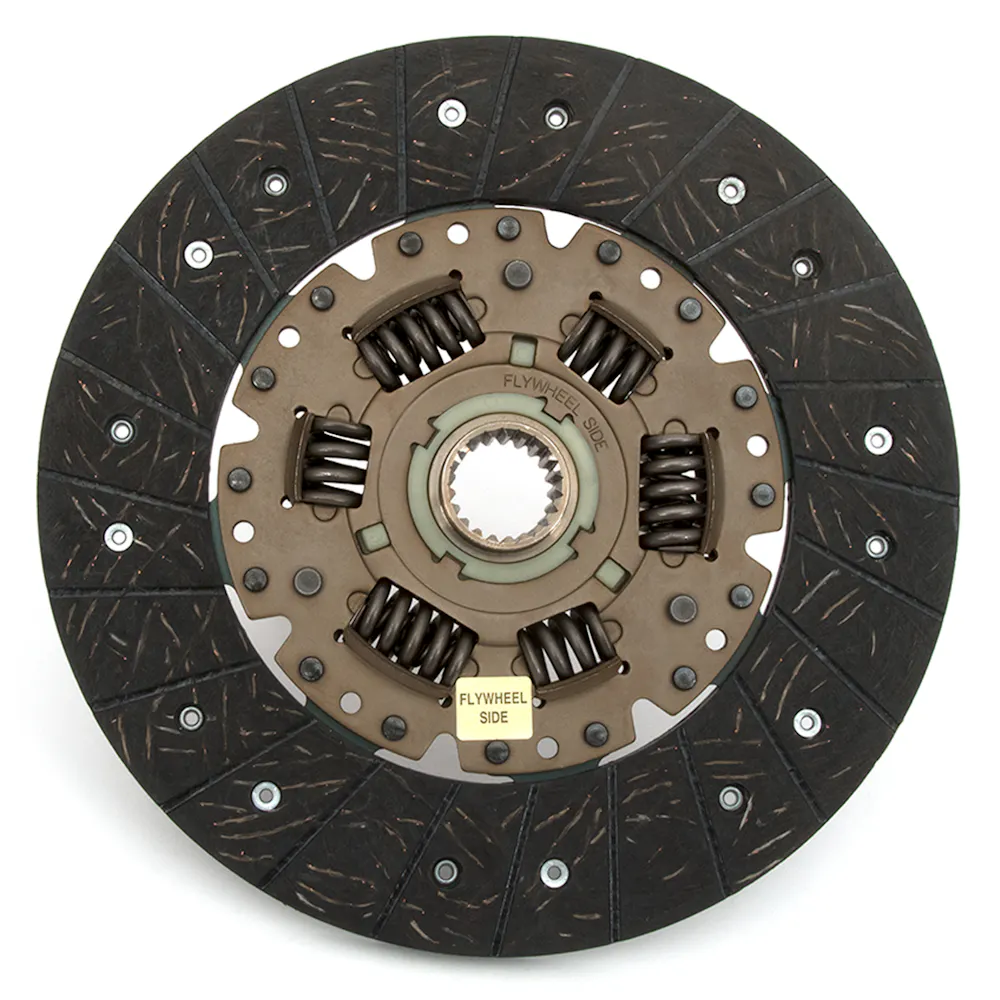

Disc Material: Organic
Disc Type: Full face
Disc Type Sprung Solid: Sprung
Flywheel Step: 0.018
Flywheel Step Type: STEP
Friction Surface Configuration: STEP

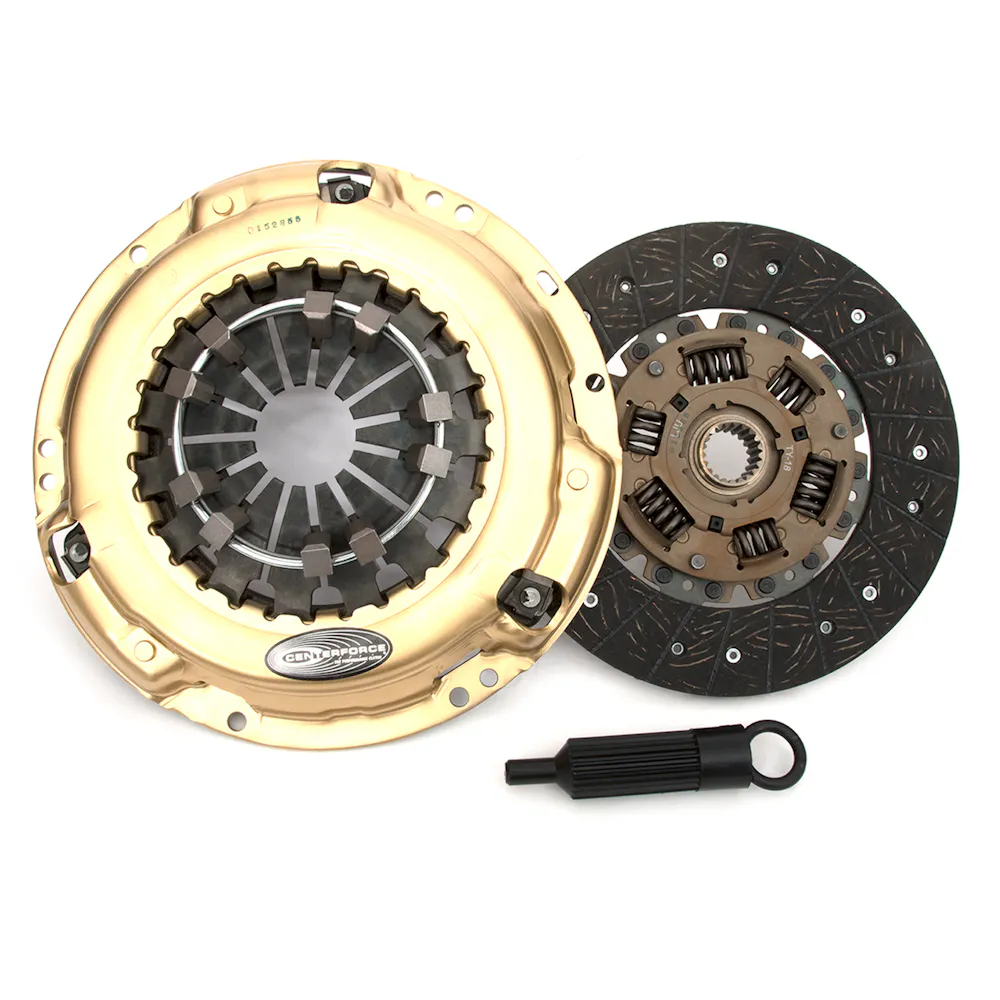

Includes: Pressure Plate, Disc, Alignment tool.
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 21
Made In The USA: Assembled

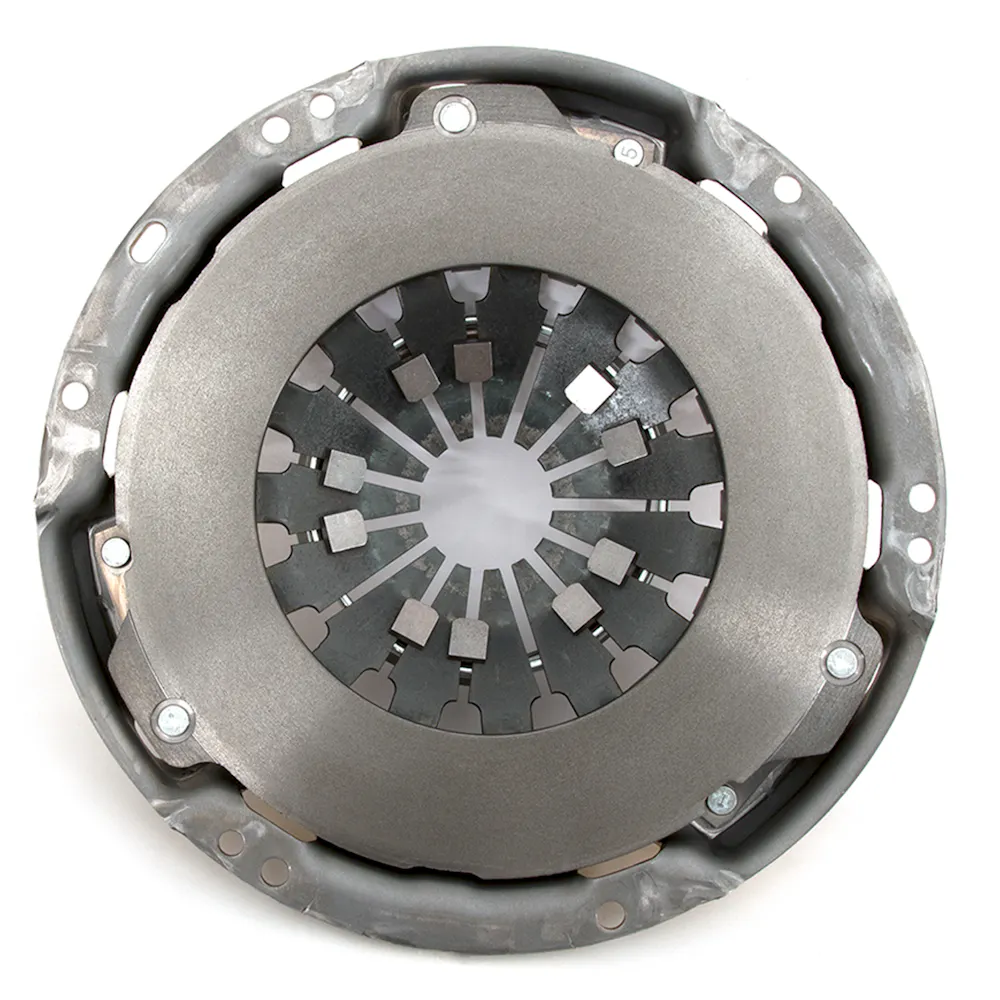

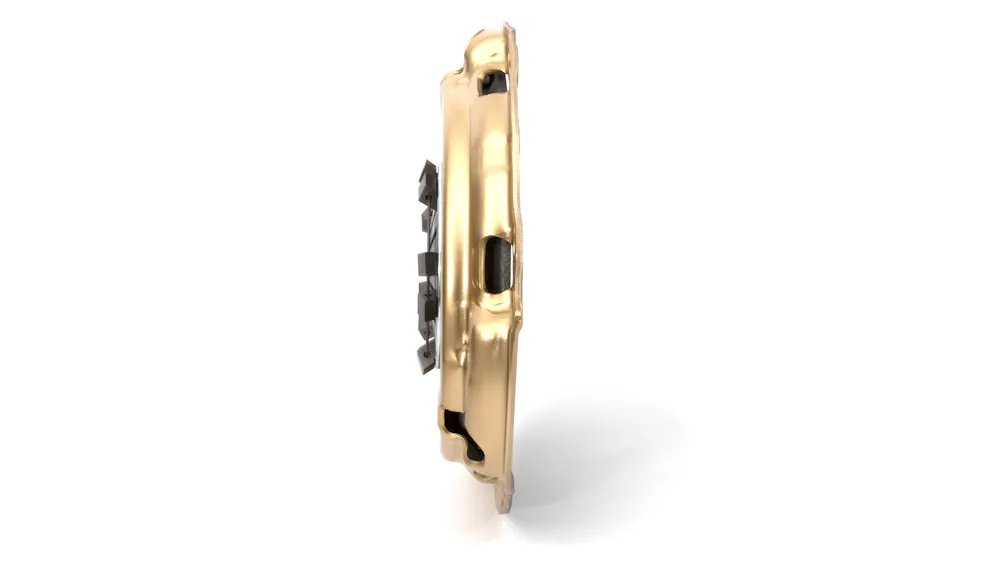

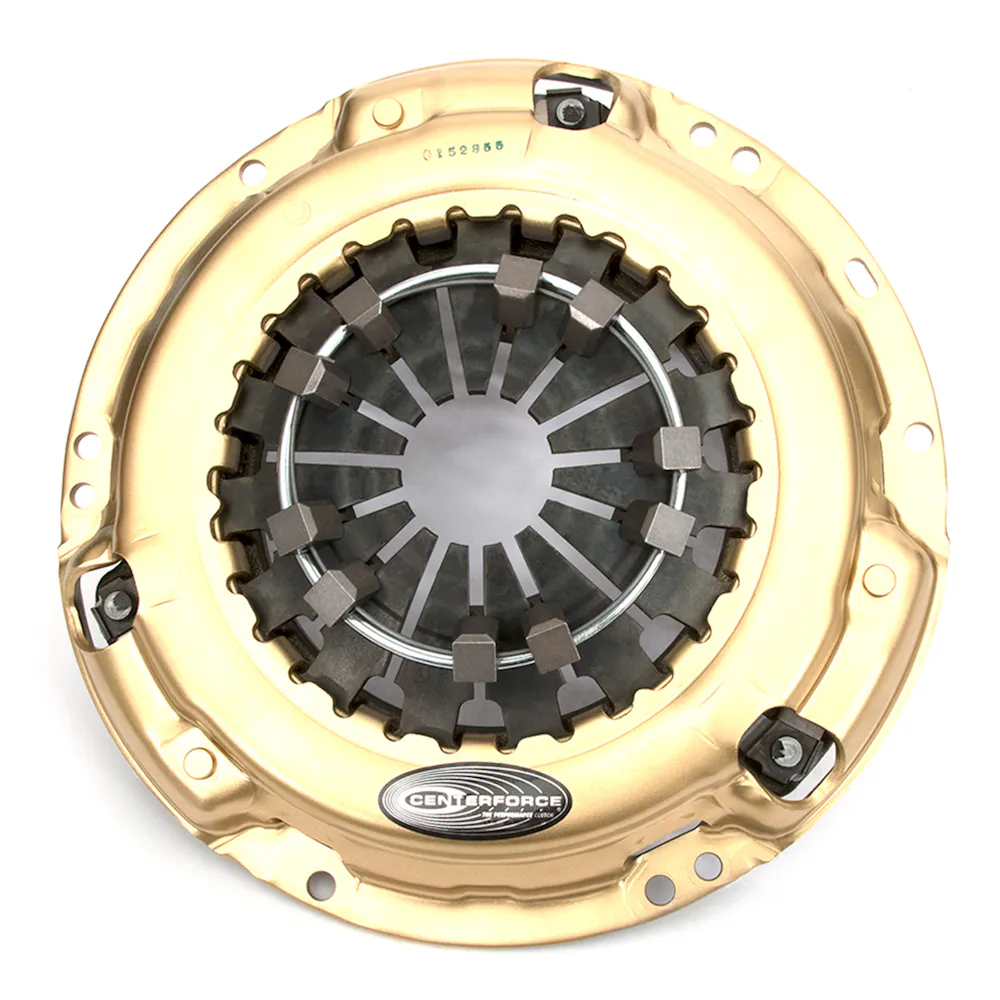

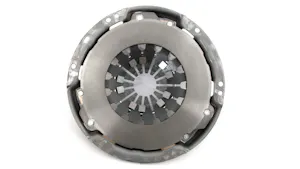

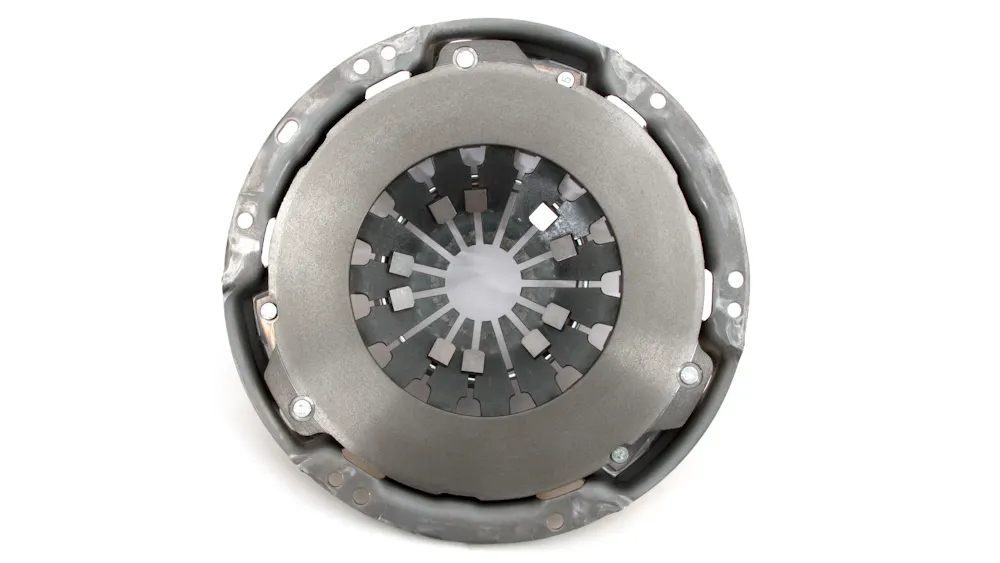

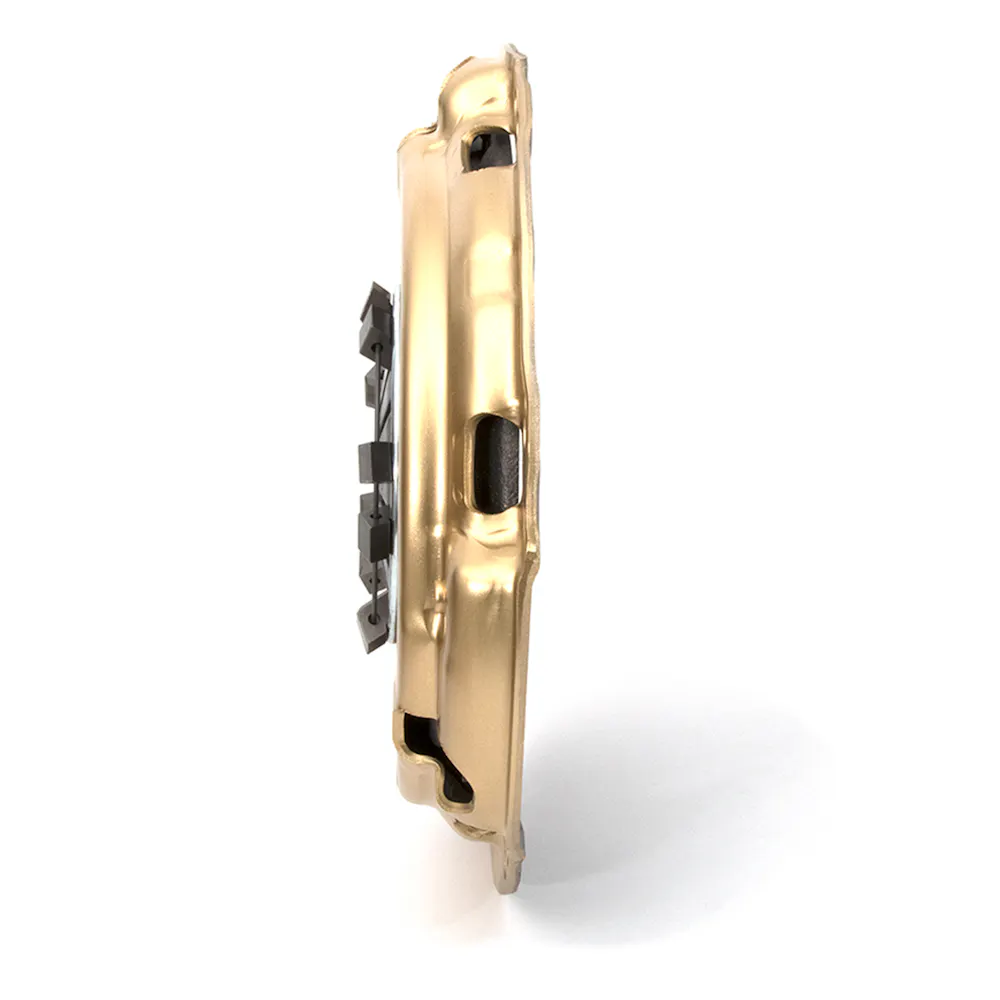

Material: Cast Iron Pressure Plate / Organic Friction
Outside Diameter of Friction Surface: 236
Outside Diameter of Friction Surface (Metric): 236
Outside Diameter of Friction Surface (Standard): 9-1/4
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 1-1/8"-21
Title: Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 309 ft/lbs Capacity, 9.250in Dia., 21-Spline, Fits Toyota Trucks 3.0L
Torque Capacity: 309
