Centerforce · CF101641
Part #: CF101641
UPC: 788442023442
Loading...
Notify me when this item is in stock.
Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.
Description:
Description
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1986-1991 | Mazda RX-7 |
| 2004-2009 | Mazda RX-8 |
Specifications
- GTIN
- 00788442023442
- Weight
- 17.6 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 240
- Counterweight Assist
- YES
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1
- Input Spline Quantity
- 23M
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Organic Friction
- Outside Diameter of Friction Surface
- 236
- Outside Diameter of Friction Surface (Metric)
- 236
- Outside Diameter of Friction Surface (Standard)
- 9-1/4
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1"-23M
- Title
- Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 249 ft/lbs Capacity, 9.4375in Dia., 23M-Spline, Fits Mazda RX-7 and RX-8 1.3L
- Torque Capacity
- 249
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1986-1991 Mazda RX-7; 2004-2009 Mazda RX-8

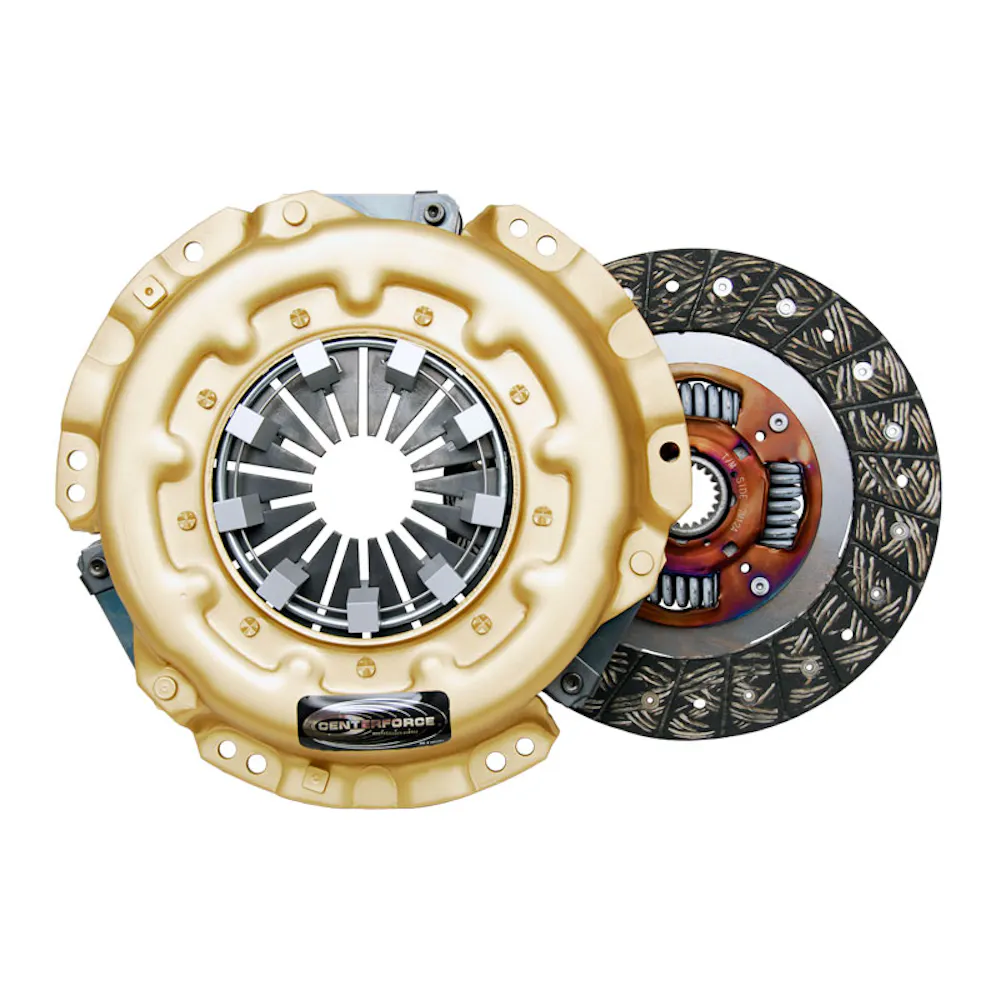

Centerforce CF101641
