Centerforce / CF020517

Part #: CF020517
UPC: 788442013139

Loading availability... Loading...

Notify me when this item is in stock.

Brand: Centerforce Series: Centerforce I Clutch Kits

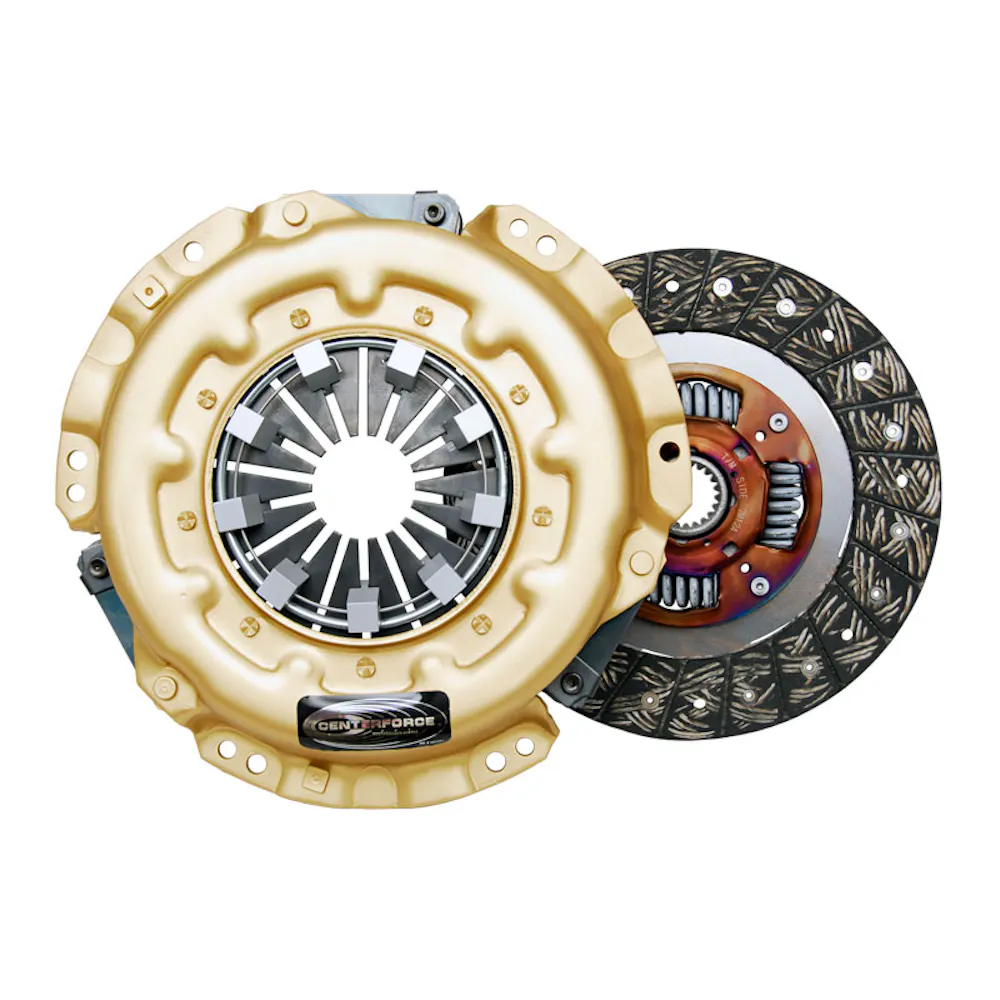

Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.

Cancer - www.P65Warnings.ca.gov

Description

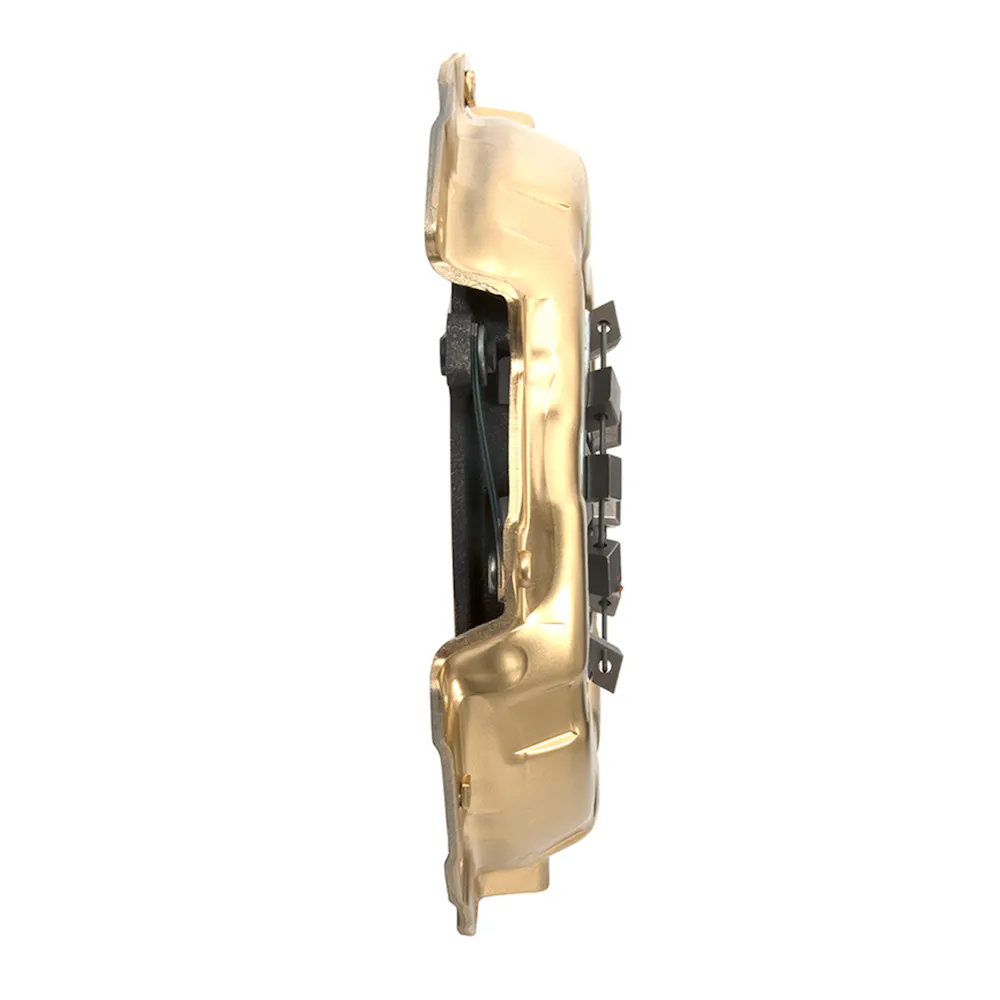

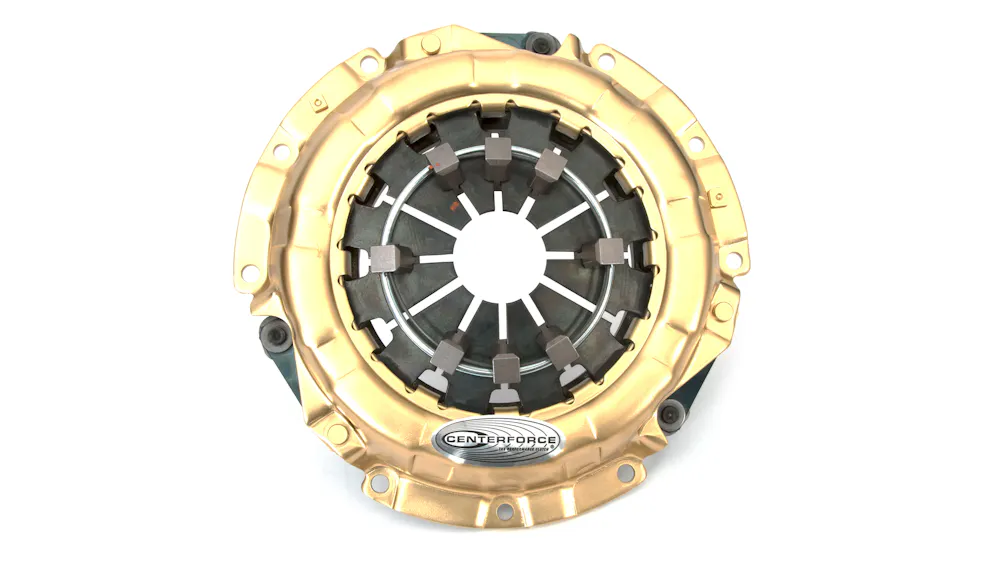

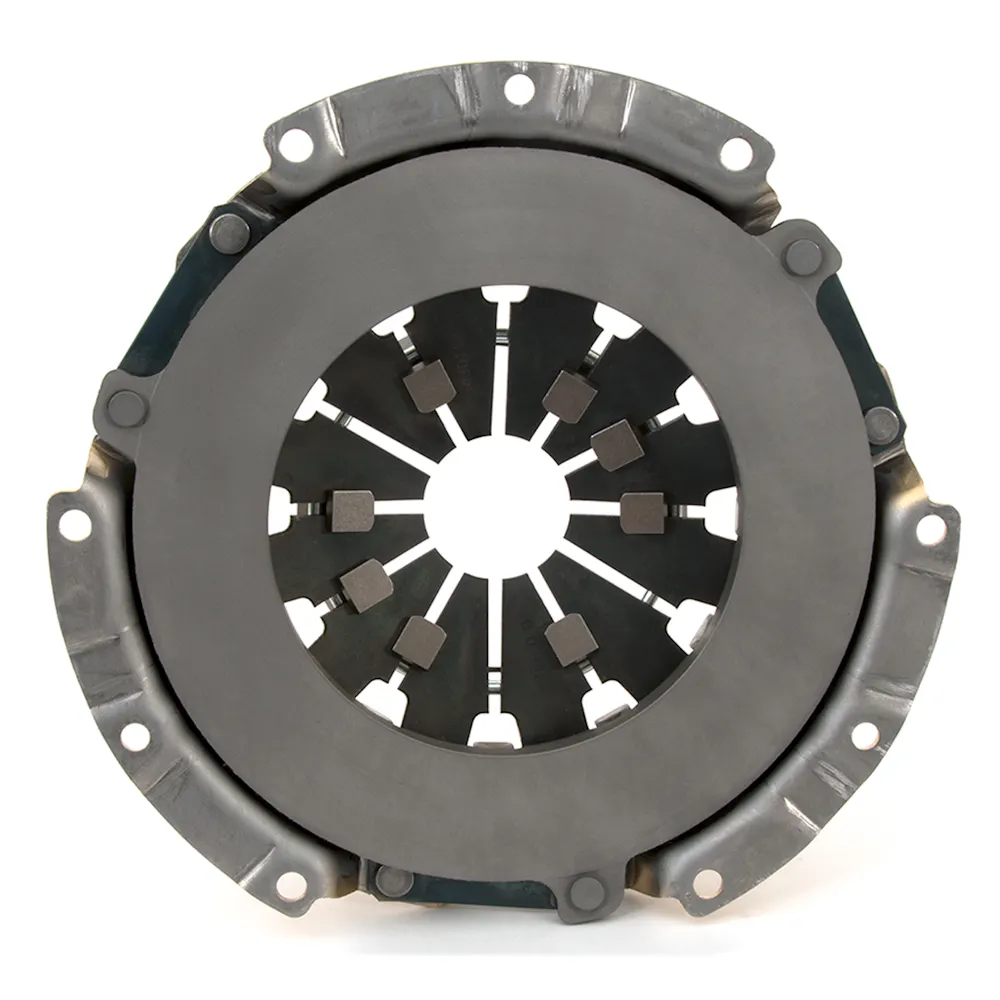

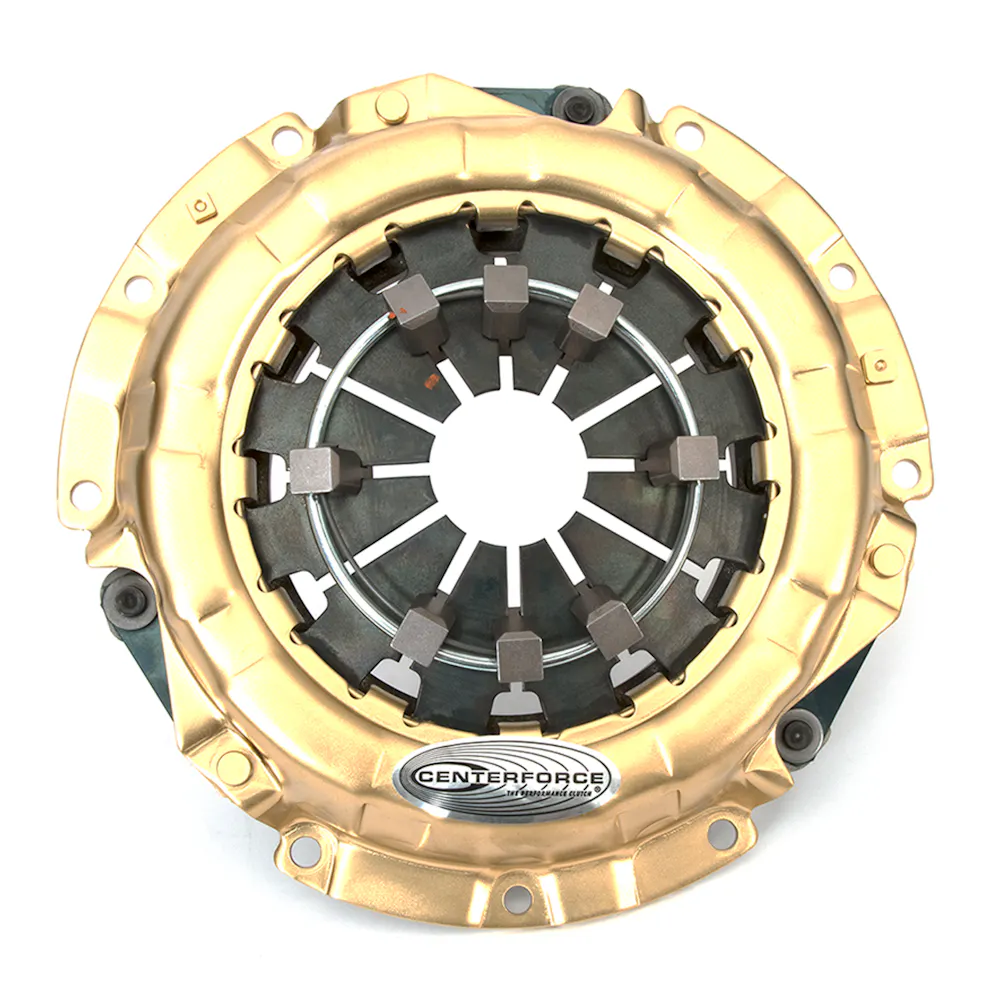

The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.

Application summary

Year	Make / model
1989-1995	Geo Tracker
1989-1991	Suzuki Sidekick

Specifications

GTIN: 00788442013139
Weight: 11.65 lb
Height: 4 in
Length: 14 in
Width: 14 in
EO: Legal US
Life cycle: Available to Order
AAM brand code: CEN
Warehouse brand code: CEN
AAIA brand code: BDPL

Attributes

AAM Standard Pack: 1

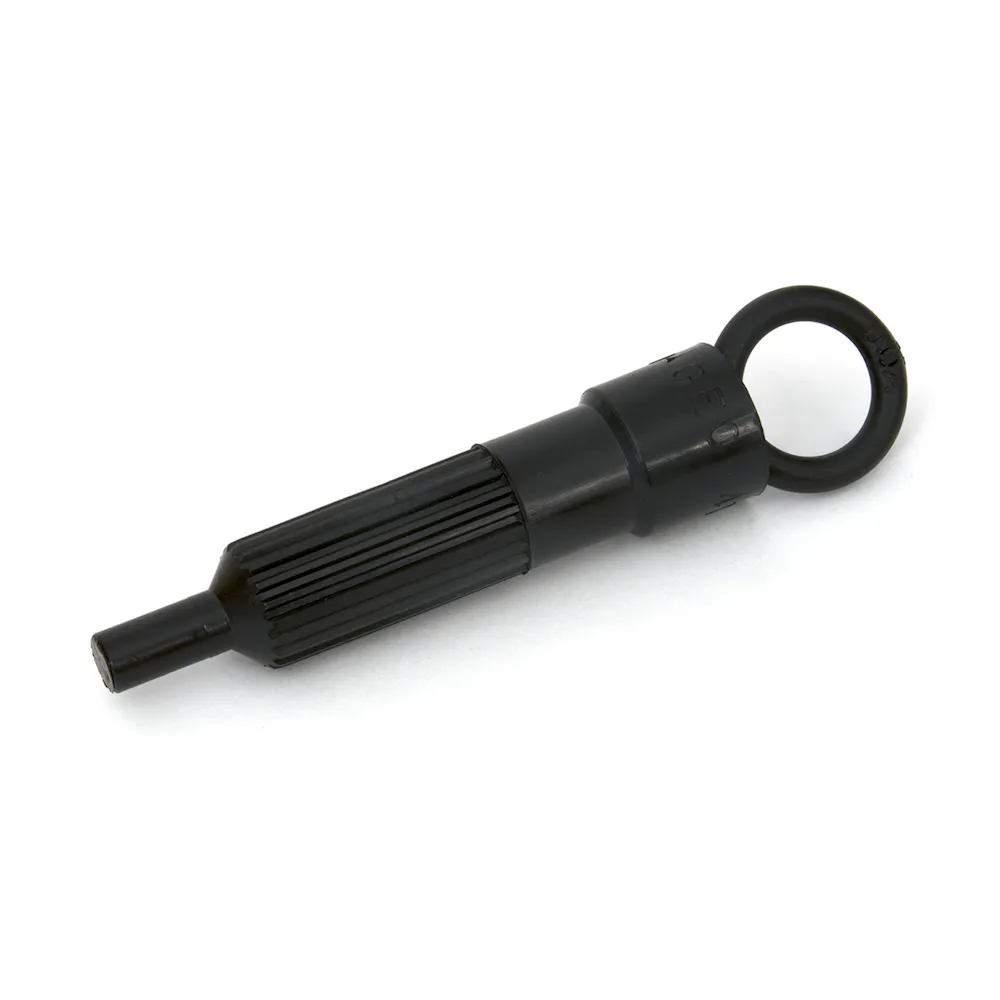

Alignment Tool Included: Yes
Attribute Data: 2
California Proposition 65: WARNING: Cancer - www.P65Warnings.ca.gov
Clutch Disc Diameter: 215
Counterweight Assist: YES

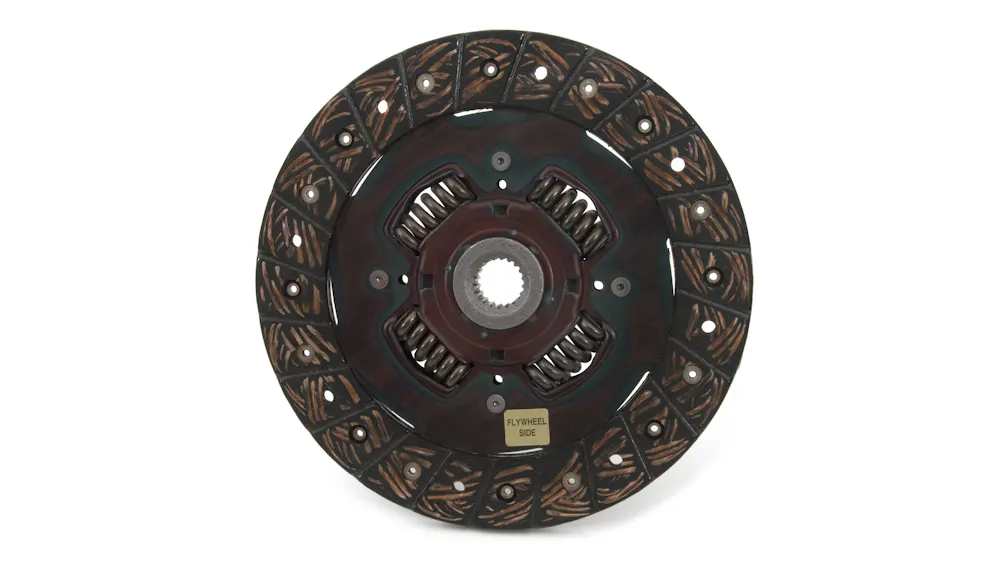

Disc Material: Organic
Disc Type: Full face
Disc Type Sprung Solid: Sprung
Flywheel Step Type: FLAT
Friction Surface Configuration: FLAT

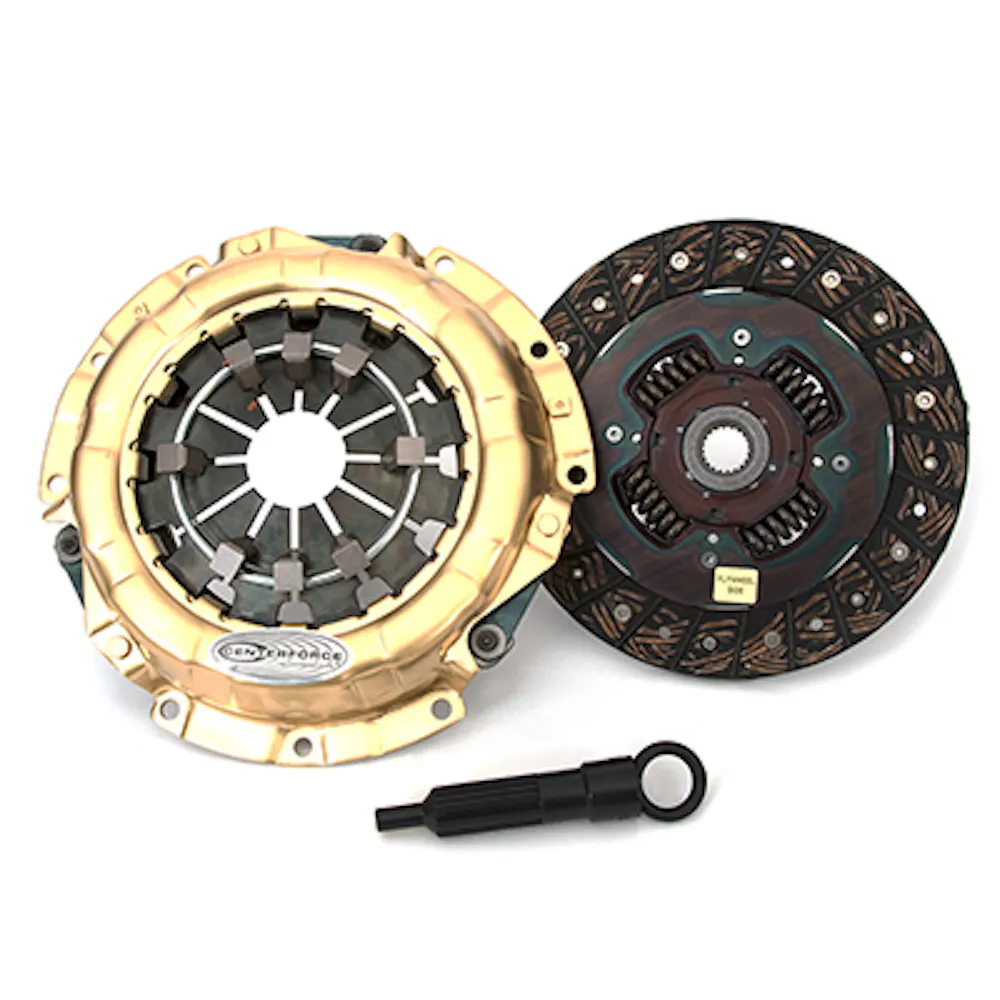

Includes: Pressure Plate, Disc, Alignment tool.
Input Shaft Diameter: 7/8
Input Spline Quantity: 20
Made In The USA: Assembled
Material: Cast Iron Pressure Plate / Organic Friction
Outside Diameter of Friction Surface: 215
Outside Diameter of Friction Surface (Metric): 215
Outside Diameter of Friction Surface (Standard): 8-1/2
Replaceable Friction Surface: N
SFI 1.1 Approved: N
Spline Diameter and Tooth Count: 7/8"-20
Title: Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 207 ft/lbs Capacity, 8.500in Dia., 20-Spline, Fits Geo/Suzuki Sidekick and Tracker 1.6L
Torque Capacity: 207
