Centerforce · CF010517
Part #: CF010517
UPC: 788442013023
Log in for inventory
Notify me when this item is in stock.

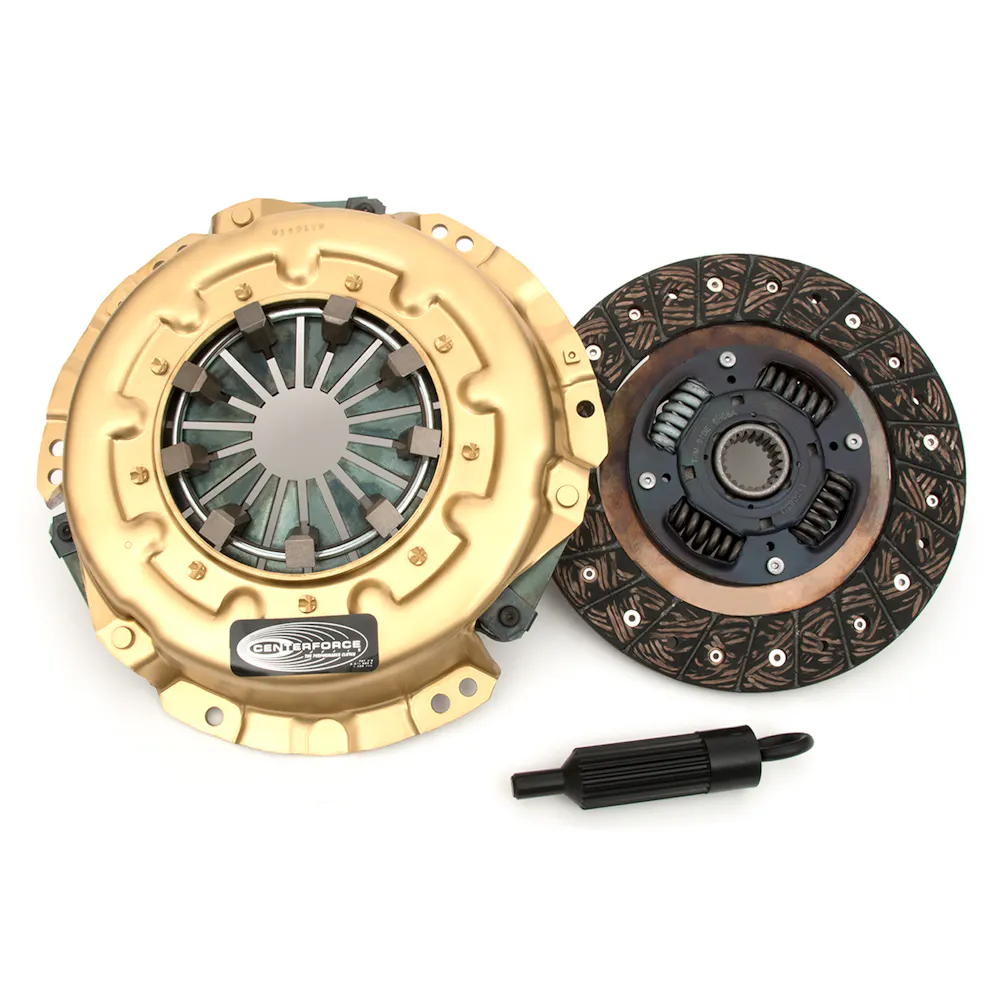

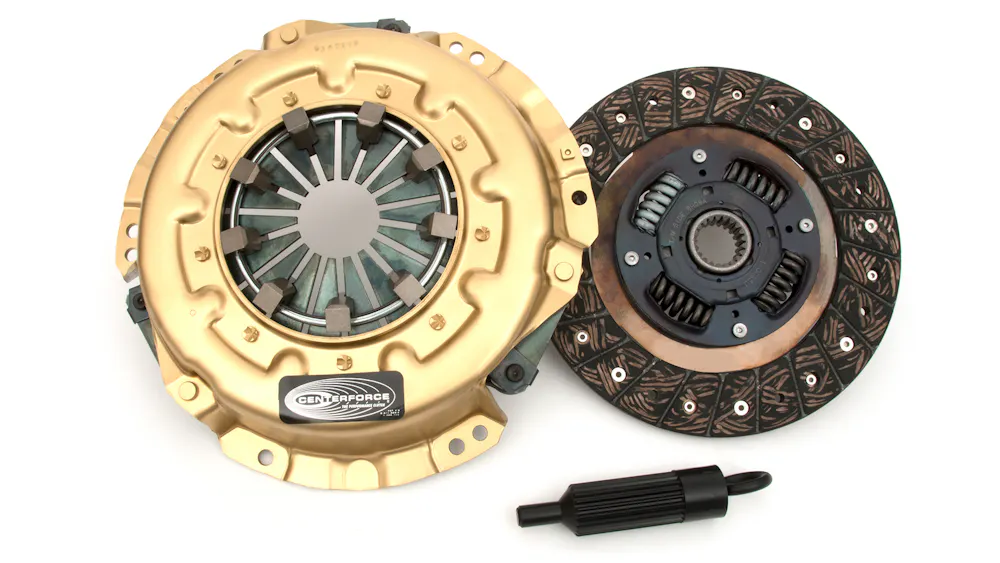

Description: Centerforce(R) I, Clutch Pressure Plate and Disc Set; The Centerforce(R) I Clutch Series is designed as a high-quality stock replacement for applications with stock engines or mild power increases from minor bolt-on modifications.
Description:
Description
The Centerforce(R) I Clutch Series utilizes a full facing disc with premium friction material and is designed as a high-quality entry-level performance clutch for those in need of a superior stock replacement. Using the Centerforce centrifugal weights (where applicable), the Centerforce Stage 1 clutch system is perfect for applications with stock engines or mild power increases from minor bolt-on modifications. Pressure plate and disc sold separately on some applications. The Torque Figures for Centerforce I Pressure Plates are based and calculated in conjunction with a Centerforce I & II Clutch Disc.
Application summary
| Year | Make / model |
|---|---|
| 1984-1995 | Toyota 4Runner |
| 1972-1983 | Toyota Celica |
| 1972-1981 | Toyota Corona |
| 1972-1995 | Toyota Pickup |
| 1984-1989 | Toyota Van |
Specifications
- GTIN
- 00788442013023
- Weight
- 14.4 lb
- Height
- 4 in
- Length
- 14 in
- Width
- 14 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- AAM Standard Pack
- 1
- Alignment Tool Included
- Yes
- Attribute Data
- 2
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Bolt Pattern
- 25
- Clutch Disc Diameter
- 224
- Counterweight Assist
- YES
- Disc Material
- Organic
- Disc Type
- Full face
- Disc Type Sprung Solid
- Sprung
- Flywheel Step
- 0.018
- Flywheel Step Type
- STEP
- Friction Surface Configuration
- STEP
- Includes
- Pressure Plate, Disc, Alignment tool.
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 21
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Organic Friction
- Outside Diameter of Friction Surface
- 224
- Outside Diameter of Friction Surface (Metric)
- 224
- Outside Diameter of Friction Surface (Standard)
- 8-7/8
- Replaceable Friction Surface
- N
- SFI 1.1 Approved
- N
- Spline Diameter and Tooth Count
- 1-1/8"-21
- Title
- Centerforce ? I, Premium Clutch Pressure Plate and Disc Set, 209 ft/lbs Capacity, 8.875in Dia., 21-Spline, Fits Toyota Cars and Trucks 4/6 Cyl
- Torque Capacity
- 209
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
1984-1995 Toyota 4Runner; 1972-1983 Toyota Celica; 1972-1981 Toyota Corona; 1972-1995 Toyota Pickup; 1984-1989 Toyota Van
