Centerforce · 838264077
Part #: 838264077
UPC: 788442034783
Log in for inventory
Notify me when this item is in stock.

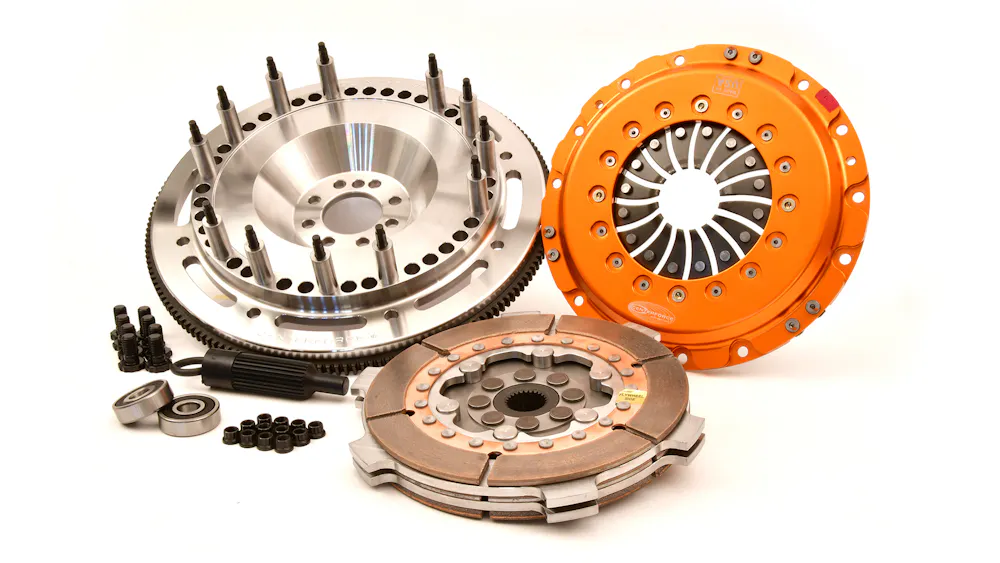

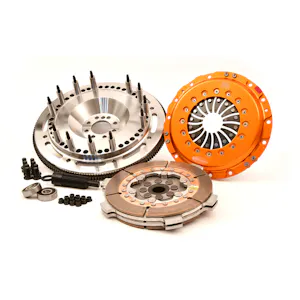

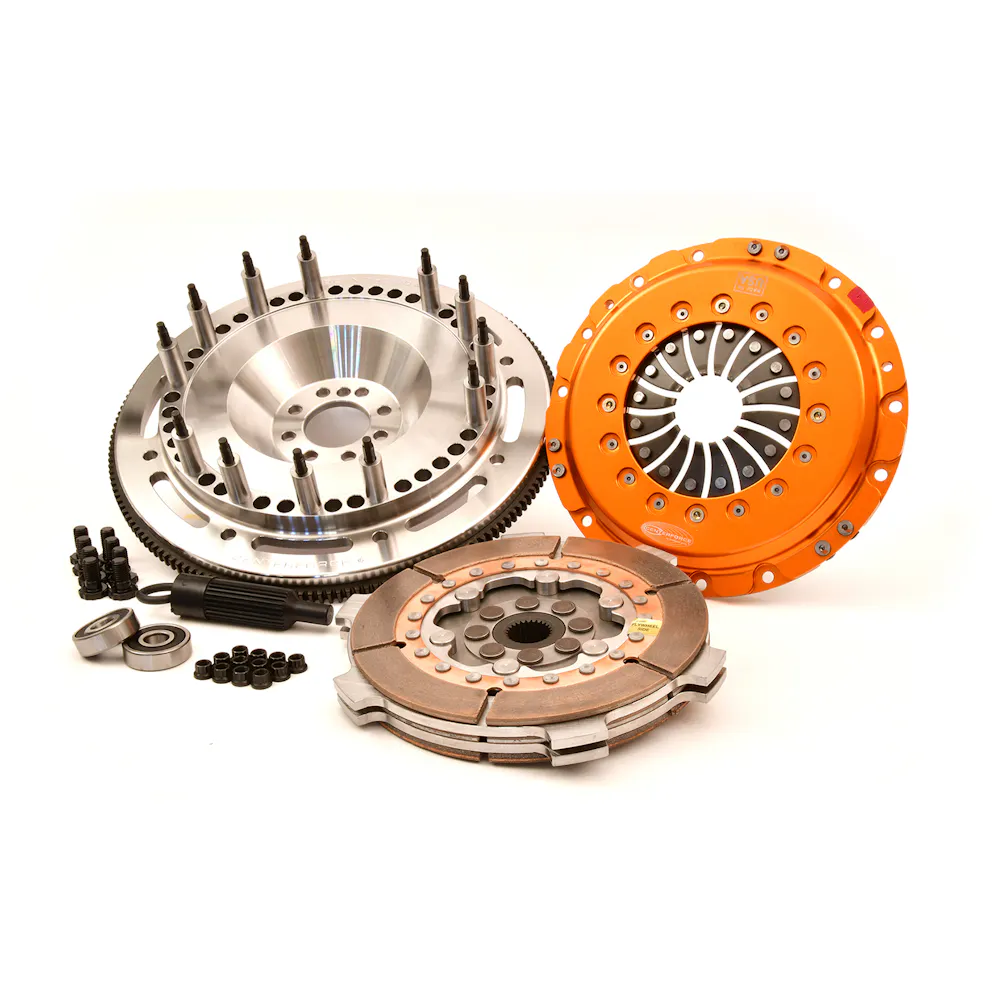

Description: TRIAD(R) XDS, Clutch and Flywheel Kit; The Centerforce(R) TRIAD XDS (eXtreme Drive System) 8.75 Inch patented multi-disc clutch offers a smaller and lighter system for quick revving vehicles with engine torque levels from 500 to 1200 ft/lbs.
Description:
Description
The Centerforce(R) TRIAD XDS 8.75" triple disc clutch has been developed for vehicles requiring a holding capacity of 500 to 1200 ft/lbs of torque at the crank. The billet pressure plate features our patented centrifugal weight system (where applicable) for superior clamp load over stock and our patented ball bearing actuated pressure plate (where applicable) providing light pedal effort. The solid hub (possible gear noise) disc pack is equipped with Kevlar full facing friction material providing increased holding capacity. TRIAD XDS clutches are equipped with a lightened billet steel flywheel providing low inertia resulting in quicker RPM's. Due to the aggressive nature of this race inspired clutch, vehicles may experience some floater noise and/or chatter during operation. Components are designed, machined and assembled in the USA. TRIAD XDS clutches are match balanced and ready for installation using the included ARP fasteners.
Application summary
| Year | Make / model |
|---|---|
| 2016-2018 | Chevrolet Camaro |
| 2014-2019 | Chevrolet Corvette |
Specifications
- GTIN
- 00788442034783
- Weight
- 50.9 lb
- Height
- 5.5 in
- Length
- 18 in
- Width
- 18 in
- EO
- Legal US
- Life cycle
- Available to Order
- AAM brand code
- CEN
- Warehouse brand code
- CEN
- AAIA brand code
- BDPL
Attributes
- Alignment Tool Included
- Yes
- California Proposition 65
- WARNING: Cancer - www.P65Warnings.ca.gov
- Clutch Disc Diameter
- 222
- Counterweight Assist
- No
- Crankshaft Bolt Hole Quantity
- 8
- Disc Type Sprung Solid
- Solid
- Flywheel Crank Bolt Size
- MM11 x 1.50 x 23
- Input Shaft Diameter
- 1-1/8
- Input Spline Quantity
- 26
- Made In The USA
- Assembled
- Material
- Cast Iron Pressure Plate / Full Face Metalic Friction
- Mounting Hardware Included
- Yes
- Outside Diameter
- 14.096
- Pilot Bushing Included
- Yes
- Replaceable Friction Surface
- N
- Ring Gear O.D
- 14.096
- Ring Gear O.D.
- 14.105
- Ring Gear OD
- 14.096
- Ring Gear Tooth Count
- 168
- Title
- Centerforce TRIAD ? XDS, Extreme Multi-Disc Clutch and Flywheel Kit, 168 Tooth Gear, 8 Bolt Crank, 1100 ft/lbs Capacity, 8.75in Dia., 26-Spline, Fits Chevrolet Camaro and Corvette 6.2L
- Tooth Quantity
- 168
- Torque Capacity
- 1100
Fitment status
Select a vehicle or engine to see whether this part applies to your application.
Application summary
2016-2018 Chevrolet Camaro; 2014-2019 Chevrolet Corvette
